Philips BT3600 Manual de usuario

www.philips.com/support

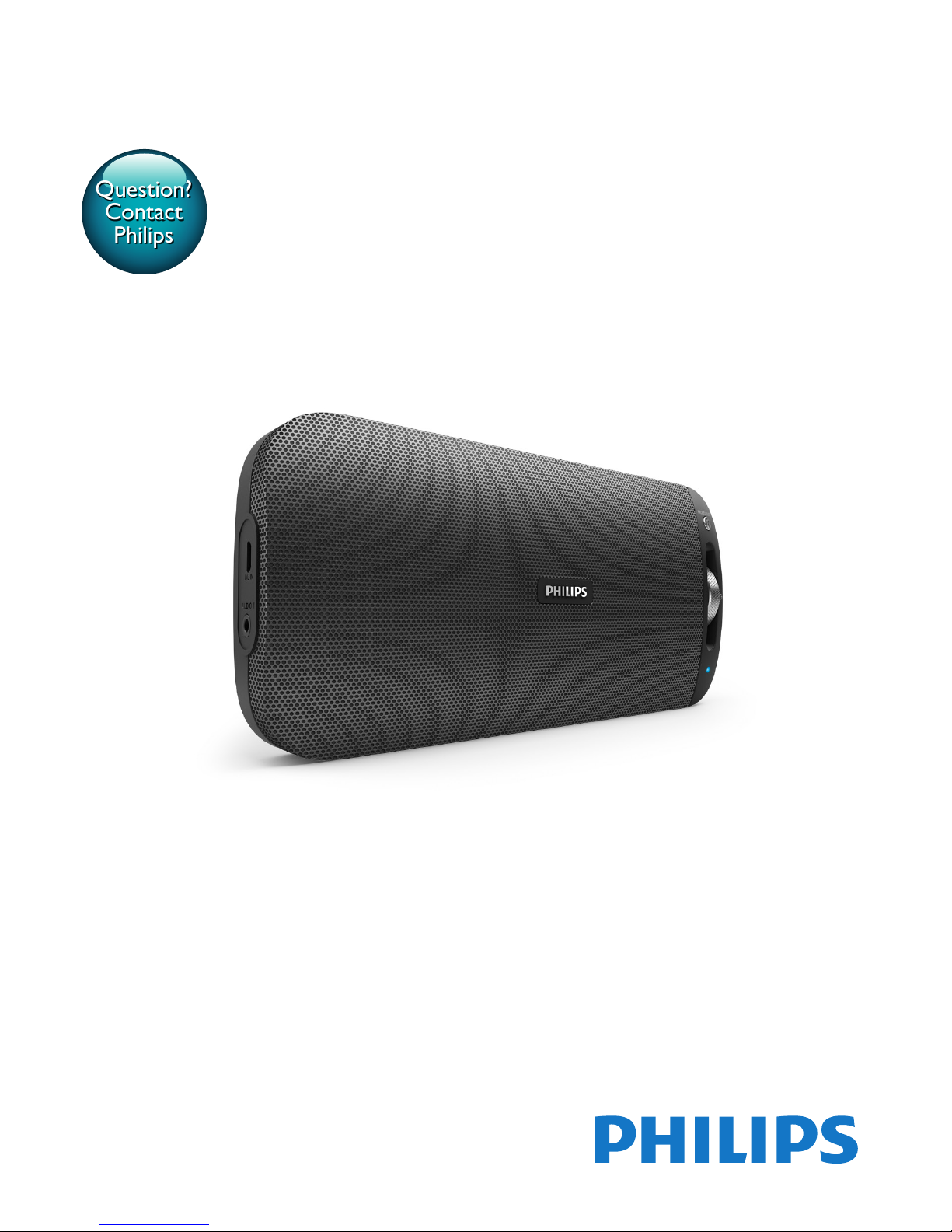

BT3600

User manual

Always there to help you

Question?

Contact

Philips

1EN

Contents

1 Important 2

2 Your Bluetooth speaker 3

Introduction 3

What's in the box 3

Overview of the speaker 4

3 Get started 5

Place the speaker 5

Charge the built-in battery 5

Turn on/off 5

4 Use Bluetooth devices 6

Connect a device 6

Connect two Bluetooth devices

simultaneously 7

Play from Bluetooth device 7

Control your phone call 7

5 Listen to an external device 8

6 Product information 9

Specications 9

7 Troubleshooting 10

General 10

About Bluetooth device 10

8 Notice 11

Compliance 11

Care of the environment 11

Trademark notice 12

2EN

1 Important

Warning

• Never remove the casing of this speaker.

• Never lubricate any part of this speaker.

• Never place this speaker on other electrical equipment.

• Keep this speaker away from direct sunlight, naked

amesorheat.

• Do not use this speaker near water.

• Make sure that there is enough free space

around the speaker for ventilation.

• Only use attachments or accessories

speciedbythemanufacturer.

• The battery shall not be exposed to

excessiveheatsuchassunshine,reorthe

like.

• The speaker shall not be exposed to

dripping or splashing.

• Do not place any sources of danger on

thespeaker(e.g.liquidlledobjects,lighted

candles).

Note

• The type plate is located on the back of the product.

3EN

2 Your Bluetooth

speaker

Congratulations on your purchase, and

welcometoPhilips!Tofullybenetfromthe

support that Philips offers, register your product

at www.philips.com/welcome.

Introduction

With this speaker, you can

• enjoyaudiofromyourBluetooth-enabled

devices or other external audio devices;

and

• control the incoming phone call through

Bluetooth connection.

What's in the box

Check and identify the contents of your

package:

• Main unit

• USB cable

• Short user manual

• Safetyandnoticeleaet

4EN

Overview of the speaker

a DC IN

• Recharge the built-in battery.

b AUDIO IN

• Connect an external audio device.

c MULTIPAIR

• Press and hold for two seconds to

enter pairing mode.

• Press and hold for two seconds to

clear idle Bluetooth devices connected

to the speaker.

• Press to answer an incoming call.

• Press and hold for two seconds to

rejectanincomingcall.

• During a call, press to end the current

phone call.

• During a call, press and hold for two

seconds to transfer the call to your

mobile device.

d /Volume knob

• Turn the speaker on or off.

• Adjustvolume.

e LED indicator

• Indicate system status.

f NFC

• Connect a NFC compatible device

through Bluetooth.

5EN

3 Get started

Always follow the instructions in this chapter in

sequence.

Place the speaker

Toplacethespeakeronaatsurface,pullout

the retractable stand from the backside of the

speaker.

Charge the built-in battery

The speaker is powered by the built-in

rechargeable battery.

Note

• Before use, fully charge the built-in battery.

• The micro USB socket is for charging only.

• Rechargeable battery has a limited number of charge

cycles. Battery life and number of charge cycles vary by

use and settings.

Connect the USB cable between

• the DC IN socket on the speaker, and

• a USB socket on a computer.

DC IN

The LED indicator indicates the battery status.

Mode LED indicator Battery status

"Off" mode Solid red Under charging

Off Fully charged

"Bluetooth"

or "Audio-in"

mode

Flashing red Low battery

Turn on/off

Rotate the knob clockwise or anticlockwise

to turn the speaker on or off.

» When the speaker is turned on, the

LEDindicatorashes.

Note

• During play, rotate the knob to increase or decrease

volume.

• If there is no operation for 15 minutes, the speaker

switches to standby mode automatically for power

saving.

OFF

6EN

4 Use Bluetooth

devices

With this speaker, you can listen to audio from

Bluetooth-enabled devices and control the

incoming call through Bluetooth.

Connect a device

Note

• Before pairing a device with this speaker, read its user

manual for Bluetooth compatibility.

• The speaker can memorize a maximum of four paired

devices.Thefthpaireddevicewillreplacetherstone.

• Make sure that Bluetooth function is enabled on your

device, and your device is set as visible to all other

Bluetooth devices.

• Any obstacle between this speaker and a Bluetooth

device can reduce the operational range. Keep away

from any other electronic device that may cause

interference.

• The operational range between this speaker and a

Bluetooth device is approximately 10 meters (30 feet).

• Make sure that no audio-in cable is connected to the

AUDIO IN socket.

Connect a device through NFC

Near Field Communication (NFC) is a

technology that enables short-range wireless

communication between various NFC

compatible devices, such as mobile phones and

IC tags.

If your Bluetooth device supports NFC, you can

connect it with this speaker easily.

1 Turn on the speaker.

» TheLEDindicatorashesblue.

2 Enable the NFC feature on your Bluetooth

enabled device (refer to the user manual

of the device).

3 Tap the NFC tag on the speaker with the

NFC area of your Bluetooth device.

4 On your Bluetooth device, accept the

pairing request with "BT3600". If necessary,

input "0000" as the pairing password.

5 Follow the on-screen instructions to

complete the pairing and connection.

» After successful pairing and connection,

the speaker beeps twice, and the LED

indicator turns solid blue.

Connect a device manually

1 Turn on the speaker.

» TheLEDindicatorashesblue.

2 On your Bluetooth device, enable

Bluetooth and search for Bluetooth devices

(refer to the user manual of the device).

3 When [Philips BT3600] is displayed on

your device, select it to start pairing and

connection. If necessary, enter default

password “0000”.

» After successful pairing and connection,

the speaker beeps twice, and the LED

indicator turns solid blue.

• Ifyoufailtond[Philips BT3600] for

pairing, press and hold MULTIPAIR

for two seconds to enter pairing mode,

and then try again.

To disconnect the Bluetooth-enabled device:

• Disable Bluetooth on your device; or

• Move the device beyond the

communication range.

» The speaker beeps twice, and the LED

indicatorashes.

7EN

Connect two Bluetooth

devices simultaneously

The speaker can connect to two Bluetooth

devices at the same time.

1 Connect one Bluetooth device.

2 Press and hold MULTIPAIR for two

seconds.

» The speaker is ready to pair with one

more Bluetooth device.

» TheLEDindicatorashesblue.

3 Connect the other Bluetooth device.

• If the speaker is connected to two devices

and only one device is playing music, press

and hold MULTIPAIR for two seconds.

» The speaker disconnects the idle

device, and gets ready to pair with

another device.

• If the speaker is connected to two devices

and both are not playing music, press and

hold MULTIPAIR for two seconds.

» Thespeakerdisconnectstherst

paired device, and gets ready to pair

with another device.

LED indicator Description

Flashing blue quickly Pairing

Flashing blue slowly Connecting

Solid blue Connected

2 sec.

Play from Bluetooth device

Note

• If there is an incoming call on the connected mobile

phone, music play pauses.

After successful Bluetooth connection, play

audio on any connected Bluetooth device.

» Audio streams from your Bluetooth

device to the speaker.

Control your phone call

After Bluetooth connection, you can control an

incoming call with this speaker.

Button Function

Press to answer an incoming call.

Press and hold for two seconds to

rejectanincomingcall.

During a call, press to end the current

call.

During a call, press and hold for two

seconds to transfer the call to your

mobile device.

Note

• Music play pauses when there is an incoming call, and

resumes when your phone call ends.

8EN

5 Listen to an

external device

With this speaker, you can also listen to an

external audio device such as an MP3 player.

Note

• Make sure that music playback through Bluetooth is

stopped.

1 Connect an audio input cable (not

supplied) with a 3.5 mm connector on

both ends to

• the AUDIO IN socket on this speaker,

and

• the headphone socket on the external

device.

2 Play audio on the external device (refer to

its user manual).
