PSC Windows 98SE Installation Notes

Installing a Philips Sound card (PSC 604 or 605) in a system that has Windows

98SE may require that a 98SE installation CD be inserted into a CD drive during

the sound card installation. This is a normal process required by the OS for the

purpose of loading additional sound processing files.

It is recommended that a Windows 98SE installation CD be made available

before installing a PSC. However if a 98SE install CD is not available an

alternate installation method is available. This method will allow the PSC to

install properly but will not load the Game Port driver. You can return later when

a Windows 98SE installation CD is available to install the Game Port driver.

Important Note: Several latent issues that cause the 98SE installation process

to be problematic have been resolved with V4.00 and higher. We recommend the

latest driver from the Philips website

http://www.pcsound.philips.com/support.html be downloaded. After obtaining

the latest driver click on the appropriate link below for guidance with a particular

issue when installing a PSC604 or 605 on a Windows 98SE based system.

• Installing “with” an available Windows 98SE installation CD.

• Installing “without” a Windows 98SE installation CD.

• Canceling the PSC installation.

• Installing the Game Port driver.

• One Minute timeout message.

Installing “with” an available Windows 98SE

installation CD.

1. Upon boot up, after installing the PSC hardware, cancel the “Found New

Hardware Wizard” when it appears.

2. Insert the Philips installation CD. Note: If using a driver from the web double

click the Web Driver .exe file and skip to step 4.

3. Select “Install Philips Sound Card Drivers” from the autolauncher panel when

it appears.

4. Proceed with the installation normally until the following panel appears.

5. Insert the Windows 98SE CD into a CD drive.

6. Click OK.

7. The following “Copying Files” panel will appear:

8. Use the Browse button to set the appropriate “Copy files from:” location.

9. The following “Open” panel will appear after clicking the Browse button.

10. Select the appropriate CD drive, the drive that contains the Windows CD.

11.Select the “win98” folder.

12.The required file when located by the OS will be displayed as in the example

base5.cab file above.

13.Click the OK button. The following “Copying files” panel will appear.

14. The “Copy files from:” location is now properly set. Click the OK button.

15.The installation will now proceed normally, follow on-screen instructions to

complete the PSC installation process.

Installing “without” a Windows 98SE installation CD

NOTE: This is not the recommended installation method but is

provided here as a work around solution until a Windows 98SE

install CD can be obtained.

1. Upon boot up, after installing the PSC hardware, cancel the “Found New

Hardware Wizard” when it appears.

2. Install the Philips installation CD. Note: If using a driver from the web double

click the Web Driver .exe file and skip to step 4.

3. Select “Install Philips Sound Card Drivers” from the autolauncher panel when

it appears.

4. Proceed with the installation normally until the following panel appears.

5. (We are assuming there is no 98SE CD to install); Click OK.

6. The following “Copying Files” panel will appear:

7. Click the Skip File button.

8. Continue clicking the “Skip File” button until all files have been skipped. The

“Insert Disk” panel may re-appear, simply click the “OK” button then

continue clicking the “Skip File” button until all files have been skipped.

9. The installation will now proceed normally, follow on-screen instructions to

complete the PSC installation process.

10. Note: This method will result in the sound card being properly installed

however the Game Port will not.

11.When a Windows 98SE installation CD is obtained you can return to the

Device manager to install the Game Port driver. Refer to section Installing the

Game Port driver.

Canceling the PSC installation

If during the PSC installation you determine that a Windows CD is not available

you may cancel the installation. Follow the simple steps below to cancel.

1. When the Insert CD panel appears click the OK button.

2. We are assuming there is no 98SE CD to insert.

3. A “Copying Files” panel will appear:

4. Click the “Cancel” button.

5. After some delay (Installer is cleaning up) the following panel will appear:

6. The installer removes all installed PSC files and reverses all changes made

during the installation.

7. Follow on-screen instructions to complete the abort process. NOTE: It is

important to perform a reboot before attempting to reinstall the PSC drivers.

8. When a Windows 98SE CD is obtained the PSC installation process can be re-

initiated. Please be aware that there is an alternative method in the event a

98SE installation CD cannot be obtained. See section Installing “without” a

Windows 98SE installation CD.

Installing the Game Port driver

During a PSC installation process if game port files were not loaded from the

98SE CD the game port will not be installed. The “Gameport Joystick” key in the

Device Manager will have a warning symbol indicating the driver is not installed.

See the example below. To install the Game Port driver follow the steps below.

1. Highlight the “Gameport Joystick” key then click the “Remove” button.

2. Click the “Refresh” button.

3. The Gameport Joystick driver installation will now proceed, follow on-screen

instructions to complete the Game Port driver installation.

4. Insert the Windows 98SE CD into an available drive when prompted. Click

the “OK” button. The following panel will appear.

5. Browse to the appropriate folder on the 98SE CD when the “Copying Files

panel comes up.

6. Point to the correct drive and folder.

7. Make sure the file name is highlighted as above.

8. Click the “OK” button on the “Open” & “Copying Files” panels.

9. The Gameport installation will complete.

One Minute timeout message

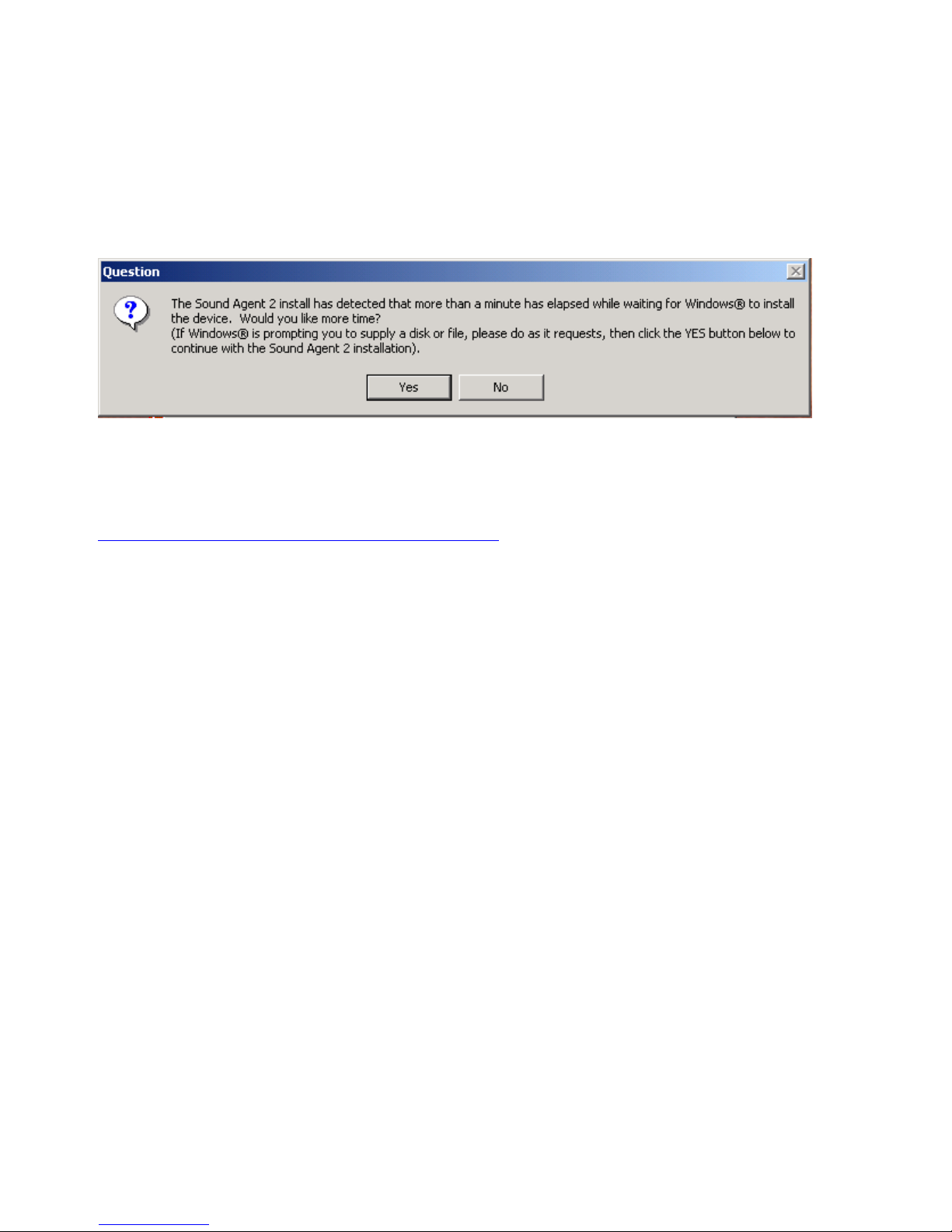

Early versions of installation software posted a message box (see below) that

asked the user if more time is needed to insert the Windows 98SE CD.

This method of operation is problematic and has been eliminated with V4.00 and

above. If you encounter the above message we recommend that you download

the latest driver for your PSC from the

http://www.pcsound.philips.com/support.html webpage.
