User Manual

Taking a First Look

ProntoNEO is an Intelligent Remote Control that can be used for

virtually all audio and video devices that understand infrared (IR)

remote control signals. Its easy-to-use LCD touch screen and its

intuitive interface make it a perfect remote control for every user.

In the memory of ProntoNEO, IR codes are stored to activate

different brands for all kinds of video and audio devices.

ProntoNEO is set up by default to operate with Philips and

compatible devices. When you have other brands, you simply

define the brands of your devices when you use ProntoNEO for the

first time. See ‘Defining the Brands of Your Devices’ on p. 15 for

more details.

ProntoNEO can also learn IR codes from your existing remote

controls. ProntoNEO can receive and store the IR codes by means

of its learning eye. See ‘Learning Commands’ on p. 18 for more

details.

Recording macros is another feature of the ProntoNEO. If you wish

to assign a sequence of commands to a single button, you can

record a macro. See ‘Recording Macros’ on p. 20 for more details.

With the NEOedit software for PC you can create your own screens

and define a personal look. NEOedit’s on line help system will

guide you through the process. In the future NEOedit will also

allow you to upgrade your ProntoNEO. You can find NEOedit on

the included CD-ROM and on the Philips website

http://www.pronto.philips.com. See ‘NEOedit’ on p. 25 for more

details.

ProNeo 01-08-2001 14:40 Pagina 2

User Manual

Taking a First Look

The Batteries

When you use ProntoNEO for the first time, you have to install the batteries.

The ProntoNEO requires 3 AA-batteries (3 x 1,5 V) to function. You can use either

primary or rechargeable batteries.

1 Remove the battery cover by pressing and sliding.

2 Place the batteries in the battery compartment.

3 Place the battery cover back on.

After a few seconds, ProntoNEO starts up automatically and an Introduction

screen appears. ProntoNEO beeps twice to indicate that it has started up

successfully.

ProNeo 01-08-2001 14:40 Pagina 3

User Manual

The Appliance

On the ProntoNEO you can perform numerous actions by means of soft and hard

buttons.

• Soft buttons are the buttons you can tap on the LCD touch screen.

• Hard buttons are the buttons located below and on the left side of the LCD

touch screen.

• The 4 hard buttons just below the touch screen are the Mode button, 2

context specific buttons and the Device button. Their label is displayed at

the bottom of the touch screen.

• The hard buttons located at the bottom of the ProntoNEO are Volume

Up/Down, Channel Up/Down, Menu, Mute and Function.

• The hard buttons located on the left side of the ProntoNEO are the

Backlight button and the Page Up/Down buttons.

Taking a First Look

Sending LED Learning eye

Serial port for

communicating

with a PC

Backlight button to

activate the display

Page Up button

Page Down button

LCD touch screen

Soft buttons

Device button

to go to the

Device Overview

Hard buttons

Mode button

to switch to another mode

2 context

specific buttons

ProNeo 01-08-2001 14:40 Pagina 4

User Manual

Taking a First Look

The Touch Screen

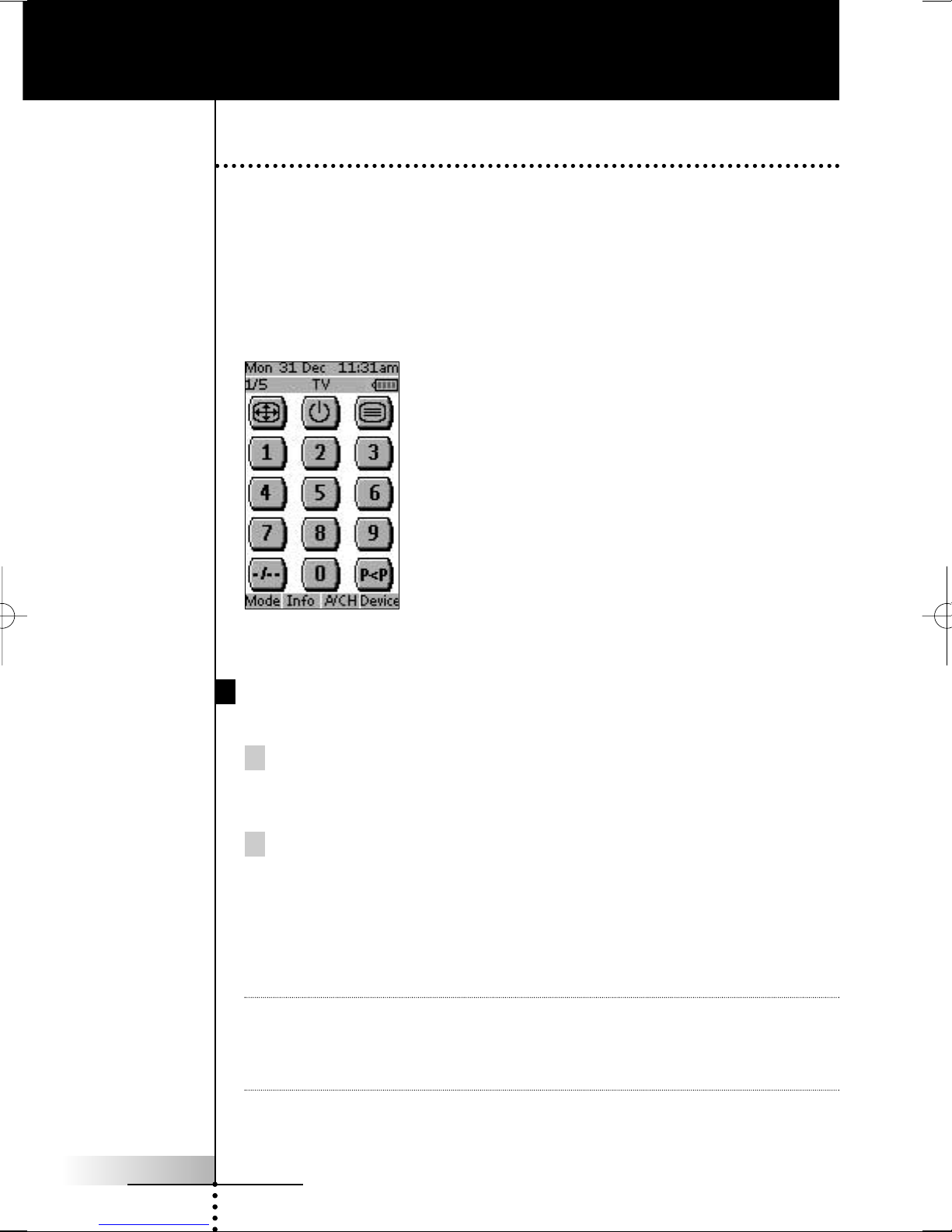

The LCD touch screen is divided into different sections:

Here the date and time are displayed when you

are operating your devices.

In this area you can see:

· the page number;

· the device you are operating;

· the battery level indicator.

With these soft buttons you operate your device.

These are the labels of the 4 hard buttons below

the touch screen.

ProNeo 01-08-2001 14:40 Pagina 5

User Manual

Using ProntoNEO

Activating the ProntoNEO

When the ProntoNEO is switched on for the first time or when it is reset, the

Introduction screen appears for a few seconds. The ProntoNEO then automatically

switches to the Device Overview that displays all available devices on your

ProntoNEO. You can return to this Device Overview from within other screens by

pressing the Device button. See ‘Activating the Device Overview’ on p. 8 for more

details.

Fig 1: Device Overview

Turning on the Display and the Backlight

ProntoNEO’s display can be activated in two different ways:

Tap the touch screen gently with your finger or a blunt, soft object like

a pencil eraser.

The display is activated.

Press the Backlight button on the left side of the ProntoNEO.

The display and the backlight are activated.

If the LCD touch screen stays blank or becomes black when turning on the display,

read the next section ‘Changing the LCD Contrast’ to adjust the contrast of the LCD

touch screen.

Note ProntoNEO has a timeout feature: the LCD touch screen and the backlight

automatically turn off to save power.

See ‘Adjusting the Settings’ on p. 11 to adjust the timeout for the LCD and the

backlight.

ProNeo 01-08-2001 14:40 Pagina 6

User Manual

Using ProntoNEO

Changing the LCD Contrast

To adjust the LCD contrast on the touch screen:

1 Press and hold the Backlight button.

The screen lights up.

2 While still holding the Backlight button, press the Page Up button once

to increase the LCD contrast one level.

The LCD contrast is adjusted one level up.

–or–

Press the Page Down button once to decrease the LCD contrast one

level.

The LCD contrast is adjusted one level down.

3 Release the Backlight button when the contrast is satisfactory.

The LCD contrast can be adjusted 16 levels.

Note To adjust the contrast multiple levels, you have press the Page Up or Page Down

button multiple times. When you press and hold the Page Up or Page Down

button, the LCD contrast will only change one level.

ProNeo 01-08-2001 14:40 Pagina 7

User Manual

The Battery Status

The battery icon indicates the status of your batteries.

When the battery status is low, the Low Battery icon appears at the top of

the touch screen.

You can still operate your devices, but you cannot adjust the settings, define

brands, learn commands or record macros anymore. When you try to perform these

actions, a message screen appears.

Replace the batteries to make the ProntoNEO fully

functional again. See ‘The Batteries’ on p. 3 to replace

the batteries.

Operating Devices

To operate devices on your ProntoNEO you have to switch to the Device

Overview. This screen displays the available devices like TV, VCR, DVD, PreAmp

and so on.

Activating the Device Overview

Press the Device button.

The Device Overview appears, showing the available devices in the

ProntoNEO.

Fig. 2: The Device button

Using ProntoNEO

ProNeo 01-08-2001 14:40 Pagina 8

User Manual

Selecting a Device on the Device Overview

Tap the soft button of the device you want to operate.

The first page of the selected device appears. See ‘Using the Page Up and

Page Down Buttons’ on p. 10 to go to another page of the device.

You operate devices using the buttons on your ProntoNEO:

• Soft buttons (touch screen buttons);

• Hard buttons.

Using the Soft Buttons

By tapping the soft buttons on the LCD touch screen you send IR commands to the

device you have selected.

The name of the active device is indicated at the top of the touch screen.

Note You can operate the soft buttons in the same way you operate hard buttons on a

conventional remote control. When you keep the soft button pressed instead of

tapping it, ProntoNEO keeps sending the IR command.

Using the Hard Buttons

Hard Buttons can be operated at any time, even without turning on the LCD touch

screen.

Using ProntoNEO

Device button:

To activate the

Device Overview.

Channel Up and

Channel Down

2 context specific buttons:

Change function depending on the

device you are operating.

Mode button:

Press and hold 3 seconds to

activate the Mode screen.

Function button:

Can be programmed at will.

By default, it activates the

Device Overview.

Mute

Menu buttons:

To perform actions in the menu of a device, like the on

screen display of a TV or a VCR display. Use the cursor

to move up, down, left or right in the menu and press

OK to select.

Volume Up and

Volume Down

ProNeo 01-08-2001 14:40 Pagina 9

User Manual

Using the Page Up and Page Down Buttons

The controls to operate your devices are mostly located on different pages. You

can scroll through these pages using the Page Up and Page Down buttons on the

left side of the touch screen. The page number on the left of the touch screen

indicates the active page number and the total number of screens, for example

1/6.

Using the Backlight Button

Use the Backlight button to activate ProntoNEO’s display and backlight. See also

‘Turning on the Display and the Backlight’ on p. 6.

Working with Modes

ProntoNEO starts up in Use mode. In this mode you operate your devices. For

customizing the ProntoNEO (adjusting the settings, defining brands, learning

buttons or recording macros) you have to switch to the appropriate mode.

Note When switching between modes you will always return to the last active screen.

The ProntoNEO can be put into 5 different modes. These modes are:

Use mode For operating your devices. See ‘Operating Devices’ on p. 8.

Setup mode For changing the ProntoNEO system settings.

See ‘Adjusting the Settings’ on p. 11 for more details.

Brand mode For defining the brands of your devices using ProntoNEO’s

database. See ‘Defining the Brands of Your Devices’ on p. 15 for

more details.

Learn mode For learning commands from other remote controls. See ‘Learning

Commands’ on p. 18 for more details.

Macro mode For recording macros. You can assign multiple commands to one

single button. See ‘Recording Macros’ on p. 21 for more details.

Note Learning commands, defining brands and recording macros is only possible per

device. This means that you first have to select a specific device to perform these

actions.

1 On the Device Overview tap the soft button of the device you want to

customize.

The first page of the selected device appears.

2 Press and hold the Mode button for 3 seconds.

The Mode screen appears.

Using ProntoNEO

ProNeo 01-08-2001 14:40 Pagina 10

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Mando a distancia de Philips

Philips

Philips SRU 7040/10 Manual de usuario

Philips

Philips Pronto SBCRU930 Manual de usuario

Philips

Philips SRP5018 Manual de usuario

Philips

Philips SBC RU410 Manual de usuario

Philips

Philips SRP 3004/53 Manual de usuario

Philips

Philips RR1 GV Manual de usuario

Philips

Philips SRP1003WM/17 Manual de usuario

Philips

Philips SRP5016 Manual de usuario

Philips

Philips SRP1103/27 Manual de usuario

Philips

Philips Trilingual Front CoverArt PHBIG3 Manual de usuario

Philips

Philips PRESTIGO SRU8008 Manual de usuario

Philips

Philips Pronto SBCRU930 Manual de usuario

Philips

Philips MAGNAVOX PR1911B Manual de usuario

Philips

Philips SRU3030/10 Manual de usuario

Philips

Philips SBCRU890/00 Manual de usuario

Philips

Philips ProntoPro Next Generation Manual de usuario

Philips

Philips SRU5150/86 Manual de usuario

Philips

Philips SBC RU 538 Manual de usuario

Philips

Philips 29PT8423/12 Manual de usuario

Philips

Philips YKF406-001 Manual de usuario

Philips

Philips LivingColors 69164/31/PH Manual de usuario

Philips

Philips SRU5030/55 Manual de usuario

Philips

Philips SRP9232D/27 Manual de usuario

Philips

Philips SBCRU430/02D Manual de usuario

Manuales populares de Mando a distancia de otras marcas

Panasonic

Panasonic EUR7622KB0 Manual de usuario

Bang & Olufsen

Bang & Olufsen Beo4 Manual de usuario

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manual de usuario

Multiplex

Multiplex PROFI TX 9 Manual de usuario

One Remote

One Remote RMB4 Manual de usuario

FUTABA

FUTABA 9ZAP - PART2 Manual de usuario

HR Matic

HR Matic HR MULTI 3 Manual de usuario

Yamaha

Yamaha ACC-GNRST-30-20 Manual de usuario

EisSound

EisSound KBSOUND Manual de usuario

Marantz

Marantz RC101 Manual de usuario

Conrad

Conrad FS20 TC6 Manual de usuario

Anritsu

Anritsu MP1777A Manual de usuario

Niles

Niles WVC100 Guía de solución de problemas

RCA

RCA RCU1300 Manual de usuario

Bang & Olufsen

Bang & Olufsen BEO6 Manual de usuario

GE 94901 Manual de usuario

Onbon

Onbon YQ1-75 Manual de usuario

FUTABA

FUTABA R7108SB Instrucciones de instalación
