Philips RC1974503/00RF Manual de usuario

Philips Electronics Singapore Pte Ltd

Page 1 of 15

User Manual

Setup Procedures

Information For Used

2.4GHz RF Remote Control

(RC1974503/00RF) &

2.4GHz RF USB Receiver (OVU700001/00RF)

Philips Electronics Singapore Pte Ltd

Page 2 of 15

Table of contents

1. FCC Statatement Page 3 of 16

2. Setup Procedures Page 4 of 16

3. Information For Used Page 12 of 16

3.1 General Page 13 of 16

3.2 Stuck key function Page 13 of 16

3.3 Sleep mode Page 13 of 16

3.4 Key press Page 14 of 16

3.5 Pairing Page 14 of 16

Philips Electronics Singapore Pte Ltd

Page 3 of 15

1. FCC Statement

[Class B Device]

FCC Compliance

NOTE: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

No special accessory is required to enable the equipment to comply with the emission

limits.

Philips Electronics Singapore Pte Ltd

Page 4 of 15

2. Setup Procedures

Setup Procedures of 2.4GHz RF Remote Control

and 2.4GHz RF USB Receiver

Picture 1: USB port and 2.4GHz RF USB Receiver plug into USB port.

USB port 2.4GHz RF USB Receiver

Plug into USB

port

Philips Electronics Singapore Pte Ltd

Page 5 of 15

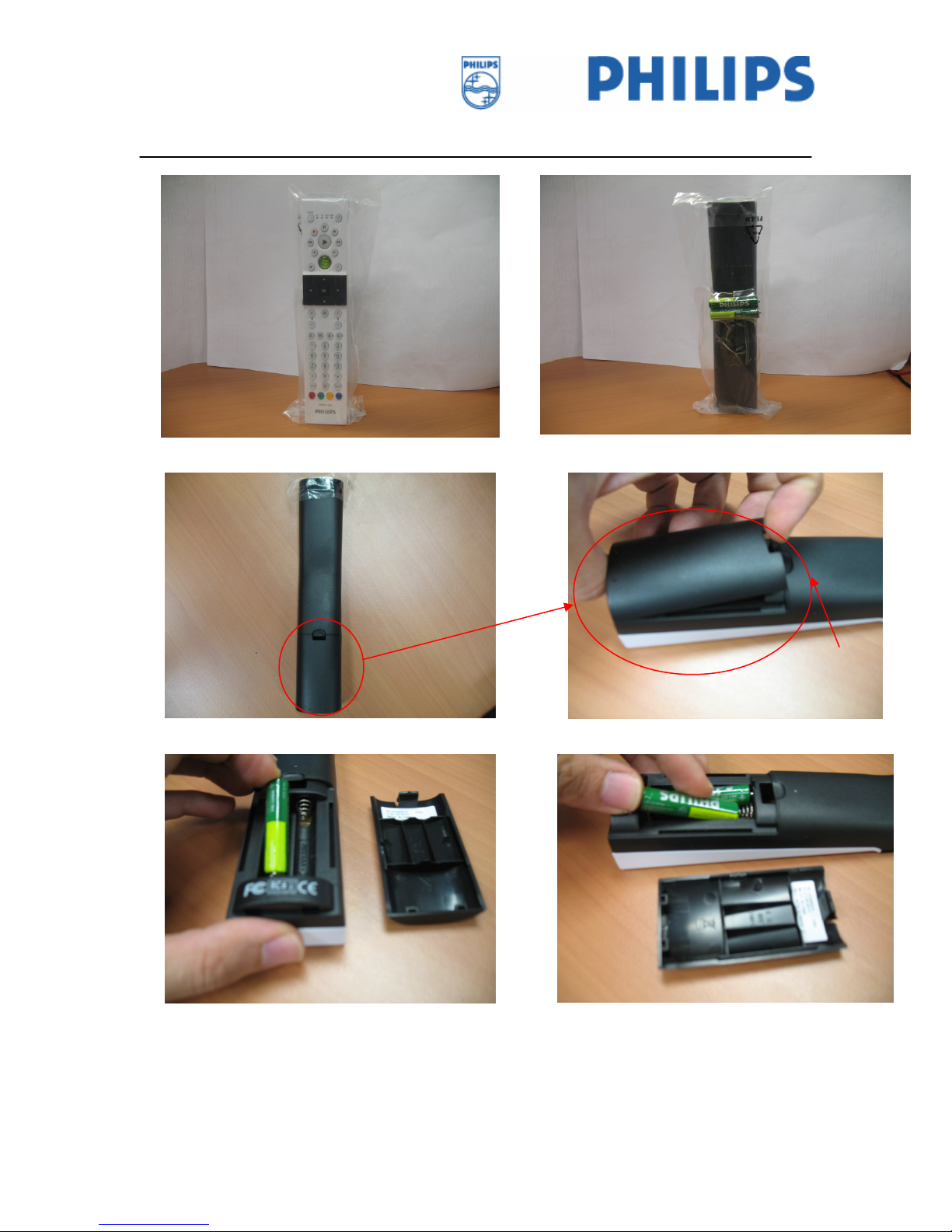

Picture 2: 2.4GHz RF Remote control with packaging (front and rear side).

Picture 3: Remove the battery lid by pressed the hook down the battery lid and lift it up.

Picture 4: Insert the batteries (AAA type) with correct polarity.

Press the hook down

and lift up the lid

Philips Electronics Singapore Pte Ltd

Page 6 of 15

Picture 5: Closed up the battery compartment with battery lid.

Picture 6: Lift up the notebook LCD display by release the catcher.

Picture 7: Press the switch to turn on the notebook.

Press to right hand

side to release the

catcher

Lift up the

LCD display

after release

the catcher

Philips Electronics Singapore Pte Ltd

Page 7 of 15

Picture 8: Process of loading Windows Vista.

Picture 9: Close the application as above by click the “X” icon at upper right hand side as Picture 10.

Picture 10: The “X” icon located at right hand side, upper corner.

Philips Electronics Singapore Pte Ltd

Page 8 of 15

Picture 11: Using cursor to click the “Start” icon located at left hand side, lower corner.

Picture 12: Select and click the “WordPad” application program.

Philips Electronics Singapore Pte Ltd

Page 9 of 15

Picture 13: The “WordPad” application software.

Picture 14: Press “Digit 5” and release the button on the 2.4GHz RF remote control

Philips Electronics Singapore Pte Ltd

Page 10 of 15

Picture 15: The WordPad display “5” for press and release button Digit 5 on 2.4GHz RF remote control.

Picture 16: After testing, before shutdown the note book, close all the application software as click the “X” icon located at

upper right hand corner and after that, click the icon “Don’t Save” to abort saving the file.

Picture 17: Click the “Start” icon then select the “f” icon.
