English

1ON/OFF ........................turns the CD recorder ON and OFF

2Disc tray

3SCROLL........................activates scrolling of text over the

display (once)

4DISPLAY......................selects display information/text

5ERASE..........................selects erasing mode

6FINALIZE ....................selects finalize mode

7Standby indicator

8Display..........................information screen

9CANCEL/DELETE ......- deletes tracks from a program

- deletes text in Menu mode

- returns to a higher level in the

0SOURCE ......................selects input source

!STORE/MENU ............- enters Menu mode

- stores Menu settings

@REC(ord) TYPE ............selects recording modes

#RECORD ......................starts recording, finalizing, erasing

$Q(Rewind)..............- searches backward

- cursor control in Menu/Prog.

review mode

%PLAY/PAUSE 2;......starts play/interrupts play or

recording

^STOP 9........................stops/clears a program

&R(FFwd)..................- searches forward

- cursor control in Menu/Prog.

review mode

*¡EASY JOG ™........- previous/next track (Play and

(rotate) Program mode)

- recording level control (recording)

- selects settings (menu on)

ENTER (push) ..............- plays selected tracks

- selects settings in Menu mode

- programs track numbers

(OPEN/CLOSE /..........opens/closes disc tray

Note: Unless stated otherwise, all controls are on the front of

the CD recorder. When provided on the remote control,

you can also use the corresponding buttons, after

selecting the CD recorder or separate CD player by

pressing CDR or CD.

1Connection to mains

2ANALOG IN ................connects to the line output of an

amplifier (left and right)

3ANALOG OUT CDR ....connects to the line input of an

amplifier (left and right)

4DIGITAL IN..................connects to the digital coaxial

output of an external CD player

5DIGITAL OUT CDR ....connects to the digital coaxial

input of e.g. amplifier or recording

device

6OPTICAL IN ................connects to the digital optical

output of an external CD player

Connections at the back

Controls on the front

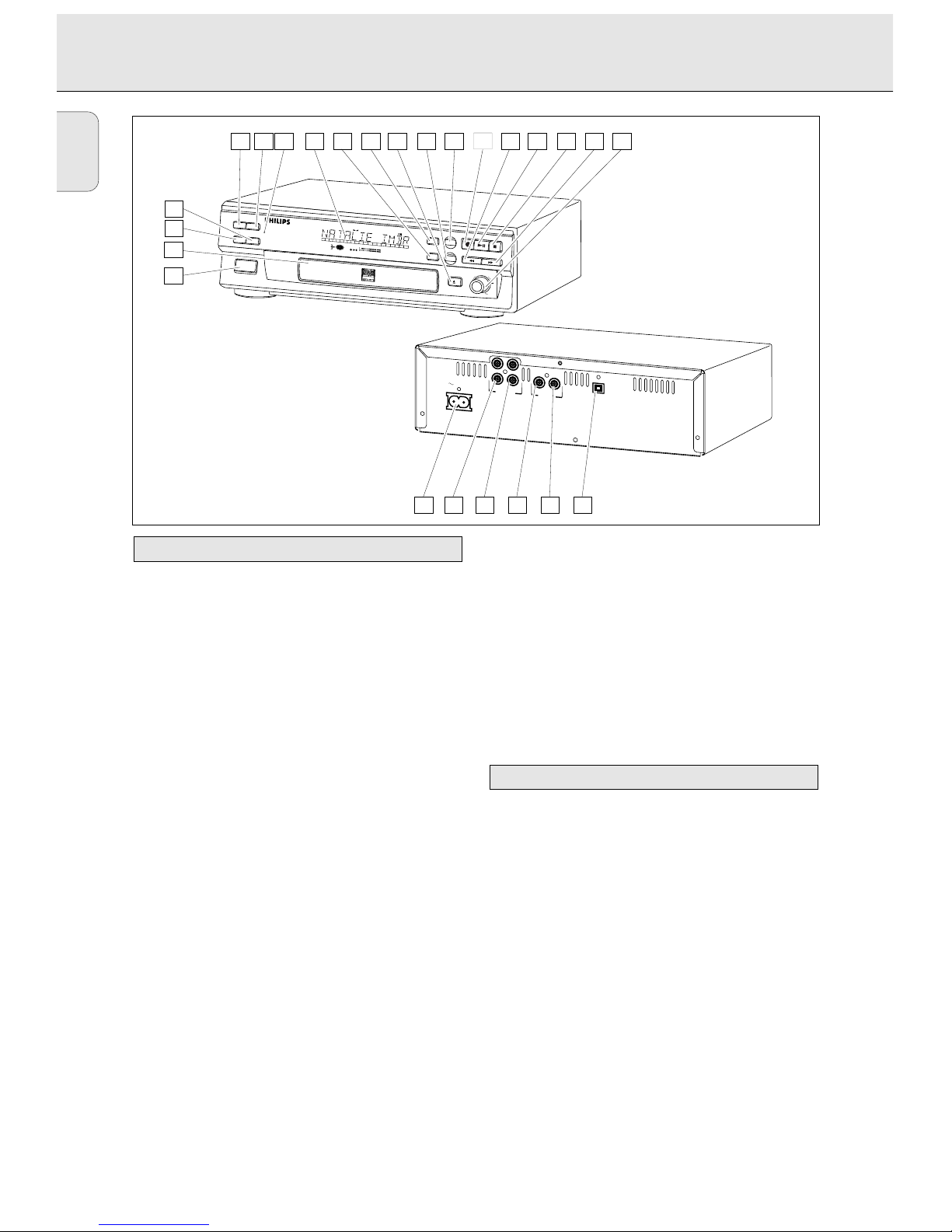

CONTROLS AND CONNECTIONS

CDR

MINI AUDIO

CD RECORDER

OPEN/CLOSE

EASY JOG

REWIND

RECORD

REC TYPE

MENU/STORE

CANCEL

SOURCE

PLAY/PAUSE STOP

FFWD

ERASE FINALIZE

SCROLL DISPLAY

ON/OFF

Recordable

SYNC

PROGRAM

SHUFFLE REPEAT

SCAN

ALL

MANUAL

TRACK

123456789

REM TRACKREC TIME

DIGITAL

OPTICAL

ANALOG

REMTOTAL TIME STEPTRACK

10 11 12 13 14 15 16 17 18 19 20 +

ENTER

MAINS

DIGITALANALOG

IN OUT

OPTICAL

165

9 10 11 126 7 8

13 14 15 16 17 1819

English

For recording the following inputs are present:

- Digital optical input.

- Digital coaxial input.

- Analog input.

For playback the following outputs are present:

- Digital coaxial output.

- Analog output.

We advise you to connect these to the CD input on your

amplifier.

The connections you make will depend upon the possibilities

your audio equipment offers. Please refer to the user manuals

for your other audio equipment first.

Digital recordings (optical or coaxial) give the best

performance in audio and usability (e.g. auto-track).

(The digital optical connection is less sensitive to external

disturbances).

If your equipment does not offer digital connections, the high

quality Analog-Digital-Convertor of your CD recorder will

ensure very good audio performance when recordings are

made from the analog input.

Playback via the digital coaxial output of the CD recorder

gives the best audio performance.

If your equipment does not offer digital connections, the high

quality Digital-Analog-Convertor of the CD recorder ensures a

very good sound quality via the analog output.

We advise you to always establish both digital and analog

connections. In this way you can always make analog

recordings when digital recording is not possible.

We have described the most common ways of connecting the

CD recorder. If you still have difficulties with the connections

you can always contact the Philips Consumer Service desk in

your country.

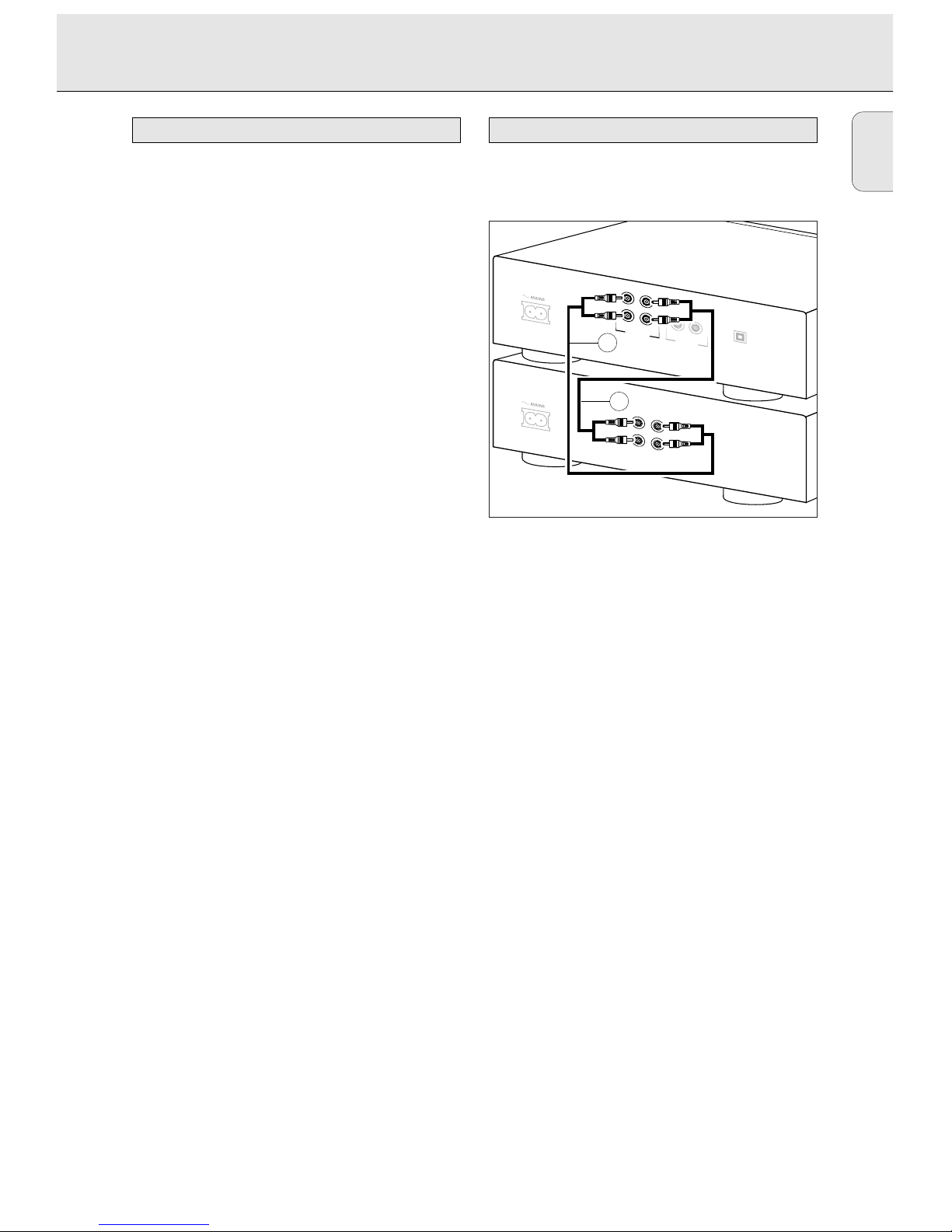

Analog connection is required for playback of CDs (use cable

2) and for recording from external analog sources

(use cable 1).

Use the audio cables supplied. Connect the red plugs to the

R sockets, and the white plugs to the L sockets.

1For recording, connect cable 1between the ANALOG IN-

sockets on the CD recorder and the CDR LINE- or TAPE OUT-

sockets of an amplifier.

Note: For recording directly from a CD player, the analog

input of the CD recorder should be connected to the

analog output of the CD player.

2For playback, connect cable 2between the ANALOG OUT-

sockets on the CD recorder and the input sockets of an

amplifier e.g. TAPE IN, CDR or AUX.

Note: Never use the PHONO input.

TAPE

OUT

RECEIVER

OPTICAL

ANALOG

OUT

DIGITAL

IN OUT

CD RECORDER

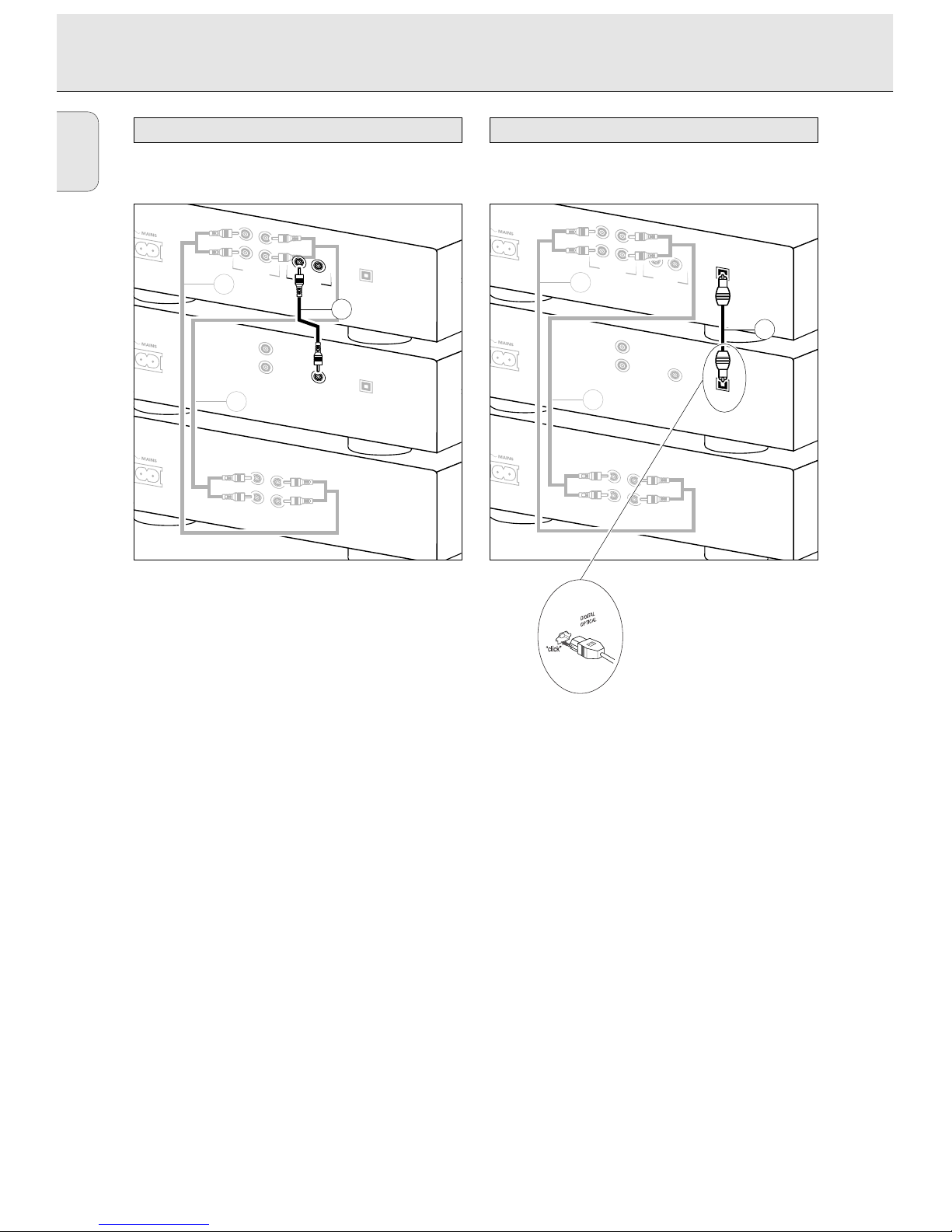

Analog connectionsConnections general

INSTALLATION

English

Digital coaxial connection is only required in case you wish to

record from a CD player with a digital coaxial output.

Use the digital coaxial cable supplied.

1For recording, connect the cable 3between the DIGITAL

IN-socket on the CD recorder and the DIGITAL OUT-socket of

a CD player.

Note: Your CD recorder is equipped with a digital coaxial

output. This output can be used for digital playback.

Digital optical connection is only required in case you wish to

record from a CD player with a digital optical output.

When connecting the Digital

Optical cable, make sure it

is fully inserted until

there is a click.

1Remove the dust caps from the digital optical connection.

(We recommend you save the cap).

2For recording, connect a fibre-optic cable 4between the

digital optical input of the CD recorder and the digital-

optical output of a CD player.

Note: For playback, the digital coaxial output or analog output

should be connected to an amplifier.

TAPE

OUT

RECEIVER

OPTICAL

OUT

ANALOG

OUT DIGITAL

OUT

CD PLAYER

OPTICAL

ANALOG

OUT

DIGITAL

IN OUT

CD RECORDER

Digital optical connections

TAPE

OUT

RECEIVER

OPTICAL

OUT

ANALOG

OUT DIGITAL

OUT

CD PLAYER

OPTICAL

ANALOG

OUT

DIGITAL

IN OUT

CD RECORDER

Digital coaxial connections

INSTALLATION

English

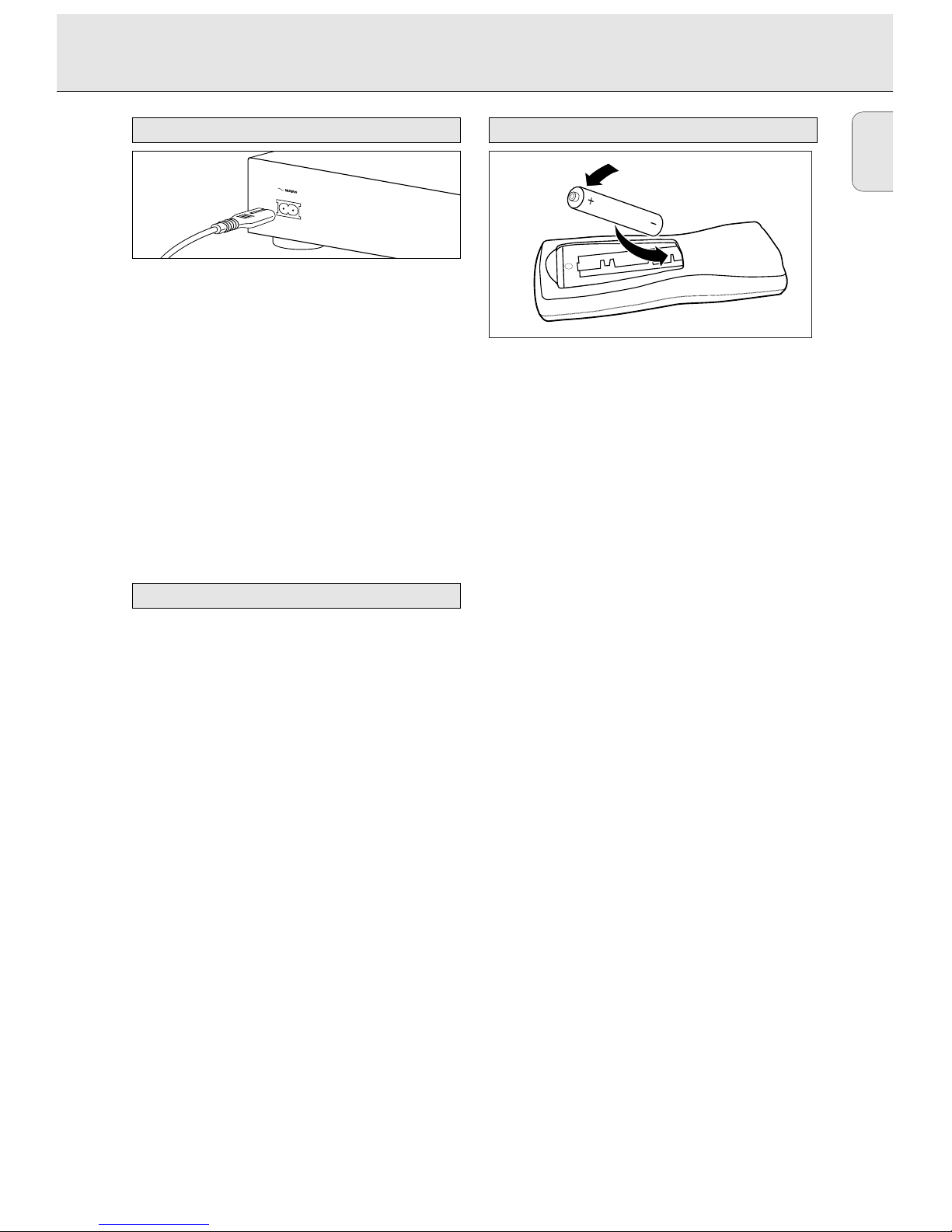

1Plug the power cord supplied into the MAINS connector on

the CD recorder, then into a mains socket.

2Press ON/OFF.

➜The recorder is now in Standby mode.

3Press any key to activate the recorder.

Note:

- The CD recorder will automatically adjust to the local mains

voltage.

- When the CD recorder is in the ‘OFF’ position, it is still

consuming some power. If you wish to disconnect your

player completely from the mains, withdraw the plug from

the AC outlet.

- Place the CD recorder on a solid, vibration free surface.

- Do not place the CD recorder near a source of heat or in

direct sunlight.

- Do not use the CD recorder under extremely damp

conditions.

- If the CD recorder is placed in a cabinet, make sure that a

2.5 cm space remains free on all sides of the CD

recorder/player for proper ventilation.

1Open the battery compartment cover.

2Insert 2 batteries (“AA”, LR-6

UM-3; as supplied) as

shown.

3Replace the cover.

Note: We recommend you use 2 batteries of the same type

and condition.

Batteries contain chemical substances, so they should

be disposed of properly.

Inserting batteries in the remote control

Setup recommendations

Power supply

INSTALLATION
