Philips 109B7 Manual de usuario

Safety and Troubleshooting Information

Safety Precautions and Maintenance • Troubleshooting • Regulatory Information • Other

Related Information

Safety precautions and maintenance

RETURN TO TOP OF THE PAGE

Readand follow these instructionswhen connectingand using your computer monitor:

zDisconnect the monitor fromthe power supply if the monitor is not to be usedfor an

extended period oftime.

zDo not attempt to removethe back cover, as you will be exposed to a shock hazard. The

back cover should only beremoved by qualified service personnel.

zDo not place objects on top of the monitor cabinet, objects could fall into vents or cover

themand prevent proper cooling of the monitor's electronic devices.

zToavoid the risk of shock or permanent damageto the set, donot expose the monitor to

rain or excessive moisture.

zDo not use alcohol orammonia-based liquid to clean the monitor. If necessary, clean with

aslightly damp cloth. Disconnect the monitorfromthe power supply before cleaning.

zWhenpositioning the monitor, make sure the power plug and outlet are easily accessible.

zWhenusing the monitor,please make sure to install the swivel basefor safety concert.

Consult a service technician if the monitor does not operate normally whenoperating instructions

ofthis manual are followed.

WARNING: Use of controls, adjustments, or procedures other

than those specified in this documentation may result in

exposure to shock, electrical hazards, and/or mechanical

hazards.

About This Electronic User's Manual

About This Guide • Other Documents You May Need • Notational Descriptions

About This Guide

This electronic user's guide is intended for anyone who uses the Philips Color Monitor. It describes

the monitor's features, setup, operation and all other information, which is the same exact

information described in our printed version.

The sections are as follows:

●Safety and Troubleshooting Information provides tips and solutions for common problems,

and other related information you may need.

●About This Electronic User's Manual gives overview of what information are included as well

as notation icon descriptions and other documentation you can refer to.

●Product Information gives an overview of the monitor's features and as well as the technical

specifications for this monitor.

●Installing Your Monitor describes the initial setup process and gives an overview of how to

use the monitor.

●On Screen Display provides information on adjusting the settings on your monitor.

●Customer Care and Warranty is a list of worldwide Philips consumer information centers

along with the help desk phone numbers and information on the applicable warranty of your

product.

●Glossary provides more information for technical terms.

●Download allows users to install the entire manual on their hard drive.

●Frequently Asked Questions provides answers to commonly asked questions.

RETURN TO TOP OF THE PAGE

Other Documents You May Need

In addition to this Electronic User's Guide, you may need to refer to the following documentation:

●Philips Color Monitor Quick Start Guide which summarizes the steps for setting up the

monitor. This is included with this product.

RETURN TO TOP OF THE PAGE

Notational Descriptions

The following subsections describe notational conventions used in this document.

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in

italic type. These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: This icon indicates important information and tips that help you make

better use of your computer system.

CAUTION: This icon indicates information that tells you how to avoid either

potential damage to hardware or loss of data.

WARNING: This icon indicates the potential for bodily harm and tells you how

to avoid the problem.

SMART HELP: This icon indicates helpful information when adjusting the On

Screen Display of your monitor.

Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such

cases, the specific presentation of the warning is mandated by regulatory authority.

RETURN TO TOP OF THE PAGE

broadcasting in whole or in part is prohibited without written consent of Philips Electronics N.V.

Product Information

Product Features • Lead-free product • Technical Specifications • Automatic Power

Saving • Physical Specification • Pin Assignment • Product Views

Product Features

109B7/109F7:

z19-inch (18.0" VIS) Real Flat color monitor with excellent front of screen performance for use

with MACs and PCs

zAutoscan covers horizontal frequencies up to 86 kHz offering a maximum resolution of 1600 x

1200 with flicker free display of 1600 x 1200 at up to 65 Hz

zReal Flat High Contrast CRT with high-resolution 0.25 mm dot pitch (0.21 hdp)

zsRGB for true on screen color representation.

zFCC, CE (in selected countries only) and ISO9241, ISO14001 certified

RETURN TO TOP OF THE PAGE

Lead-free product

Philips eliminated toxic substances like lead from its displays. Lead-free display helps protect your

health and promotes environmentally sound recovery and disposal of waste from electrical and

electronic equipment. Philips complies with the European Community stringent RoHS Directive

mandating restrictions on hazardous substances in electrical and electronic equipment. With Philips,

you can be confident that your display device does not harm the environment.

Technical Specifications*

Model Regulation Color

109B70 TCO'03Grey

109B73 TCO'03 Silver/Black

109B75 TCO'03 Black

109F71 MPRII Grey

109F72 MPRII Silver/Black

109F76 MPRII Black

CRT

• Size and deflection 19 inch / 46 cm ; 90° deflection angle

• Dot pitch / Grille pitch 0.25 mm

• Horizontal pitch 0.21 mm

• Tube type Shadow mask, Real Flat, high contrast, high

brightness, anti-static, anti reflection

• Phosphor P22

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

• Recommended display area 14.0" x 10.4" / 355 x 265 mm

SCANNING

• Horizontal scanning 30 - 86 KHz

• Vertical scanning 50 - 160 Hz

VIDEO

• Video dot rate 180 MHz

• Input impedance

- Video 75 ohm

- Sync 4.7 kOhm

• Input signal levels 0.7 Vpp

• Sync input signal Separate sync

• Sync polarities Positive and negative

WHITE COLOR TEMPERATURE

Chromaticity CIE coordinates:

• at 9300 degrees K x = 0.283 / y = 0.297

• at 6500 degrees K x = 0.313 / y = 0.329

• at 5500 degrees K x = 0.332 / y = 0.347

sRGB

sRGB is a standard for ensuring correct exchange of colors between different devices (e.g.

digital cameras, monitors, printers, scanners, etc.)

Using a standard unified color space, sRGB will help represent pictures taken by an sRGB

compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are

calibrated and you can rely on the correctness of the colors shown on your screen.

Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to a

predefined setting as well as the color gamut. Therefore it is important to select the sRGB setting

in the monitor's OSD.

To do so, open the OSD by pressing the OK button on the front of your monitor. Use the down

button to go to Color temperature and press OK again. Then move the down button to go to

sRGB and press OK again.

Exit this OSD.

After this, please don't change the brightness or contrast setting of your monitor. If you change

either of these, the monitor will exit the sRGB mode and go to a color temperature setting of

6500K.

Automatic Power Saving

If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can

automatically reduce its power consumption when not in use. And if an input from a keyboard, mouse or

other input device is detected, the monitor will automatically "wake up". The following table shows the

power consumption and signaling of this automatic power saving features:

RETURN TO TOP OF THE PAGE

Physical Specifications

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

Pin Assignment

The 15-pin D-sub connector (male) of the signal cable (IBM systems):

Power Management Definition

VESA's Mode Video H-sync V-sync Power Used Power

Saving (%) LED color

Active ON Yes Yes Typical 70W 0 % Green

Sleep OFF No No < 2W 99% Flashing

Green

Switch Off OFF -- -- < 2W 99% Off

• Dimensions 17.3" x 16.6" x 17.9" / 439 x 422.5 x 457mm

• Weight 22.9 kg

• Power supply 100-240 VAC, 60-50Hz

• Temperature

(operating) 0° to 40°C / 32° to 104°F

• Temperature (storage) -25° to + 60°C / -13° to +140°F

• Relative humidity

(storage) 5% to 95%

* Resolution 1024 x 768, standard size, contrast max., brightness 50%, 9300°, full white pattern.

RETURN TO TOP OF THE PAGE

Views

Follow the links to see various views of the monitor and its components.

Front View

Rear View

RETURN TO TOP OF THE PAGE

No. Assignment

1Red video input 9+5V (Supply from PC for

DDC circuit)

2Green video input 10 Sync ground

3Blue video input 11 Ground

4Ground 12 Serial data line (SDA)

5Self test 13 H. Sync

6Red video ground 14 V. Sync

7Green video ground 15 Data clock line (SCL)

8Blue video ground

Installing your Monitor

Front View • Rear View

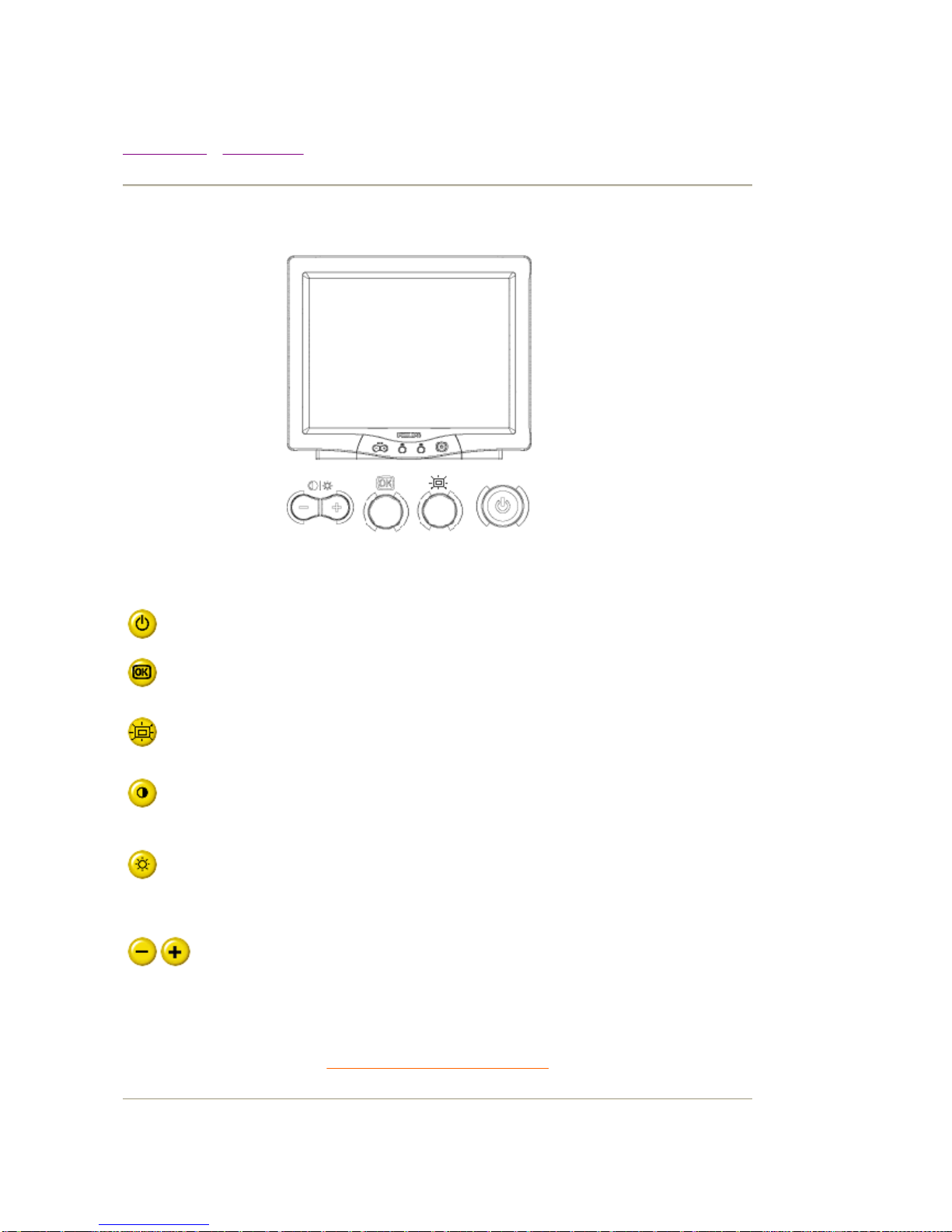

Front View

RETURN TO TOP OF THE PAGE

Rear View

Power button switches your monitor on.

OK button which when pressed will take you to the OSD controls

High Brightness hotkey.

Contrast hotkey. When the "-" button is pressed, the adjustment

controls for the CONTRAST will show up.

Brightness hotkey. When the "+" button is pressed, the

adjustment controls for BRIGHTNESS will show up.

"-" and "+" buttons, are used for adjusting the OSD of your

monitor.
