Safety and Troubleshooting Information

Safety Precautions and Maintenance • Troubleshooting • Regulatory Information • Other

Related Information

Safety precautions and maintenance

WARNING: Use of controls, adjustments, or procedures other than those

specified in this documentation may result in exposure to shock, electrical

hazards, and/or mechanical hazards.

Read and follow these instructions when connecting and using your computer monitor:

Disconnect the monitor from the power supply if the monitor is not to be used for an extended period

of time.

●

Do not attempt to remove the back cover, as you will be exposed to a shock hazard. The back cover

should only be removed by qualified service personnel.

●

Do not place objects on top of the monitor cabinet, objects could fall into vents or cover them and

prevent proper cooling of the monitor's electronic devices.

●

To avoid the risk of shock or permanent damage to the set, do not expose the monitor to rain or

excessive moisture.

●

Do not use alcohol or ammonia-based liquid to clean the monitor. If necessary, clean with a slightly

damp cloth. Disconnect the monitor from the power supply before cleaning.

●

When positioning the monitor, make sure the power plug and outlet are easily accessible.●

Consult a service technician if the monitor does not operate normally when operating instructions of this

manual are followed.

RETURN TO TOP OF THE PAGE

Safety & Troubleshooting

file:///D|/EDFU/LF3/lf3manual/english/105E/SAFETY/SAFETY.HTM [2003/3/27 ?? 10:39:50]

About This Electronic User's Manual

About This Guide • Other Documents You May Need • Notational Descriptions

About This Guide

This electronic user's guide is intended for anyone who uses the Philips Color Monitor. It describes the

monitor's features, setup, operation and all other information, which is the same exact information described

in our printed version.

The sections are as follows:

Safety and Troubleshooting Information provides tips and solutions for common problems, and other

related information you may need.

●

About This Electronic User's Manual gives overview of what information are included as well as

notation icon descriptions and other documentation you can refer to.

●

Product Information gives an overview of the monitor's features and as well as the technical

specifications for this monitor.

●

Installing Your Monitor describes the initial setup process and gives an overview of how to use the

monitor.

●

Front Controls provides information on adjusting the settings on your monitor.●

Customer Care and Warranty is a list of worldwide Philips consumer information centers along with

the help desk phone numbers and information on the applicable warranty of your product..

●

Glossary provides more information for technical terms.●

Download allows users to install the entire manual on their hard drive.●

Frequently Asked Questions provides answers to commonly asked questions.●

RETURN TO TOP OF THE PAGE

Other Documents You May Need

In addition to this Electronic User's Guide, you may need to refer to the following documentation:

Philips Color Monitor Quick Start Guide which summarizes the steps for setting up the monitor. This

is included with this product.

●

RETURN TO TOP OF THE PAGE

About This Electronic User's Manual

file:///D|/EDFU/LF3/lf3manual/english/105E/ABOUT/ABOUT.HTM (1 of 2) [2003/3/27 ?? 10:39:50]

Notational Descriptions

The following subsections describe notational conventions used in this document.

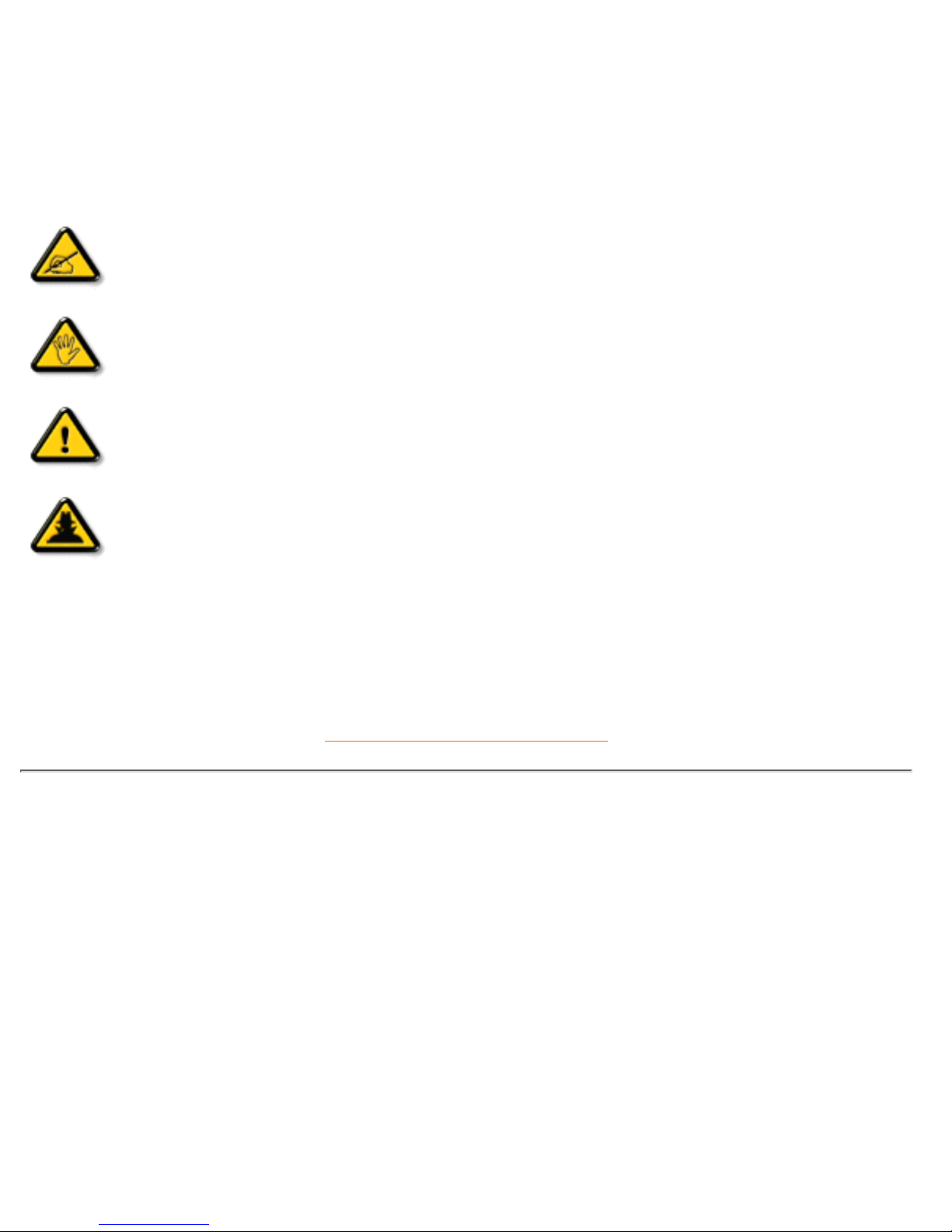

Notes, Cautions, and Warnings

Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic

type. These blocks are notes, cautions, and warnings, and they are used as follows:

NOTE: This icon indicates important information and tips that help you make better

use of your computer system.

CAUTION: This icon indicates information that tells you how to avoid either potential

damage to hardware or loss of data.

WARNING: This icon indicates the potential for bodily harm and tells you how to

avoid the problem.

SMART HELP: This icon indicates helpful information when adjusting the On Screen

Display of your monitor.

Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the

specific presentation of the warning is mandated by regulatory authority.

RETURN TO TOP OF THE PAGE

part is prohibited without written consent of Philips Electronics N.V.

About This Electronic User's Manual

file:///D|/EDFU/LF3/lf3manual/english/105E/ABOUT/ABOUT.HTM (2 of 2) [2003/3/27 ?? 10:39:50]

Product Information

Product Features • Technical Specifications • Automatic Power Saving • Physical

Specification • Pin Assignment • Product Views

Product Features

105E11/12/16

15-inch (14.0" VIS) color monitor with excellent front of screen performance for use with MACs and

PCs

●

Autoscan covers horizontal frequencies up to 54 kHz offering a maximum resolution of 1024 x 768

with flicker free display of 800 x 600 at up to 87Hz

●

Flat square CRT with high-resolution 0.28 mm dot pitch (0.24 hdp).● Smallest footprint in its class requires minimum desk space: maximum depth is only 379 mm/14.9"● FCC, CE (in selected countries only) and ISO9241, ISO14001 certified●

RETURN TO TOP OF THE PAGE

Technical Specifications*

CRT

• Size and deflection 15 inch / 38 cm ; 90° deflection angle

• Dot pitch / Grille pitch 0.28 mm

• Horizontal pitch 0.24 mm

• Tube type Shadow mask, flat square, anti-glare, anti-static (105E11), light

transmission 57%

• Phosphor P22

• Recommended display area 10.6" x 7.95" / 270 x 202 mm

• Maximum display area 11.2" x 8.4" / 284 x 213 mm

SCANNING

• Horizontal scanning 30 - 54KHz

• Vertical scanning 50 - 120 Hz

VIDEO

105E Product Information

file:///D|/EDFU/LF3/lf3manual/english/105E/PRODUCT/PRODUCT.HTM (1 of 4) [2003/3/27 ?? 10:39:51]

• Video dot rate 65 MHz

• Input impedance

- Video 75 ohm

- Sync 2.2 kOhm

• Input signal levels 0.7 Vpp

• Sync input signal Separate sync

• Sync polarities Positive and negative

WHITE COLOR TEMPERATURE

Chromaticity CIE coordinates:

• at 9300 degrees K x = 0.281 / y = 0.311

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

Automatic Power Saving

If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can

automatically reduce its power consumption when not in use. And if an input from a keyboard, mouse or

other input device is detected, the monitor will automatically "wake up". The following table shows the power

consumption and signaling of this automatic power saving features:

Power Management Definition

VESA's

Mode Video H-sync V-sync Power Used Power

Saving

(%) LED color

ON Active Yes Yes < 65W 0 % Green

OFF Blanked No No < 8W 88% Yellow

This monitor is ENERGY STAR®compliant. As an ENERGY STAR®Partner, PHILIPS has

determined that this product meets the ENERGY STAR®guidelines for energy efficiency.

RETURN TO TOP OF THE PAGE

105E Product Information

file:///D|/EDFU/LF3/lf3manual/english/105E/PRODUCT/PRODUCT.HTM (2 of 4) [2003/3/27 ?? 10:39:51]

Physical Specifications

• Dimensions 14.1" x 14.9" x 14.9" / 358 x 380 x 379 mm (including base)

14.1" x 13.2" x 14.9" / 358 x 335 x 379 mm (excluding base)

• Weight 11.5 kg

• Power supply 90 - 264 VAC, 50/60Hz

• Temperature (operating) 0° to 40°C / 32° to 104°F

• Temperature (storage) -25° to +65°C / -13° to +149°F

• Relative humidity(storage) 5% to 95%

* Resolution 800x 600, standard size, contrast max., brightness 50%, 9300°, full white pattern.

* These information are subject to change without notice.

RETURN TO TOP OF THE PAGE

Pin Assignment

The 15-pin D-sub connector (male) of the signal cable (IBM systems):

No. Assignment

1 Red video input 9 No pin

2 Green video input 10 Logic ground

3 Blue video input 11 Identical output - connected

to pin 10

4Identical output - connected

to pin 10 12 Serial data line (SDA)

5 Ground 13 H. Sync / H+V

6 Red video ground 14 V. Sync (VCLK for DDC)

7 Green video ground 15 Data clock line (SCL)

105E Product Information

file:///D|/EDFU/LF3/lf3manual/english/105E/PRODUCT/PRODUCT.HTM (3 of 4) [2003/3/27 ?? 10:39:51]

8 Blue video ground

RETURN TO TOP OF THE PAGE

Views

Follow the links to see various views of the monitor and its components.

Front View

Rear View

RETURN TO TOP OF THE PAGE

105E Product Information

file:///D|/EDFU/LF3/lf3manual/english/105E/PRODUCT/PRODUCT.HTM (4 of 4) [2003/3/27 ?? 10:39:51]

Installing your Monitor

Front View • Rear View • Pedestal •PCUH411 USB Hub (option)

Front View

For detailed information about the knobs and keys, please refer to Front Controls.

RETURN TO TOP OF THE PAGE

Rear View

Installing your Monitor

file:///D|/EDFU/LF3/lf3manual/english/INSTALL_1/INSTALL.HTM (1 of 2) [2003/3/27 ?? 10:39:51]

1. Power in - attach power cable here.

2. Video In - this is a cable which is already attached to your monitor. Connect

the other end of the cable to your PC.

RETURN TO TOP OF THE PAGE

Installing your Monitor

file:///D|/EDFU/LF3/lf3manual/english/INSTALL_1/INSTALL.HTM (2 of 2) [2003/3/27 ?? 10:39:51]
