English

Contents

1 Important 4

Know these safety symbols 4

Hearing Safety 5

2 Your Micro System 6

Introduction 6

What's in the box 6

Overview of the main unit 7

Overview of the remote control 8

3 Get started 9

Placement 9

Connect FM antenna 9

Prepare the remote control 10

Connect power 10

Store FM radio stations automatically 11

Set clock 11

Turn on 11

4 Play 12

Play disc 12

Play from USB 12

Play from iPod/iPhone/iPad 12

Play options 13

Adjust sound 14

Display different information 14

5 Listen to FM radio 14

Tune to FM radio stations 14

Program FM radio stations automatically 14

Program FM radio stations manually 15

Select a preset radio station 15

Show RDS information 15

Select stereo/mono broadcast 15

6 Other features 16

Set the alarm timer 16

Set the sleep timer 16

Listen through the headphone 16

Play from external audio device 17

7 Product information 17

 

USB playability information 18

Supported MP3 disc formats 18

8 Troubleshooting 19

9 Notice 20

Disposal of your old product and

batteries 20

DCM2060_96_UM_V1.0.indb 3 2/21/2012 11:51:24 AM

All manuals and user guides at all-guides.com

4EN

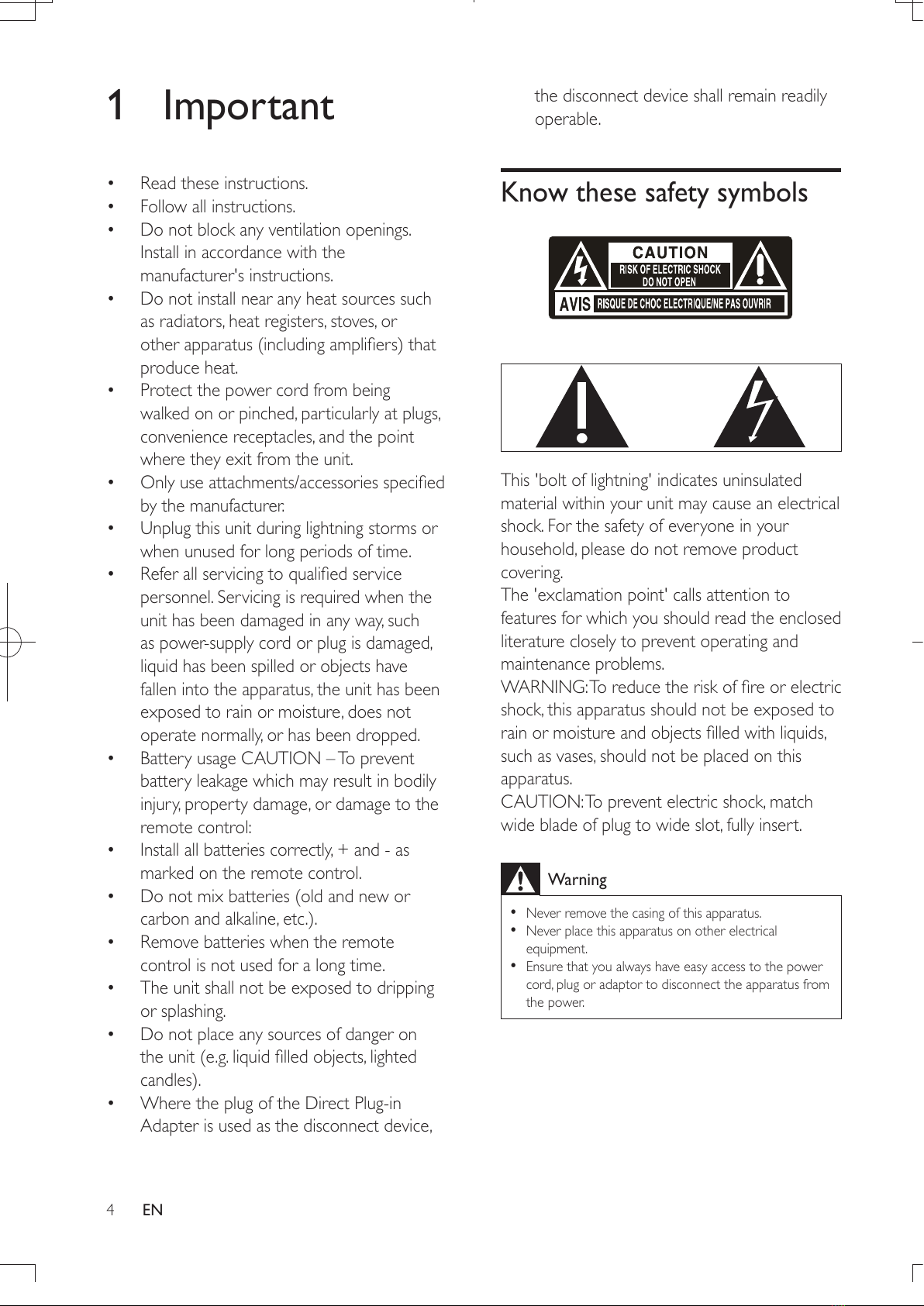

1 Important

 Read these instructions.

 Follow all instructions.

 Do not block any ventilation openings.

Install in accordance with the

manufacturer's instructions.

 Do not install near any heat sources such

as radiators, heat registers, stoves, or



produce heat.

 Protect the power cord from being

walked on or pinched, particularly at plugs,

convenience receptacles, and the point

where they exit from the unit.

 

by the manufacturer.

 Unplug this unit during lightning storms or

when unused for long periods of time.

 

personnel. Servicing is required when the

unit has been damaged in any way, such

as power-supply cord or plug is damaged,

liquid has been spilled or objects have

fallen into the apparatus, the unit has been

exposed to rain or moisture, does not

operate normally, or has been dropped.

 Battery usage CAUTION –To prevent

battery leakage which may result in bodily

injury, property damage, or damage to the

remote control:

 Install all batteries correctly, + and - as

marked on the remote control.

 Do not mix batteries (old and new or



 Remove batteries when the remote

control is not used for a long time.

 The unit shall not be exposed to dripping

or splashing.

 Do not place any sources of danger on





 Where the plug of the Direct Plug-in

Adapter is used as the disconnect device,

the disconnect device shall remain readily

operable.

Know these safety symbols

This 'bolt of lightning' indicates uninsulated

material within your unit may cause an electrical

shock. For the safety of everyone in your

household, please do not remove product

covering.

The 'exclamation point' calls attention to

features for which you should read the enclosed

literature closely to prevent operating and

maintenance problems.



shock, this apparatus should not be exposed to



such as vases, should not be placed on this

apparatus.

CAUTION:To prevent electric shock, match

wide blade of plug to wide slot, fully insert.

Warning

 Never remove the casing of this apparatus.

 Never place this apparatus on other electrical

equipment.

 Ensure that you always have easy access to the power

cord, plug or adaptor to disconnect the apparatus from

the power.

DCM2060_96_UM_V1.0.indb 4 2/21/2012 11:51:24 AM

All manuals and user guides at all-guides.com

English

Hearing Safety

Danger

 To avoid hearing damage, limit the time you use the

headphones at high volume and set the volume to a

safe level.The louder the volume, the shorter is the safe

listening time.

Be sure to observe the following guidelines

when using your headphones.

 Listen at reasonable volumes for

reasonable periods of time.

 Be careful not to adjust the volume

continuously upwards as your hearing

adapts.

 Do not turn up the volume so high that

you can’t hear what’s around you.

 You should use caution or temporarily

discontinue use in potentially hazardous

situations.

 Excessive sound pressure from earphones

and headphones can cause hearing loss.

Caution

 Use of controls or adjustments or performance of

procedures other than herein may result in hazardous

radiation exposure or other unsafe operation.

DCM2060_96_UM_V1.0.indb 5 2/21/2012 11:51:24 AM

All manuals and user guides at all-guides.com

6EN

2 Your Micro

System

Congratulations on your purchase, and



support that Philips offers, register your product

at www.philips.com/welcome.

Introduction

With this unit, you can:

 enjoy audio from discs, iPod/iPhone/iPad,

USB devices, and other external devices

 listen to FM radio

You can enrich sound output with these sound

effects:

 

 

The unit supports these media formats:

What's in the box

Check and identify the contents of your

package:

 Main unit

 Remote control

 Power adapter

 1 x MP3 link cable

 

 FM antenna

 Rubber pad for iPad

 User manual

 Quick start guide

 Wall mounting instructions

If you contact Philips, you will be asked for the

model and serial number of this apparatus.The

model number and serial number are on the

bottom of the apparatus.Write the numbers

here:

Model No. __________________________

Serial No. ___________________________

DCM2060_96_UM_V1.0.indb 6 2/21/2012 11:51:25 AM

All manuals and user guides at all-guides.com

English

Overview of the main unit

 Connect USB device.

 Headphone socket.

 Turn the unit on.

 Switch to standby mode.

d SOURCE

 Select a source: CD, FM, USB, Dock, or

MP3 LINK.

e /

 Skip to the previous or next track.

 Search within a track or disc.

 Tune to radio stations.

 Adjust time.

MICRO MUSIC SYSTEM DCM2060

FM ANT

DC IN

DOCK for

SOURCE VOLUME VOLUME

MP3-LINK

MENU/

OK/

f OK/

 

 Switch between mono and stereo

broadcast.

 Start or pause play.

g MP3-LINK

 Connect an external audio device.

 Open or close the disk tray.

i VOLUME + / -

 Adjust volume.

j MENU/

 Access iPod/iPhone/iPad menu.

 Stop play or erase a program.

k FM ANT

 Improve FM reception.

l DC IN

 Connect power.

DCM2060_96_UM_V1.0.indb 7 2/21/2012 11:51:28 AM

All manuals and user guides at all-guides.com

all-guides.com

8EN

m Display panel

 Show play information.

n Disc tray

o DOCK for iPod/iPhone/iPad

Overview of the remote

control

PRESET/ALBUM

PROG/

CLOCK SET

SLEEP/

TIMER

DSC DBB

VOL

REPEAT/

SHUFFLE

456

789

DOCK

DISPLAY

RDS

USB

LINK

 Turn the unit on.

 Switch to standby mode.

 Mute or restore sound.

c CD

 Select CD source.

d /

 Skip to the previous or next track.

 Search within a track or disc.

 Tune to radio stations.

 Adjust time.

e USB/MP3 LINK

 Select USB or MP3 link source.

f RDS/DISPLAY

 For selected FM radio stations: display

RDS information.

 Show time and play information.

 Start/pause play.

h VOL +/-

 Adjust volume.

i Numeric Keypad 0 - 9

 Select a track from a disc or USB

device directly.

 Select a preset radio station.

j PROG/CLOCK SET

 Program tracks.

 Program radio stations.

 Set time.

k SLEEP/TIMER

 Set sleep or alarm timer.

l DSC

 Select a preset sound setting.

m DBB

 Turn dynamic bass enhancement on

or off.

DCM2060_96_UM_V1.0.indb 8 2/21/2012 11:51:29 AM

All manuals and user guides at all-guides.com

English

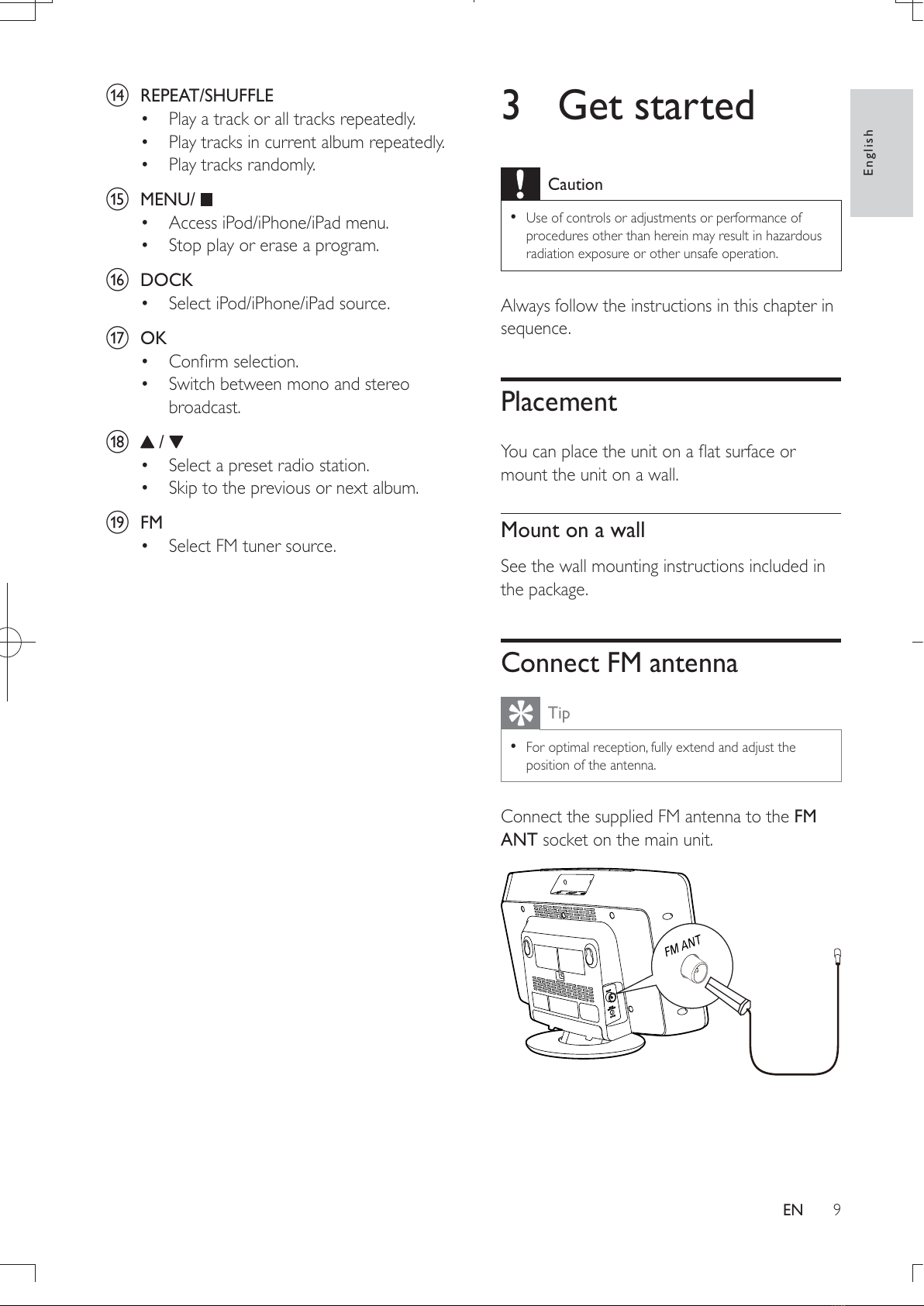

n REPEAT/SHUFFLE

 Play a track or all tracks repeatedly.

 Play tracks in current album repeatedly.

 Play tracks randomly.

o MENU/

 Access iPod/iPhone/iPad menu.

 Stop play or erase a program.

p DOCK

 Select iPod/iPhone/iPad source.

q OK

 

 Switch between mono and stereo

broadcast.

r /

 Select a preset radio station.

 Skip to the previous or next album.

s FM

 Select FM tuner source.

3 Get started

Caution

 Use of controls or adjustments or performance of

procedures other than herein may result in hazardous

radiation exposure or other unsafe operation.

Always follow the instructions in this chapter in

sequence.

Placement



mount the unit on a wall.

Mount on a wall

See the wall mounting instructions included in

the package.

Connect FM antenna

Tip

 For optimal reception, fully extend and adjust the

position of the antenna.

Connect the supplied FM antenna to the FM

ANT socket on the main unit.

DCM2060_96_UM_V1.0.indb 9 2/21/2012 11:51:30 AM

All manuals and user guides at all-guides.com

10 EN

Prepare the remote control

Caution

 Risk of explosion! Keep batteries away from heat,



 Risk of decreased battery life! Never mix different

brands or types of batteries.

 Risk of product damage! When the remote control is

not used for long periods, remove the batteries.

To install the remote control battery:

1 Open the battery compartment.

2 Insert 2 AAA batteries with correct



3 Close the battery compartment.

Connect power

Caution

 Risk of product damage! Ensure that the power supply

voltage corresponds to the voltage printed on the back

or the underside of the unit.

 Risk of electric shock! When you unplug the AC power

adapter, always pull the plug from the socket. Never

pull the cord.

 Before connecting the AC adapter, ensure that you have

completed all other connections.

Note

 The type plate is located at the back of the main unit.

Connect the power adapter to:

 the DC IN socket on the main unit.

 the wall socket.

DCM2060_96_UM_V1.0.indb 10 2/21/2012 11:51:31 AM

All manuals and user guides at all-guides.com

English

Store FM radio stations

automatically

When the unit turns to FM tuner mode, and

no radio stations are stored, the unit begins to

store FM radio stations automatically.

1 Connect the unit to the power supply.

» [AUTO INSTALL - PRESS PLAY, STOP

CANCEL] (to auto install, press ;

to cancel, press 

2 Press and hold for 3 seconds to start

full scan.

» The unit automatically stores FM radio





station.

Tip

 To exit storing mode, press or .

Set clock

1 In standby mode, press and hold CLOCK

SET on the remote control for two

seconds.

» [SET CLOCK] 

the display.

2 Press CLOCK SET again.

» The 12 or 24 hour format blinks.

3 Press / repeatedly to select an hour

format.

4 Press CLOCK SET

» The hour digits blink.

5 Repeat steps 3-4 to set the hour and

minute respectively.

Note

 If no button is pressed in 90 seconds, the unit exits

clock setting mode automatically.

Turn on

Press .

» The unit switches to the last selected

source.

Note

 To select a source, press SOURCE repeatedly or the

source selection buttons on the remote control.

Switch to standby mode

Press again to switch the unit to standby

mode.

» 

panel.

DCM2060_96_UM_V1.0.indb 11 2/21/2012 11:51:32 AM

All manuals and user guides at all-guides.com

Otros manuales para DCM2060

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Micro sistema de música de Philips

Philips

Philips 8000 Series Manual de usuario

Philips

Philips BTM2560 Manual de usuario

Philips

Philips MCD268/93 Manual de usuario

Philips

Philips DCM186 Manual de usuario

Philips

Philips MCM1120 Manual de usuario

Philips

Philips DCM186B/79 Manual de usuario

Philips

Philips MCM2000/12 Manual de usuario

Philips

Philips WAS6050/05 Manual de usuario

Philips

Philips MC147/61 Manual de usuario

Philips

Philips DCM3060 Manual de usuario

Philips

Philips DCM292/12 Manual de usuario

Philips

Philips MCD288 Manual de usuario

Philips

Philips MCM3050/12 Manual de usuario

Philips

Philips DCM3120 Manual de usuario

Philips

Philips DCM2055 Manual de usuario

Philips

Philips BTB7150 Manual de usuario

Philips

Philips MCM138D/79 Manual de usuario

Philips

Philips DCM109 Manual de usuario

Philips

Philips MCM149/96 Manual de usuario

Philips

Philips MCD122/77 Manual de usuario

Philips

Philips DCM292 Manual de usuario

Philips

Philips MCD268/93 Manual de usuario

Philips

Philips MCD288E/12 Manual de usuario

Philips

Philips MCM1055 Manual de usuario

Manuales populares de Micro sistema de música de otras marcas

Rautz

Rautz MC-5100DU Manual de usuario

Sanyo

Sanyo DC-D9 Manual de usuario

Curtis

Curtis RCD744 Manual de usuario

Samsung

Samsung MM-UC8 Manual de usuario

Akai

Akai AMP300UCI Manual de usuario

Hyundai

Hyundai MS 132 DU3BL Manual de usuario

JVC

JVC UX-GP5 Manual de usuario

Tiger Electronics

Tiger Electronics Hitclips Beat Bot 6000 Manual de usuario

Optimus

Optimus SYSTEM 731 Manual de usuario

Hitachi

Hitachi AXM209UK Manual de usuario

Sharp

Sharp XL-MP110DVD Manual de usuario

Tiger Electronics

Tiger Electronics Hitclips Micro Music Watch 59947 Manual de usuario

ProAudio

ProAudio MC 9010 iP Manual de usuario

Samsung

Samsung MM-ZJ9 Manual de usuario

Sharp

Sharp MD-X7 Manual de usuario

Sharp

Sharp DK-KP95P Manual de usuario

Akura

Akura APTCDC832PR Manual de usuario

iLive

iLive IHB248B Manual de usuario
