Philips AZ1880 Manual de usuario

Version 1.0

AZ1880

3141 785 33710

USB CD Soundmachine

-/12

Published by LX 0911 Service Audio Subject to modification

© Copyright 2009 Philips Consumer Electronics B.V. Eindhoven, The Netherlands

All rights reserved. No part of this publication may be reproduced, stored in a retrieval

system or transmitted, in any form or by any means, electronic, mechanical, photocopying,

or otherwise without the prior permission of Philips.

CONTENTS

�

Disassembly diagram.....................................................................5-1

Main board

Circuit diagram ..................................................................6-1..6-4

Layout diagram..................................................................6-5..6-6

MCU board

Circuit diagram .........................................................................7-1

Layout diagram..................................................................7-2..7-3

Display board

Circuit diagram .........................................................................8-1

Layout diagram.........................................................................8-2

Jack board

Circuit diagram .........................................................................9-1

Layout diagram..................................................................9-2..9-5

Exploded view diagram ...............................................................10-1

Service parts list .......................................................................... 11-1

All manuals and user guides at all-guides.com

all-guides.com

5-1 5-1

DISASSEMBLY DIAGRAM

Dismantling of the Rear Cabinet

Dismantling of the PCB Board

1)Remove 2 screws D as indicated to loosen the Display Board and Control Plate.

2)Remove 10 screws E as indicated to loosen the Display Board.

3)Remove 2 screws F as indicated to loosen the Main Board.

1)Remove 3 screw hole cover A and 3 screws B as indicated.

2)Remove 10 screws C as indicated to loosen the Rear Cabinet.

A

B

C

D

E

F

FRONT CAB.

REAR CAB.

All manuals and user guides at all-guides.com

6-1 6-1

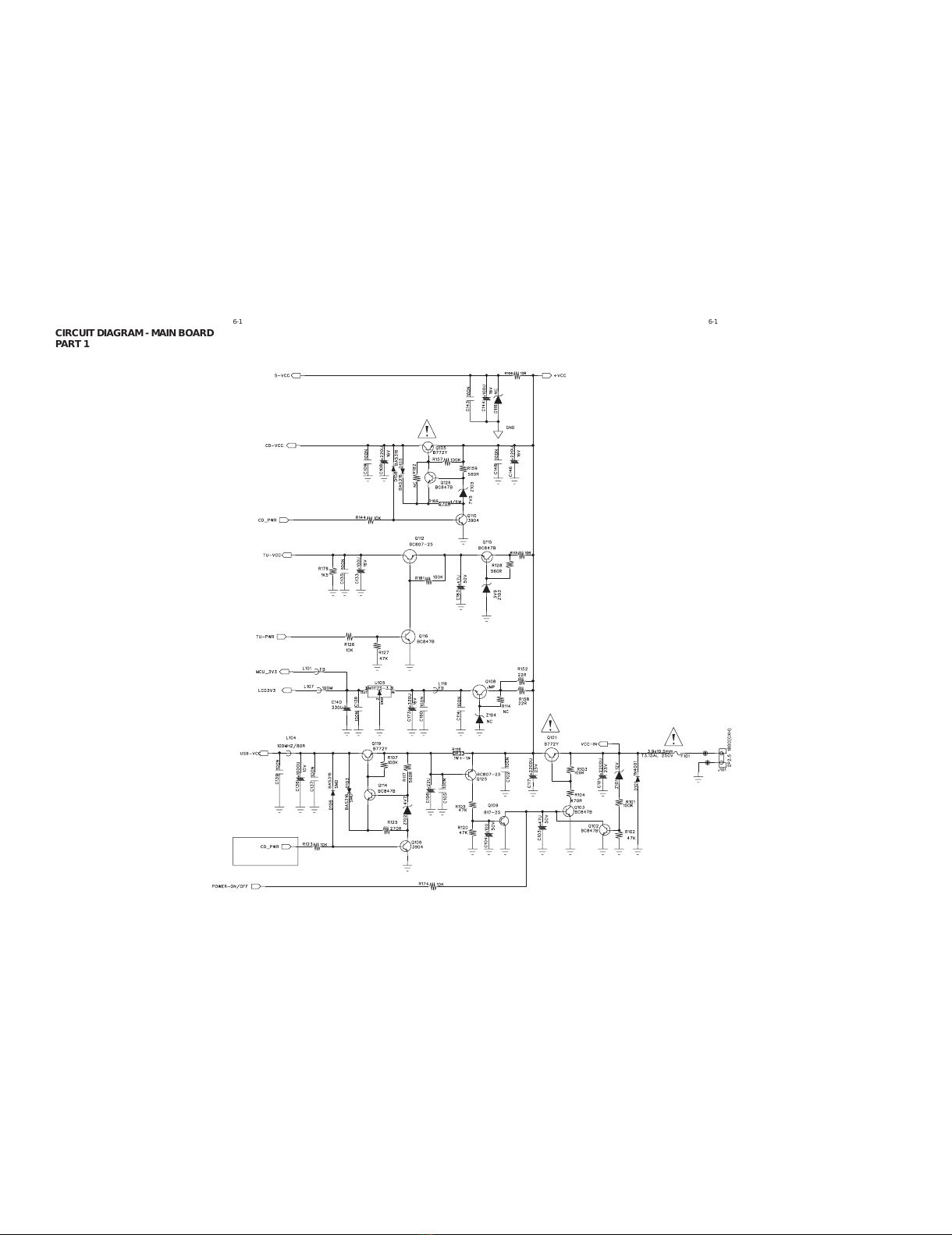

CIRCUIT DIAGRAM - MAIN BOARD

PART 1

All manuals and user guides at all-guides.com

6-2 6-2

CIRCUIT DIAGRAM - MAIN BOARD

PART 2

All manuals and user guides at all-guides.com

6-3 6-3

CIRCUIT DIAGRAM - MAIN BOARD

PART 3

All manuals and user guides at all-guides.com

6-4 6-4

CIRCUIT DIAGRAM - MAIN BOARD

PART 4

All manuals and user guides at all-guides.com

all-guides.com

6-5 6-5

LAYOUT DIAGRAM - MAIN BOARD

TOP SIDE

All manuals and user guides at all-guides.com

6-6 6-6

LAYOUT DIAGRAM - MAIN BOARD

BOTTOM SIDE

All manuals and user guides at all-guides.com

CIRCUIT DIAGRAM - MCU BOARD

7-1 7-1

All manuals and user guides at all-guides.com

7-2 7-2

LAYOUT DIAGRAM - MCU BOARD

TOP SIDE

All manuals and user guides at all-guides.com
