Philips 32PF5320/98 Manual de usuario

LCD TV 26PF5320

32PF5320

32PF7320

Contents

Thank you for purchasing this television set.

This handbook has been designed to help you install and operate your TV set.

We would strongly recommend that you read it thoroughly.

Table of Contents

Important information

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Installation

Presentation of the LCD TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Remote Contol Buttons for LCD TV Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Installing your LCD TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Remote Contol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Selecting the Menu Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Automatic Installation of TV programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Sorting of Programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Naming of Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Editing of Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Manual Store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Operation

Picture Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Sound Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Feature Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Timer Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Child Lock Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Using the Active Control Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

PIP Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Screen Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Using the Teletext . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Smart Picture and Sound Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Using the TV as a PC Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Using in HD (High Definition) Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Practical information

Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Safety Information

• Disconnect mains plug when:

– the red light below the TV screen is flashing continuously.

– cleaning the TV screen. Never use abrasive cleaning agents.

– there is a lightning storm.

– the set is left unattended for a prolonged period of time.

• No naked flame sources, such as lighted candles, should be placed on top of the TV or in

the vicinity.

• Do not place your TV set under direct sunlight or heat.

• Leave at least 5 cm around each side of TV set to allow for proper ventilation.

• Avoid placing your set (e.g. near the window) where it is likely to be exposed to rain or

water.

• No objects (such as vases) filled with liquids should be placed on top the TV so as to

avoid dripping or splashing of liquids on the set.

• Do not shift or move the set around when it is switched on.

• Do not touch, push or rub the surface with hard object.

• When the surface becomes dusty, wipe gently with absorbent cotton or other soft

materials like chamois. Do not use acetone, toluene and acohol as it causes chemical

damage to the polarizer.

• Wipe off saliva or water droplets as soon as possible. Long time contact with polarizar

causes deformations and colour fading.

• Be careful of condensation at sudden temperature change. Condensation does damage to

polarizar or electrical contact parts. After condensation fades, smear or spot will occur.

• Installation of the LCD TV on the wall should be carried out by qualified servicemen.

Improper and incorrect installation may render the set unsafe,

Recycling

The materials used in your set are either reusable or can be recycled.

To minimise environmental waste, specialist companies collect used

appliances and dismantle them after retrieving any materials that can be

used again (ask your dealer for further details).

Presentation of the LCD TV

LCD TV buttons:

• POWER: to switch the TV on or off.

• VOLUME –/+: to adjust sound level.

• MENU: to access or close menus.

The PROGRAM –/+ buttons can be

used to select an adjustment and the

VOLUME –/+ buttons to make that

adjustment.

• PROGRAM –/+: to select

programmes.

Rear of set

The main connections are made at the

bottom and the rear of the LCD TV.

For more details on connections see Quick Use

Guide.

Power socket

HDMI/PC-D*: HDMI input for

connecting a HD (high definition)

equipment or computer (equipped with

DVI output connected with a DVI to

HDMI cable).

PC-VGA/CVI-2*: VGA for connecting

to a computer with VGA output. You

can also use a Component Video to

VGA adaptor to connect to a HD (high

difinition) equipment.

PC AUDIO IN: Audio input for

connecting computer/equipment with

audio output.

AV*: AUDIO VIDEO IN and SVHS

sockets.

AUDIO OUT and VIDEO OUT

sockets.

CVI-1*: for connecting equipment with

Component Video and Audio output.

TV aerial socket.

L Headphone jack.

REAR/SVHS*: allow for connections

for items such as cameras or gaming

stations.

*Press the AV button on the remote control to

display the Source List menu and select TV or

connected peripheral equipment.

Remote Control Buttons for LCD TV Functions

1) (STANDBY)

To set the TV to standby mode. To switch the TV

set on again, press P –/+ or 0 to 9 buttons or AV

button.

2) Pixel + (only available on certain models/

versions)

Switches the Pixel + demonstration mode on or off.

3) ® I

Ò ‡ π †

Peripheral device buttons

(Refer to “Mode selector” on page 5)

4) Q Surround mode

To activate / deactivate the surround sound effect.

In stereo, this gives the impression that the speakers

are further apart. For models equipped with Virtual

Dolby Surround*, you can experience Dolby

Surround Pro Logic sound effects.

5) AV

To display Source List to select TV or peripheral

equipment connected to TV, AV, REAR/SVHS,

CVI-1(SD/HD), CVI-2(SD/HD), HDMI, PC-VGA, or

PC-D (Quick Use Guide).

6) h Active control

Optimizes the picture quality depending on the

quality of the incoming signal and the ambient light

conditions.

7) MENU

To call up or exit the TV menus.

8) Cursor

These 4 buttons are used to navigate around the

menus ( ÎïÍÆ ).

9) Volume

To adjust the sound level.

10) Smart picture and sound

Used to access a series of predefined picture and

sound settings.

11) Screen information

To display/remove the programme number, the time,

the sound mode and the time remaining on the timer.

Hold down for 5 seconds to permanently display the

programme number on the screen.

*Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbols are

trademarks of Dolby Laboratories.

10)

11)

Remote Control Buttons for LCD TV Functions

12) Mode*

Press this button to switch between TV, DVD or

AUX.

13) PIP on/off (refer to page 12)

14) List of programmes

To display / clear the list of programmes. Use

the buttons Îï to select a programme and the

button Æ to display it.

15) Screen Format (refer to page 13)

16) Sound mode

Used to force programmes in Stereo and Nicam

Stereo to Mono or, for bilingual programmes, to

choose between Dual5or Dual6.

The Mono indication is red when in forced position.

17) Teletext (refer to page 14)

18) OK

Confirms selection (For DVD/AUX mode only)

19) (Mute)

Press to mute or restore sound.

20) P –/+ Selecting TV programme

To move up or down a programme. The number

and the sound mode are displayed for a few

seconds.

For some TV programmes the title of the programme

appears at the bottom of the screen.

21) 0/9 Numerical buttons

For direct access to programmes. For a 2 digit

programme number, the 2nd digit must be entered

before the dash disappears.

22) Previous Programme

To access the previously viewed programme.

*Mode selector

The remote control allows you to control the main functions of SOME Philips DVD or VCR

models only. Note : Not available to Philips DVD-R

Press the MODE button to select the required mode: DVD or AUX.

The remote control indicator lights up to display the selected mode. It switches off automatically

after 20 seconds if left idle. The remote control automatically returns to TV mode.

The following buttons are operational, depending on the equipment:

B X ® I

Ò ‡ π †

º OK MENU ÎïÍÆ (cursor) P –/+ 0/9 Ë Á

(12

(13

(14

(15

(16

(17

(18

(19

(20

(21

(22

Installing your LCD TV

Positioning the television set

Place your TV on a solid stable surface.

To avoid danger do not expose the TV

to water, or heat source (e.g. lamp,

candle, radiator). Do not obstruct the

ventilation grid at the rear.

Connecting the aerials

• Use the aerial connection lead and

connect the : socket situated at

the bottom of the TV to your aerial

socket.

• Connect the power lead to the

television and the mains plug into the

wall socket (220-240 V 50/60 Hz).

For connecting other appliances see page

Quick Use Guide.

Switching on

To switch on the set, press the

POWER button. A green indicator

comes on and the screen lights up. Go

straight to the Quick Installation chapter.

If the TV remains in standby mode

(red indicator), press the P –/+ on the

remote control.

The indicator will flash when you use the

remote control.

Remote Control

Pull out the plastic insulation sheet from the

battery, this will activate the remote control.

The battery supplied with the appliance does

not contain mercury or nickel cadmium so

as to protect the environment. Please do

not discard your used batteries, but use the

recycling methods available (consult your

distributor).

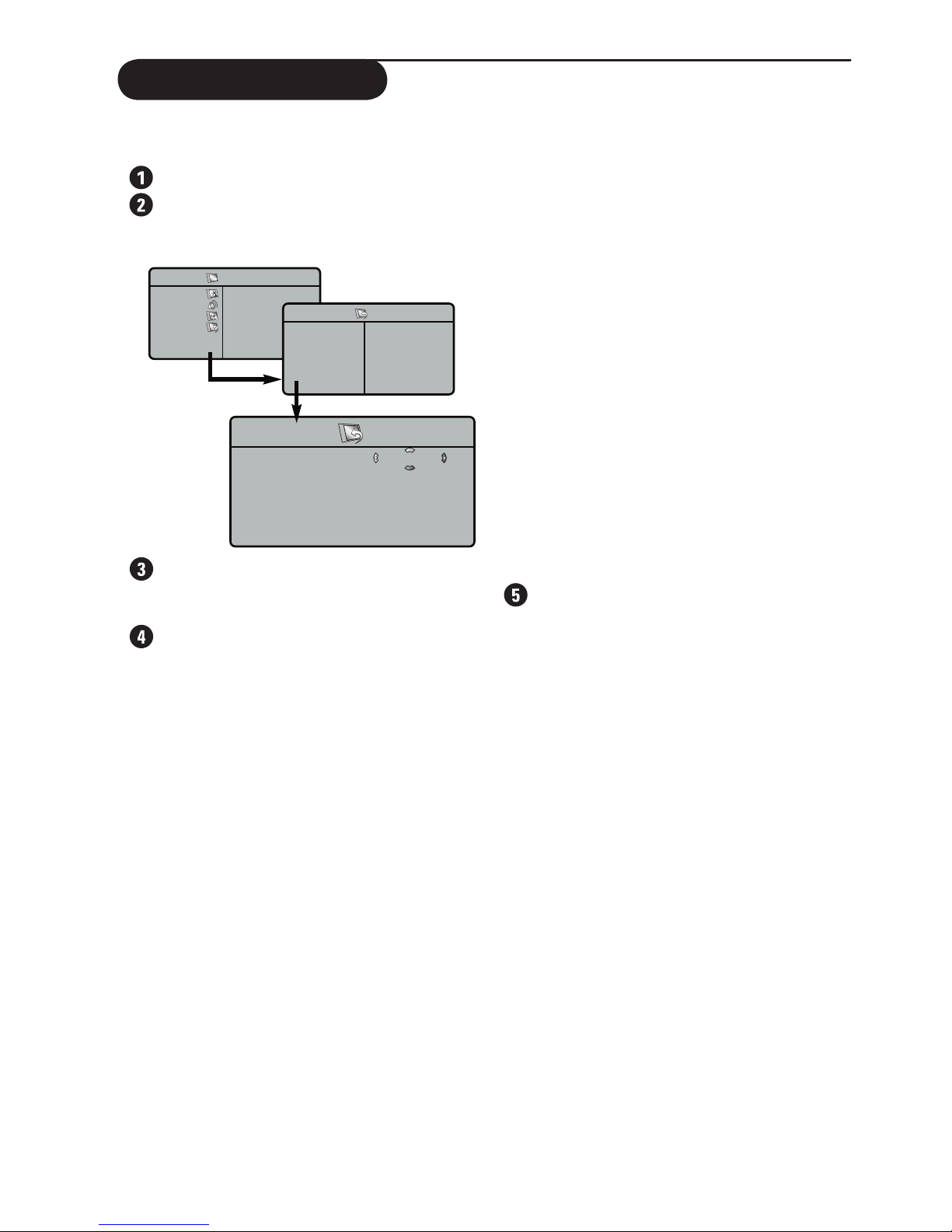

Sorting of Programme

Sort feature allows you to change the

channel number to another channel number

for a particular TV station.

Press the MENU button.

Use the Î/ï button on the remote

control to select Install and press the Æ

button to access Install menu.

Before you proceed to do the Automatic

Installation of TV Programmes, select

the menu Language of your choice.

Press the MENU button. The TV Menu

is displayed on the screen.

Use the Î/ï button on the remote

control to select the Install.

Press the Æ button to access the Install

menu (Language is highlighted).

Select your language using the Í/Æ

button.

To exit the menu, press Ë button.

TV Menu


Sound

Features

Install

Language

Auto Store

Manual Store

Sort

Name

Channel Edit

Æ·

TV Menu


Sound

Features

Install

Language

Auto Store

Manual Store

Sort

Name

Channel Edit

English

TV Menu


Sound

Features

Install

Language

Auto Store

Manual Store

Sort

Name

Channel Edit

Start?

Selecting the Menu Language

Press the MENU button. The TV Menu

is displayed on the screen.

Use the Î/ï button on the remote

control to select the Install and press Æ

button to access Install menu.

Press ï button repeatedly until Auto

Store is selected.

Press Æ button to start automatic tuning

of TV programmes. When the automatic

tuning is completed, the Install menu is

displayed.

To exit or interrupt the search, press

MENU.

To exit the menu, press Ë button.

Automatic Installation of TV Programmes

Press ï button repeatedly until Sort is

selected.

Select the programme you want to sort

using the Î/ï button and press Æ to

enter sorting mode (the arrow points to

the left).

Then use the cursor Î/ï button to

select the new number and press the

Í button to activate sorting mode (the

arrow how points to the right and

sorting is completed).

Repeat steps and for each

program you wish to re-number.

To exit the menus, press Ë button.

Name feature allows you to enter a name

for any channel you select.

Press the MENU button.

Use the Î/ï button on the remote

control repeated until Install is selected

and press the Æ button to access Install

menu.

Press ï button repeatedly until Name

is selected and press Æ button to access

name mode.

Use the Î/ï button to key in first

character. Use the Æ button to move to

next character slot. (You can key up to a

maximum of 5 characters).

To store name, press the Æ button

repeatedly until you exit name mode.

The name is now indicated at the top left

hand corner of the screen.

To exit the menu, press Ë button.

TV Menu


Sound

Features

Install

Language

Auto Store

Manual Store

Sort

Name

Channel Edit

E L L I E

Naming of Channel

Channel Edit feature allows you to edit or

skip programmes which have bad or weak

TV signal or programme that you do not

watch often.

Press the MENU button.

Use the Î/ï button on the remote

control repeated until Install is selected

and press the Æ button to access Install

menu.

Press ï button repeatedly until

Channel Edit is selected and press

Æ button to access the Channel Edit

menu.

Use the Í/Æ button or Digit (0 - 9)

button to select channel you want to

skip.

Press the ï button to select skipped and

use the Í/Æ button to select On option

to activate skipping of channel.

To exit the menu, press Ë button.

Restoring skipped channels

To restore skipped channels :

- Repeat steps to and select the

channel you want to restore by the Î/ï

button.

- Press Í/Æ button to select Off option to

restore the skipped channel.

Editing of Channel

TV Menu


Sound

Features

Install

Language

Auto Store

Manual Store

Sort

Name

Channel Edit

ÆChannel

Skipped

Manual Store

Manual Store feature allows you to store the

programmes one at a time.

Press the MENU button.

Use the Î/ï button repeatedly until

Install is selected and press Æ button to

access Install menu.

- Colour System:

use the Í/Æ button to select Auto

(automatic detection), PAL, NTSC 3.58,

NTSC 4.43 or SECAM.

- Sound System:

use the Í/Æ button to select Auto

(automatic detection), BG, I, DK or M.

- Search:

press Æ button to start manual search.

Searching stops once a transmitting channel

is found. If you know the frequency of

the required channel, you can key in

directlythe frequency using the Digit (0 to

9) buttons.

- Channel:

enter the required number with the Í/Æ

or 0 to 9 buttons.

- Fine Tune:

if the reception is not satisfactory, adjust

using the Í/Æ button.

- Store:

press Æ button to store channel.

To exit the menus, press Ë button.

Press ï button repeatedly until Manual

Store is selected and press Æ button to

enter Manual Store menu.

Use the Î/ï button to select a setting:

TV Menu


Sound

Features

Install

·Language

·Auto Store

·Manual Store

·Sort

·Name

Manual Store

Colour System

Sound System

Channel

Fine Tune

Store

Auto

Install

Language

Auto Store

Manual Store

Sort

Name

Channel Edit

·Colour System

·Sound System

·Search

·Programme

·Fine Tune

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Televisor LCD de Philips

Philips

Philips 42PFL9703D Manual de usuario

Philips

Philips 32PFL3605/98 Manual de usuario

Philips

Philips 22PFS5303 Guía de inicio rápido

Philips

Philips 23-LCD HDTV MONITOR FLAT TV DIGITAL CRYSTAL CLEAR... Manual de usuario

Philips

Philips 56PFL9954H Manual de usuario

Philips

Philips 150MT20P Guía de referencia

Philips

Philips 20HFL2809D/10 Manual de usuario

Philips

Philips 55PFL3907 Manual de usuario

Philips

Philips 20PFL4122/93 Manual de usuario

Philips

Philips 29PT8841/60 Manual de usuario

Philips

Philips 42PFL3704D Manual de usuario

Philips

Philips 22HFL3381D/10 Manual de usuario

Philips

Philips 19PFL3505D/F7 Manual de usuario

Philips

Philips 47PFL7409D/30 Manual de usuario

Philips

Philips 20FT3310/37 Manual de usuario

Philips

Philips 19PFL3404/60 Manual de usuario

Philips

Philips 22HFL5550D Manual de usuario

Philips

Philips 32PFL7482 Manual de usuario

Philips

Philips 37PFL7482/98 Manual de usuario

Philips

Philips 65PUT6703S Manual de usuario

Philips

Philips 32PF5520D/79 Manual de usuario

Philips

Philips 52PFL7803D Manual de usuario

Philips

Philips FlatTV 20PF4121 Manual de usuario

Philips

Philips Cineos 32PF9641D/10 Manual de usuario

Manuales populares de Televisor LCD de otras marcas

LG 32LC4R* Manual de usuario

ViewSonic

ViewSonic N4200w-1 VS10945-1M Manual de usuario

Salora

Salora 22LED1600 Manual de usuario

Samsung

Samsung LA32E420 Guía

Dell

Dell W1900 19 Instrucciones de uso

Samsung

Samsung LN40C670M1F Manual de usuario

Samsung

Samsung Series 4+ Manual de usuario

Samsung

Samsung 5 Series Manual de usuario

Grundig

Grundig 40 VLE 8230 BP Manual de usuario

Sony

Sony Bravia XBR-43X830C Manual de usuario

LG 32LS350 Manual de usuario

VIORE

VIORE LED32VF60 Manual de usuario

Toshiba

Toshiba Regza 42HL167 Manual de usuario

JVC

JVC LT-32A220 Manual de usuario

Sony

Sony Bravia KDL-V32XBR2 Manual de usuario

Vizio

Vizio VP422HDTV10A - 42" Plasma TV Manual de usuario

Dynex

Dynex DX-40L261A12 Manual de usuario

JVC

JVC LT-23C50BU Manual de usuario
