Philips GC9500 Series Manual de usuario

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Insta Press

GC9500

06/09

PRODUCT INFORMATION

Product Feature

- Variable temperature : 4 selections by fabric type

- Dual pressure : Full pressure - 45 kg

Half pressure - 22.5 kg

- Low heat generation : Outer surface do not get hot,

user stays cool.

- Water tank capacity : 0.5 L for 2 to 3 hours ironing

- Transparent water tank for easy refill

- Adjustable water spray

- Automatic moisturizing

- Innovative sleeve board

- Easy maintenance

- Iron while seated

- Electronic lock for secure storage

Safety Feature

- Automatic safety shut-off after 15 minutes of no-use.

- Electronic lock activated only after the press has cooled

down.

Safety Information

- This product meets the requirements regarding

interference suppression on radio & TV

- Due to the high wattage of the product, only the

specified cord set must be used.

- After the product has been repaired, it should function

properly and has to meet the safety requirements and &

legal regulations as laid down & officially established at

this moment.

TECHNICAL INFORMATION

Voltage : 220 - 240 V

Frequency : 50 - 60 Hz

Power consumption : 1000 W

Ironing surface (main board) : 62 x 25 cm

Ironing surface (sleeve board) : 54 x 9 cm

Dimension : 70 (L) x 57 (W) x 23 (H) cm

Weight : 13.7 kg

Automatic moisturizing

Super ﬁne, adjustable water spray covers the entire ironing

area for creating steam IN the material. This soften the

ﬁbers in the fabric & provide a ‘cushion’ against heat shock,

resulting in high quality steam ironing.

Innovative sleeve board

Allows one to iron difﬁcult items eg. yoke of a shirt, pleats,

jacket sleeves etc.

Easy maintenance

Creates steam without boiling water, so you use normal

tap water and avoid scale build-up; a system that is easy to

maintain.

Iron while seated

The ironing sessions may be done comfortably, while in a

sitting position. There is low heat generation, so the user stays

cool.

GC9500

2-8

DISASSEMBLY ADVICE

- For details of disassembly instructions, please refer to service CD-ROM provided.

REPAIR INSTRUCTIONS

- Individual components of the service kit cannot be ordered separately.

ELECTRICAL DIAGRAM

IRONING SHOE

220V

PRESSURE ARMP

FRAME

Transformer

Optron shoe

Optron

board

Load board

Main board

PowerDRNTC Control Opto

Motor

board

Reducer

Socket

Strip

GC9500

3-8

PARTS LIST

Pos Service code Description Consists of

4239 022 55870

4239 022 55880

4239 022 55890

4239 022 55900

4239 022 55910

4239 022 55920

4239 022 55930

4239 022 55940

4239 022 55950

4239 022 55960

4239 022 55970

4239 022 55980

4239 022 55990

4239 022 56000

4239 022 56010

4239 022 56020

4239 022 56030

4239 022 56040

4239 022 56050

4239 022 56060

4239 022 56070

4239 022 56080

4239 022 56090

4239 022 56100

4239 022 56110

4239 022 56120

4239 022 56130

4239 022 56140

4239 022 56150

4239 022 56160

4239 022 56170

4239 022 56180

4239 022 56190

4239 022 56200

4239 022 56210

4239 022 56220

4239 022 56230

4239 022 56240

4239 022 56250

4239 022 56260

4239 022 56270

4239 022 56280

4239 022 56290

4239 022 56300

4239 022 56310

4239 022 56320

4239 022 58510

4239 022 58520

4239 022 58530

Cord Socket Cable Kit

Stay Rod Assembly Kit

Pump Handle Assembly Kit

Pump Assembly Kit

Water Tube Kit for Tank

Motor Reducer Assembly Kit

Water Tank Closure Kit

Water Tank Assembly Kit

Upper/Bottom Plastic Assembly Kit

Heat Shield Assembly Kit

Heating Shoe Cable Kit

Main PCBA Kit

PCBA Cable Kit

Optron plate black

Stopper

Heating element 450 W / 103.5 V

Heating element 550 W / 126.5 V

Temperature sensitive element (sensor)

Thermofuse 260 °C

Insulation

Heating shoe cut + stamped + posts

Reducer nut

Nozzle

Main board with insert

Foam main board

Main board cover

Foam sleeve board

Sleeve board cover

Upper part surface top

Lower part surface bottom

Cable clamp

Big button (pressure) + overmolding

Lock, pressure, temp. buttons

Logotype

11 caps A to K

Foot

Circuit motor control, feed (power) 348010

Circuit load control (triac) 633001

Circuit optron

Pressure Arm Cable Kit (Sleeve + 007/9/10 + fuse)

Interference suppression capacitor with cables

Transformer 230 V

Cord CEE

Filling cup

Control panel sticker

Pressure retention pin

Amortising spring

Spring support low

Spring socket

1.1, 1.2, 1.3

2.1, 2.2, 2.3, 2.4, 2.5, 2.6

3.1, 3.2, 3.3

4.1, 4.2, 4.3, 4.4, 4.5, 4.6, 4.7, 4.8

5.1, 5.2

6.1, 6.2, 6.3, 6.4, 6.5, 6.6

7.1, 7.2

8.1, 8.2

9.1, 9.2, 9.3

10.1, 10.2, 10.3

11.1, 11.2, 11.3, 11.4, 11.5, 11.6

12.1, 12.2

13.1, 13.2, 13.3

GC9500

4-8

EXPLODED VIEW - TOP

45 34

12.1

12.2

10.2

10.3

10.1

14 15

3.3

3.2

4.4

5.2

4.6

4.3

4.7

4.5

4.1

4.2

4.8

5.1

3.1

GC9500

5-8

EXPLODED VIEW - BOTTOM

2.5

2.6

2.3

2.1

2.2 2.4

9.1

9.2

9.3

6.1

6.4

6.5

6.3

8.2

6.4

6.2

6.6

6.5

8.1

8.2

7.1

7.2

42 37

GC9500

6-8

EXPLODED VIEW - HEATING SHOE

11.6

11.5

11.4

11.3

11.1

11.2

GC9500

7-8

EXPLODED VIEW - MAIN BOARD / SLEEVE BOARD

GC9500

8-8

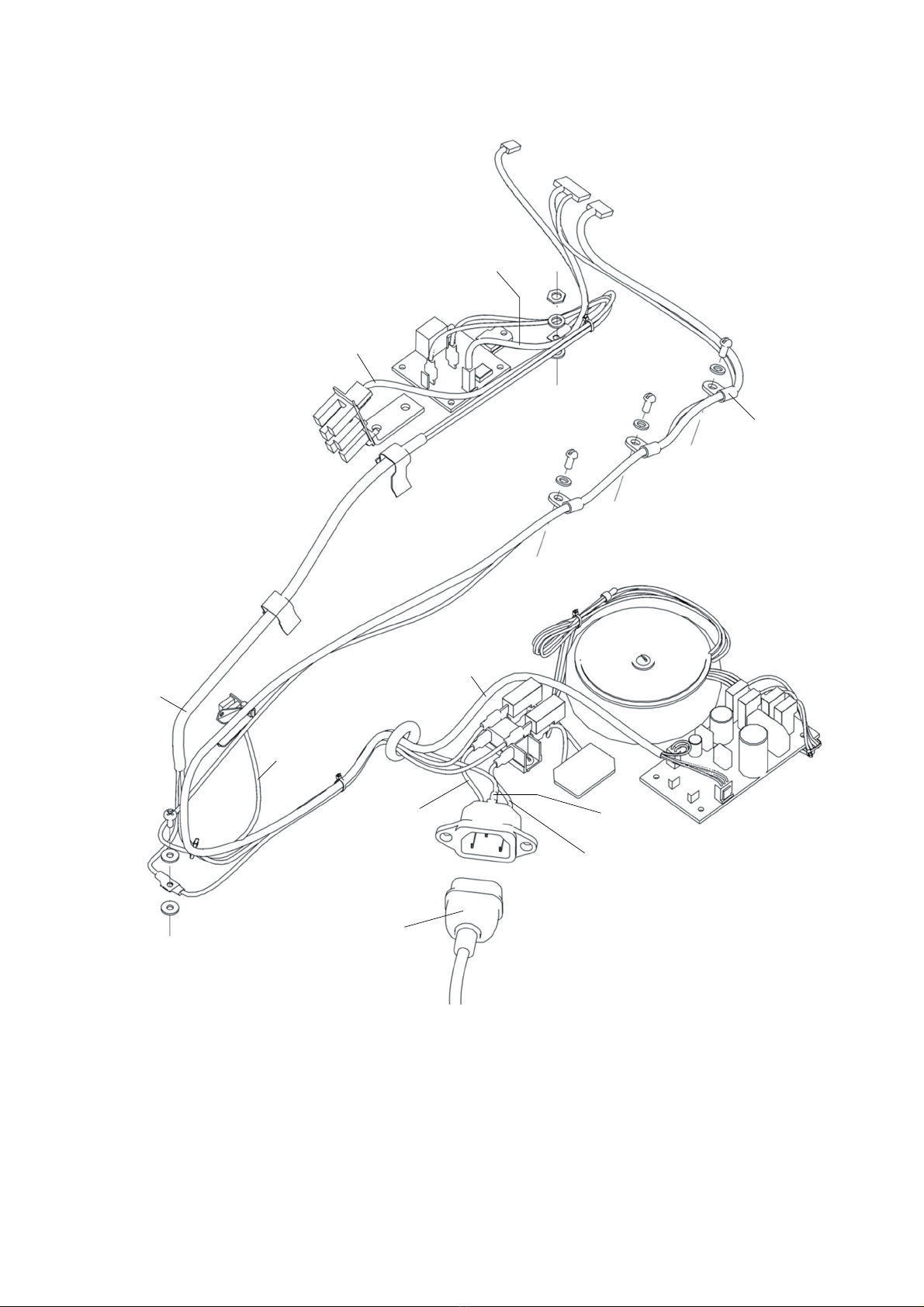

EXPLODED VIEW - ELECTRONICS

1.1

1.3

1.2

13.3

13.1

13.2

13.3
