Philips Elance GC3116 Manual de usuario

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Steam Iron Elance

GC3116

04/01

PRODUCT INFORMATION

Features

- Colour Creamy Orange

- Careeza soleplate

- Tank capacity (300 ml)

- Steam rate (30 g/min)

- Shot of steam (75 g/min)

- Vertical steam (75 g/min)

- Permanent Anti-Calc

- Integrated cord winder

- Cord length : 2 m.

Safety Information

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements and

legal regulations as officially laid down at this moment.

TECHNICAL INFORMATION

Voltage : 220 - 240 V

Frequency : 50 - 60 Hz

Power consumption : 1900 W

Water advice

Suitable for tap water use. However if the tap water in your

area is very hard, we advise you to mix it with a equal portion

of distilled water or to use distilled water only.

Cleaning of the Iron

Use only the Calc clean button for cleaning of the Iron.

Never use vinegar, starch or chemically descaled water.

Soleplate

Careeza is a multi layer chemical substance that gives an

excellent gliding over various fabrics and better care for the

garments.

Vertical Steam

When the iron is kept in a vertical position, the shot of steam

(S.O.S) button can be used to iron hanging fabrics such as

curtains.

GC3116

DIAL 1

BACKPLATE 2

CORD SET 4

BALL SWIVEL 5

Remove Screw A (1x)

Remove BACKPLATE 2

Remove Screw B (2x) cord clamping

DISASSEMBLY ADVICE

INLAY 6

LAMP ASSY 10

FILLING DOOR 7

STEAM SLIDER 8

LAMP COVER 9

SOS KNOB 12

SPRAY KNOB 13

TANK SEAL 14

remove Screw A (1x)

remove BACKPLATE 2

remove Screw B (2x) cord clamping

remove INLAY 6

DOSING UNIT 15

remove Screw A (1x)

remove BACKPLATE 2

remove Screw B (2x) cord clamping

remove INLAY 6

remove Screw C (2x)

remove Screw D (2x)

remove DOSING UNIT 15

HOUSING 16

RATTLE SPRING 17

PUMP ASSY 18

remove Screw A (1x)

remove BACKPLATE 2

remove Screw B (2x) cord clamping

remove INLAY 6

remove Screw C (2x)

remove Screw D (2x)

remove DOSING UNIT 15

remove Screw E (2x)

remove HOUSING 16

TANK 19

THERMOSTAT BUSH 20

remove Screw A (1x)

remove BACKPLATE 2

remove Screw B (2x) cord clamping

remove INLAY 6

remove Screw C (2x)

remove Screw D (2x)

remove DOSING UNIT 15

remove Screw E (2x)

remove HOUSING 16

remove Screw F (2x)

remove TANK 19

HEAT SHIELD 21

remove Screw A (1x)

remove BACKPLATE 2

remove Screw B (2x) cord clamping

remove INLAY 6

remove Screw C (2x)

remove Screw D (2x)

remove DOSING UNIT 15

remove Screw E (2x)

remove HOUSING 16

remove Screw F (2x)

remove TANK 19

remove Screw G (1x)

remove HEAT SHIELD 21

COVER 22

SOS SEAL 23

DOSING SEAL 24

SOLEPLATE ASSY 25

remove Screw A (1x)

remove BACKPLATE 2

remove Screw B (2x) cord clamping

remove INLAY 6

remove Screw C (2x)

remove Screw D (2x)

remove DOSING UNIT 15

remove Screw E (2x)

remove HOUSING 16

remove Screw F (2x)

remove TANK 19

remove Screw G (1x)

remove HEAT SHIELD 21

remove Screw H (2x)

remove COVER 22

2-4

GC3116

PARTS LIST

REPAIR INSTRUCTIONS

- Due to high voltage of the iron, ONLY the specified cordsets must be used.

- For standardisation reasons :

Type plate : No information about the typenumber and voltage have been stamped onto the typeplate.

When replacing the typeplate, engrave at least typenumber onto the typeplate with a sharp object.

- Thermostat, fitted to the soleplate 25 has already been adjusted by the supplier and secured by glue. To avoid mal-function of the

iron, NEVER re-adjust the thermostat.

NOTE :

The thermostat can only be ordered together with the soleplate assembly 25.

OPTIONAL (accessories)

- No specific issues

RESISTOR

LAMP

FUSE

HEATING

UNIT

INPUT

THERMOSTAT

3-4

Pos Service code Description

4239 021 07300

4239 021 11880

4239 021 10260

4239 026 07960

4239 026 17650

4239 000 08850

4239 000 08380

4239 025 92070

4239 021 07280

4239 021 23270

4239 026 17850

4239 026 08280

4239 021 03140

4239 026 01220

4239 026 17700

4239 026 17740

4239 015 54400

4239 021 08510

4239 026 17490

4239 026 17830

4239 020 90560

4239 022 54380

4239 015 98410

4239 010 07850

4239 026 09750

4239 015 51450

4239 015 55430

4239 021 23390

4239 026 05990

Dial printed (Fre/Dut text)

Dial printed (Ger/Swe text)

Dial printed (Spa/Eng text)

Backplate

Backplate cover

Cordset EU

Cordset UK

Ball swivel

Inlay printed

Filling door assy

Steam slider

Lamp cover

Lamp assy

Lamp holder

SOS knob

Spray knob

Tank seal

Dosing unit

Housing

Plastic rattle spring

Pump assy

Tank assy (Non drip stop)

Thermostat bush

Heat shield

Cover (Non drip stop)

SOS seal

Dosing seal

Soleplate assy - HV

Filling cup

GC3116

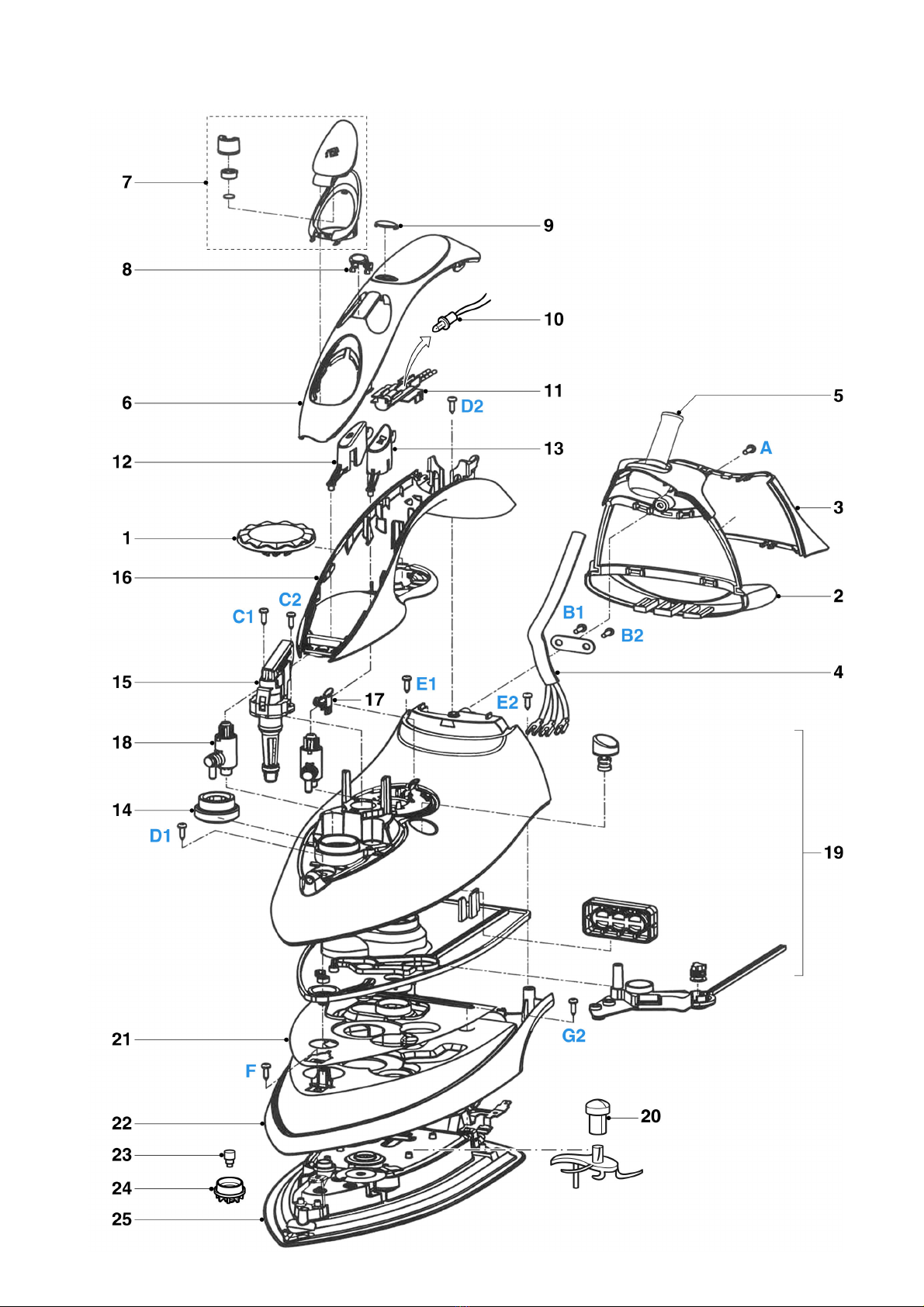

EXPLODED VIEW

4-4

Screws : d x 1

A, B 3.5 x 16 mm

C2.5 x 14 mm

D3.5 x 15 mm

E3.5 x 17 mm

(with washer 1mm)

F4.0 x 12 mm

(with washer 1mm)

G4.0 x 10 mm
