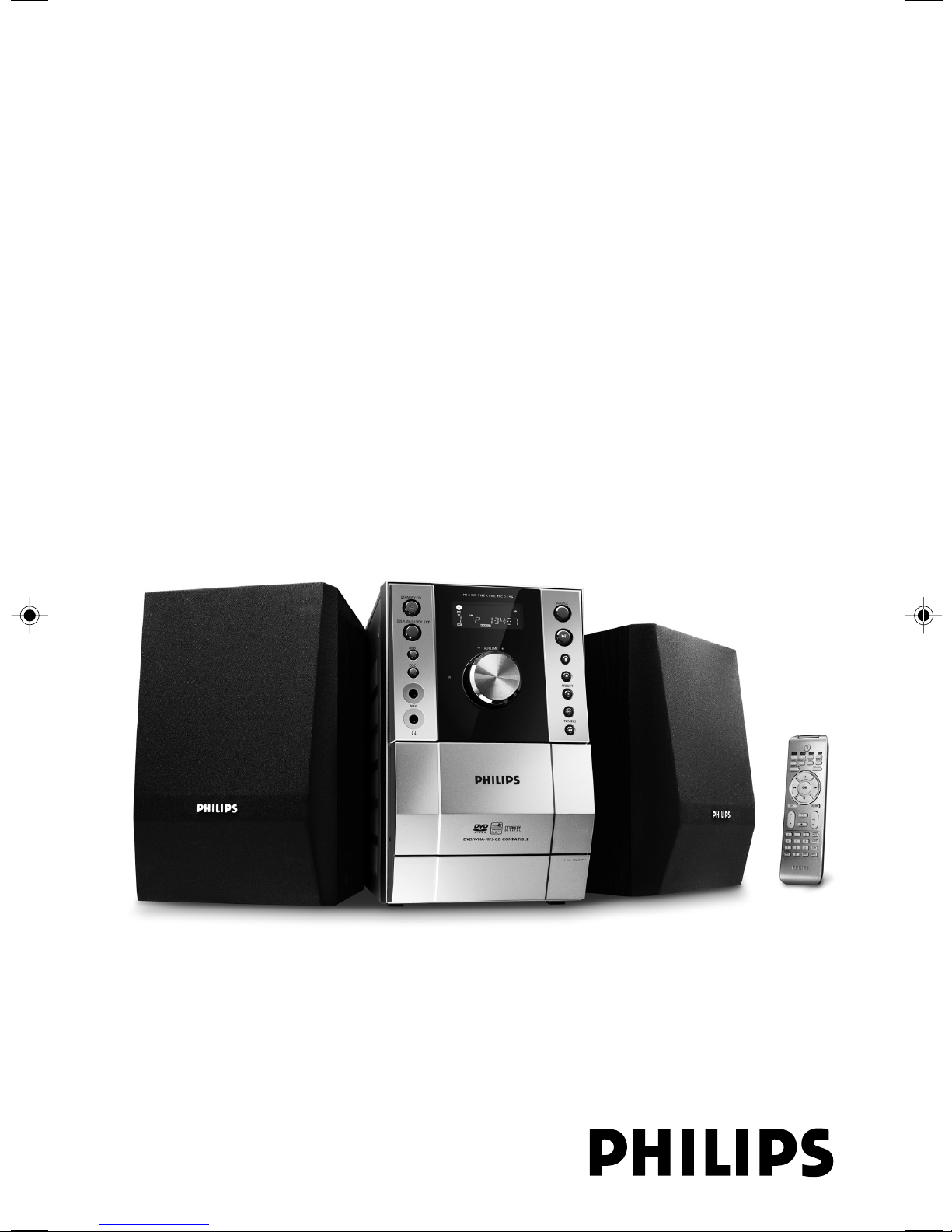

Philips MCD196/79 Manual de usuario

MCD196

DVD Micro Theatre

User manual

MCD196-79-Eng 13/2/07, 14:431

CAUTION

Visible and invisible laser radiation. If

the cover is open, do not look at the

beam.

MCD196-79-Eng 13/2/07, 14:432

VOLUME

STANDBY-ON

PULLTO OPEN

MICRO THEATRE MCD196

DVD/WMA-MP3-CD COMPATIBLE

PRESET

SOURCE

TUNING

DBB

DSC

AUX

DISPLAY/CLOCK SET

1 6

MCD196-79-Eng 13/2/07, 14:433

)

™

(

≤

CLOCK

MCD196-79-Eng 13/2/07, 14:434

Manufactured under license from Dolby

Laboratories.

"Dolby", "Pro Logic" and the double-D symbol

are trademarks of Dolby Laboratories.

MANUFACTURED UNDER LICENSE FROM

DIGITAL THEATER SYSTEMS, INC. US PAT. NO

5,451,942,5,956,674, 5,974,380, 5,978,762 AND

OTHER WORLDWIDE

PATENTS ISSUED AND PENDING. "DTS" AND

"DTS DIGITAL SURROUND" ARE REGISTERED

TRADEMARKS OF DIGITAL THEATER

DIGITAL THEATER SYSTEMS, INC. ALL RIGHTS

RESERVED.

This product incorporates copyright protection

technology that is protected by method claims of

certain U.S. patents and other intellectual

property rights owned by Macrovision

Corporation and other rights owners. Use of this

authorized by Macrovision Corporation, and is

intended for home and other limited viewing

uses only unless otherwise authorized by

Macrovision Corporation. Reserve engineering

or disassembly is prohibited.

Windows Media is a trademark of

Microsoft Corporation.

MCD196-79-Eng 13/2/07, 14:435

Abkhazian 6566

Afar 6565

Afrikaans 6570

Amharic 6577

Arabic 6582

Armenian 7289

Assamese 6583

Avestan 6569

Aymara 6589

Azerhaijani 6590

Bahasa Melayu 7783

Bashkir 6665

Belarusian 6669

Bengali 6678

Bihari 6672

Bislama 6673

Bokmål, Norwegian 7866

Bosanski 6683

Brezhoneg 6682

Bulgarian 6671

Burmese 7789

Castellano, Español 6983

Catalán 6765

Chamorro 6772

Chechen 6769

Chewa; Chichewa; Nyanja

7889

9072

Chuang; Zhuang 9065

Church Slavic; Slavonic 6785

Chuvash 6786

Corsican 6779

Česky 6783

Dansk 6865

Deutsch 6869

Dzongkha 6890

English 6978

Esperanto 6979

Estonian 6984

Euskara 6985

 6976

Faroese 7079

Français 7082

Frysk 7089

Fijian 7074

Gaelic; Scottish Gaelic 7168

Gallegan 7176

Georgian 7565

Gikuyu; Kikuyu 7573

Guarani 7178

Gujarati 7185

Hausa 7265

Herero 7290

Hindi 7273

Hiri Motu 7279

Hrwatski 6779

Ido 7379

Interlingua (International)7365

Interlingue 7365

Inupiaq 7375

Irish 7165

Íslenska 7383

Italiano 7384

Ivrit 7269

Japanese 7465

Javanese 7486

Kalaallisut 7576

Kannada 7578

Kashmiri 7583

Kazakh 7575

Kernewek 7587

Khmer 7577

Kinyarwanda 8287

Kirghiz 7589

Komi 7586

Korean 7579

Kuanyama; Kwanyama 7574

Kurdish 7585

Lao 7679

Latina 7665

Latvian 7686

Letzeburgesch; 7666

Limburgan; Limburger 7673

Lingala 7678

Lithuanian 7684

Luxembourgish; 7666

Macedonian 7775

Malagasy 7771

Magyar 7285

Malayalam 7776

Maltese 7784

Manx 7186

Maori 7773

Marathi 7782

Marshallese 7772

Moldavian 7779

Mongolian 7778

Nauru 7865

Navaho; Navajo 7886

Ndebele, North 7868

Ndebele, South 7882

Ndonga 7871

Nederlands 7876

Nepali 7869

Norsk 7879

Northern Sami 8369

North Ndebele 7868

Norwegian Nynorsk; 7878

Occitan; Provencal 7967

Old Bulgarian; Old Slavonic 6785

Oriya 7982

Oromo 7977

Ossetian; Ossetic 7983

Pali 8073

Panjabi 8065

Persian 7065

Polski 8076

Português 8084

Pushto 8083

Russian 8285

Quechua 8185

Raeto-Romance 8277

Romanian 8279

Rundi 8278

Samoan 8377

Sango 8371

Sanskrit 8365

Sardinian 8367

Serbian 8382

Shona 8378

Shqip 8381

Sindhi 8368

Sinhalese 8373

Slovensky 8373

Slovenian 8376

Somali 8379

Sotho; Southern 8384

South Ndebele 7882

Sundanese 8385

Suomi 7073

Swahili 8387

Swati 8383

Svenska 8386

Tagalog 8476

Tahitian 8489

Tajik 8471

Tamil 8465

Tatar 8484

Telugu 8469

Thai 8472

Tibetan 6679

Tigrinya 8473

Tonga (Tonga Islands) 8479

Tsonga 8483

Tswana 8478

Türkçe 8482

Turkmen 8475

Twi 8487

Uighur 8571

Ukrainian 8575

Urdu 8582

Uzbek 8590

Vietnamese 8673

Volapuk 8679

Walloon 8765

Welsh 6789

Wolof 8779

Xhosa 8872

Yiddish 8973

Yoruba 8979

Zulu 9085

Language Code

MCD196-79-Eng 13/2/07, 14:436

English

EspañolDeutschNederlandsItalianoSvenskaDansk

Index

English ------------------------------------------------ 8

MCD196-79-Eng 13/2/07, 14:437

English

Contents

General Information

Features ................................................................ 10

Discs for playback .............................................. 10

Supplied accessories .......................................... 10

Environmental information .............................. 11

Care and safety information ............................ 11

Connections

Step 1: Placing speakers .................................... 13

Step 2: Connecting speakers ............................ 14

Step 3:Antenna connection ............................. 14

Step 4: Connecting TV ................................. 14-15

Using Video In jack

Using S-Video In jack

Using an accessory RF modulator

Step 5: Connecting the power cord ............... 16

Optional: Connecting additional equipment 16

Controls

Controls on the system .................................... 17

Controls on the remote control .............. 17-18

Preparations

Before using the remote control .................... 19

Replacing battery ................................................ 19

Step 1: Setting the clock ................................... 19

Step 2: Setting video preference ............... 20-21

Step 3: Setting language preference ................ 21

Basic Functions

Switching the system on ................................... 22

Power-saving automatic standby ..................... 22

Sound control ..................................................... 22

DBB

DSC

LOUDNESS

Volume control ................................................... 22

Disc Operations

Playing discs ......................................................... 23

Using the disc menu .......................................... 23

Basic playback controls ............................... 23-25

Pausing playback

Selecting a track/chapter/title

Resuming playback from the last stopped

point

Zoom

Repeat and shuffle modes

Repeat A-B

Program

Forward/Reverse Searching

Time search & search by chapter/track

number

Information display during playback

Special disc features ........................................... 25

Playing a Title

Camera Angle

Changing the Audio Language

Changing the Audio Channel

Subtitles

Playing MP3/WMA/JPEG disc .......................... 26

Playing MP3/WMA disc ..................................... 26

General operation

Playback selection

Playing JPEG Picture CD ................................... 26

General operation

Playback selection

Special JPEG features ......................................... 26

Zoom picture

Playback with multi-angles

MCD196-79-Eng 13/2/07, 14:438

English

Contents

System Menu Options

Basic operations ................................................. 27

SYSTEM SETUP ............................................ 27-29

TV SYSTEM

SCREEN SAVER

TV TYPE

PASSWORD

RATING

DEFAULT

LANGUAGE SETUP .......................................... 28

VIDEO SETUP .................................................... 29

BRIGHTNESS

CONTRAST

HUE

SATURATION

AUDIO SETUP ................................................... 29

DOWNMIX

3D PROCESSING

LPCM

NIGHT MODE

Radio Reception

Tuning to radio stations .................................... 30

Programming radio stations ............................. 30

Automatic programming ............................... 30

Manual programming ...................................... 30

Tuning to preset radio stations ....................... 30

Tape Operation/Recording

Tape playback ...................................................... 31

General information on recording ................. 31

Preparation for recording ................................ 32

Synchro start CD recording ............................ 32

One touch recording ......................................... 32

Clock/Timer

Clock setting ....................................................... 33

Timer setting ....................................................... 33

Sleep timer setting ............................................. 33

Specifications ........................................... 34

Tr oubleshooting .............................. 35-36

Glossary ......................................................... 37

MCD196-79-Eng 13/2/07, 14:439

English

General Information

Features

Additional Component Connections

Lets you connect other audio and audio/visual

components to the system so you can use the

system’s surround sound speakers.

Parental control (rating level)

Lets you set a rating level so that your children

cannot watch a DVD that has a rating higher

than you set.

Sleep timer

Enables the system to switch to standby mode

automatically at a preset time.

Night Mode

Lets you compress the dynamic range, reducing

the difference in loudness between different

sounds in Dolby Digital mode.

Discs for playback

Your DVD System will play:

–Digital Video Discs (DVDs)

–Video CDs (VCDs)

–Super Video CDs (SVCDs)

–Digital Video Discs + Rewritable (DVD+RW)

–Compact Discs (CDs)

–Picture (Kodak, JPEG) files on CDR(W)

–Windows Media Audio (WMA)

–Supported MP3-CD format.

•ISO 9660 / UDF format

•Max. title/album name –10 characters

•Max. title number plus album is 255.

•Max. nested directory is 8 levels.

•The max. album number is 32.

•The max. MP3 track number is 999.

•Supported sampling frequencies for MP3

disc: 32 kHz, 44.1 kHz, 48 kHz.

•Supported Bit-rates of MP3 disc are: 32, 64,

96, 128, 192, 256 (kbps).

The following formats can’t be supported

•The files like *.VMA, *.AAC, *.DLF, *.M3U,

*.PLS, *.WAV,

•The discs recorded under Joliet format

Region Codes

DVDs must be labeled for ALL regions or Region

4 in order to play on this DVD system.You

cannot play discs that are labeled for other

regions.

Notes:

–For mixed mode discs, only one mode will be

selected for playback according to the recording

format.

–If you are having trouble playing a certain disc,

remove the disc and try a different one. Improperly

formatted discs will not play on this system.

–DTS surround audio output is not available in

this DVD player.

Supplied accessories

–Composite video cable (yellow)

–MW loop antenna

–FM wire antenna

– Remote Control with battery

–This instruction booklet and a quick start guide

ALL

MCD196-79-Eng 13/2/07, 14:4310

Otros manuales para MCD196/79

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de cine en casa de Philips

Philips

Philips HTS3357 Manual de usuario

Philips

Philips MCD716/12 Manual de usuario

Philips

Philips MCD288/55 Manual de usuario

Philips

Philips HTS3410D/55 Manual de usuario

Philips

Philips HTB5520 Manual de usuario

Philips

Philips MCD908/93 Manual de usuario

Philips

Philips HTS5580W Manual de usuario

Philips

Philips HTS3300 Manual de instrucciones

Philips

Philips HTD5510 Manual de usuario

Philips

Philips HTS3156 Manual de usuario

Philips

Philips HTS6100/55 Manual de usuario

Philips

Philips MCD179 Manual de usuario

Philips

Philips HTS8140/05 Manual de usuario

Philips

Philips HTS6600/55 Manual de usuario

Philips

Philips MCD288/37B Manual de usuario

Philips

Philips HTS2511/98 Manual de usuario

Philips

Philips HTS3201/12 Manual de usuario

Philips

Philips HTS8100 - Soundbar DVD Surround System Manual de usuario

Philips

Philips LX7500R/01 Manual de funcionamiento

Philips

Philips MCD759 Manual de usuario

Philips

Philips HTS8100/98 Manual de usuario

Philips

Philips HTB7255D Manual de usuario

Philips

Philips HTS3560/51 Manual de usuario

Philips

Philips MCD107/51 Manual de usuario

Manuales populares de Sistema de cine en casa de otras marcas

Samsung

Samsung HT-ES4200K Manual de usuario

Harman Kardon

Harman Kardon HS 100 Manual de usuario

Samsung

Samsung HT-P10 Manual de usuario

Goodmans

Goodmans GDVD19SWS Manual de usuario

Moxi

Moxi media center Manual de usuario

Samsung

Samsung HT-EM35 Manual de usuario

LG HE903PAW Manual de usuario

Bose

Bose SoundTouch 520 Manual de usuario

Sony

Sony BDV-N990W Manual de usuario

Manta

Manta GK-500 Manual de usuario

Sharp

Sharp SBW800 Manual de usuario

LG LHT799 Manual de usuario

Samsung

Samsung HT-TWZ415 Manual de usuario

Loewe

Loewe REFERENCE 52 SL FHD+ 200 NMP Manual de usuario

Samsung

Samsung AH68-02166R Manual de usuario

RCA

RCA 600-Watt Manual de usuario

Sony

Sony HT-7100DH Manual de usuario

Samsung

Samsung HT-DS630T Manual de usuario
