6ENGLISH

Introduction

SHC8680

One of the most sophisticated designs of FM wireless headphone system.

This lightweight system implements the most advanced analog FM wireless

technology, which offers you complete freedom of movement while

enjoying your favourite movie or music.The energizing docking station

recharges your receiver unit while it is not in use.Your headphone will

always be ready to use when you need to enjoy a movie.This innovative

design of docking station also allows neat storage of earphone cables,

neckstrap and accessories.You are now free from the hassles of tangled

cables!

To ensure you achieve the best performance from your FM wireless

headphone system, please read this manual carefully and keep it for future

reference.

Functional overview -

Product illustrations on inside flap

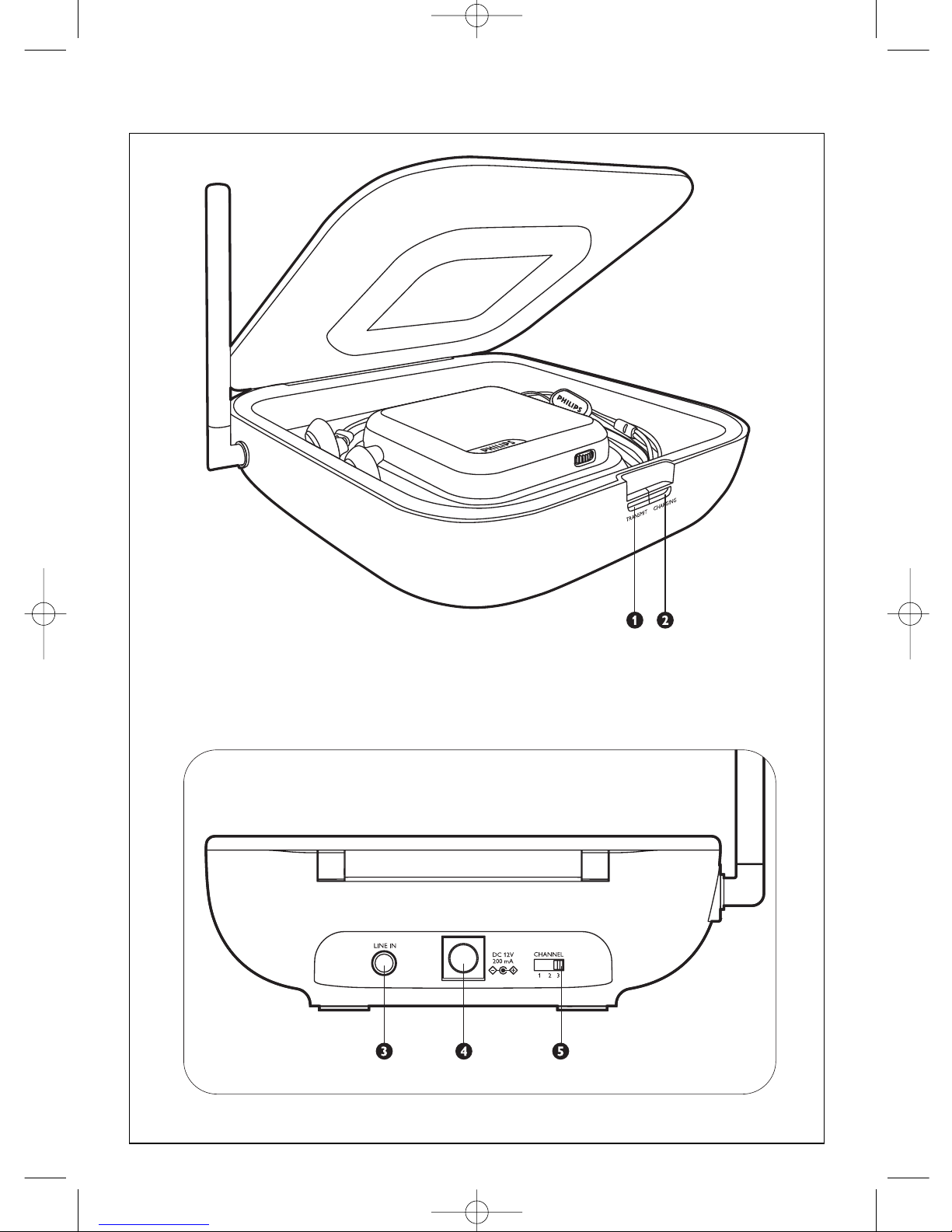

A) Transmitter station

1Power indication

2Charging indication

3Line in

4DC power input

5 Channel switch

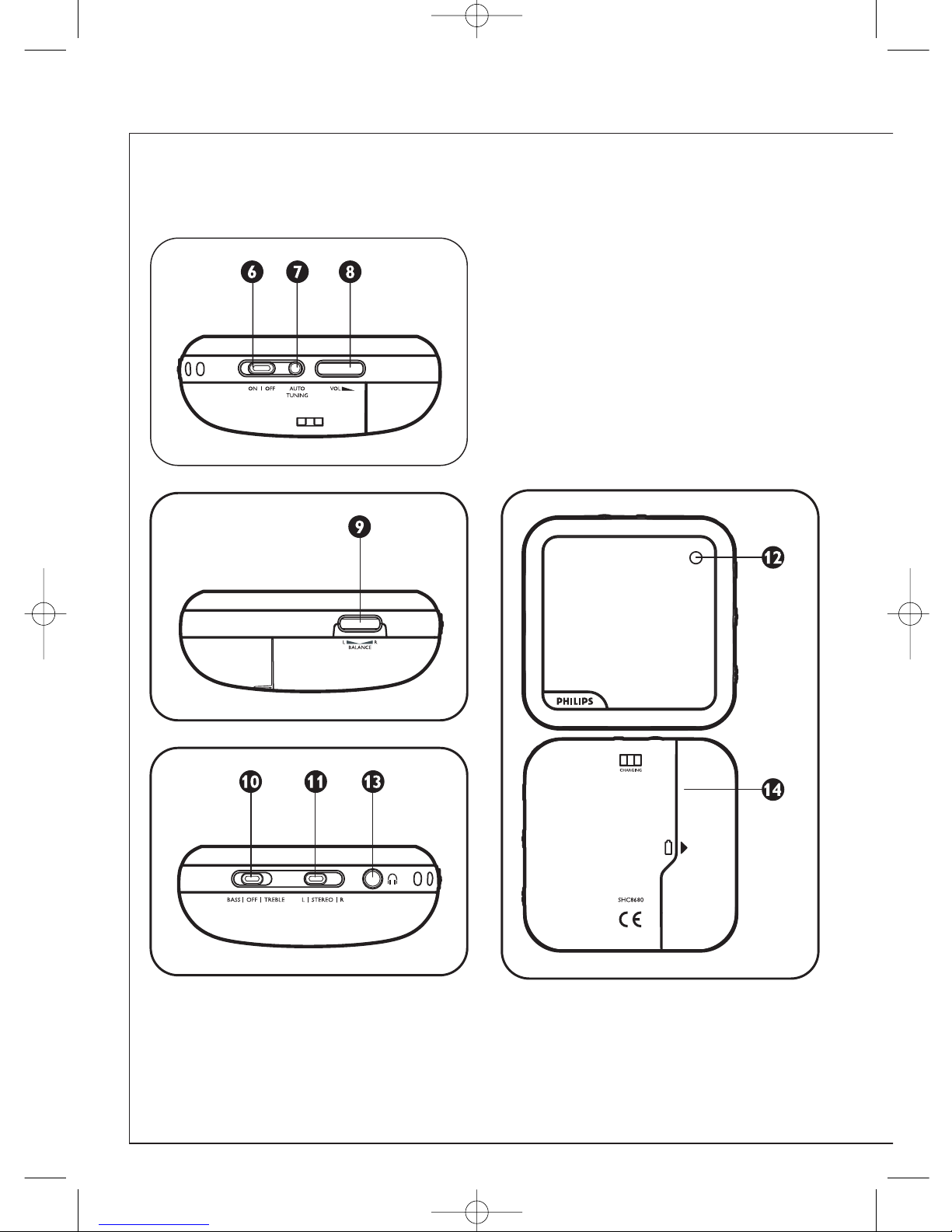

B) Receiver Unit

6Power

7Auto tuning button

8Volume control

9L/ R channel balance

10 Bass / Off / Treble

11 L / STEREO / R

12 Power status

13 Headphone output

14 Battery compartment door

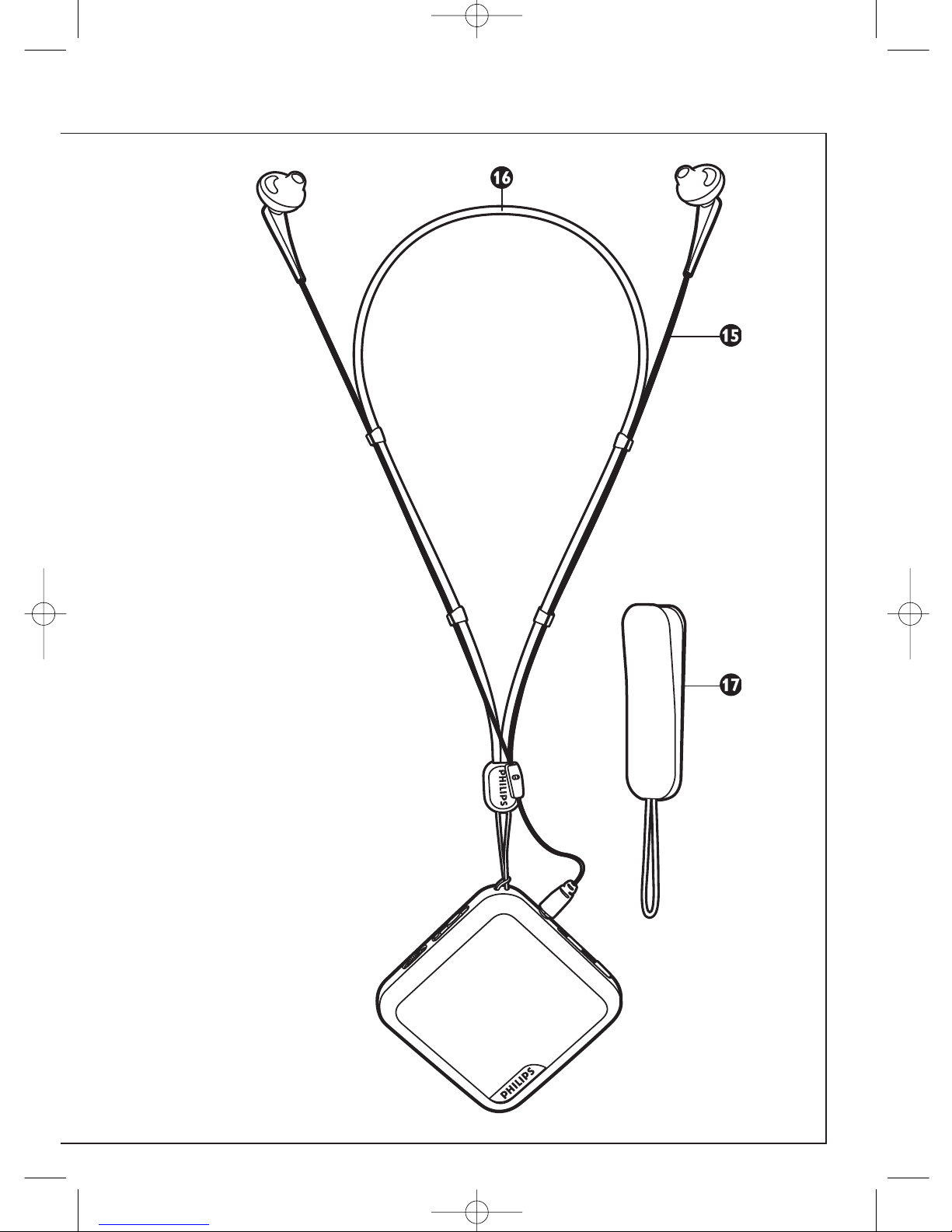

15 In ear headphone (SHE775WN/00)

16 Neckstrap

17 Belt clip

SHC8680new.qxd 04-05-2005 10:23 Pagina 6

ENGLISH 7

Important information

Please read the following instructions carefully, and retain this booklet for

future reference.All safety and operating instructions should be read

before using the FM wireless headphone system.

Safety precautions

•Prevent fire or shock hazard: do not expose this equipment to humidity,

rain, sand or excessive heat caused by heating equipment or direct

sunlight.

•Radio equipment for wireless audio applications is not protected against

disturbance from other radio services.

•Do not use cleansing agents containing alcohol, spirits, ammonia or

abrasives as they may harm the housing. Use a slightly dampened chamois

cloth to clean the housing.

•If fluid spills into the headphone system, remove the batteries

immediately and consult an authorized dealer.

•Do not use this product in damp places or close to water.

•Do not expose this product to extreme heat or direct sunlight.

•Do not disassemble the product. In the event of technical difficulties, take

it to your Philips retailer.

•Do not cover this product

•Inadequately protected or sensitive electronic equipment may be affected

by the use of this product.This interference may lead to damage to either

equipment. Please check whether or not surrounding equipment may be

affected by this product before you start using it.

•Hearing Safety! Continuous use at high volume may permanently

damage your hearing.

Getting your FM wireless headphone system ready

IMPORTANT!

• Use only Philips SBC CS030/00 (/05 for UK, Ireland)

12V/200mA AC/DC adapter.

• Use only Philips’ shortened sleeve rechargeable battery NiMH

(AA, type number:AY3362, partnumber 310330884711).

• Do not use NiCd batteries or alkaline batteries as they may

damage your FM wireless headphone system.

SHC8680new.qxd 04-05-2005 10:23 Pagina 7

8ENGLISH

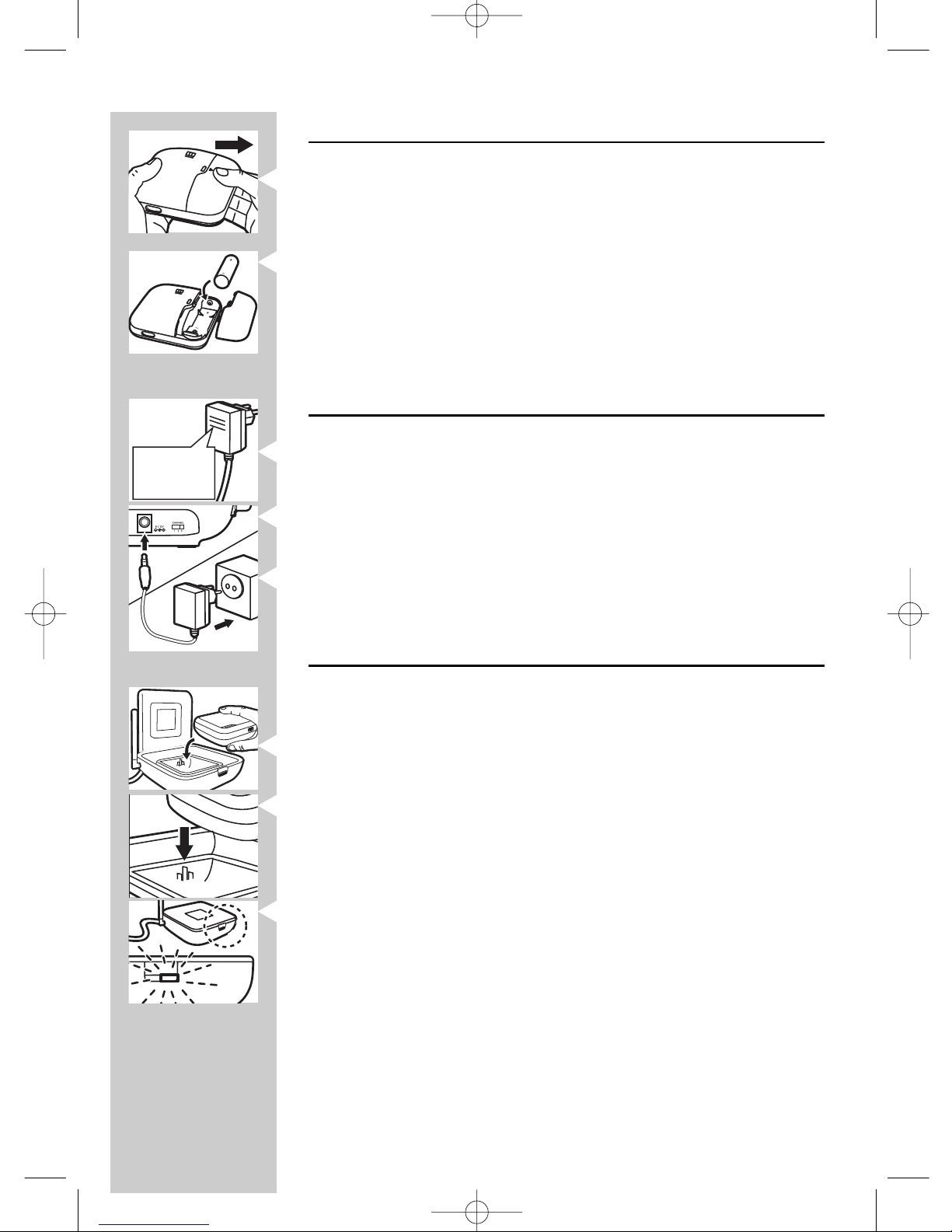

Installing/replacing batteries

1Open the battery compartment door located at the bottom of the

receiver unit.

2Insert a rechargeable battery.

3Make sure the battery is correctly inserted as indicated by the engraved

polarity symbol in the battery compartment.

4Close the battery compartment door.

Power up the transmitter station

5Make sure the adapter’s rated voltage indicated on the type plate

corresponds to the mains voltage supply.

6Connect the DC power output connector of the 12 Volt/ 200mA AC/DC

adapter to the DC POWER INPUT jack at the back of the transmitter.

7Connect the 12 Volt/200mA AC/DC adapter to the mains socket.

Always remove the adapter from the mains socket if the transmitter will not

be used for a period of time.

Charging the receiver unit

8Open the lid of the transmitter station.

9Place the receiver unit into the transmitter station (will also be referred

to as the ‘energizing docking station’ in the following texts).

10 Make sure the charging contacts at the bottom of the receiver unit are

well aligned with the charging pins of the docking station.

11 Close the lid of the docking station.

12 The CHARGING INDICATION on front of the docking station will be

illuminated in green, and will be turned off automatically at the end of the

charging cycle.

Ni-MH

Type: . . . .

Input: . . . .

Output: . . . .

TRANSMIT CHARGING

CHARGINGTRANSMIT

SHC8680new.qxd 04-05-2005 10:23 Pagina 8

IMPORTANT!

• Make sure you switch off the receiver unit before charging.

WARNING!

• Before using the FM headphone for the first time, please ensure

that the battery is fully charged for at least 16 hours.

This will guarantee a longer operating lifetime of battery.

• This product complies with the latest safety regulations.

Please only charge the battery with the docking station provided

(SHC8680) or with fully compatible charger.

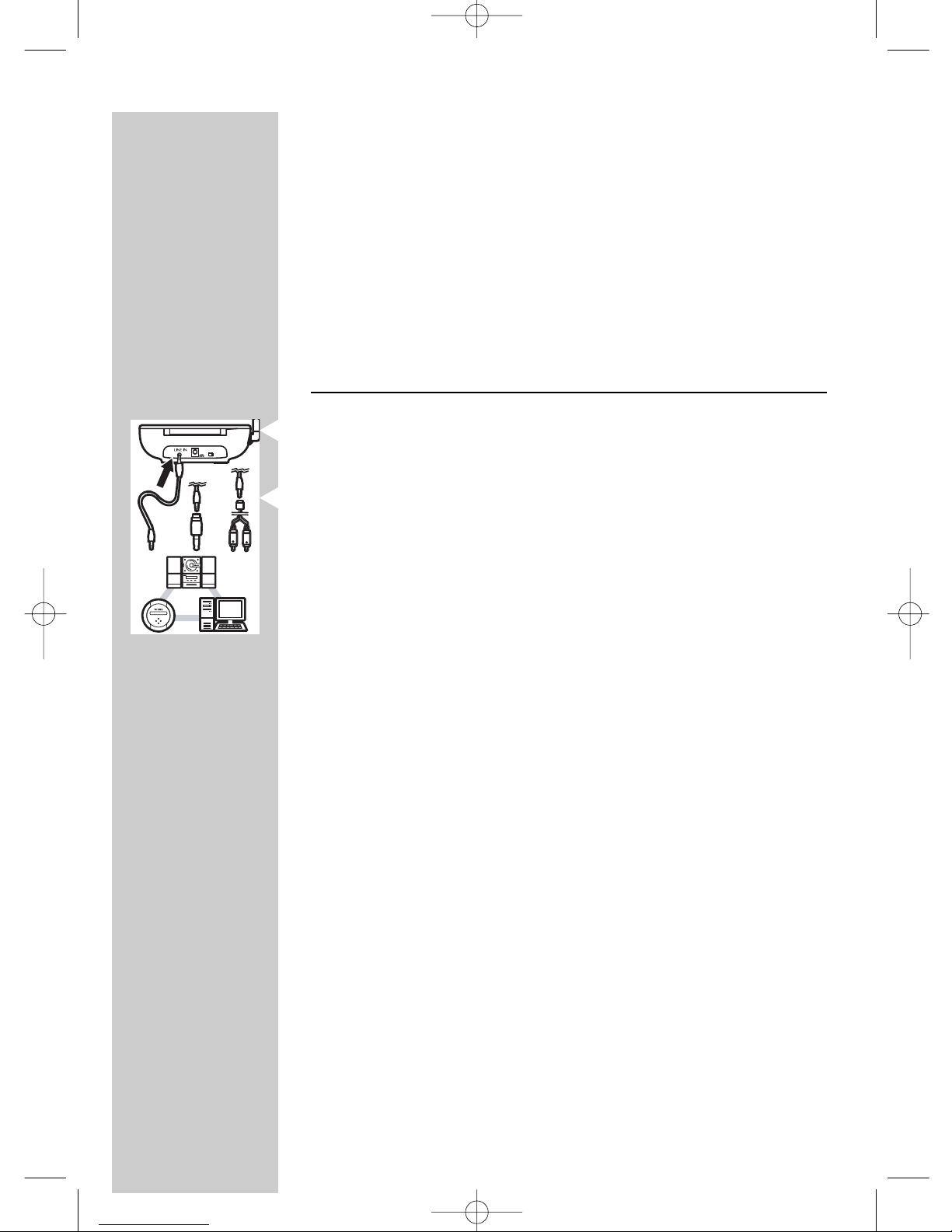

Audio connection (Transmitter station)

13 Connect one end of the audio cable (3.5 mm stereo plug) to the

transmitter’s 3.5 mm stereo LINE IN jack.

14 Connect the other end of the 3.5 mm stereo cable to either:

a) The headphone output of an audio source, such as TV, HiFi or PC.

Adjust the volume level of the audio source to a fixed reasonably high level;

for example 25% of the maximum level.

• In case your audio source has a 6.3mm headphone output, use the

supplied 3.5mm to 6.3mm stereo adapter plug.

IMPORTANT!

• In case of certain TVs, the headphone jack output level can only

be adjusted after accessing the TV on-screen menu.

b) The line output of an audio source, such as REC OUT or LINE OUT

(with the Y-cable supplied).

•Check if the red RCA plug (right channel) is connected to the right

channel (red) of the audio source.

•Check if the white RCA plug (left channel) is connected to the left

channel (white) of the audio source.

• In case the audio source has an adjustable RCA output level,

adjust the output level to the highest acceptable undistorted level.

ENGLISH 9

het

HiFi PC

Computer

SHC8680new.qxd 04-05-2005 10:23 Pagina 9

10 ENGLISH

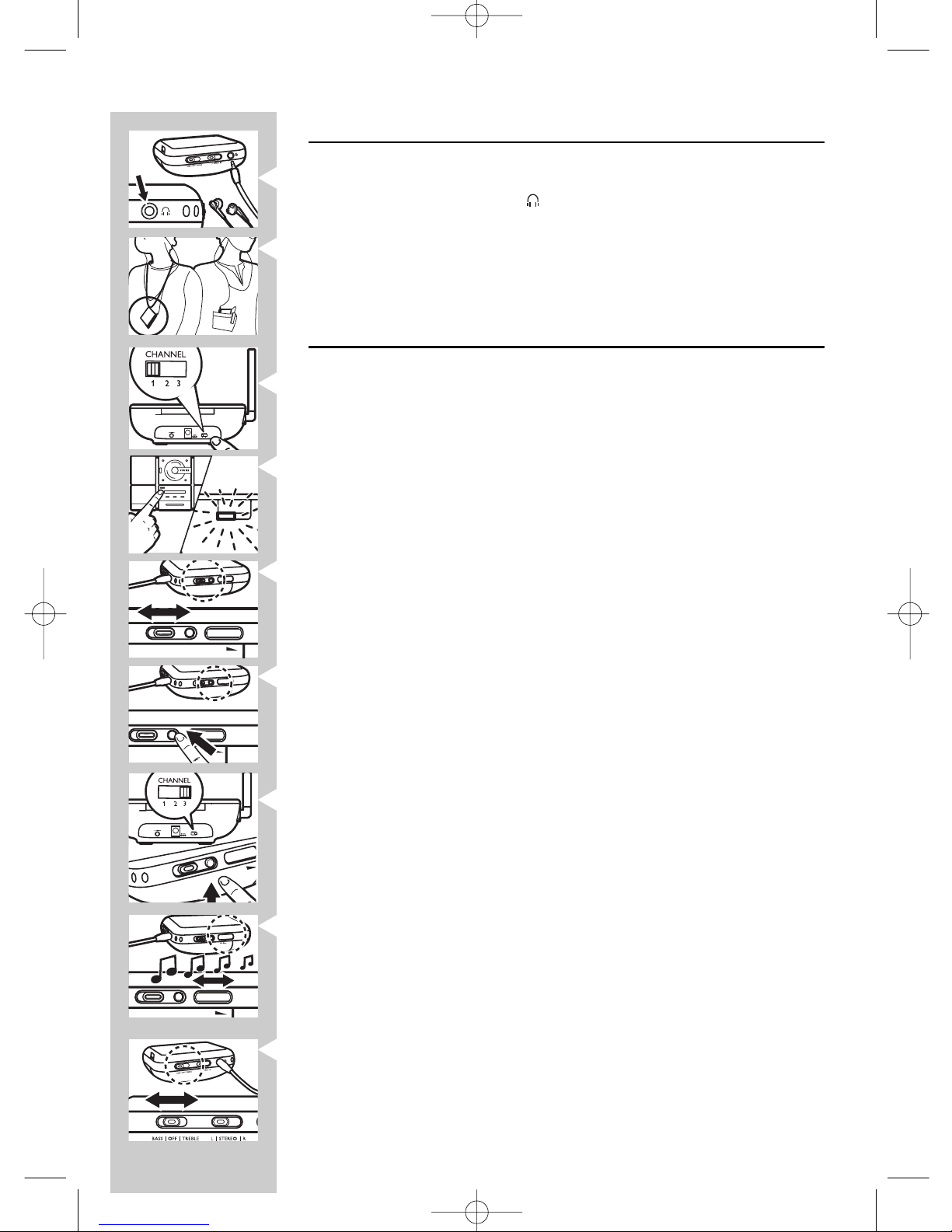

Audio connection (Receiver unit)

15 Plug the bypacked in ear headphone (SHE775WN/00) into the

HEADPHONE OUTPUT jack ( ) of the receiver unit.

16 Depending on your preferred wearing style, you may carry the receiver

unit with the provided neckstrap or belt clip.

For details in wearing styles, please refer to the separate Quick Reference

Guide.

Using your FM Wireless Headphone System

17 Select one of the three transmission channels provided at the back of the

transmitter station.

We recommend you to select channel one as your first option.

18 Switch on your audio source and carefully increase the volume of the

audio source.

The POWER INDICATION on front of the transmitter station will be

illuminated in red when signals are received.

19 Switch on the POWER of the receiver unit.

The POWER STATUS light on the receiver unit will be illuminated in red

automatically.

20 Press and hold the AUTO TUNING button on the receiver unit for about

1 second to tune to the correct transmission channel.

The receiver unit will automatically be tuned to the transmitter.

21 In case interference from neighbouring transmitters has occurred, adjust

the transmission channel of the transmitter station, then repeat step 20

to tune the receiver unit.

22 Adjust the volume to your desired listening level.

IMPORTANT!

• Avoid adjusting the listening volume level at the audio source as

this may compromise the audio quality on too low input levels.

23 To enjoy sound enhancement features, you may choose between the

following 2 options:

– Bass boost

– Treble boost

TRANSMIT CHARGIN

AUTO

TUNING

OFF

AUTO VOL

OFF

AUTO

TUNING

OFF

AUTO

TUNING

VOL

OFF

AUTO

TUNING

OFF

AUTO

TUNING

VOL

OFF

ONO

FAUTOT

UNN

IGVOL.

SHC8680new.qxd 04-05-2005 10:24 Pagina 10
