Philips Flite SHB4805DC Manual de usuario

NOTICE

MARQUE :

REFERENCE :

CODIC :

PHILIPS

SHB4805DC

4376862

En Anglais uniquemment

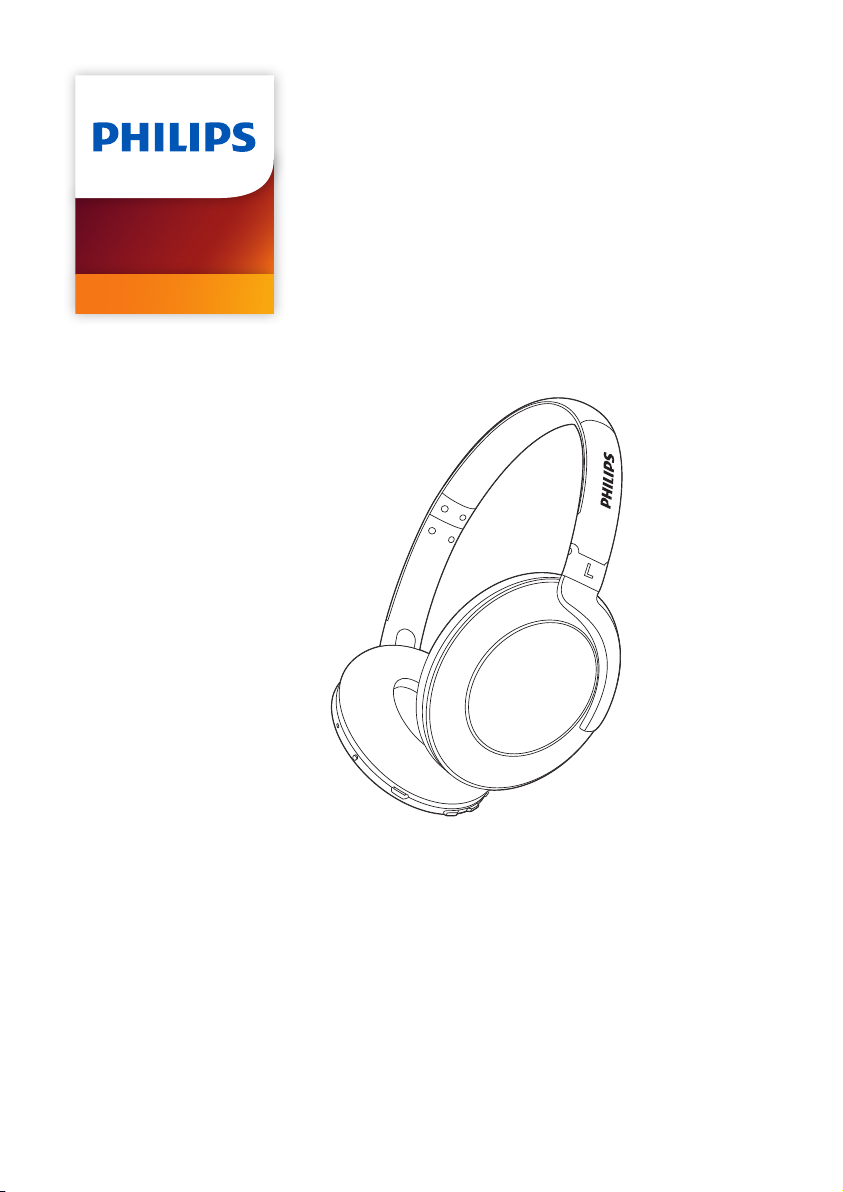

SHB4805

Flite

User manual

www.philips.com/support

1EN

Contents

1 Important safety instructions 2

Hearing Safety 2

General information 2

2 Your Bluetooth wireless

headphones 3

What's in the box 3

Other devices 3

Overview of your Bluetooth

wireless headphones 4

3 Get started 5

Charge your headphones 5

Pair the headphones with your

mobile phone 5

4 Use your headphones 6

Connect the headphones to a

Bluetooth device 6

Manage your calls and music 6

Wear your headset 7

5 Technical data 8

6 Notice 9

Declaration of conformity 9

Disposal of your old product

and battery 9

Remove the integrated battery 9

Compliance with EMF 9

Trademarks 10

7 Frequently asked questions 11

2EN

1 Important

safety

instructions

Hearing Safety

Danger

• To avoid hearing damage, limit the time you

use headphones at high volume and set

the volume to a safe level. The louder the

volume, the shorter the safe listening time is.

Be sure to observe the following

guidelines when using your headset.

• Listen at reasonable volumes for

reasonable periods of time.

• Be careful not to adjust the

volume continuously upwards as

your hearing adapts.

• Do not turn up the volume so high

that you can’t hear what’s around

you.

• You should use caution or

temporarily discontinue use in

potentially hazardous situations.

• Excessive sound pressure from

earphones and headphones can

cause hearing loss.

• Using headphones with both

ears covered while driving is not

recommended and may be illegal

in some areas while driving.

• For your safety, avoid distractions

from music or phone calls while

in trac or other potentially

dangerous environments.

General information

To avoid damage or malfunction:

Caution

• Do not expose headphones to excessive

heat.

• Do not drop your headphones.

• Headphones shall not be exposed to

dripping or splashing.

• Do not allow your headphones to be

submerged in water.

• Do not use any cleaning agents containing

alcohol, ammonia, benzene, or abrasives.

• If cleaning is required use a soft cloth,

if necessary dampened with a minimum

amount of water or diluted mild soap, to

clean the product.

• The integrated battery shall not be exposed

to excessive heat such as sunshine, re or

the like.

• Danger of explosion if battery is incorrectly

replaced. Replace only with the same or

equivalent type.

About operating and storage

temperatures and humidity

• Operate or store in a place where

temperature is between 0ºC

(32ºF) and 55ºC (131ºF) (up to

90% relative humidity.

• Battery life may be shorter in high

or low temperature conditions.

3EN

2 Your

Bluetooth

wireless

headphones

Congratulations on your purchase, and

welcome to Philips! To fully benet

from the support that Philips oers,

com/welcome.

With this Philips wireless headphones,

you can:

• enjoy convenient wireless

handsfree calls;

• enjoy and control wireless music;

• switch between calls and music.

What's in the box

Philips Bluetooth wireless

headphones SHB4805

USB charging cable (for charging only)

Quick start guide

Other devices

A mobile phone or device (e.g.

notebook, PDA, Bluetooth adapters,

MP3 players etc) which supports

Bluetooth and is compatible to the

headphones (see “Technical data” on

page 8).

4EN

Overview of your

Bluetooth wireless

headphones

a Microphone

b LED indicator

c /

Power on/o, pairing and mute

button

d Micro USB charging slot

e +/-

Volume/Track control button

On/o, music/call control button

Note

• The type plates are located under the

headphones cushions.

5EN

3 Get started

Charge your headphones

Warning

• Only charge with certied USB adaptor DC

5V/0.5A.

Note

• Before you use your headphones for the

rst time, charge the battery for 5 hours for

optimum battery capacity and lifetime.

• Use only the original USB charging cable to

avoid any damage.

• Finish your call before charging the

headphones, as connecting the headphones

for charging will power the headphones o.

Connect the supplied USB charging

cable to:

• the micro USB charging slot on

the headphones and;

• the certied charger/USB port

of a computer.

» LED turns white during

charging and turns o when the

headphones is fully charged.

Tip

• Normally, a full charge takes 3 hours.

Pair the headphones

with your mobile phone

Before you use the headphones

with your mobile phone for the rst

time, pair it with a mobile phone.

A successful pairing establishes a

unique encrypted link between the

headphones and mobile phone. The

headphones store the last 4 devices

in the memory. If you try to pair more

than 4 devices, the earliest paired

device is replaced by the new one.

1 Make sure that the headphones

are fully charged and turned o.

2 Press and hold for 5 seconds

until the blue and white LED

ashes alternately.

» The headphones remain in

pairing mode for 5 minutes.

3 Make sure that the mobile phone

is turned on and its Bluetooth

feature is activated.

4 Pair the headphones with the

mobile phone. For detailed

information, refer to the user

manual of your mobile phone.

The following example shows you

how to pair the headphones with your

mobile phone.

1 Activate the Bluetooth feature of

your mobile phone, select Philips

Everlite SHB4805.

2 Enter the headset password

"0000" (4 zeros) if prompted. For

those mobile phones featuring

Bluetooth 3.0 or higher, no need

to enter a password.

Philips Everlite SHB4805

SHB4405

6EN

4 Use your

headphones

Connect the

headphones to a

Bluetooth device

1 Make sure that the mobile phone

is turned on and its Bluetooth

feature is activated.

2 Press and hold / to turn the

headphones on.

» The blue LED ashes for every

8 seconds.

» The headphones are

reconnected to the

last connected mobile

phone/Bluetooth device

automatically. If the last one is

not available, the headphones

try to reconnect to the second

last connected device.

Tip

• If you turn on the mobile phone/Bluetooth

device or activate the Bluetooth feature

after turning on the headphones, you have

to reconnect the headphones and mobile

phone/Bluetooth device manually.

Note

• If the headphones fail to connect to any

Bluetooth device within range in 5 minutes,

it will switch o automatically to save the

battery life.

Manage your calls and

music

On/o

Task Button Operation

Turn the

headphones

on.

/Press and

hold for 2

seconds.

Turn the

headphones

o.

/Press and

hold for 4

seconds.

» The

white

LED is

on and

fades

out.

Music control

Task Button Operation

Play or pause

music.

Press once.

Adjust volume. +/-Press once.

Skip forward. +Press and

hold.

Skip

backward.

-Press and

hold.

Call control

Task Button Operation

Pick up/hang

up a call.

Press once.

» 1 beep.

Reject an

incoming call.

Press and

hold for 2

seconds.

» 1 beep.

Mute/unmute

the microphone

in a call.

/Press twice.

» 1 beep.

7EN

Other headphones indicator status

Headphones

status

Indicator

The headphones

are connected

to a Bluetooth

device, while the

headphones in

standby mode

or while you

are listening to

music.

The blue LED

ashes for every 8

seconds.

The headphones

are ready for

pairing.

The LED ashes

blue and white

alternately.

The headphones

are on but not

connected to a

Bluetooth device.

The blue LED

ashes quickly.

If no connection

can be made,

the headphones

will turn itself o

within 5 minutes.

Low battery level. The white LED

ashes 3 times for

every 150 seconds

until it is out of

power.

Battery is fully

charged.

The white LED is

o.

Wear your headset

Adjust the headband to t your head.

8EN

5 Technical

data

• Music time: 13 hours

• Talk time: 13 hours

• Standby time: 166 hours

• Normal time for a full charge: 3

hours

• Rechargeable lithium polymer

battery (240 mAh)

• Bluetooth 4.1, Bluetooth mono

support (Headset Prole - HSP,

Hands-Free Prole - HFP),

Bluetooth stereo supported

(Advanced Audio Distribution

Prole - A2DP; Audio Video

Remote Control Prole - AVRCP)

• Frequency range: 2.402-2.480GHz

• Transmitter power: <20dBm

• Operating range: Up to 10 meters

(33 feet)

• Auto power o

Note

• Specications are subject to change without

notice.
