Philips 32PT9100D-37B - Hook Up Guide Manual de usuario

Quick Use and Hookup Guide

Guía Rápida de Uso y Configuración

Guide d’Utilisation Rapide

27PT9100D

32PT9100D

26PW9100D

30PW9100D

30PW9110D

3139 125 33631

COVER

PANEL

Panel

Sequence

and

Panel Index

NOTES/

NOTA/

REMARQUE

PANEL

Side 1

Side 2

PANEL

PANEL LAYOUT

PANEL INDEX

Subject Panel No.

Antenna/Cable Basic Connection . . .4

Audio/Video Connections

AV1/AV2 Input Jacks . . . . . . . . . . .6

HDMI Input Connections . . . . . . . .9

Component Video Input Jacks . . . . .8

S-Video Input Jacks . . . . . . . . . . . . .7

Side AV Input Jacks . . . . . . . . . . . .10

Basic Remote Operation . . . . . . . . . .3

Basic Television Operation . . . . . . . .3

Cable Box Connection . . . . . . . . . . . .5

Remote Batteries . . . . . . . . . . . . . . . .3

Remote Button Descriptions . . . . . .1-2

Descripcion Panel No.

Conexión Básica Antena/Cable . . . .17

Conexiones de Audio/Video

Entrada AV1 y AV2 . . . . . . . . . . . .19

Entrada HDMI . . . . . . . . . . . . . . . .22

Entrada de Video Componente. . . . 21

Entrada S-Video . . . . . . . . . . . . . .20

Entrada AV Latérales . . . . . . . . . . .23

Baterias del Control Remoto . . . . . .16

Operación Básica

del Control Remoto . . . . . . . . . . . . .16

Descripcion Panel No.

Operación Básica del TV . . . . . . . . .16

Conexión Básica de

la caja de Cable . . . . . . . . . . . . . . . .18

Operación Básica de la TV y

del Control Remoto . . . . . . . . . .14-15

Rubrique No. de panneau

Connexions au boîtier

du service du Câble . . . . . . . . . . . . .31

Connexions Audio/Vidéo

D’Entrée AV1/AV2 . . . . . . . . . . . .32

D’Entrée HDMI . . . . . . . . . . . . . .35

D’Entrée Video Composant (CVI) . .34

D’Entrée S-Video . . . . . . . . . . . . .33

D’Entrée Latérales (AV3) . . . . . . .36

Connexions de base de l’antenne/

du câble . . . . . . . . . . . . . . . . . . . . . .30

Descriptions des boutons

de la télécommande . . . . . . . . . .27-28

Fonctionnement de base

de la télécommande . . . . . . . . . . . . .29

Fonctionnement de base du téléviseur.29

Piles de télécommande . . . . . . . . . . .29

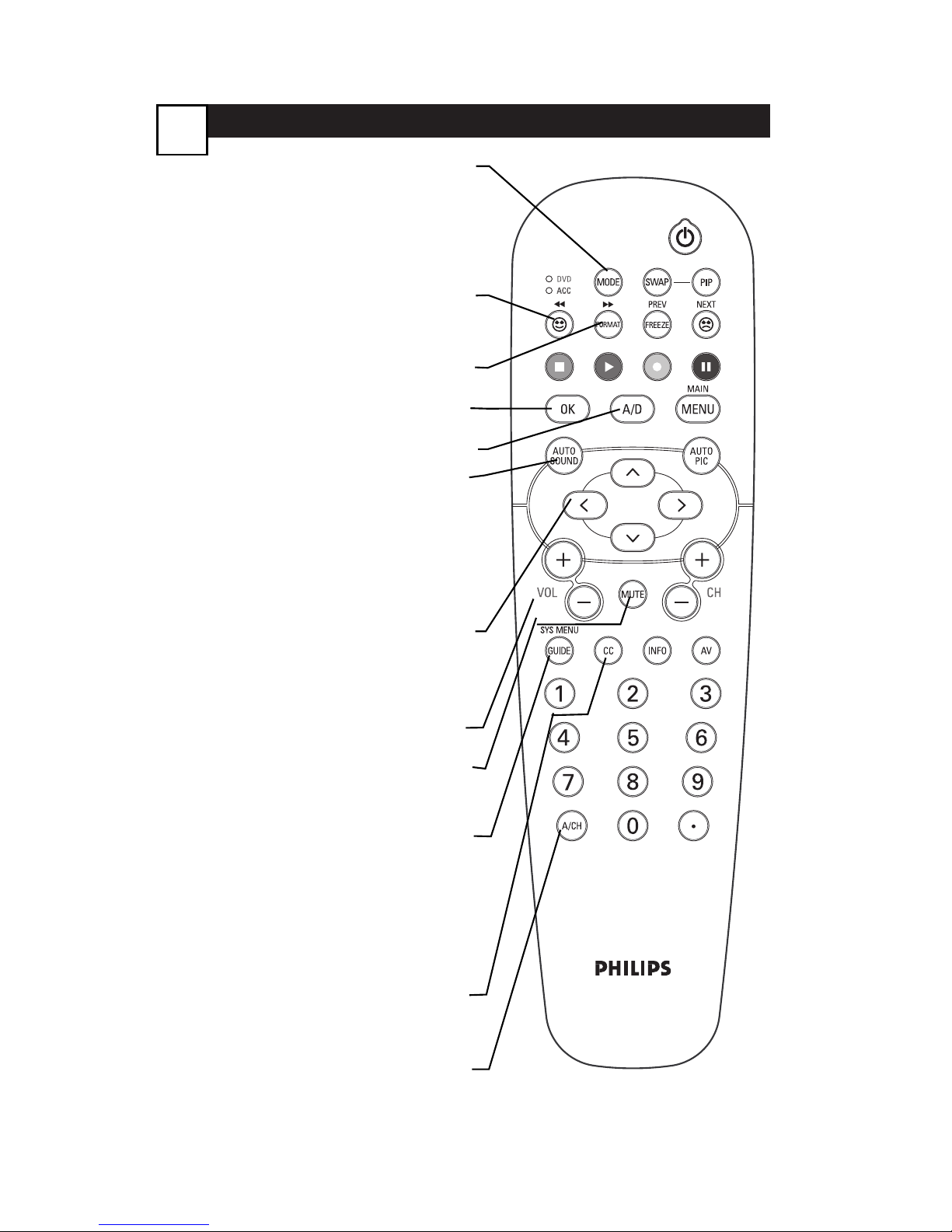

REMOTE CONTROL BUTTON DESCRIPTIONS

DVD/ACC Mode Switch - Press to control

TV functions, DVD to control DVD and

ACC for Cable Converter, DBS, VCR, etc.,

functions. Once the mode is selected, you

must press a button within 60 seconds for

the remote to remain in the selected mode

or it will default back to the TV mode.

SMILEY Button - Press to add channels to

the “QuadraSurf” lists. Works with all col-

ored buttons. In DVD/ACC mode, press this

button to rewind.

Format Button - Press to select the picture

format. In DVD/ACC mode, press this but-

ton to forward.

OK Button - Press to activate selection

when programming remote control.

ANALOGUE/DIGITAL Button - Press to

select Analogue or Digital mode.

Note: This button will not function in PIP

mode.

AUTO SOUND Button - Press to choose

from different factory pre-defined sound set-

tings. Choose from Personal (how you set

the Sound Menu options), Theatre (used

when watching movies), Music (for musical

type programs such as concerts) or Voice

(for programming with speaking only).

Cursor Buttons (Left ˝˝,Right ˙˙,Up

˚˚,Down

¸¸)- Press these buttons to high-

light, select and adjust items on the TV’s

onscreen menu. Also press the Up or Down

cursor to adjust the picture format for 16:9

and 16:9 Zoom.

VOL(ume) + or - Buttons - Press to

increase or decrease the TV’s sound level.

MUTE Button - Press the mute button to

eliminate the sound from the TV. “MUTE”

will be displayed on the TV’s screen. Press

again to restore the TV’s volume.

Program Guide Button - In digital mode,

press to display the current program infor-

mation. Press the ˙˙button to access the

program information on the next time slot.

The quality and accuracy of the infomation

on the program guide and the information

banner are transmitted from the broadcast-

ers. You may see a difference in broadcast

time if the broadcaster is from a different

time zone area.

CC Button - Press to activate the Closed

Captioning options. Repeatedly pressing the

CC button will scroll the available options

on the TV screen.

Alternate Channel Button - Toggle between

the last viewed channel and the current.

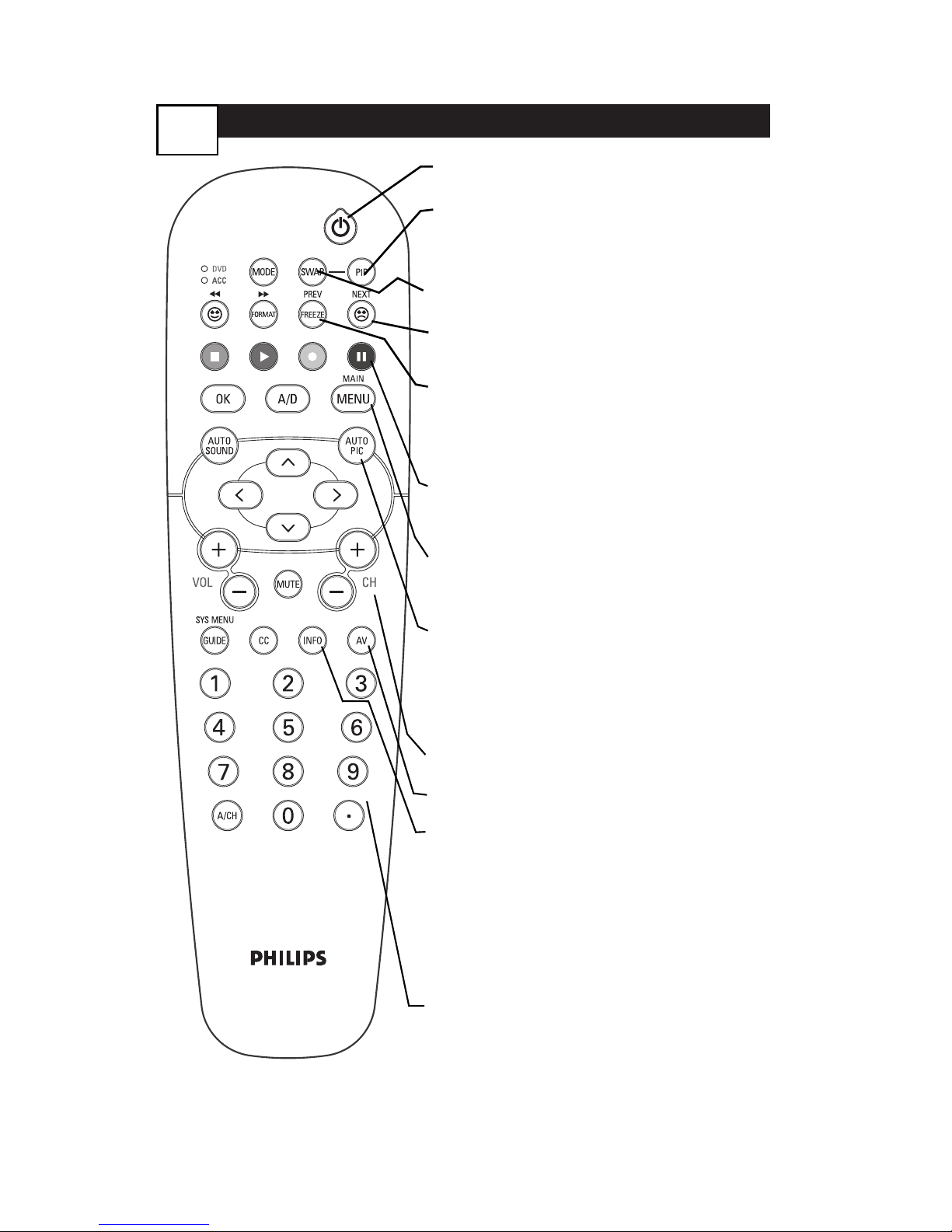

REMOTE CONTROL BUTTON DESCRIPTIONS

2POWER Button - Press to turn the TV on or

off.

PIP Button - Press to display the PIP win-

dow. Press again will split the screen into

half. PIP allows you to watch two programs at

the same time, a digital and an analog pro-

gram.

SWAP Button - Press to swap the program on

the TV with the program in the PIP window.

FROWNIE Button - Allows you to delete chan-

nels from the “Quadra Surf” lists for the colored

buttons. Works with all colored buttons.

FREEZE Button - Press to freeze the picture

on the TV screen. Press again to resume nor-

mal viewing. The signal received during the

time the picture is frozen will be lost. When

the picture is resumed, the video will return to

real time broadcast.

qq,uu,ss,and rr,Buttons -These buttons

is used with a VCR when the ACC mode is

selected. Press Stop uu, Play q,Recordvvor

Pause t.

MENU Button - Press to display the main

menu. Can be used to back out of the on-

screen menu until it disappears from the TV’s

screen.

AUTO PICTURE Button - Press repeatedly to

choose from 5 different factory predefined pic-

ture settings. Choose from Personal (how you set

the Picture Menu Adjustment controls), Movies

(for movies), Sports (for any sporting event),

Weak Signal (used when the signal being

received is not great), or Multimedia (for video

games).

CH(annel) + or CH(annel)- Buttons - Press to

select channels in ascending or descending order.

AV Button - Press to select the different signal

sources connected to the AV inputs on the TV.

INFO BUTTON - In analogue mode, press the

INFO button to display information such as

channel number, sound mode, time and status of

the sleeptimer. In digital mode, press the INFO

button to display channel number, channel name,

sound mode, cc and rating. The quality and

accuracy of information on the program guide

and the information banner are transmitted from

the broadcasters. You may see a difference in

broadcast time if the broadcaster is from a differ-

ent time zone area.

NUMBERED (0-9) Buttons - Press to select TV

channels or values within the on-screen menu.

For single channel entries, press the numbered

button for the channel you desire. The TV will

pause for a second or two before changing to the

chosen channel.

BASIC TV AND REMOTE CONTROL OPERATION

Press the POWER button to

turn the TV ON.

Note: You can also press any

button on the front of the TV

to turn the TV ON.

Press the VOLUME + button

to increase the sound level, or

the VOLUME – button to

lower the sound level.

Pressing both buttons at the

same time will display the on-

screen menu. Once in the

menu, use these buttons to

make adjustments or selec-

tions.

Press the MENU to display

the on-screen menu.

Press the CHANNEL UP +

or DOWN – button to select

TV channels.

Point the remote control

toward the remote sensor win-

dow on the TV when operat-

ing the TV with the remote.

REMOTE CONTROL

To load the supplied batteries

into the remote:

1. Remove the battery compart-

ment lid on the back of the remote.

2. Place the batteries (2-AA) in

the remote. Be sure the (+) and (-)

ends of the batteries line up cor-

rectly (inside of case is marked.)

3. Reattach the battery lid.

MENU +CHANNEL

–

+VOLUME –

POWER

Battery Compartment

2-AA Batteries

Battery Lid

Back of Remote

POWER

+–

VOLUME

+–

CHANNEL

Models: 27PT9100D

32PT9100D

Models: 26PW9100D

30PW9100D

30PW9110D

BASIC ANTENNA AND CABLE CONNECTIONS

Your home’s signal input might come

from a single (75 ohm) round cable,

a Converter Box, or from an antenna.

In either case the connection to the TV

is very easy.

1If your Cable TV signal or

Antenna signal is a round cable

(75 ohm) then you're ready to

connect to the TV.

If your antenna has flat twin-

lead wire (300 ohm), you first

need to attach the antenna wires

to the screws on a 300 to 75 ohm

adapter.

If you have a Cable Converter

Box: Connect the Cable TV sig-

nal to the Cable Signal IN(put)

plug on the Converter.

Connect the Cable TV cable or

Antenna cable (or 300 to 75 ohm

adapter) to the 75 ohm plug on the

TV.

If you have a Cable Converter

Box: Connect the OUT(put) plug

from the Converter to the 75 ohm

plug on the TV.

75 V

Back of TV

Cable signal

coming from

Cable Company

Jack Panel

Back of TV

75 V

Antenna Connection

300 to 75 ohm

Adapter

Combination

VHF/UHF Antenna

(Outdoor or Indoor)

Twin Lead

Wire

Round Cable

75 ohm

Back of TV

Direct Cable Connection

75 ohm Round

Coaxial Cable

Your Cable TV input into your

home may be a single (75 ohm)

cable or use a cable box decoder. In

either case the connection is very

simple. Follow the steps below to

connect your cable signal to your

new television.

This connection will supply Stereo

sound to the TV.

Connect the open end of the

round Cable Company supplied

cable to the 75 ohm input on the

TV. Screw it down finger tight.

After using the AutoProgram Control,

press the CH + and – buttons to scroll

through all the channels stored in the

television’s memory.

HELPFUL HINT

Cable Box (w/RF In/Outputs):

TV/VCR

CABLE

IN IR

USB

DVD-D OUT

AUDIO IN SPDIF

VIDEO

IN OUT

S-VIDEO

R L

AUDIO OUT

PASSCARD

Y Pb Pr

OPTICAL

SPDIF

CABLE BOX CONNECTIONS

If your cable signal uses a cable box

or decoder, follow the easy steps

below to complete the connection.

Cable Box (w/RF In/Outputs):

This connection will be mono.

Connect the Cable Company

supplied cable to

the signal

IN(put) plug on the back of the

Cable Box.

Using a separate round coaxial

cable, connect one end to the

OUT(put)

(TO TV) plug on the

back of the Cable Box.

Connect the other end of the

round coaxial cable to the 75

ohm input on the back of the tel-

evision. Screw it down finger

tight.

NOTE: If applicable, set the OUT-

PUT CHANNEL SWITCH on the

back of the cable box to CH 3 or 4.

Tune the TV to the same channel and

change channels at the cable box. In

some cases, the cable box will auto-

matically tune to either channel 3 or 4,

change channels until the picture

appears.

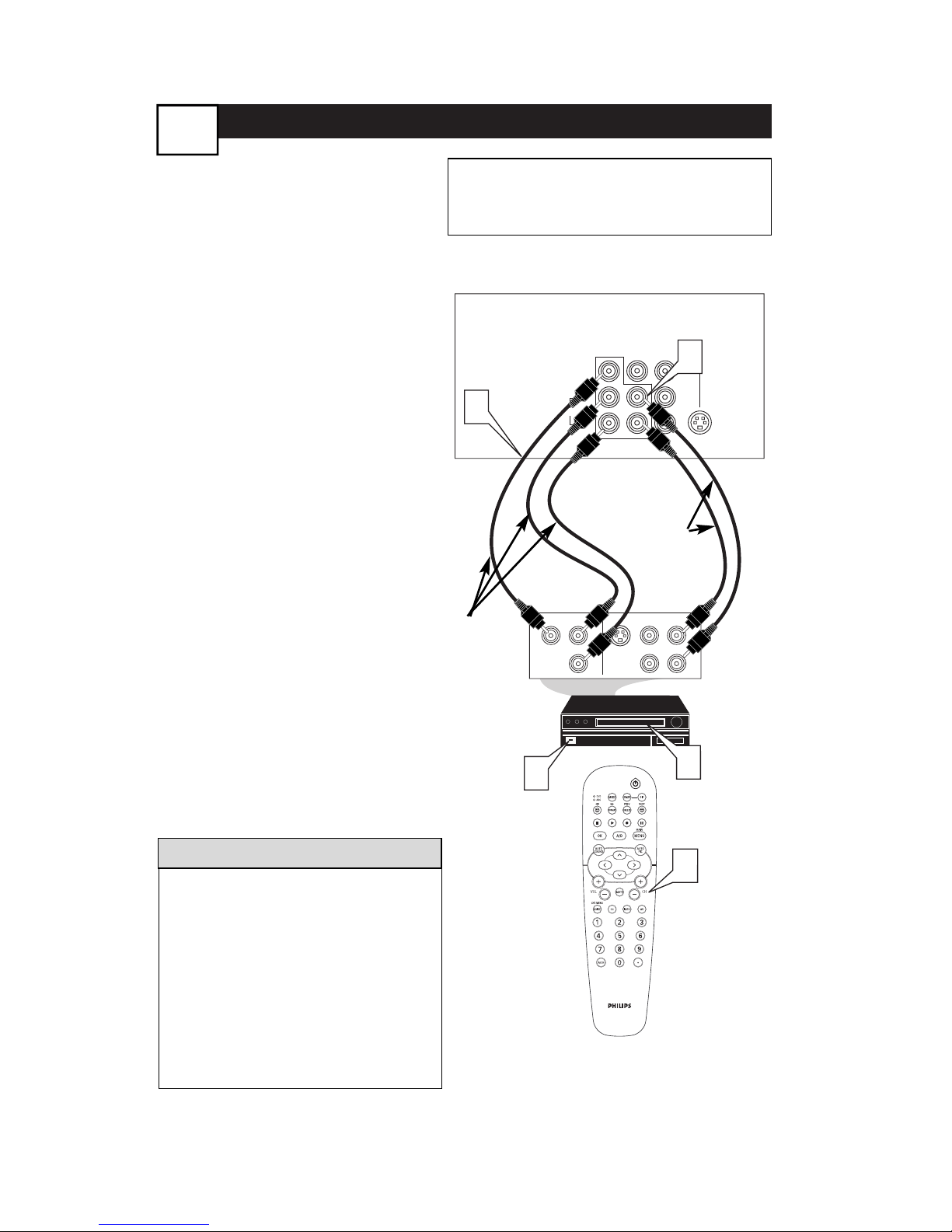

Cable Box (w/Audio/Video

Outputs):

This connection will supply Stereo

sound.

Connect the Cable Company

supplied cable to

the cable sig-

nal IN(put) plug on the back of

the Cable Box.

Using a RCA type Video Cable,

connect one end of the cable to

the Video (or ANT, your cable

box may be labeled differently)

Out jack on the cable box and

the other end to the AV1 Video

Input on the TV.

Connect one end of the Audio

Left and Right Cable to the left

and right Audio Out L & R

jacks on the cable box. Connect

the other end to the AV1 Audio L

& R Input jacks on the TV.

NOTE: Press the CH+ or CH- on the

TV remote control to tune to the AV1

channel for the cable box signal. Once

tuned, change channels at the cable

box, not the television.

TV/VCR

CABLE

IN IR

USB

DVD-D OUT

AUDIO IN SPDIF

VIDEO

IN OUT

S-VIDEO

R L

AUDIO OUT

PASSCARD

Y Pb Pr

OPTICAL

SPDIF

Jack Panel Back of Cable Box

Cable Signal IN from the

Cable Company

Round 75 ohm

Coaxial Cable Jack Panel Back of TV

Cable Signal IN

from the Cable

Company

Cable Box with

A/V Outputs

Jack Panel

Back of TV

Audio Cables

L (White) & R (Red) Video Cable

(Yellow)

Cable Box (w/Audio/Video Outputs):

AV1(AUDIO/VIDEO) AND AV2 INPUT CONNECTION

AUDIO

L/Mono

VIDEO

Audio and video cables are not sup-

plied with the TV, but are available

from Philips or electronics retailers.

HELPFUL HINT

Audio In

(Red and

White)

VCR Two

(or accessory device)

(Equipped with Video

and Audio Output

Jacks)

Video In

(Yellow)

Back of VCR

Back of TV

AV 1

Connection

AV2 Connection

The TV’s audio/video input jacks

are for direct picture and sound

connections between the TV and a

VCR (or similar device) that has

audio/video output jacks. Both the

AV1and AV2 Input Jack connections

are shown on this page, but either

one can be connected alone. Follow

the easy steps below to connect your

accessory device to the AV1and AV2

IN Jacks located on the back of the

TV.

1Connect the VIDEO (yellow)

cable to the VIDEO AV 1IN (or

AV2 IN) jack on the back of the

TV.

2Connect the AUDIO (red and

white) cables to the AUDIO (left

and right) AV 1IN (or AV2 in)

jacks on the rear of the TV.

3Connect the VIDEO (yellow)

cable to the VIDEO OUT jack on

the back of the VCR (either one

or two) or accessory device being

used.

4Connect the AUDIO (red and

white) cables to the AUDIO (left

and right) OUT jacks on the rear

of the VCR (either one or two) or

accessory device being used.

5Turn the VCR (either one or

two) or accessory device and

the TV ON.

Press the CH+ or CH- buttons to

set the TV to its AV1 or AV2 chan-

nel.

7With either of the VCRs (or

accessory devices) ON and a pre-

recorded tape (CD, DVD, etc.)

inserted, press the PLAY button

to view the tape on the television.

VCR One (or accessory device)

(Equipped with Audio and

Video Output Jacks)

S-VIDEO (S-VHS) INPUT CONNECTIONS

The S(uper)-Video connection on

the rear of the TV can provide you

with better picture detail and clarity

for the playback of accessory sources

such as DBS (digital broadcast satel-

lite), DVD (digital video discs), video

games, and S-VHS VCR (video cas-

sette recorder) tapes than the normal

antenna picture connections.

NOTE: The accessory device must

have an S-VIDEO OUT(put) jack in

order for you to complete the connec-

tion on this page.

Connect one end of the

S-VIDEO CABLE to the

S-VIDEO jack on the back of

the TV. Then connect one end

the AUDIO (red and white)

CABLES to the AV1in AUDIO

L and R (left and right) jacks on

the back of the TV.

Connect other end of the

S-VIDEO CABLE to the

S-VHS (S-Video) OUT jack on

the back of the VCR. Then

connect the other ends of the

AUDIO (red and white)

CABLES to the AUDIO (left

and right) OUT jacks on the rear

of the VCR.

Turn the VCR and the TV ON.

Press the CH + or CH –

buttons on the remote to scroll

the channels until AV2 appears

in the upper left corner of the

TV screen.

Now your ready to place a prere-

corded video tape in the VCR

and press the PLAY button

S-VIDEO

AV1 in

AV2 in

COMPONENT VIDEO INPUT

AUDIO OUT

L R S-VIDEO

OUT

ANT/CABLE

OUT

VIDEO

OUT

AUDIO

L/Mono

VIDEO

VCR or External

Accessory Device

(with S-Video Output)

Audio Cables

(Red &

White) S-Video

Cable

Back of TV

COMPONENT VIDEO (CVI) INPUT CONNECTIONS

Component Video inputs provide

for the highest possible color

and picture resolution in the play-

back of digital signal source materi-

al, such as with DVD players. The

color difference signals (Pb, Pr) and

the luminance (Y) signal are con-

nected and received separately,

which allows for improved color

bandwidth information (not possible

when using composite video or

S-Video connections).

Connect the Component (Y,

Pb, Pr) Video OUT jacks from

the DVD player (or similar

device) to the (Y, Pb, Pr) in(put)

jack on the TV. When using the

Component Video Inputs, it is

best not to connect a signal to the

AV in Video Jack.

Connect the red and white

AUDIO CABLES to the Audio

(left and right) output jacks on

the rear of the accessory device

to the Audio (L and R) AV1 in

Input Jacks on the TV.

Turn the TV and the DVD (or

digital accessory device) ON.

Press the CH + or CH –

buttons to scroll the available

channels until CVI appears in

the upper left corner of the TV

screen.

Insert a DVD disc into the DVD

player and press the PLAY 

button on the DVD Player.

The description for the component video

connectors may differ depending on the

DVD player or accessory digital source

equipment used (for example, Y, Pb, Pr; Y,

B-Y, R-Y; Y, Cr, Cb). Although abbrevia-

tions and terms may vary, the letters band r

stand for the blue and red color component

signal connectors, and Yindicates the lumi-

nance signal. Refer to your DVD or digital

accessory owner’s manual for definitions and

connection details.

HELPFUL HINT

S-VIDEO

AV1 in

AV2 in

AUDIO

L/Mono

VIDEO

COMPONENT VIDEO INPUT

S-VIDEO

OUT OUT OUT

AUDIO

VIDEO

COMP VIDEO

YPb

Component

Video

Cables

(Green,

Blue, Red)

Audio

Cables

(Red &

White)

Accessory Device

Equipped with

Component Video

Outputs

Back of TV

The CVI connection will be dominate over the AV1

in Video Input. When a Component Video Device is

connected as described, it is best not to have a video

signal connected to the AV1in Video Input jack.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Televisión de alta definición de Philips

Philips

Philips MatchLine 30PW9818 Manual de usuario

Philips

Philips SBB250D Manual de usuario

Philips

Philips 37PFL9604H/12 Manual de usuario

Philips

Philips 62PL9774/37B Manual

Philips

Philips 6402 series Manual de usuario

Philips

Philips 51PP9910 Manual de usuario

Philips

Philips 32PT8302 Manual de usuario

Philips

Philips 48PFS8159 Manual de usuario

Philips

Philips 32PF7320A Manual de instrucciones

Philips

Philips 37HF7544D Manual de usuario

Philips

Philips 26-REAL FLAT COMMERCIAL WIDESCREEN HDTV... Manual de usuario

Philips

Philips 8601 Series Manual de usuario

Philips

Philips PFL7 Series Manual de usuario

Philips

Philips 47PFL8404H/12 Manual de usuario

Philips

Philips 32PFL8404H Manual

Philips

Philips PFL50 7M/08 Series Manual de usuario

Philips

Philips 27HT4000D Manual de usuario

Philips

Philips 51-PROJECTION HDTV PIXEL PLUS 51PP9200D Guía de inicio rápido

Philips

Philips 30-REAL FLAT PROGRESSIVE SCAN WIDESCREEN HDTV 30PW9100D - Hook Up... Manual de usuario

Philips

Philips 37PF7320A Manual de usuario

Philips

Philips PFL5 7H/12 Series Manual de usuario

Philips

Philips 26-LCD HDTV MONITOR COMMERCIAL FLAT HDTV 26HF5544D - Hook Up... Manual de usuario

Philips

Philips Cineos 44PL9522 Manual

Philips

Philips 32PT8302/37B Manual de usuario

Manuales populares de Televisión de alta definición de otras marcas

Vizio

Vizio M602i-B3 Manual de usuario

JVC

JVC LT-40C750 Manual de usuario

Pendo

Pendo PNDLFHU55 Manual de usuario

RCA

RCA RTU7575-B Manual de usuario

Sharp

Sharp LC60LE830UN Manual de usuario

LEECO

LEECO uMax85 Manual de usuario

LG 50PC1DRA Manual de usuario

Samsung

Samsung Tantus HCJ555W Manual de usuario

Sceptre

Sceptre X23 Manual de usuario

Medion

Medion LIFE P13901 Manual de usuario

Vizio

Vizio D32h-C0 Manual de usuario

JVC

JVC EM39T Manual de usuario

Sceptre

Sceptre X460BV-FHD Manual de usuario

BEA

BEA 49B4KUHD Manual de usuario

EQD

EQD Auria EQ3288 Manual de usuario

JVC

JVC LT-24C660 Manual de usuario

RCA

RCA Scenium D32TF20 Manual de usuario

LG M3702C Manual de usuario
