Philips HP4636 Manual de usuario
HP4636, HP4623
2
3
1
4
HP4636, HP4623
ENGLISH 6
FRANÇAIS 13
INDONESIA 21
한국어 28
BAHASA MELAYU 35
PORTUGUÊS 42
ภาษาไทย 49
54
繁體中文 61
简体中文 67
80
86
6
Introduction
Congratulations on your purchase and welcome to Philips! To fully benet
from the support that Philips offers, register your product at
www.philips.com/welcome.
This new Philips beauty Airstylist has been specially designed to give
beautiful styling results in a quick and easy way.
The HP4623 can be used at 110-120 volts or 220-240 volts and comes with
a small retractable bristle brush.The HP4636 operates at 220-240 volts
and comes with a small and a large retractable bristle brush.

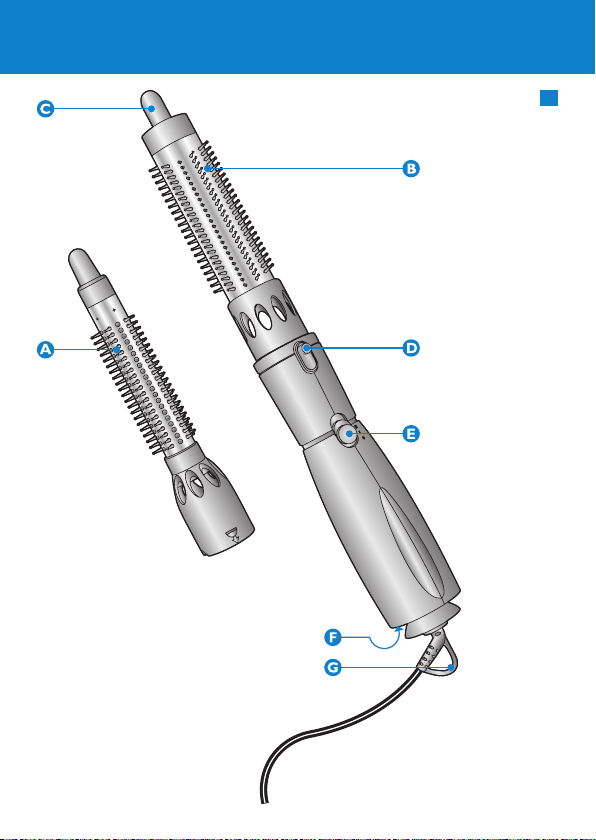

General description (Fig. 1)
ARetractable bristle brush
BLarge retractable bristle brush (HP4636 only)
CBristle retraction knob
DRelease button
ESlide
O = off
I = gentle, warm airow for easy styling
II = stronger and warmer airow for fast styling (HP4636 only)
FAir inlet grille
GHanging loop
Important
Read this user manual carefully before you use the appliance and save it
for future reference.
Danger
Keep the appliance away from water. Do not use it near or over
water contained in baths, washbasins, sinks etc.When you use the
appliance in a bathroom, unplug it after use.The proximity of water
presents a risk, even when the appliance is switched off.
Do not insert metal objects into the air inlet grille to avoid electric
shock.
-
-
-
-
-
ENGLISH
Warning
Check if the voltage indicated on the appliance corresponds to the
local mains voltage before you connect the appliance.
Check the condition of the mains cord regularly. Do not use the
appliance if the plug, the mains cord or the appliance itself is damaged.
If the mains cord is damaged, you must have it replaced by Philips, a
service centre authorised by Philips or similarly qualied persons in
order to avoid a hazard.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with
the appliance.
Caution
For additional protection, we advise you to install a residual current
device (RCD) in the electrical circuit that supplies the bathroom.This
RCD must have a rated residual operating current not higher than
30mA.Ask your installer for advice.
The attachments become hot during use. Prevent contact with the
skin.
Never block the air inlet grille.
If the appliance overheats, it switches off automatically. Unplug the
appliance and let it cool down for a few minutes. Before you switch
the appliance back on, check the grilles to make sure they are not
blocked by uff, hair, etc.
Always unplug the appliance after use.
Wait until the appliance has cooled down before you store it.
Always switch off the appliance before you put it down, even if it is
only for a moment.
Do not wind the mains cord round the appliance.
Do not use the appliance on articial hair.
Do not use the appliance for any other purpose than described in
this manual.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
ENGLISH 7
Never use any accessories or parts from other manufacturers or that
Philips does not specically recommend. If you use such accessories
or parts, your guarantee becomes invalid.
Keep the attachments clean and free of dust, dirt and styling products
such as mousse, spray and gel.
Electromagnetic elds (EMF)
This Philips appliance complies with all standards regarding
electromagnetic elds (EMF). If handled properly and according to the
instructions in this user manual, the appliance is safe to use based on
scientic evidence available today.
Preparing for use
Hair
Do not use the appliance on wet hair, dry your hair with a towel rst. The
Airstylist is most effective on towel-dry hair.
1 Before you start using the Airstylist, comb or brush the hair so that
it is untangled and smooth.
2 Use a comb to divide the hair into locks.
Do not put too much hair in one lock.
Connecting and disconnecting attachments
Do not insert the mains plug into the wall socket until after you have
connected the attachment.
1 Attach the bristle brush to the styler by aligning the arrows on the
brush with the arrows on the styler and pressing the brush home
(Fig. 2).
You will hear a click.
2 To remove the attachment from the appliance, press the release
button and pull the attachment in the direction of the
arrow. (Fig. 3)
-
-
ENGLISH8
Using the appliance
1 Snap the retractable bristle brush onto the appliance.
See ‘Preparing for use’, section ‘Connecting and disconnecting
attachments’.
Do not insert the mains plug into the wall socket until after you have
connected the attachment.
Making small curls
We advise you to perform a curl test to determine how long the brush
should be held in your hair to achieve a good result. Start with 8 to
10 seconds.You may have to hold the brush in your hair longer for tighter
curls. Less tight curls will require less than 8 seconds.
1 Divide the hair into locks.
2 Take a lock of hair and wind it round the brush. Make sure the end
of the lock is wound in the required direction.
Do not wind too much hair round the brush at a time.
Do not wind a lock of hair more than twice round the brush.
Note:The thinner the lock of hair, the tighter the curl will be.
Note: Make sure the lock of hair is in contact with the barrel of the brush.
If you wind the hair at right angles to the scalp, you will give your
hair optimum lift and volume.
3 Switch the appliance on (Fig. 4).
HP4636 only: Switch the appliance on by selecting the preferred
setting: (Fig. 5)
I: gentle airow for easy styling
II: warm airow for fast styling
4 Keep the brush in your hair until the hair is warm to the touch.
5 Switch the appliance off and remove the brush from your hair by
pushing and turning the bristle retraction button in the direction of
the arrows (Fig. 6).
,
,
-
-
ENGLISH 9
6 Letthecurlscooldownbeforecombing,brushingornger-
combingthehairtonishyourstyle.
7 Whenyouhavenishedcurling,switchofftheapplianceand
remove the brush.
See ‘Preparing for use’, section ‘Connecting and disconnecting
attachments’.
Making large curls (HP4636 only)
If you want to make large curls, you can follow the steps above using the
large retractable bristle brush.
Making waves
1 Divide the hair into locks.
2 Take the ends of a lock of hair and wind them around the
retractable bristle brush in the desired direction.
3 Switch the appliance on (Fig. 4).
HP4636 only: Switch the appliance on by selecting the preferred
setting: (Fig. 5)
I: gentle airow for easy styling
II: warm airow for fast styling
4 As soon as the hair is warm to the touch, switch the appliance off
and carefully remove the brush from the hair.
5 Letthewavescooldownbeforenishingbycombing,brushingor
nger-combingthehairintoitsnalstyle.
6 Whenyouhavenishedwaving,switchofftheapplianceand
remove the brush.
See ‘Preparing for use’, section ‘Connecting and disconnecting
attachments’.
Storage
1 Unplug the appliance.
2 Do not wind the mains cord round the appliance.
,
-
-
ENGLISH10
