Philips HP6482 Manual de usuario

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Satinelle - ICE

HP6482

07/02

PRODUCT INFORMATION

The new Satin Ice combinates a new ceramic epilating

system with a contour following skin cooler and a

massaging system.

Safety

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Power Source : AC (mains)

- Voltage : 100 V - 240 V

(50 - 60 Hz)

- Motor : DC - Motor 14 V

- Power Consumption : 7,5 W

- Number of Discs : 13

- Number of catching points : 24

- RPM speed I : 2200

speed II : 2700

- Pulling actions/second

speed I : 880

speed II : 1080

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

- No specific issues.

REPAIR INSTRUCTION

- This is a replacement appliance.

For this Epilator only the parts shown in the exploded view

will be supplied.

Hints for repairs:

- No specific issues.

OPTIONAL (accessories)

- No specific issues.

PACKAGING

F-box dimensions

- Width : 192 mm

- Depth : 114 mm

- Height : 235 mm

- Weight F-box : 0.639 kg

HP6482

2-4

PARTS LIST & EXPLODED VIEW

47*

Pos Service code Description

4203 035 54000

4203 035 54020

4203 035 54030

4203 035 54040

4203 035 54050

4203 035 51810

4203 035 51900

4203 035 51860

4203 035 51870

4203 035 51850

4203 035 53060

Massage Attachment HP6482

Epilation Head

Cooling Glove

Cooling Pad

Sensitive Area Cap

Adapter WEU

Adapter GB

Adapter ARG

Adapter KR

Adapter UNI - JPN/TW/USA/CD/MX

Gearwheel 3

* For replacing the gearwheel see the instructions on the next pages.

HP6482

3-4

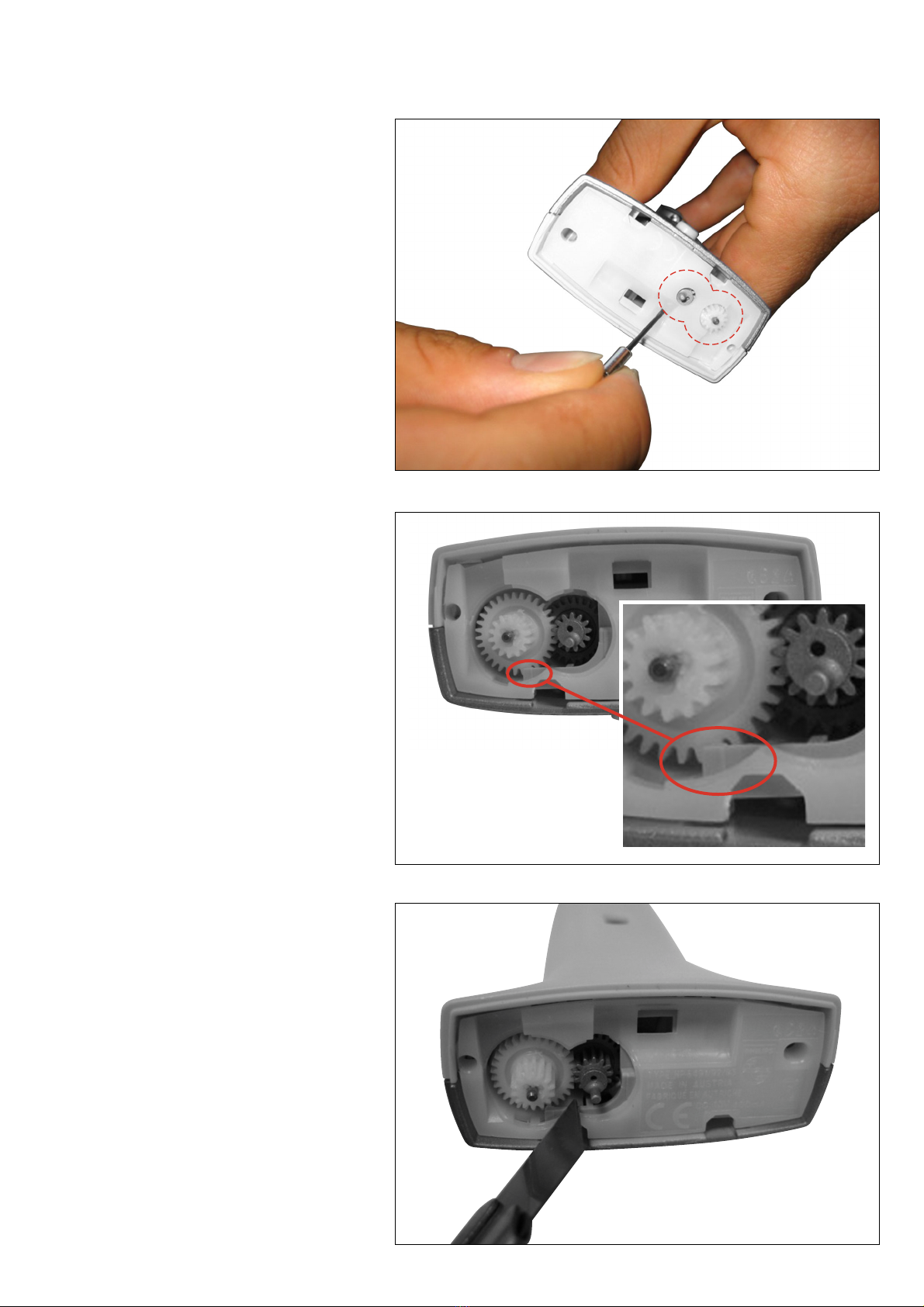

Remove the small gearing cover with a

small screwdriver.

Instruction for exchanging the Gearwheel 3

Here you see the opened gearing.

As you can see, the small edge from the

release knob is hampering you by removing

the damaged gearwheel.

Cut this small edge with a very sharp knife,

so that the damaged gearwheel becomes

free.

HP6482

4-4

Cutted edge.

Instruction for exchanging the Gearwheel 3

Now you are able to exchange the damaged

gearwheel.
