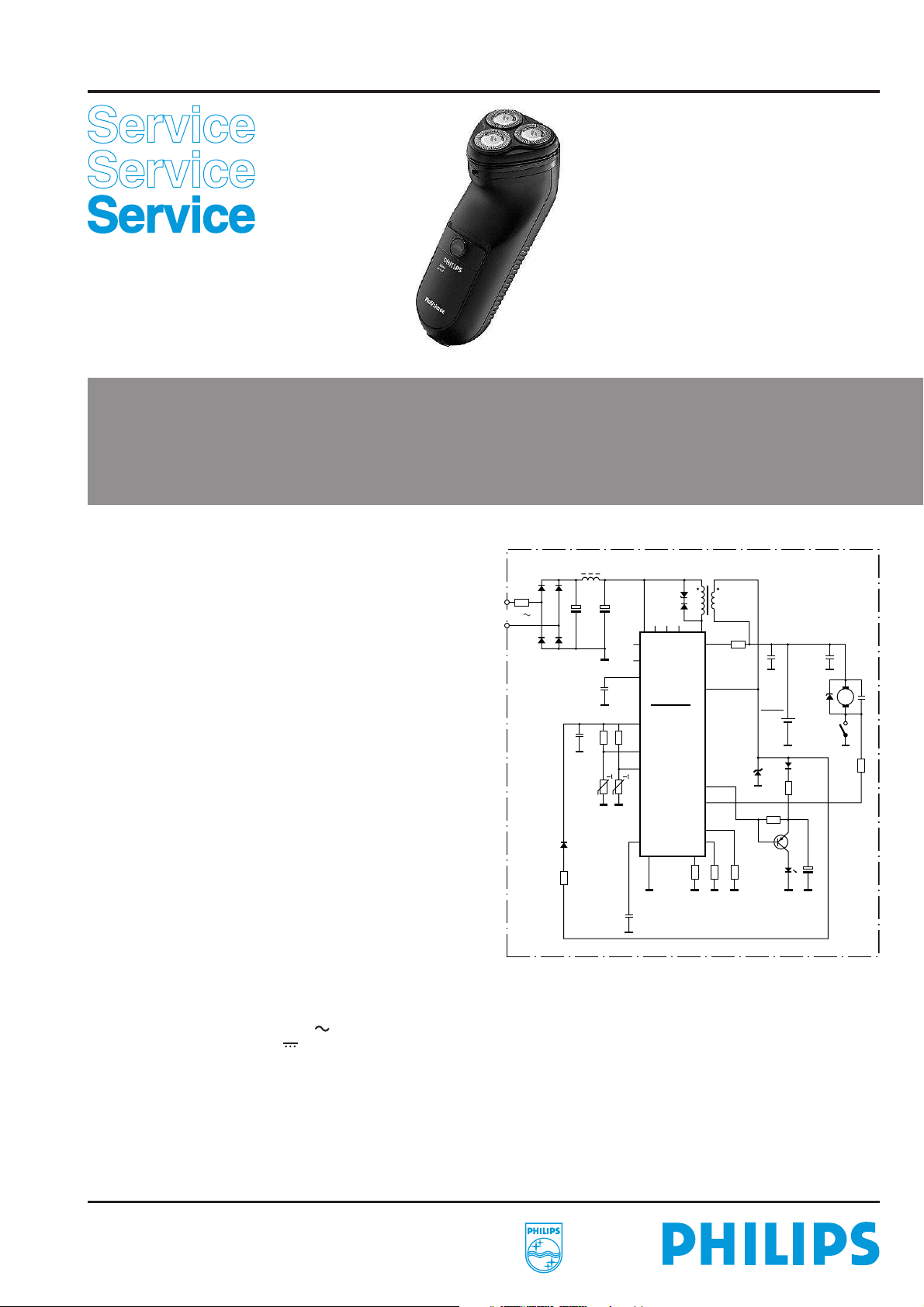

Philips HQ4819 Manual de usuario

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Rechargeable shaver

HQ 4819

SAP coding HQ 4819

4322 277 00697

01/10

GENERAL

The HQ 4819 shaver can be recharged in 1 hour by

means of a ‘Fly Back Self Oscillating Power supply’.

This electronic circuit enables the battery to be charged

at 100-240 V, 50/60 Hz.

It is possible to have a shave directly from the mains.

The green LED comes on when the shaver is

connected to the mains and will blink to indicate that

the battery is fully charged.

The electronic circuit incorporates the following

functions and controls:

- a 900 mA Quick Charge supply

- a 30 mA Trickle Charge supply

- a 1.25V Dynamic supply when shaving from the mains.

- an open cell protection (Vbat < 2.5V)

- an inrush and surge protection (R1).

- a temperature protection of the battery.

(if Tbat - Tamb > 5°C or if Tbat > 65°C, charging will

switch-over from quick charge to trickle charge).

TECHNICAL DATA

Input voltage : 100-240V

Motor voltage : 1.2V

Battery : 1x AA NiMH

Cell capacity : approx. 1100 mAH

Charging system : S.O.P.S./ temp. control

Charging time : approx. 60 mins

initial 4 hours

Charging current : 900/30 mA

Charging indicator : 1x LED green

Comfort control : ﬁxed setting

Shaving heads : HQ4 - 4822 690 30468

Screwdriver T8 : 4822 395 50263

R1 D1

C1 C2

100-240V

C6 C8

NiMH

SK1

D9 C9

R16

Drn

Vac

1712 18

3Vin

Creg

Vic

Vat

IC1

TEA1402T

Vtacc

Vtamb

C4 R5

R10

Cosc

Gnd

LED

Mot

Rsec

Rref

Src

R17

R2 R3 R4

R14

R15

TS2

D5 C7

5090

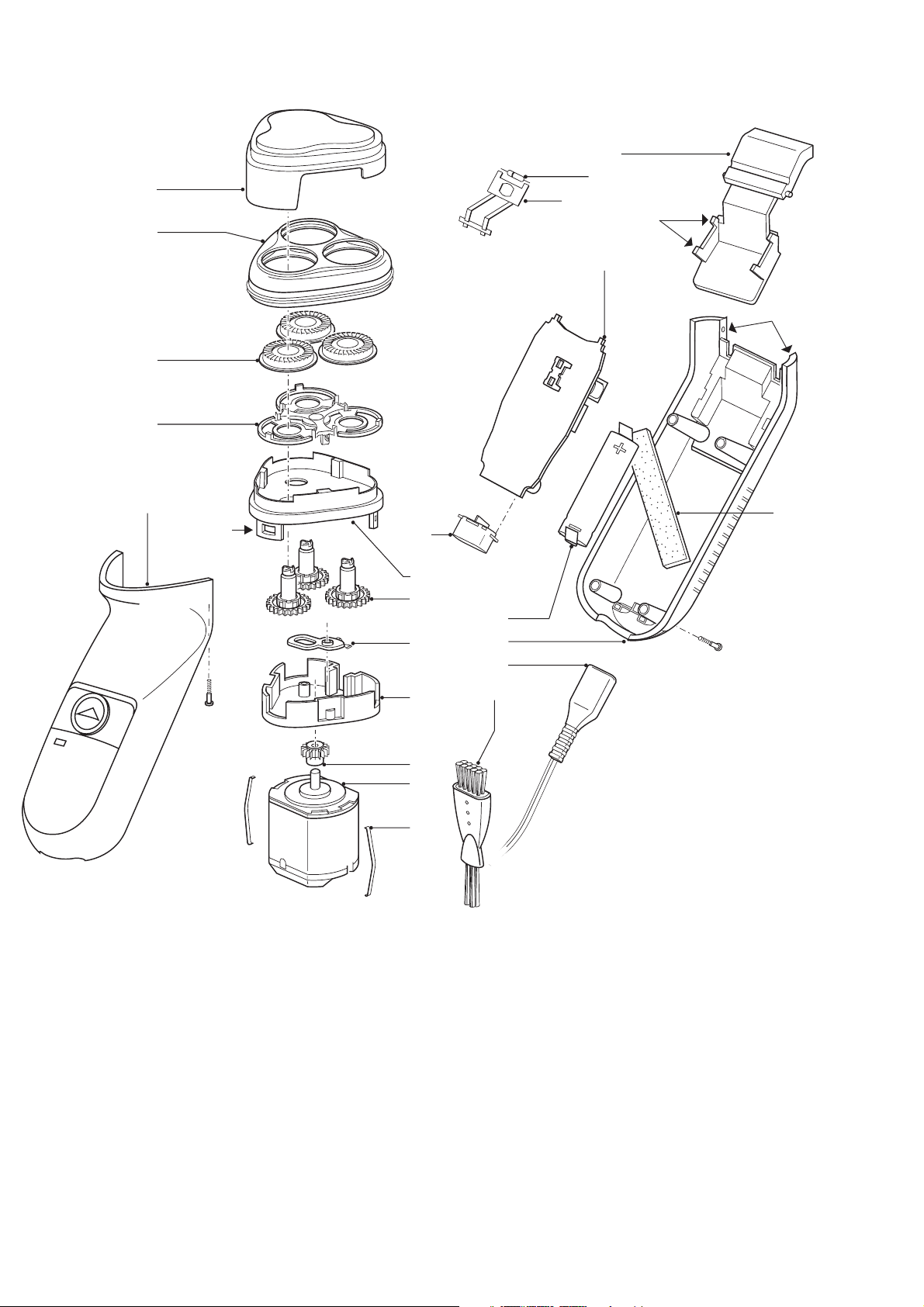

1 4822 441 11276 Protecting cap

2 4222 036 01980 Bracket

3 4822 690 30468 HQ4 shaving head

4 4822 404 40728 Holder assy

5 4222 036 05010 Housing assy

6 4822 036 02370 Inlet

7 4222 036 03620 Hairchamber

8 4822 522 32852 Gear assy

9 4822 404 40656 Lever

10 4822 441 11275 Frame

11 4822 522 32851 Pinion

12 4822 361 21752 Motor assy

13 4822 492 63165 Motor clamp

14 4822 690 10081 Trimmer assy

15 4822 130 34167 BZX69-C6V2,113 Zenerdiode

16 4222 036 02390 Connecting strip

17 4822 466 91312 Foam plate

18 4222 036 02190 Power modul

19 4822 138 10584 NiMH cell AA

20 4222 036 02570 Cover

21 4822 321 10096 Flex assy GB

4822 321 10095 Flex assy EU

22 4822 479 30183 Cleaning brush

A 4822 502 30526 S.t. screw 1.8 x 10/T8

4222 036 02120 Pouch

HQ 4819

15+16

NiMH
