ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Rechargeable shaver

HQ 6756/X

CoolSkin

4322 277 00701

02/09

TECHNICAL DATA

Input voltage : 100-240 V, 50/60 Hz

Power consumption : max. 7 W

Motor voltage : 2.4 V

Battery : 2x NiCd AA

Battery capacity : approx. 700 mAh

Charging indicator : 1x duoLED green / red

: charge - full / battery low

Charging time : approx. 1 hour

Charging current : 1000/40 mA temp. dependent

Charging device : HQ600 external transformer

Shaving heads : HQ167 - 4222 036 04250

Shaving emulsion : HQ160 shaving emulsion

: HQ161 fresh gel

Mains shaving : no

SAP CODING : HQ6756

TIPS FOR REPAIR

- Remove the shaving unit to prevent damage during repair.

- Remove the outer cover (item 27) and cartridge (item 28).

- Remove 5 A1 screws.

- After the cover (item 16) has been removed, it must be

checked if its sealing has not been damaged.

- The cover (item 16) contains a sticker that is permeable

to gas yet impermeable to water.

This sticker may not be removed under any circumstances.

- Unsolder the motor connector and remove the PCB.

- To replace the motor (item 10) or the driving unit

(item 6), screws B1 must be removed ﬁrst.

Then push the entire unit out of the housing (item 12) and

check if its sealing is damaged.

- The entire driving unit (item 6) is supplied as a single part

to guarantee optimal sealing of the gear shafts.

- A replacement of the pump button (item 22) is only

possible after removal of the hair chamber (item 5).

- To guarantee that the shaver is completely watertight, only

the original screws may be used.

- To charge the shaver only the original HQ600 power plug

may be used.

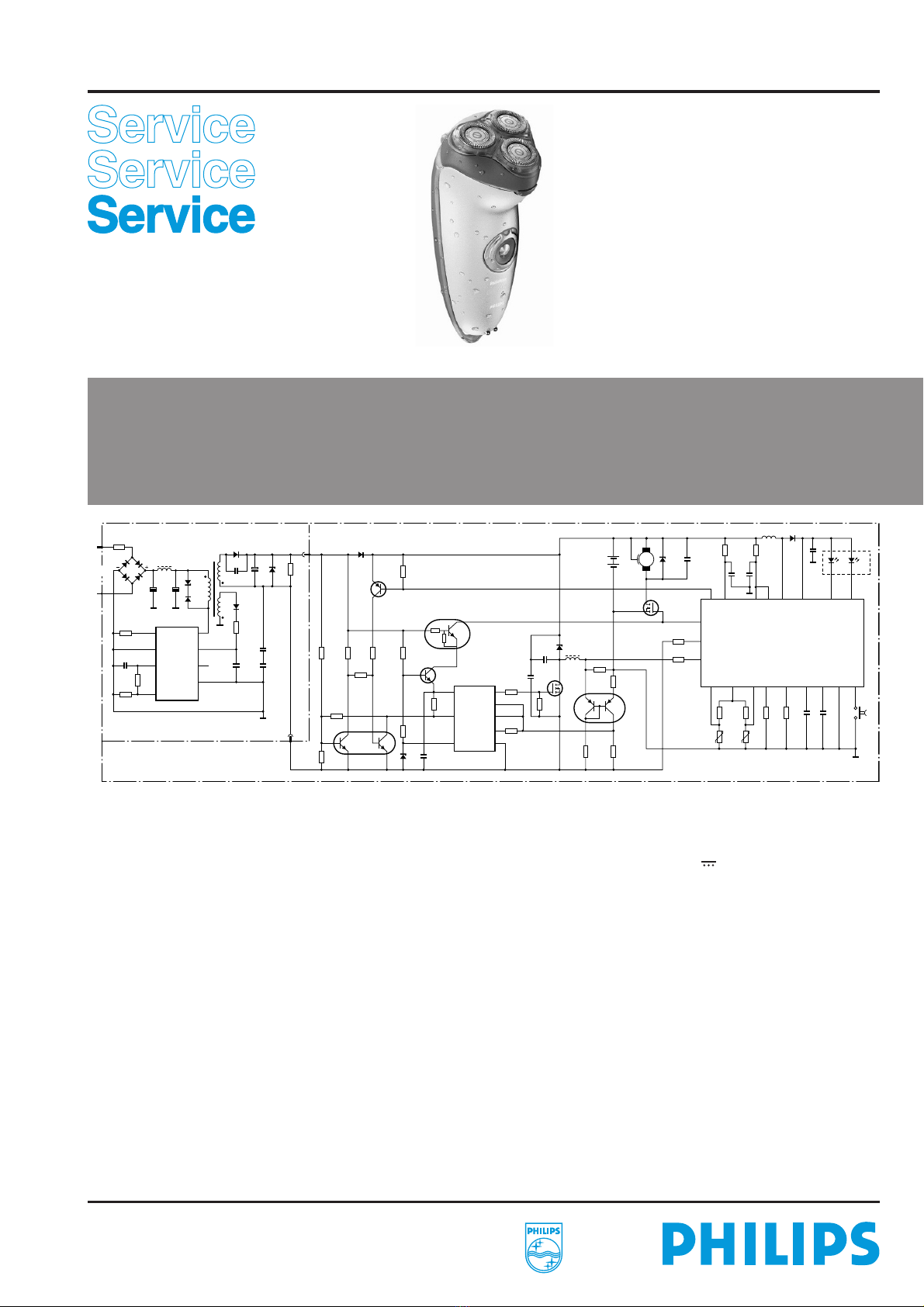

Mains

Power plug

C1 C2

D1 D6

SRC

GND

CBT

DRN

VAUX

GND

RREF

D4a D4b

D43

216

R25

876

R22

15 14 9 10

IC2

TAMB

VBR

TACC

NCEL

VBL1

DIS

NOD

VAC

UPC

VCC

FULL

EMP

R17

R20

RRET

20 11 3

CTIM

R21

R19 R18

R16 C6

DUTY

GND

EOO

C7 SK1

TS3

R6R4

R28

TS1

IC3

VCC

GND

TS5

R23

R26

TS4

IC1 R7

R14

OIS

TR R8

MF1

R24

R12

R11

R10

TS2

NiCd

2 x AA

MF2

SMOT

RREG

R13

MAINS

Power module

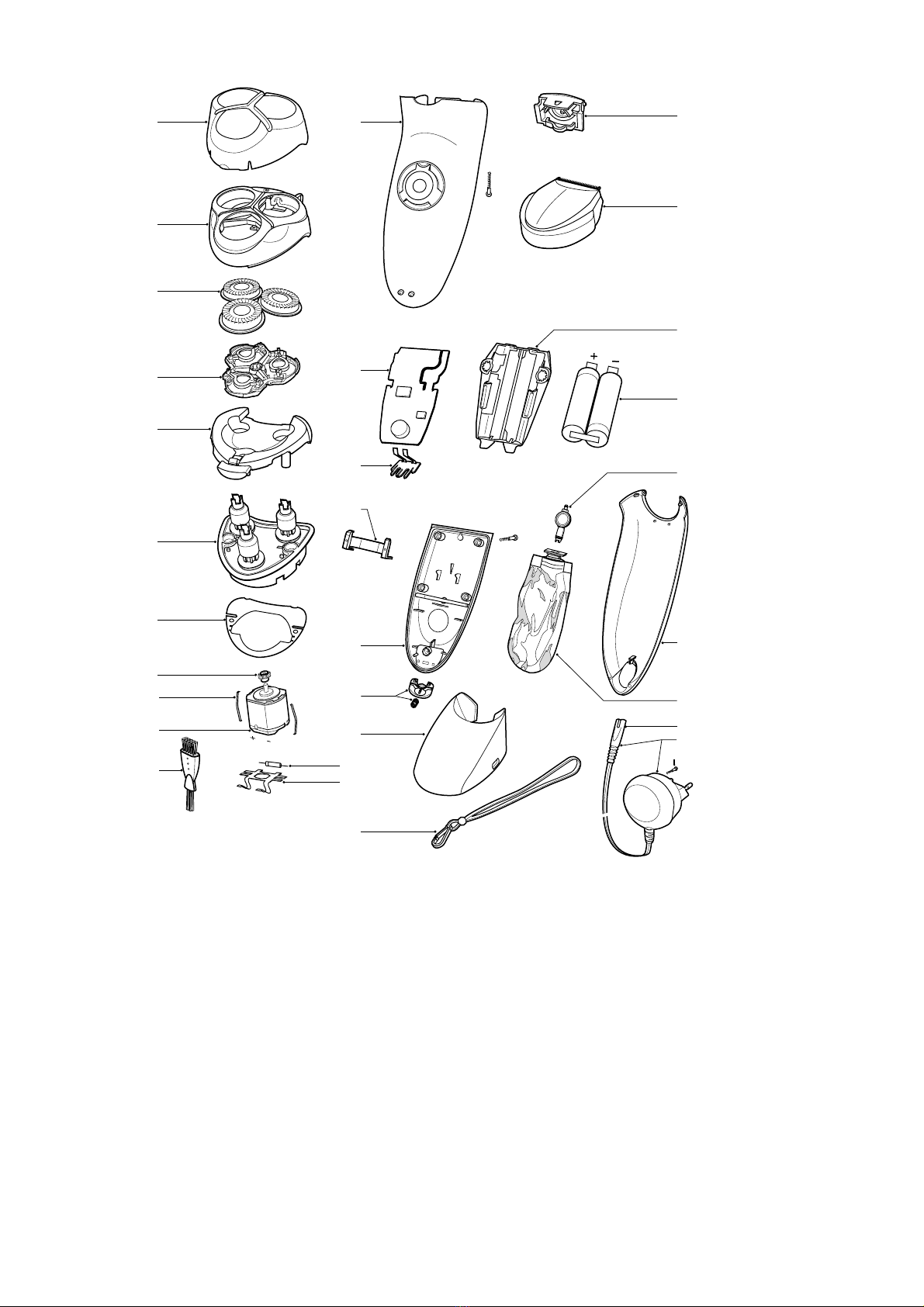

1 4222 036 04140 Protecting cap neptunus

2 4222 036 04260 Head housing

4222 036 04480 Head housing Norelco

3 4222 036 04250 HQ167 shaving head

4 4222 036 04270 Retaining bracket

5 4222 036 04240 Hair chamber

6 4222 036 04200 Gearwheel unit

7 4222 036 04210 Sealing plate

8 4822 522 10763 Pinion

9 4822 492 71735 Motor clamp

10 4822 361 21783 Motor 2.4V

11 4822 479 30183 Cleaning brush

12 4222 036 04160 Housing

4222 036 04500 Housing Norelco

13 4222 036 04300 Power modul

14 4822 265 11548 Connector

15 4822 256 10454 Holder

16 4222 036 04180 Cover Philips

4222 036 04510 Cover Norelco

17 4222 036 04190 Release knob

18 4222 036 04100 Stand

19 4822 130 34167 Zener diode

20 4222 036 01150 Motor connector

21 4222 036 04130 Hanging cord

4222 036 04440 Hanging cord Norelco

22 4222 036 04170 Pump button

4222 036 04460 Pump button Norelco

23 4222 036 04110 Trimmer assy

24 4222 036 04220 Battery holder

25 4822 138 10334 NiCd pack AA

26 4822 360 10389 Pump

27 4222 036 04150 Outer cover

28 4222 036 04400 HQ160 shaving emulsion

4222 036 04410 HQ161 fresh gel

29 4222 036 04060 Straight ﬂex

4222 036 05100 Straight ﬂex Norelco

30 4222 036 05160 Power plug Norelco

4222 036 04850 Power plug Korea

4222 036 04080 Power plug

4222 036 05110 Power plug Canada

4222 036 05120 Power plug Australie

A 4822 502 14545 s.t.screw spec.

B 4822 502 14544 s.t.screw 1.8x18/T8

4222 036 04430 Pouch

4222 036 04120 Case

NiCd

1 12

17 28

HQ 6756/X
