Philips DVP3200V/37B Manual de usuario

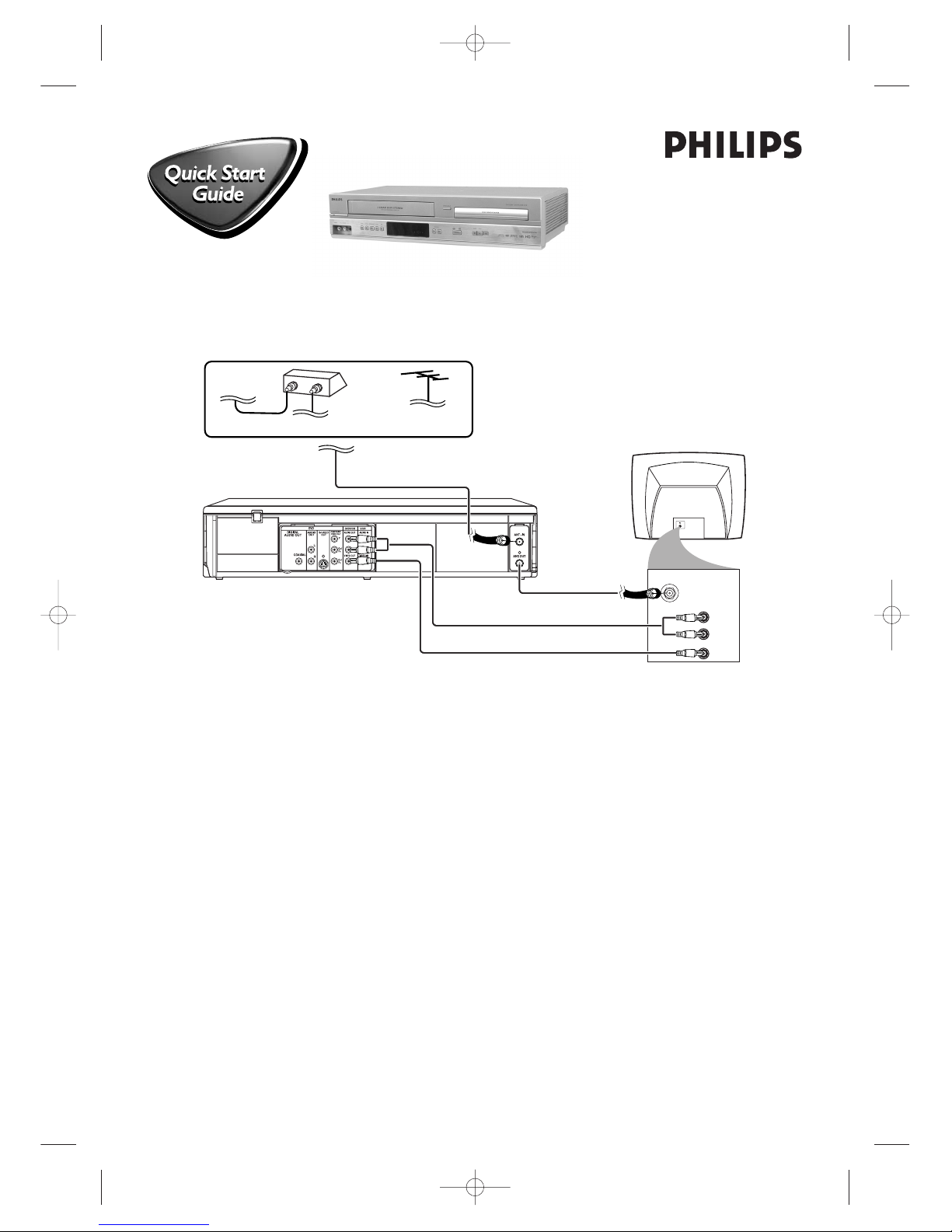

There are many ways to connect your new DVD/VCR to yourTelevision and other equipment.This Quick Start
Guide shows the easiest, most common connection.
Higher quality connections are explained in the accompanying owner’s manual and will provide better sound or
picture if your TV and/or audio system is compatible.
REAR OF TV
(EXAMPLE ONLY)
IN OUT
OR
ANTENNA IN
AUDIO IN
VIDEO IN
L
R
4Audio Cable
3
RF COAXIAL CABLE
5Video Cable
Audio and Video IN Jacks on TV
2Antenna or Cable TV Signal to ANT-IN Jack
CABLE BOX
(Optional)
CABLE TV SIGNAL
ANTENNA or
CABLE TV SIGNAL
DVP3200V/37
1Disconnect all equipment from the power outlets. Connect the equipment to the power outlets only after you
have finished hooking up everything. Never make or change connections with equipment connected to the power outlet.
2Connect your Antenna TV signal or, if you have a Cable Box/Satellite Receiver, the OUT jack of your Cable
Box/Satellite Receiver to the ANT-IN jack on the rear of the DVD/VCR using the supplied RF coaxial cable.
3Connect another RF coaxial cable (not supplied) to the DVD/ VCR’s ANT-OUT jack and to yourTV’s
ANTENNA IN jack.
The TV’s ANTENNA IN jack may be labelled 75-ohm,TV IN, or RF IN. Check your TV manual for details
.
4Connect the red and white audio cable (supplied) to the red and white DVD/VCR AUDIO OUT jacks on
the DVD/VCR and to the red and white AUDIO IN jacks on theTV.
5Connect the yellow video cable (supplied) to the DVD/VCR VIDEO OUT jack on the DVD/VCR and to
the VIDEO IN jack on the TV. The VIDEO IN jack on the TV is usually yellow and may be labelled CVBS, Composite,
or Baseband video.
6Plug the power cords of the DVD/VCR and the TV into an active power outlet.
7Turn on the TV and set it to the correct Audio/Video In channel.
8Press yor STANDBY-ONyon the front panel to turn on the DVD/VCR. The first time you turn on
the DVD/VCR, you should complete the First-time DVD/VCR Setup. See the other side of this Quick
Start Guide for details.
E8A21UD_QSG_EN 4/3/06 5:22 PM Page 1
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
Playable Discs
The DVD Player of the DVD/VCR will play the following Discs.
is a trademark of DVD Format/Logo Licensing Corporation.
Windows Media is a trademark of Microsoft Corporation.
DivX, DivX Certified, and associated logos are trademarks of DivX, Inc. and are used under license.
DVDs must have a Region Code of ALL regions or Region 1.
1
ALL
STOP PLAY
REW F.FWD PLAY
REC CHANNELSTOP/EJECT
VIDEO AUDIOLR
SOURCE
STANDBY-ON
VCR DVD
DVD
OPEN/CLOSE
TV/VIDEO VCR DVD VCR Plus+
SUBTITLE AUDIO ANGLE ZOOM
DVD
SETUPMENU
DISC/VCR
DISPLAY
TIMER SET
BACK
PLAY
REW FFW
PREV NEXTPAUSE
REC STOP
OK
REPEAT
REPEAT
A-B
CH
+
-
CLEAR
REC MODE SEARCH MODE TITLE
8239 300 47521
1VMN22605*****
E8A21UD
Quick Start Guide (cont’d)
Quick Start Guide (cont’d)

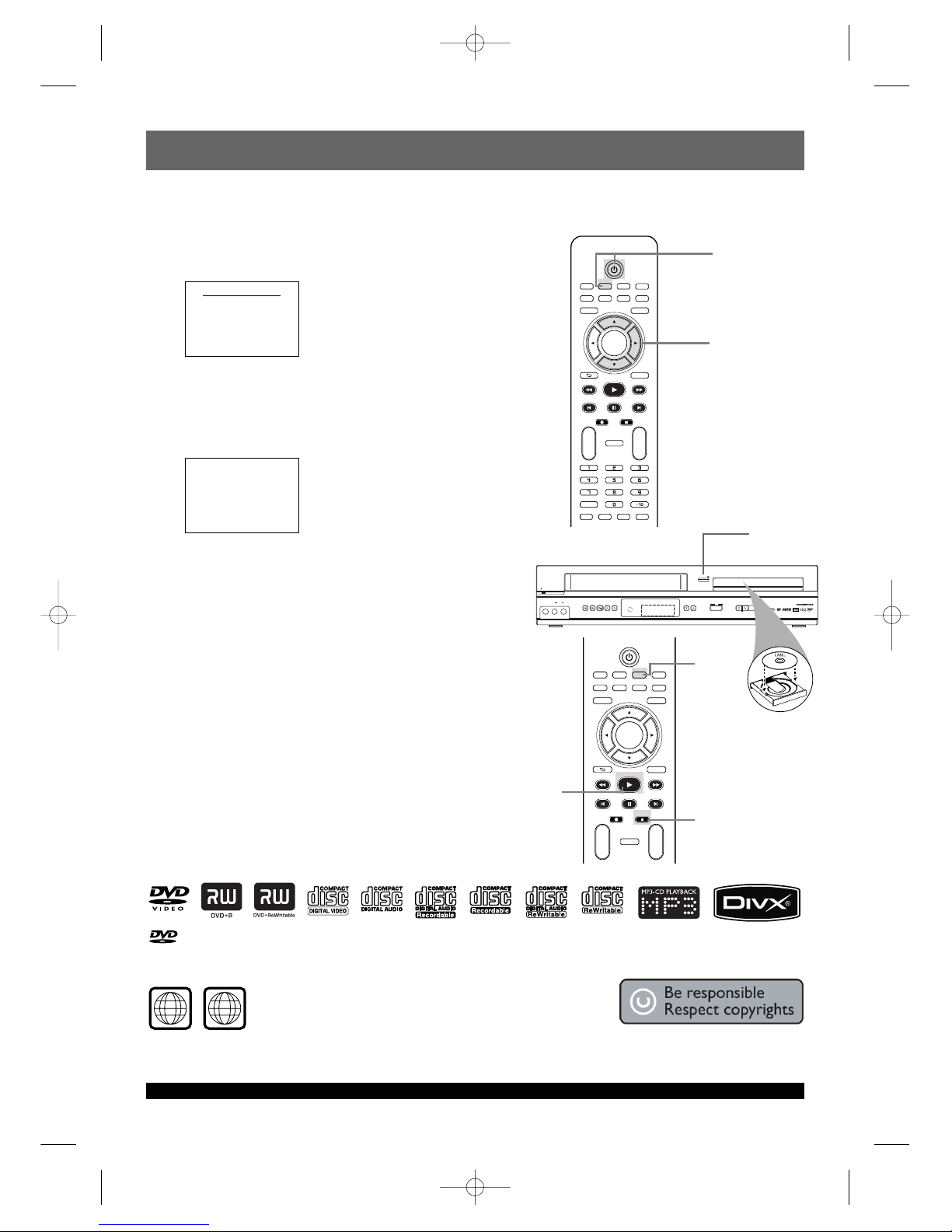

Playing a Disc
1Turn on the TV and set it to the correct Audio/Video In
channel.
2With the TV and DVD/VCR turned on, press DVD to put
the DVD/VCR in DVD mode.
3Press OPEN/CLOSE Ato open the disc tray.
Put a disc in the tray with the label facing up and the shiny side
facing down.
Press PLAY Bto close the disc tray.
4Playback may start automatically. If not, press PLAY B.
If a DVD Disc menu appears, use the sBKL,OK, or Number
buttons to select features or start playback. Follow the
instructions in the menu.
5To stop playing a Disc, press STOP C.
First-Time DVD/VCR Setup
1Turn on the TV and set it to the correct Audio/Video In
channel.
2Press VCR, then press y.VCR light will appear on the front
of the DVD/VCR. The TV display shown below will appear.
3Press Kor Lto select ENGLISH, FRANCAIS (French), or
ESPAÑOL (Spanish) as the language forVCR on-screen
displays. Then, press B.
4The AUTO SET UP message will appear. Press Bto set upTV
channels for the VCR. When setup is complete, the lowest TV
channel will appear on the TV.
Turn on the TV and set it to the
correct Audio/Video In channel.
3-4
2
1
3-4
2
5
NEED HELP! Visit our website at www.philips.com/usasupport
DVDs must be recorded in either the NTSC or PAL color system.
Your TV must also have the NTSC or PAL color system.
LANGUAGE SELECT
BENGLISH [ON]
FRANCAIS
ESPAÑOL
PUSH B
AUTO SET UP
PUSH B3
E8A21UD_QSG_EN 4/3/06 5:22 PM Page 2
