Philips HTS5530/12/55/78/94 Manual de usuario

HTS5530/12/55/78/94

TABLE OF CONTENTS

Page

Version 1.2

Service Manual

. Technical Specifications…………....………………………..............1-3

. Safety Instruction, Warning & Notes….……………………....….....1-4

. Mechanical and Dismantling Instructions…………........................3-1

. Software Upgrades and Region Code Change..............................4-1

. Trouble Shooting Chart……………………………………………….5-1

. Wiring Diagram………………………………………..………..….….6-1

. Electrical Diagrams and Print-layouts..….…………………....….…7-1

. Set Mechanical Exploded view & Part list.…………………..….….8-1

transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise

without the prior permission of Philips.

CLASS 1

LASER PRODUCT

PHILIPS

Published by RY - WL1031 Printed in The Netherlands Subject to modification

. DFU Instruction..............................................................................2-1

. Revision List..................................................................................9-1

Home Theater DVD Player

. Location of PCB BdsÿVersion Variation and Repair Scenario Matrix..........1-2

3139 785 35342

LOCATION OF PCB BOARDS：

Version Variation：

HTS5530

Type/Versions

Features /12 /55 /78 /94

Output Power-800W X X X X

Voltage(110~127V&220~240V) X

Voltage(220~240V) X X X

MP3 LINK X X X X

Repair Scenario Matrix：

HTS5530

Type/Versions

Board in used /12 /55 /78 /94

Front Control Board C C C C

Power Board C C C C

Bd:Board Level Replacement

C:Component Level Repair

1-2

Main Board C C C C

Amplifier Board C C C C

KARAOKE+USB Board C C C C

TOUCH PANEL C C C C

ENCODER Board C C C C

Note

Speciﬁcation and design are subject to change

•

without notice.

Region code

For information about which region this home

theater supports, see the type plate on the back

or bottom.

Playback media

DVD-Video, DVD+R/+RW, DVD-R/-RW, DVD+R

DL, CD-R/CD-RW,Audio CD,Video CD/SVCD,

Picture CD, MP3-CD,WMA-CD, DivX-CD, USB

storage device

File Format

Audio: .mp3, .wma•

Video: .divx, .divx ultra, .mpeg, .mpg, .wmv•

(simple proﬁle)

Picture: .jpeg, .jpg•

Country DVD

Europe, United Kingdom

Latin America

Australia, New Zealand

Russia, India

China

Asia Pacific, Taiwan, Korea

1-3

Ampliﬁer

Total output power:•

HTS5520: 800 W RMS (30% THD)

•

HTS5530: 1000 W RMS (30% THD)

•

Frequency response: 20 Hz-20 kHz / ±3dB•

Signal-to-noise ratio: > 65 dB (CCIR) /•

(A-weighted)

Input sensitivity:•

AUX: 2 V

•

MP3 LINK: 1 V

•

Video

Signal system: PAL / NTSC•

HDMI output: 480i/576i, 480p/576p, 720p,•

1080i, 1080p

Audio

S/PDIF Digital audio input:•

Coaxial: IEC 60958-3

•

Sampling frequency:•

MP3: 32 kHz, 44.1 kHz, 48 kHz

•

WMA: 44.1 kHz, 48 kHz

•

Constant bit rate:•

MP3: 112 kbps - 320 kbps

•

WMA: 48 kbps - 192 kbps

•

Radio

Tuning range: FM 87.5-108 MHz (50/100•

kHz)

Signal-to-noise ratio: FM 50 dB•

Frequency response: FM 180 Hz ~ 10 kHz•

/ ±6dB

USB

Compatibility: Hi-Speed USB (2.0)•

Class support: UMS (USB Mass Storage•

Class)

File system: FAT16, FAT32•

Maximum memory support: < 160GB.•

Main Unit

Power supply:•

Latin America/Asia Paciﬁc: 110-

•

127V/220-240V; ~50-60Hz switchable

Russia/China/India: 220-240V, ~50Hz

•

Power consumption: 150 W•

Standby power consumption: < 0.9 W•

Dimensions (WxHxD): 435 x 58 x 358•

(mm)

Weight: 3.56 kg•

Product sepcifications

HTS5530/55/78:

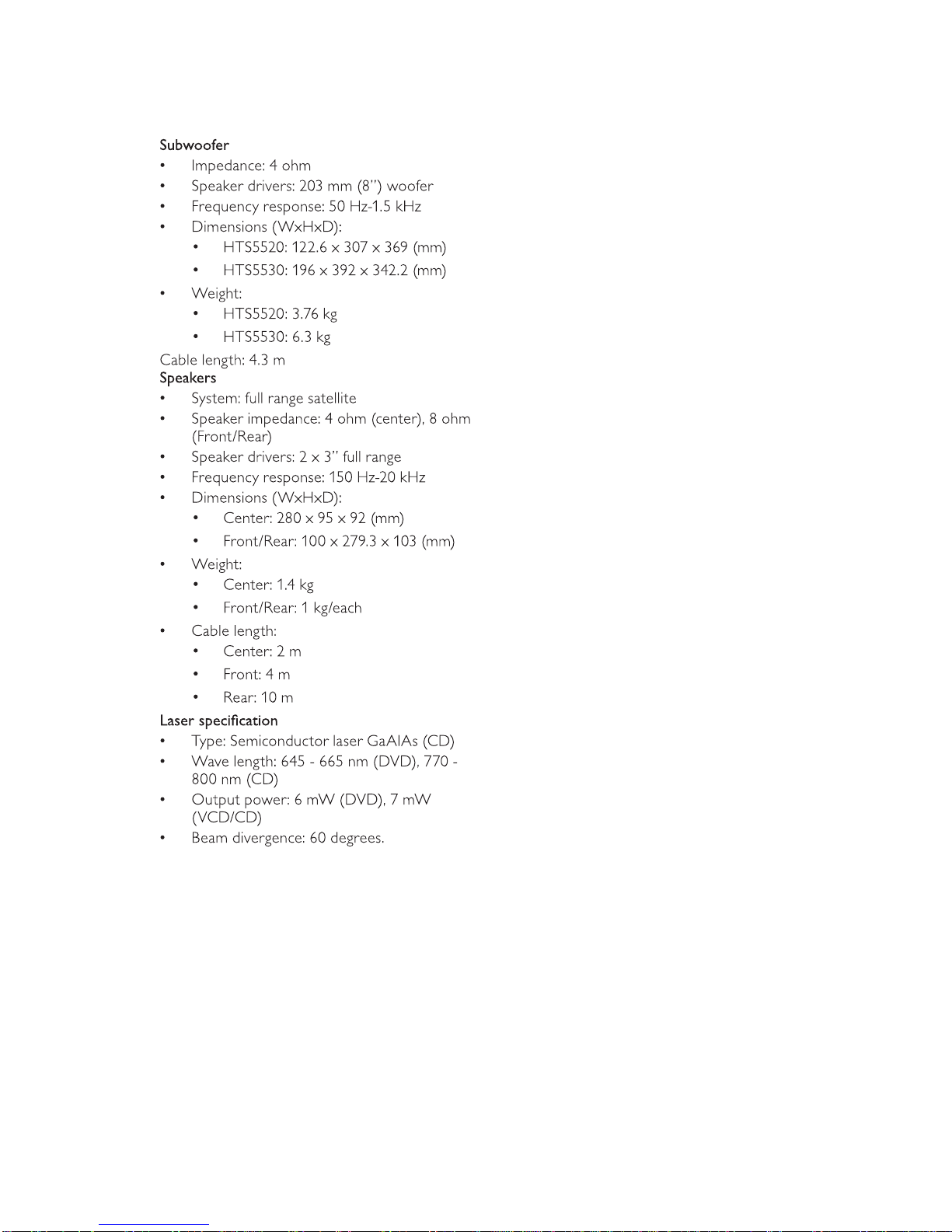

Subwoofer

Impedance: 4 ohm•

Speaker drivers: 203 mm (8”) woofer•

Frequency response: 50 Hz-1.5 kHz•

Dimensions (WxHxD):•

HTS5520: 122.6 x 307 x 369 (mm)

•

HTS5530: 196 x 392 x 342.2 (mm)

•

Weight:•

HTS5520: 3.76 kg

•

HTS5530: 6.3 kg

•

Cable length: 4.3 m

Speakers

System: full range satellite•

Speaker impedance: 4 ohm (center), 8 ohm•

(Front/Rear)

Speaker drivers: 2 x 3” full range•

Frequency response: 150 Hz-20 kHz•

Dimensions (WxHxD):•

Center: 280 x 95 x 92 (mm)

•

Front/Rear: 100 x 279.3 x 103 (mm)

•

Weight:•

Center: 1.4 kg

•

Front/Rear: 1 kg/each

•

Cable length:•

Center: 2 m

•

Front: 4 m

•

Rear: 10 m

•

Laser speciﬁcation

Type: Semiconductor laser GaAIAs (CD)•

Wave length: 645 - 665 nm (DVD), 770 -•

800 nm (CD)

Output power: 6 mW (DVD), 7 mW•

(VCD/CD)

Beam divergence: 60 degrees.•

1-4

Signal-to-noiseratio:>65dB(CCIR)/

(A-weighted)

Input sensitivity:

AUX: 500 mV

MP3 LINK: 500 mV

Video

Signalsystem:PAL/NTSC

HDMI output: 480i/576i, 480p/576p,

720p, 1080i, 1080p

Audio

S/PDIF Digital audio input:

Coaxial: IEC 60958-3

Sampling frequency:

MP3: 32 kHz, 44.1 kHz, 48 kHz

WMA:44.1kHz,48kHz

Constant bit rate:

MP3:112kbps-320kbps

WMA: 48 kbps - 192 kbps

Radio

Tuningrange:FM87.5-108MHz(50kHz)

Signal-to-noiseratio:FM50dB

Frequency response: FM 180 Hz-10 kHz

/ ±6dB

USB

Compatibility: Hi-Speed USB (2.0)

Class support: UMS (USB Mass Storage

Class)

Filesystem:FAT12,FAT16,FAT32

Maximummemorysupport:<160GB.

Main Unit

Power supply: 220-240V; ~50 Hz

Power consumption: 150 W

Standbypowerconsumption:<0.9W

Dimensions(WxHxD):435x58x358

(mm)

Weight: 3.56 kg

Subwoofer

Impedance:8ohm

Speakerdrivers:165mm(6.5”)woofer

Frequency response: 40 Hz-150 kHz

Dimensions (WxHxD):

HTS5520:120x307x369(mm)

HTS5530:196x395x342(mm)

Weight:

HTS5520: 3.84 kg

HTS5530: 6.3 kg

Cable length:

•

Product specifications

Note

6SHFLÀFDWLRQDQGGHVLJQDUHVXEMHFWWRFKDQJH

without notice.

•

Region code

Playback media

DVD-Video, DVD+R/+RW, DVD-R/-RW,

DVD+R DL, CD-R/CD-RW,Audio CD,Video

CD/SVCD, Picture CD, MP3-CD,WMA-CD,

DivX-CD, USB storage device

File Format

Audio: .mp3, .wma

Video: .divx, .divx ultra, .mpeg, .mpg,

ZPYVLPSOHSURÀOH

Picture: .jpeg, .jpg

$PSOLÀHU

Total output power:

HTS5520:800WRMS(30%THD)

HTS5530: 1000 W RMS (30% THD)

Frequency response: 20 Hz-20 kHz /

±3dB

•

Country DVD

Europe, United Kingdom

Latin America

Australia, New Zealand

Russia, India

China

Asia Pacific, Taiwan, Korea

Country DVD

Europe, United Kingdom

Latin America

Australia, New Zealand

Russia, India

China

Asia Pacific, Taiwan, Korea

1-5

HTS5530/12:

HTS5520: 4.3 m

HTS5530:4m

Speakers

System:fullrangesatellite

Speaker impedance: 3 ohm (center), 4

ohm (Front/Rear)

Speakerdrivers:2x3”fullrange

Frequency response: 150 Hz-20 kHz

Dimensions (WxHxD):

Center:280x95x92(mm)

Front/Rear:100x279x103(mm)

Weight:

Center:0.68kg

Front/Rear:0.66kg/each

Cable length:

Center:2m

Front:4m

Rear:10m

/DVHUVSHFLÀFDWLRQ

Type:SemiconductorlaserGaAIAs(CD)

Wavelength:645-665nm(DVD),770

- 800 nm (CD)

Outputpower:6mW(DVD),7mW

(VCD/CD)

Beam divergence: 60 degrees.

•

1-6

Product specifications

Note

Speciﬁcation and design are subject to change

•

without notice.

Region code

For information about which region this home

theater supports, see the type plate on the back

or bottom.

Playback media

DVD-Video, DVD+R/+RW, DVD-R/-RW, DVD+R

DL, CD-R/CD-RW,Audio CD,Video CD/SVCD,

Picture CD, MP3-CD,WMA-CD, DivX-CD, USB

storage device

File Format

Audio: .mp3, .wma•

Video: .divx, .divx ultra, .mpeg, .mpg, .wmv•

(simple proﬁle)

Picture: .jpeg, .jpg•

Country DVD

Europe, United Kingdom

Latin America

Australia, New Zealand

Russia, India

China

Asia Pacific, Taiwan, Korea

1-7

HTS5530/94

1-8

Safety instruction

1. General safety

Safety regulations require that during a repair:

. Connect the unit to the mains via an isolation transformer.

. Replace safety components indicated by the symbol ,

only by components identical to the original ones. Any

other component substitution (other than original type)

may increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, you must

return the unit in its original condition. Pay, in particular,

attention to the following points:

. Route the wires/cables correctly, and fix them with the

mounted cable clamps.

. Check the insulation of the mains lead for external

damage.

. Check the electrical DC resistance between the mains

plug and the secondary side:

1) Unplug the mains cord, and connect a wire between

the two pins of the mains plug.

2) Set the mains switch the “on” position (keep the

mains cord unplug).

3) Measure the resistance value between the mains

plug and the front panel, controls, and chassis

bottom.

4) Repair or correct unit when the resistance

measurement is less than 1M

5) Verify this, before you return the unit to the

customer/user (ref. UL-standard no. 1492).

6) Switch the unit “off”, and remove the wire between

the two pins of the mains plug.

2.Laser safety

This unit employs a laser. Only qualified service personnel

may remove the cover, or attempt to service this device

(due to possible eye injury).

Laser device unit

Type :SemiconductorlaserGaAlAs

Wavelength : 650nm (DVD)

: 780nm (VCD/CD)

Output power : 7mW (DVD)

:10mW(DVD/CD)

Beam divergence: 60 degree

Note: Use of controls or adjustments or performance of

procedure other than those specified herein, may result in

hazardous radiation exposure. Avoid direct exposure to

beam.

Safet

instruction, Warnin

& Notes

1-9

Warning

1.General

. All ICs and many other semiconductors are susceptible to

electrostatic discharges (ESD). Careless handing during

repair can reduce life drastically. Make sure that, during

repair, you are at the same potential as the mass of the

set by a wristband with resistance. Keep components and

tools at this same potential. Available ESD protection

equipment:

1) Complete kit ESD3 (small tablemat, wristband,

connection box, extension cable and earth cable)

4822 310 10671.

2) Wristband tester 4822 344 13999.

. Be careful during measurements in the live voltage

section. The primary side of the power supply , including

the heat sink, carries live mains voltage when you

connect the player to the mains (even when the player is

“off”!). It is possible to touch copper tracks and/or

components in this unshielded primary area, when you

service the player. Service personnel must take

precautions to prevent touching this area or components

in this area. A “lighting stroke” and a stripe-marked

printing on the printed wiring board, indicate the primary

side of the power supply.

. Never replace modules, or components, while the unit is

“on”.

2. Laser

. The use of optical instruments with this product, will

increase eye hazard.

. Only qualified service personnel may remove the cover

or attempt to service this device, due to possible eye

injury.

. Repair handing should take place as much as possible

with a disc loaded inside the player.

. Text below is placed inside the unit, on the laser cover

shield:

Notes: Manufactured under licence from Dolby

Laboratories. The double-D symbol is trademarks of Dolby

CAUTION: VISIBLE AND INVISIBLE LASER

RADIATION WHEN OPEN, AVOID EXPOSURE

TO BEAM.

1-10

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Reproductor de DVD de Philips

Philips

Philips SACD1000 Manual de usuario

Philips

Philips DVP3360K/98 Manual de usuario

Philips

Philips DVP3040K/51 Manual de usuario

Philips

Philips DVP3320X/78 Manual de usuario

Philips

Philips DVP3610/98 Manual de usuario

Philips

Philips DVP 3040 Manual de usuario

Philips

Philips HTD3510/12 Manual de usuario

Philips

Philips DVP3126K/61 Manual de usuario

Philips

Philips AZ5741/98 Manual de usuario

Philips

Philips DVP3986K/93 Manual de usuario

Philips

Philips DVP5960 Manual de usuario

Philips

Philips DVDR3575H/ Manual de usuario

Philips

Philips DVP3560K Manual de usuario

Philips

Philips DVD733/051 Manual de usuario

Philips

Philips AZ5738 Manual de usuario

Philips

Philips DVD590M Manual de usuario

Philips

Philips DVD835AT98 Manual de usuario

Philips

Philips HTP3360K/98 Manual de usuario

Philips

Philips PET1030 Manual de usuario

Philips

Philips DVDR3300H/05B Manual de usuario

Philips

Philips DVP3980K/55 Manual de usuario

Philips

Philips PV7005 s Manual de usuario

Philips

Philips DVP5990K/93 Manual de usuario

Philips

Philips DVP3980KX/77 Manual de usuario

Manuales populares de Reproductor de DVD de otras marcas

Sony

Sony DVP-F11 Manual de usuario

LENCO

LENCO DVP-740 X2 Manual de usuario

JVC

JVC XV-N650BEU Manual de usuario

Aiwa

Aiwa XD-DV370 Manual de usuario

MedeaWiz

MedeaWiz Sprite 4K DV-S4 Manual de usuario

Denon

Denon DVM-1805 - DVD Changer Manual de usuario

Toshiba

Toshiba SD-3815 Manual de usuario

Tevion

Tevion 44330 Manual de usuario

Samsung

Samsung DVD-HD860 Manual de usuario

Sylvania

Sylvania DP170SL8 Manual de usuario

Toshiba

Toshiba SD-P1200 Manual de usuario

JVC

JVC XV-D9000E Manual de usuario

Dolby Laboratories

Dolby Laboratories CP650 Manual de usuario

Denon

Denon DVD-5900 Manual de usuario

Sony

Sony DVP-SR201P Manual de usuario

Toshiba

Toshiba SD-V394SU Manual de usuario

Toshiba

Toshiba SD5300KC Manual de usuario

Impecca

Impecca DVHP-9109 Manual de usuario
