Philips DVP3326/94 Manual de usuario

DVD Player DVP3326/94

Published by BU AVM – FK Printed in the Netherlands Subject to modification

Version 1.0

TABLE OF CONTENTS

Chapter

Technical Specification & Service Tips…………..……….. 1

Safety Instructions…………………………………………….. 2

Instruction for Use………………………………………………3

Mechanical Instructions………………………………………. 4

Troubleshooting …………………………………………………5

Overall Block Diagram………………………………………….6

Electrical Diagram……………………………………………… 7

Exploded View Diagram & Service Part List………………..8

Revision List……………………………………………………. 9

retrieval system or transmitted, in any form or by any means, electronics,

mechanical, photocopying, or otherwise without the prior permission of Philips

Service Manual

3141 785 34250

All manuals and user guides at all-guides.com

all-guides.com

1.0 TECHNICAL SPECIFICATION

IDEO PERFORMANCE

Test equipment：Tektronics VM700T

Test discs：DVD test disc：Philips LVP 10。01

（PAL）/Abex TDV-540（NTSC）

Load Impedance：75Ω

IDEO FORMAT

DVD，VCD，MP3，JPEG

USB:2.0 HS,support MSC,MTP,sector size 4K

AUDIO PERFORMANCE

Line outputs

Test equipment：Audio Precision System2

Test discs:CDDA:Philips audio signal test disc 1

Load Impedance：100KΩfor Audio

AUDIO FORMAT

CD/MP3,DVD audio

Amplitude output:1Vpp± 0.1V/

White bar: 714mV ± 10%/700mVpp ± 10%

Sync. Amplitude: 286mV ±100mV/300mVpp ± 100mV

Burst/chroma ratio: ± 10%

S/N luminance: ≥52 dB

COMPONENT VIDEO RGB

Luminance amplitude output: 700mV ± 10%

RGB unbalance:5%

Sync. Amplitude: 300mV ± 100mV

S/N on RGB outputs: ≥52 dB

DC Level:

≤

COMPONENT VIDEO YPbP

PbPr output unbalance:3%

Sync. Amplitude: 286mV ± 100mV

Video Bandwidth 4.2 MHz:-5db

S/N on outputs: YUV: ≥52 dB

POWER CONSUMPTION

Power-Supply:100-280V ac,50/60Hz,standby:310V

Supply voltage:AC 100~280V

Supply Power consumption(AC 100/240V):12W/+10%

Standby Power,230VAC: <1W

GENERAL DESCRIPTION

Optical Pickup:IM S76RFVP

Chip set/Solution:Mediatek MTK1389QE-LA

Disc Size:8cm/12cm

All manuals and user guides at all-guides.com

1.1 PCBs LOCATION

VERSION VARIATIONS

Type/Versions:

Service policy

Board in used:

DVP3336

MAIN BOARD

8W/2P POWER BOARD

LED DISPLAY BOARD

USB BOARD

POWER SW BOARD

*TIPS: C -- Component Lever Repair.

M -- Module Lever Repair

X – Used

DVD BOARD

LED DISPLAY BOARD

DECK AMI

POWER SW BOARD

USB BOARD

8W/2P POWER BOARD

M/C

All manuals and user guides at all-guides.com

1.2 System, Region Code, etc. Setting Procedure

Procedure to change region code of your DVD

Portable

1. Power ON the DVD player and do not insert

DISC inside player

2. Setup Prefer

Press IR in the sequence as

9 6 5 3

The LCD display showed the existing region

Code

3. Press▲(navigation up)or▼(navigation down)

repeatedly to select the number from 0 to 6.

4. Then press OK to confirm your region code.

5. Refer below table for your region code setting

Select “0” setting = Region Free (confidential)

Procedure for SW upgrade

1. The upgrade will provide a document

re-named: PHILIPS.BIN

2. “PHILIPS.BIN” copy to USB or CD-ROM into

the data;

3. Reading the USB or CD-ROM，in accordance

with prompt，press ”OK” key to upgrade.

Warning: Do not unplug the AC adapter during

firmware upgrade to prevent flash corrupt of

the set!!

Procedure to check SW version of your DVD

Portable

1. OPEN

2. Press SETUP MENU

3. Select Preferences

4. Select Version Info

5. Press “OK” key

All manuals and user guides at all-guides.com

2.0 Safety instruction

1. General safety

Safety regulations require that during a repair:

. Connect the unit to the mains via an isolation

transformer.

. Replace safety components indicated by the

symbol

Only by components identical to the original ones.

Any

Other component substitution (other than original

type)

May increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, you

must

Return the unit in its original condition. Pay, in

particular,

Attention to the following points:

. Route the wires/cables correctly, and fix them with

the

mounted cable clamps

. Check the insulation of the mains lead for external

Damage

. Check the electrical DC resistance between the

mains

Plug and the secondary side:

1) Unplug the mains cord, and connect a wire

between

The two pins of the mains plug.

2) Set the mains switch the “on” position (keep

the

Mains cord unplug).

3) Measure the resistance value between the

mains

plug and the front panel, controls, and chassis

bottom.

4) Repair or correct unit when the resistance

measurement is less than 1M Ω

5) Verify this, before you return the unit to the

customer/user (ref. UL-standard no. 1492).

6) Switch the unit “off”, and remove the wire

between

the two pins of the mains plug.

2. Laser safety

This unit employs a laser. Only qualified service

personnel

May remove the cover, or attempt to service this

device

(due to possible eye injury).

Laser device unit

Type :Semiconductor laser GaAIAs

Wavelength :650nm (DVD)

:780nm (VCD/CD)

Output power :7mW(DVD)

:10mW(DVD/CD)

Beam divergence:60 degree

Note: Use of controls or adjustments or

performance of procedure other than those

specified herein, may result in hazardous

radiation exposure. Avoid direct exposure to

beam.

All manuals and user guides at all-guides.com

3.0 INSTRUCTION FOR USE

You can download this information from the following websites:

http://www.philips.com/support

http://www.p4c.philips.com

All manuals and user guides at all-guides.com

all-guides.com

4.0 MECHANICAL AND DISMANTLING INSTRUCTIONS

The following guidelines show how to dismantle the player.

Step1: Remove 5 screws around the Top Cover, and then remove the Top Cover(Figure1)

Figure 1

Step2:If the tray can’t open in normal way, you can make it through the instruction as below (Figure2)

Figure 2

Step2: If it is necessary to dismantle Loader or Front Panel, the Front door should be removed first(Figure3)

All manuals and user guides at all-guides.com

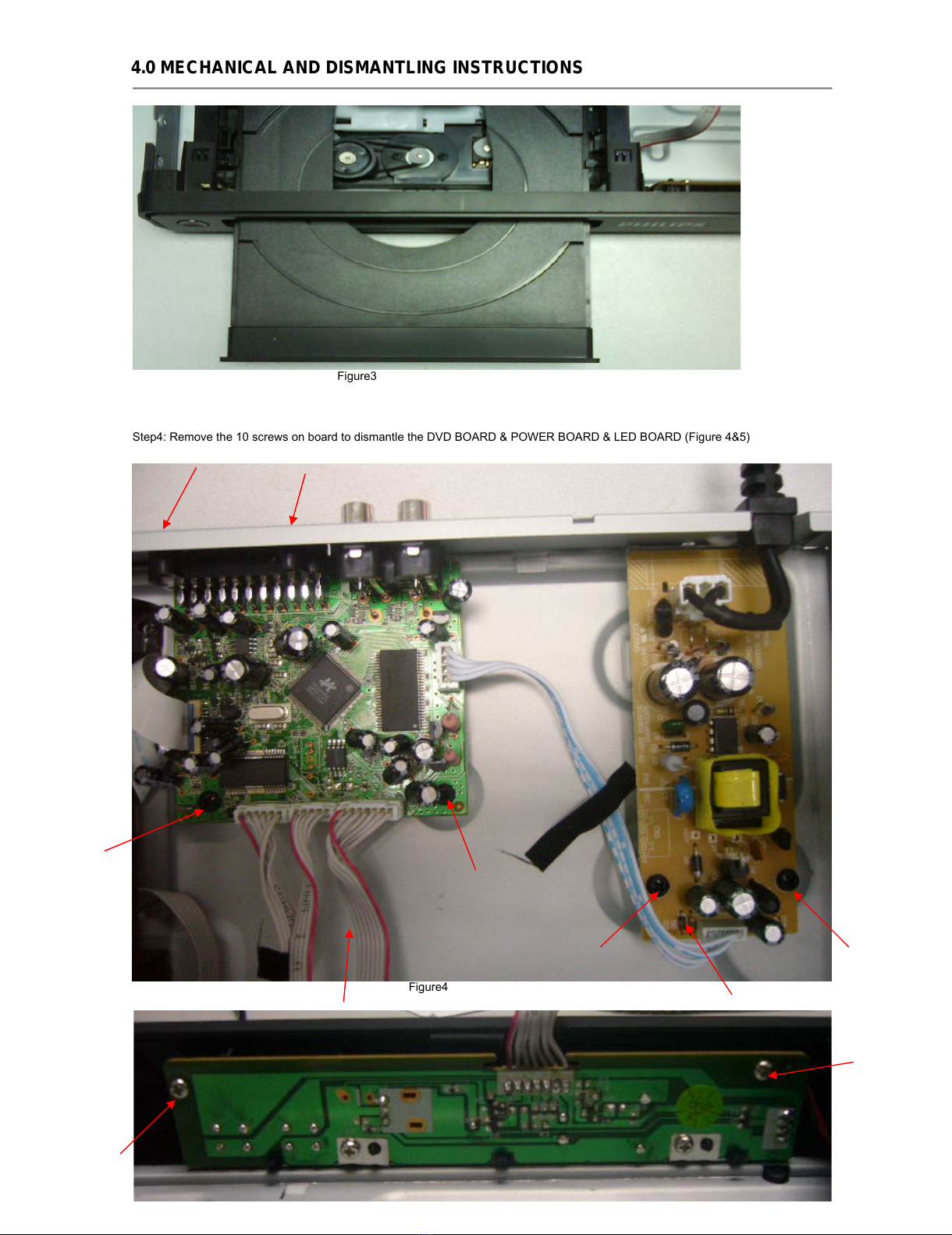

Figure3

Step4: Remove the 10 screws on board to dismantle the DVD BOARD & POWER BOARD & LED BOARD (Figure 4&5)

Figure4

4.0 MECHANICAL AND DISMANTLING INSTRUCTIONS

All manuals and user guides at all-guides.com

插IC1位置:

DVP3336用

SD4842P.

DVP

3320

3326

用

插IC3位置:

CYT431

插IC1位置:

DVP3336用

SD4842P.

DVP3336和

DVP3320/3326共

用此IC

DVP

3320

3326

用

SD4841P.

DVP3336和

DVP3320/3326共

用此

PCB

板

插IC1位置:

DVP3320/3326

用SD4841P.

用此

PCB

板

All manuals and user guides at all-guides.com

Spindle motor does not move

Yes

Check whether “MO_VCC”

(VCC) voltage is normal.

Correct connection

Check the MOVCC power

supply

Check/Replace Q13ǃQ10.

Check/ Replace U2.

Check opu focus

1. Check U2 25pin FOO signals

2.If there are F+, F-, T+ and T-

signals output from U1.

Check/Replace the loader

Yes

Check whether laser voltage

(1.9V for CD & 2.3V for DVD)

on L23 & L22

Check the FFC connection

between 24P and the loader.

1. Whether voltage on pin 23 of U2

varies between 0 and 3.3V (3.3V

for CD and 0V for DVD),

2. Whether peripheral components

are eroded or badly soldered.

Trouble shooting chart

Motor not move
