Philips MCM138D Manual de usuario

MCM138D/all

TABLE OF CONTENTS

Page

Handling chip components .......................................... 1-1

Technical Specications .............................................. 2-1

Service Tool ................................................................. 2-1

Measurement setup..................................................... 2-2

Connections and Controls ....................................3-1..3-2

Set Block diagram ....................................................... 4-1

Set Wiring diagram......................................................4-2

Disassembly diagram .................................................. 5-1

Main board

Circuit diagram ..................................................6-1..6-2

Layout diagram..................................................6-3..6-4

Display&Tuner board - Circuit diagram ................7-1..7-2

Display&Tuner board - Layout diagram................7-3..7-4

Power board - Circuit diagram.....................................8-1

Power board - Layout diagram .................................... 8-2

Set Mechanical Exploded view ................................... 9-1

Mechanical Service parts list ............................... 9-2..9-3

Electrical Service parts list..............................10-1 .. 10-5

transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without

the prior permission of Philips.

Published by LX 0950- Service Audio Printed in The Netherlands Subject to modication

Docking Entertainment System

Version 1.2

�

R evision list

.............................................................

.. 11-1

All manuals and user guides at all-guides.com

all-guides.com

1 - 1

All manuals and user guides at all-guides.com

2 - 1

TECHNICAL SPECIFICATIONS

All manuals and user guides at all-guides.com

2 - 2

SERVICE MEASUREMENT

Bandpass

250Hz-15kHz

e.g. 7122 707 48001

LF Voltmeter

e.g. PM2534

DUT

RF Generator

e.g. PM5326

S/N and distortion meter

e.g. Sound Technology ST1700B

Tuner FW

Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz).

Ri=50

Bandpass

250Hz-15kHz

e.g. 7122 707 48001

LF Voltmeter

e.g. PM2534

DUT

S/N and distortion meter

e.g. Sound Technology ST1700B

Frame aerial

e.g. 7122 707 89001

Tuner AM (MW,LW)

To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday«s cage.

Use a bandpass filter (or at least a high pass filter with 250kHz) to eliminate hum (50Hz, 100Hz).

RF Generator

e.g. PM5326

Ri=50

LEVEL METER

e.g. Sennheiser UPM550

with FF-filter

S/N and distortion meter

e.g. Sound Technology ST1700B

DUT

CD RECORDER

Use Audio Signal Disc SBC429 4822 397 30184

(replaces test disc 3)

Use Universal Test Cassette Fe SBC420 4822 397 30071

LEVEL METER

e.g. Sennheiser UPM550

with FF-filter

S/N and distortion meter

e.g. Sound Technology ST1700B

DUT

LF Generator

e.g. PM5110

Ri=50

All manuals and user guides at all-guides.com

3 - 1

CONNECTION AND CONTROLS

All manuals and user guides at all-guides.com

3 - 2

CONNECTION AND CONTROLS

All manuals and user guides at all-guides.com

all-guides.com

SET BLOCK DIAGRAM

4 - 1

All manuals and user guides at all-guides.com

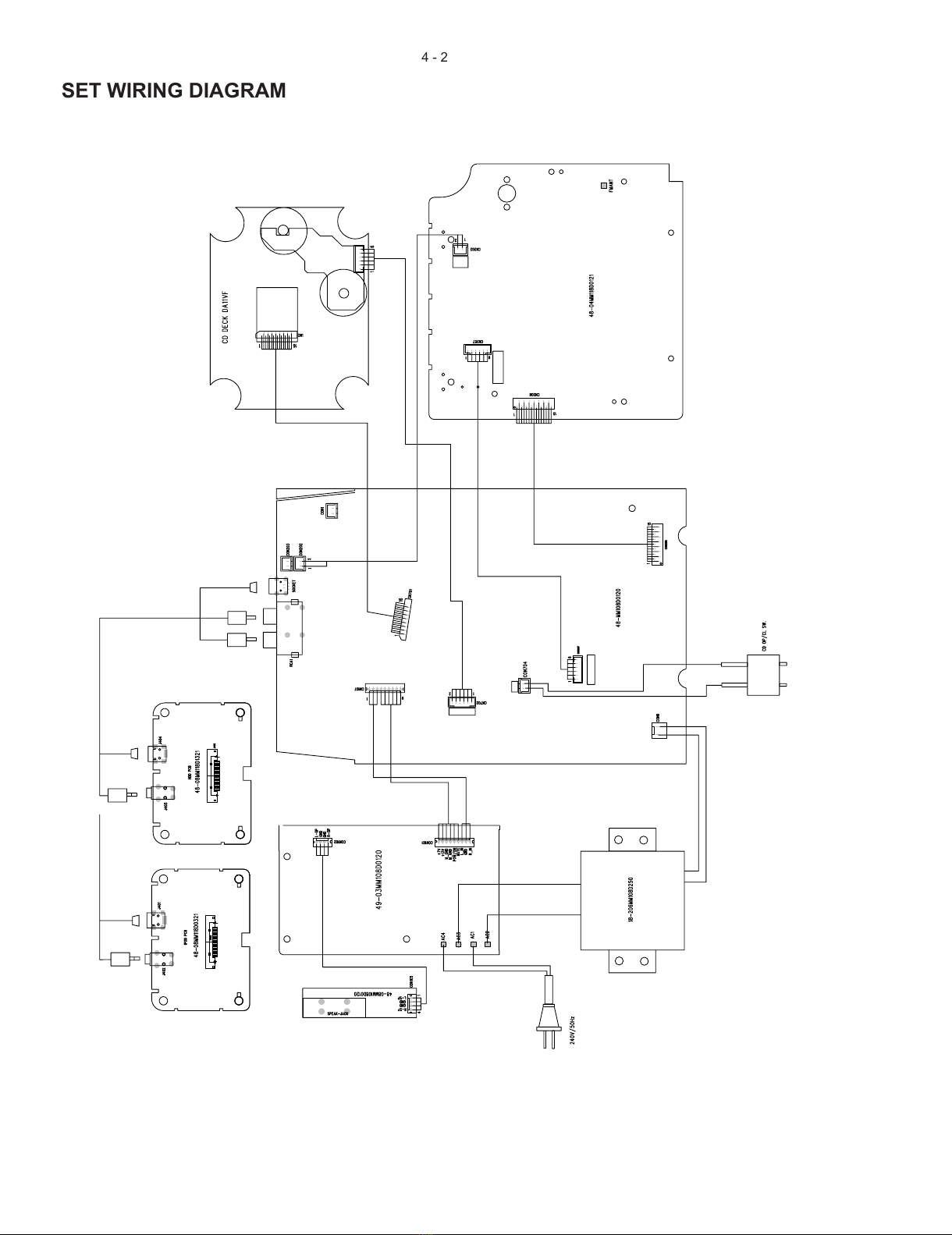

SET WIRING DIAGRAM

4 - 2

All manuals and user guides at all-guides.com

DISASSEMBLY DIAGRAM

Dismantling of the Bottom Cabinet

1) Remove 4 screws A as indicated to loosen the Rear Cabinet.

2) Remove 2 screws B as indicated to loosen the Bottom Cabinet.

Dismantling of the Front Cabinet and Main Board

1) Remove 2 screws C as indicated to loosen the Front Cabinet.

2) Remove 5 screws D as indicated to loosen the Main Board.

BOTTOM CAB.

5 - 1 5 - 1

All manuals and user guides at all-guides.com

CIRCUIT DIAGRAM - MAIN BOARD

CD PART

6 - 16 - 1
