Philips Antumbra Manual de usuario

Antumbra

Installation Guide

Revision 02

13 October, 2017

Antumbra 2 Product Overview

13 October, 2017

Antumbra 3 Product Overview

Contents

Antumbra 1

1Product Overview 5

1.1 Application Module 6

1.2 Communication Module 6

1.3 AntumbraButton 7

1.3.1 Product Architecture 7

1.3.2 Hardware Dimensions (EU) 8

1.3.3 Hardware Dimensions (NA) 8

1.3.4 Base Unit 9

1.4 AntumbraDisplay 10

1.4.1 Product Architecture 10

1.4.2 Hardware Dimensions (EU) 11

1.4.3 Hardware Dimensions (NA) 11

1.4.4 Base Unit 12

1.5 AntumbraTouch 13

1.5.1 Product Architecture 13

1.5.2 Hardware Dimensions (EU) 14

1.5.3 Hardware Dimensions (NA) 14

1.5.4 AntumbraTouch Base Unit 15

2Installation 16

2.1 Network termination 16

2.2 Installation Procedure 17

2.2.1 Base Unit Installation 17

2.2.2 Antumbra shielding 20

2.2.3 Button Installation (AntumbraButton) 21

2.2.4 Button Installation (AntumbraDisplay) 22

2.2.5 Fascia Installation (AntumbraTouch) 23

3Ordering Antumbra Panels 24

3.1 AntumbraButton 24

3.1.1 Spare Parts 25

3.2 AntumbraDisplay 26

3.2.1 Spare Parts 27

3.3 AntumbraTouch 28

3.3.1 Spare Parts 29

13 October, 2017

Antumbra 4 Product Overview

About this Guide

Guide Overview

This guide is designed to assist in the ordering and installation of the Antumbra Panel user

interface.

A working knowledge of Dynalite commissioning processes is required to effectively use this

document. For more information on commissioning processes, consult the Antumbra

Commissioning Guide.

Disclaimer

These instructions have been prepared by Philips Dynalite and provide information on Philips

Dynalite products for use by registered owners. Some information may become superseded

through changes to the law and as a result of evolving technology and industry practices.

Any reference to non-Philips Dynalite products or web links does not constitute an

endorsement of those products or services

reserved. Not to be reproduced without permission. Dynalite, Dimtek, DLight, DyNet and

associated logos are the registered trademarks of WMGD Pty Ltd.

13 October, 2017

Antumbra 5 Product Overview

1Product Overview

The Philips Dynalite Antumbra Panel series is a unique and stylish range of user interfaces,

combining contemporary design with superior functionality to enable intuitive control of

lighting, HVAC and other connected devices and systems.

The Antumbra Panel series is one of the most

flexible user interface solutions available in the

market. Advanced flexibility is achieved by dividing

the panel into two components; the Application

Module, which contains the panel’s buttons and

sensors, and the DyNet Communication Module,

which handles all onboard logic and network

communication. Each of these components is

described in detail later on the next page.

The Antumbra Panel series has been designed to suit

both residential and commercial applications. The

series consists of the following panel variants in both European (square) and US/Australian

(rectangular) styles:

Each button on the Antumbra panel can be configured using the EnvisionProject

commissioning software to perform a vast range of functions.

In addition to its six buttons, the Antumbra panel contains three sensors:

Proximity sensor

The Proximity sensor utilizes capacitive field effect technology to detect motion. When a

user approaches the panel, it initiates a wall-wash lighting effect to encourage interaction.

Ambient light sensor

An internal light sensor measures ambient light to adjust lightwash effect accordingly.

Temperature sensor

The temperature sensor is used to monitor the temperature of the room where the panel is

mounted.

13 October, 2017

Antumbra 6 Product Overview

1.1 Application Module

The Application Module consists of the buttons, rim, base unit and mounting plate. The

buttons/touch panel and rims of each Antumbra unit come in different colours and finishes.

The rim has built-in ventilation to increase the responsiveness of the temperature sensor.

The Base unit contains all the sensor devices and the LEDs. It includes the proximity,

daylight and temperature sensors. The LEDs are used to provide backlight to the configured

buttons on the panel, and to produce the light wash effect around the panel.

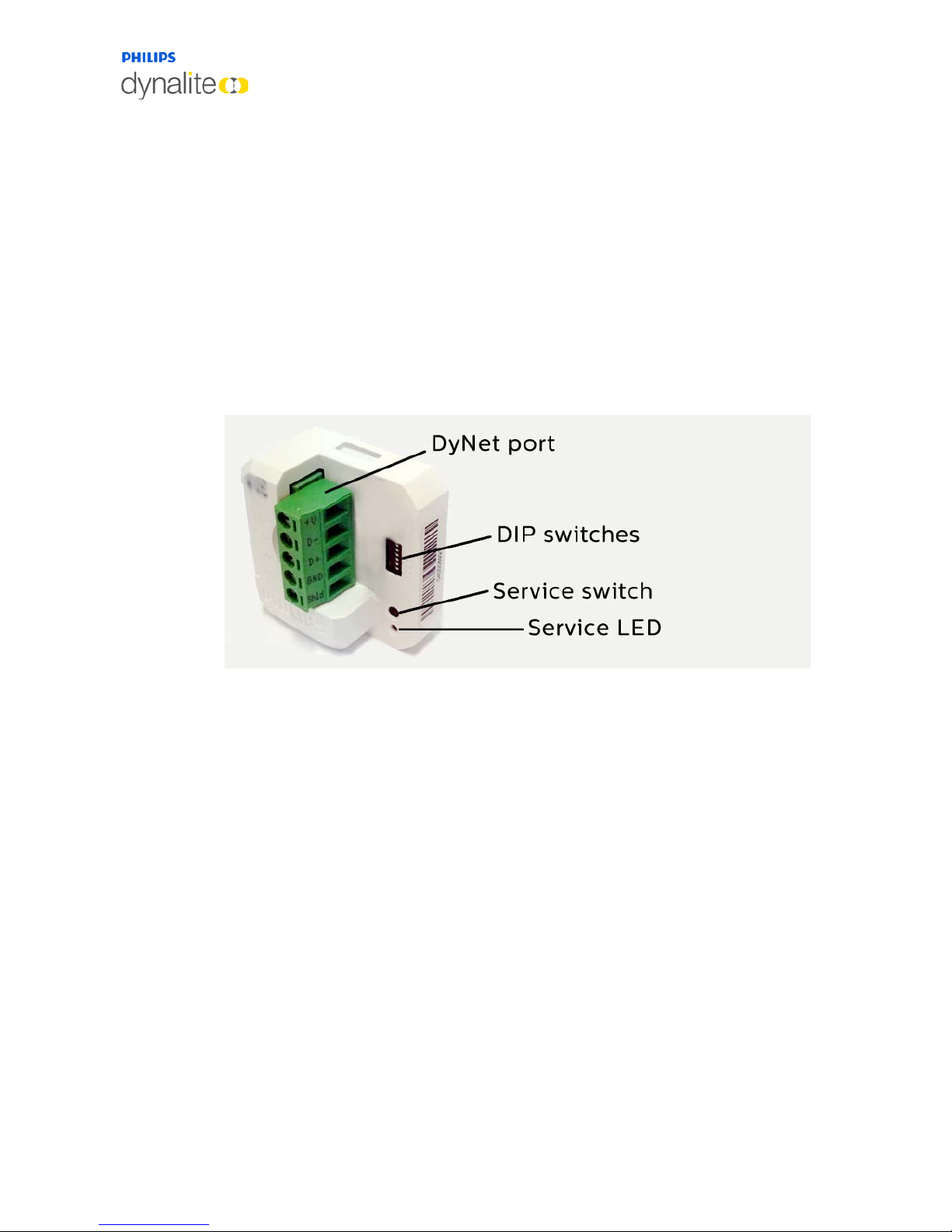

1.2 Communication Module

The DyNet communication module is common across the Antumbra series. It contains all

the logical and network functions required by the panel.

The communication module contains all the panel’s settings and manages the communication

to the DyNet network.

The communication module can be pre-programmed using EnvisionProject without the

application module present, and is capable of running complex tasks based on timeclock

signals, DyNet messages such as presets or commands, and the position of the six DIP

switches shown in the picture above.

For example, in a hotel installation with a set of identical configurations for multiple rooms,

the same software settings can be programmed on each communication module, and the

installer need only select the panel’s area number using the correct DIP switch settings

before installing.

The service switch can be used to test the network. A long press resets the Comms Module

and a short press sends a sign-on message on to the DyNet network.

For more information regarding communication module termination and operation can be

found in the Installation – Network Termination section.

13 October, 2017

Antumbra 7 Product Overview

1.3 AntumbraButton

The AntumbraButton panel has an RS485 DyNet serial port and is classified as a Class 2

Safety Extra-Low Voltage (SELV) device.

The AntumbraButton panel is available in white, silver, magnesium and brushed aluminium

button finishes. To complement these button finishes, rim finishes are available in white,

magnesium, chrome and brushed aluminium, providing a wide range of décor matching

possibilities.

Custom labelling of icons and engraved text is available for each panel.

1.3.1 Product Architecture

13 October, 2017

Antumbra 8 Product Overview

1.3.2 Hardware Dimensions (EU)

1.3.3 Hardware Dimensions (NA)

13 October, 2017

Antumbra 9 Product Overview

1.3.4 Base Unit

The AntumbraButton Panel application module consists of six configurable buttons, indicator

and backlight LEDs, a temperature sensor, an ambient light sensor and a proximity sensor.

Each button has an enable/disable catch that can be used to enable/disable the tactile feel of

the buttons on the panel.

Refer to the ‘up’ arrows on the application module to indicate the side that has to be at the

top when the panel is mounted in either portrait or landscape orientation.

When attaching the rim, ensure that the holes on the rim are positioned over the

temperature sensor.

Note: To remove the buttons from the panel, lift the button edge on the left and right side

of the panel before lifting the button at the center.

13 October, 2017

Antumbra 10 Product Overview

1.4 AntumbraDisplay

The AntumbraDisplay Panel has a RS485 DyNet serial port and is classified as a Class 2

Safety Extra-Low Voltage (SELV) device.

This panel is available in white, silver, magnesium and brushed aluminium button finishes.

Complementary rim finishes are available in white, magnesium, chrome and brushed

aluminium, providing a wide range of décor matching possibilities.

1.4.1 Product Architecture
