Philips E170 Manual de usuario

Your Phone

Philips continuously strives to improve its products. Due to software

upgrading, some contents in this user guide may be different from your

product.Philips reserves the rights to revise this user guide or withdraw it

at any time without prior notice. Please take your product as standard.

TFT LCD

Pick-up key

Headphone jack USB port

Hang up key,

Power on/off key

Navigation key

Confirm/

Navigation key

Left soft key

Side volume key

Right soft key

Main screen

Your phone’s main screen consists of the following areas:

Keys

Learn about the main keys.

Icons & symbols

Learn about the icons and symbols on the screen.

Key Definition Function

(

Dial Make or answer a call.

Press to view local/BT calls.

Confirm Confirm an option.

Press up/down key to navigate.

HHang-up/

Power/Exit

End a call;

Return to home screen;

Hold to turn on/turn off the phone.

LLeft soft key Select the options on the screen.

LRight soft key Select the options on the screen.

Volume key Adjust the volume.

Lock/Unlock Slide down to lock/unlock the home screen.

Icons Definition Function

Silent Your phone will not ring when receiving

a call.

Status Bar

Shortcuts

Vibration only Your phone will vibrate when receiving a

call.

Battery The bars indicate the battery level.

SMS You have a new message.

Missed call You have missed a call.

GSM network Your phone is connected to a GSM

network. The more bars are shown the

better reception is.

Bluetooth Bluetooth is activated.

Headset The headset is plugged into the phone.

Alarm The alarm clock is activated.

Roaming Displayed when your phone is registered

to a network other than your own

(especially when you’re abroad).

Key lock The keypad has been locked.

Getting started

Insert SIM card and Charge the battery

Learn about installing SIM card and charging the battery for the first use.

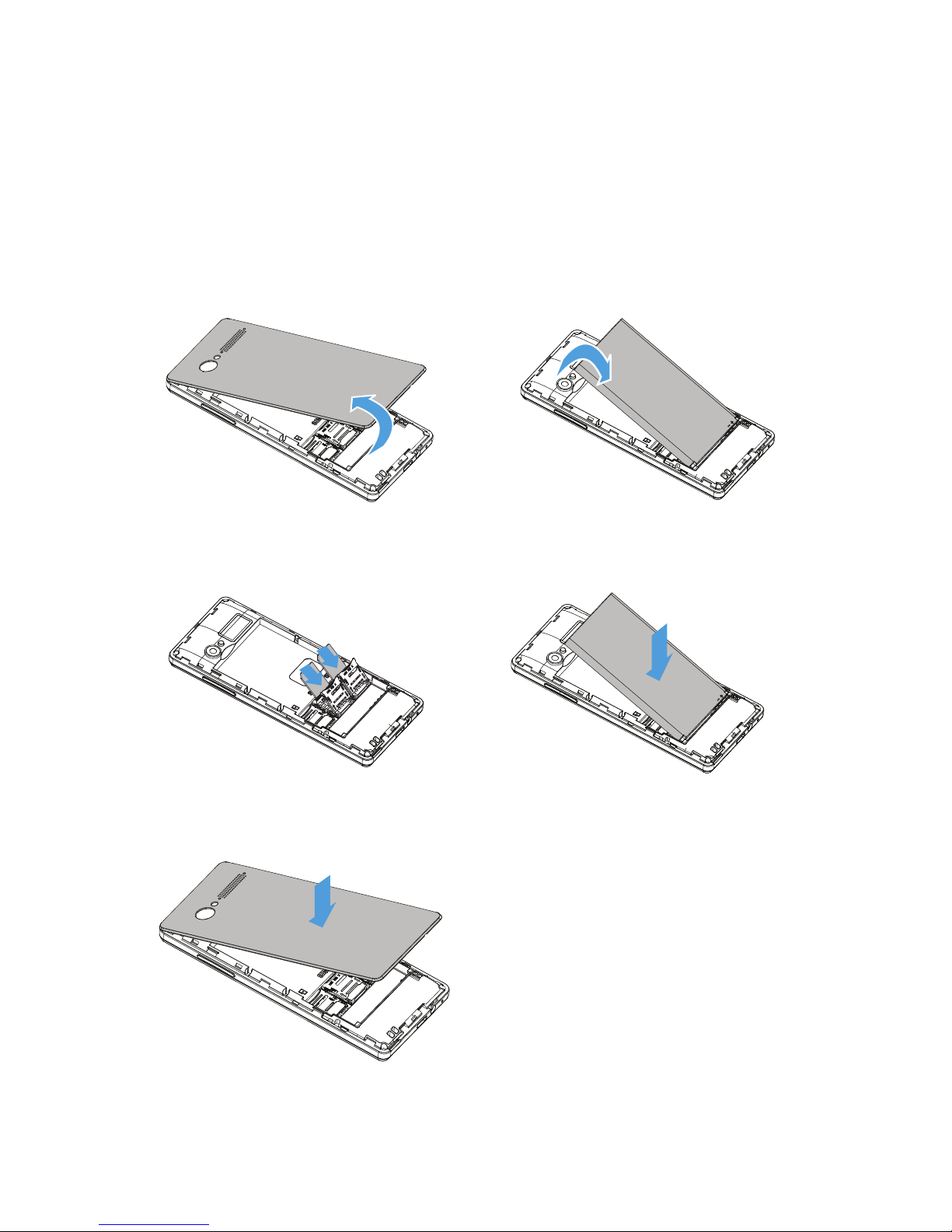

Insert SIM card

Remove the back cover.

Take out the battery.

Insert the SIM card.

Install the battery.

Replace the back cover.

Charge the battery

A new battery is partially charged. The battery icon in the upper-right

corner shows the battery level of charging status.

Insert a Micro SD card (Memory card)

Tips:

•

You can use the phone while it is charging.

•

Keeping the charger plugged to the mobile

phone when the battery is fully charged will

not damage the battery. The only way to

turn off the charger is to unplug it, so it is

advisable to use an easily accessible power

socket.

•

If you do not intend to use your phone for

several days, we recommend that you

remove the battery.

•

If a fully charged battery left unused, it will

lost its charge over time.

•

If a battery is being used for the first time or

the battery has not been used for a

prolonged period, it may take longer time to

recharge.

You can expand the memory of your

phone by adding a micro-SD card.

Align your micro-SD card with the

slot.

Put it in place.

Customize your phone

Customize your phone to match your preferences.

Set time & date

On the home screen, go to Menu>Settings>Phone

settings>Time and date.

Select Set time/date: Select the desired digits.

SIM settings

Go to Menu>Settings>Dual SIM settings to set reply call/message or

transfer data by SIM1/SIM2.

Note:

•

The PIN code is preconfigured and communicated to you by your network operator or

retailer.

•

If you enter an incorrect PIN code three times in succession, your SIM card will be

blocked. To unblock it, you must request the PUK code from your operator.

•

If you enter an incorrect PUK code ten times in succession, the SIM card will be locked

permanently. When this happens, please contact your network operator or retailer.

Dedicated keys

You can access the preset function directly by pressing dedicated keys.

Go to Settings>Phone settings>Dedicated keys.

Select the dedicated key and then select the function you want to

access directly by pressing the dedicated key.

You can press the dedicated key to access the function.

Using your phone

Use basic call functions

Learn to make or answer a call and use basic call functions.

Make a call

Enter the phone number.

Press

(

dial the number.

Press H

to hang up.

Tips:

•

For international calls, long press "

" to enter the "+" sign for the international prefix.

Answer and end a call

Press

(

to answer the call.

Press right soft key Lto select hands free mode during a call.

Press Hto hang up.

Tips:

•

You can press the side volume key to adjust the volume.

Speed dial

On the home screen, you can call a number by long pressing a numeric

key.

To assign a contact to a speed-dial key:

Go to Menu>phonebook>Local>Options>phonebook

settings>Speed dials, set the status to On.

Select Set numbers to choose a numberic key and press LEdit

to select a phone number from the contact list.

Press confirm key to save it.

Use blacklist

Learn about how to set the blacklist, you can reject the incoming calls

or messages from those included in the blacklist.

Add a phone number to blacklist

Go to Menu>Phonebook>Local,select a contact you want to add

to blacklist.

Press the left soft key and select Add to blacklist.

Select Yes to confirm.

Receive and send messages

You can use the Messaging menu to send text message, multimedia

message.

Send a SMS message

Select Menu>Messaging>Write message>Text message.

Write your text message.

Press LOptions>send to, select enter number directly or Add

from Phonebook to select the recipient(s) from the contact list and

press LAdd to confirm.

Press confirm key to send the message.

Send a MMS message

Select Menu>Messages>Write message>MMS.

Edit contents, press LOptions to select add picture/sound/video/

subject and press confirm key to add multimedia contents

Press LOption>sent to, select enter number directly or Add

from Phonebook to select the recipient(s) from the contact list and

press LAdd to confirm.

Press confirm key to send the message.

Note:

•

Enter text

Your mobile phone supports a number of text entry methods, including

English input, HI input, numeric input and symbol input.

Virtual keypad:

Note:

•

Depending on the language you select for your phone, the supported input methods

may vary.

Manage your phonebook

Add a new contact

Method one:

On the home screen, enter a number, press LOptions>Save to

Phonebook>New contact, select a location (To S I M 1 /To SIM2/

To P h o n e ).

Edit the contact.

Press LOptions>Save to finish saving.

Method two:

Go to Phonebook>Local.

Select Add new contact, select a location (To S I M 1 /To SIM2/To

Phone) to add a new contact.

Edit the contact and press LOptions>Save to finish saving.

Tips:

•

For contacts stored on the phone, you can add detailed information, like home number,

birthday.

Keys/Virtual

keypad

Function

#Short press to select input method and language.

Enter symbols and punctuations.

LPress right soft key to delete the previous symbol.

Press navigation key to select the symbol.

Confirm the selection.

Search for a contact

Go to Phonebook.

Enter the first few letters of the name in the search bar.

Select the contact from the list.

Tips:

•

You can also use the navigation keys to view the contacts.

Manage your contacts

Go to Phonebook, select a contact you want to edit, press

LOptions>Edit to edit the contact and press LOptions>Save to

save it.

Go to Phonebook, select a contact you want to delete, press

LOptions>Delete to delect the contact.

Organizer

Alarm

Learn about how to set and use an alarm. You can set up to five alarms.

Set an alarm

Go to Menu>Organizer>Alarm.

Press LEdit to edit the alarm.

Press LSave to save the settings.

Turn off an alarm

Go to To o l s > A l a r m.

Select the alarm you want to turn off.

Press LEdit and select Off to turn off the alarm

Stop an alarm

When the alarm rings,

•

Select Stop : The alarm stops.

•

Select Snooze: The alarm will sound again after the set

Snooze(Mins) interval.
