Philips AZ1846/12 Manual de funcionamiento

1 Choosing Power Supply

aConnect the AC power cord to the

AC~ MAINS inlet and the wall socket.

-OR-

bOpen the battery door and insert 6

x D batteries (not included).

Quick Use

Guide

Quick Use

Guide

3d 4d

4a 2a

2 Listening to Radio

aPress

SOURCE on the system repeat-

edly

(or

TUNER

on the remote con-

trol) to select TUNER (FM or MW).

bPress

PROG

for more than two

seconds to program all available

stations in order of waveband.

cPress PRESET

3/4

on the remote

control until the desired preset station

is displayed.

3 Playing a disc

This player plays Audio Discs including

CD-R/CD-RW, MP3-CD and WMA.

aPress

SOURCE on the system repeat-

edly

(or

on the remote control)

to select CD.

bOpen the disc door.

cInsert a disc with the printed side

facing up and close the door.

dPress 38 to start playback.

eTo stop disc playback, press 9.

AZ1846

R-20, UM-1 or D-cells

(not included)

4 Playing a USB device

aPress

SOURCE on the system repeat-

edly

(or

USB

on the remote control)

to select USB.

cPlug a compatible USB mass storage

device to AZ1846’s USB port

marked .

dPress

2; on your AZ1846 to start play.

AZ1846_QSG_Eng 5/7/08 17:29 Page 1

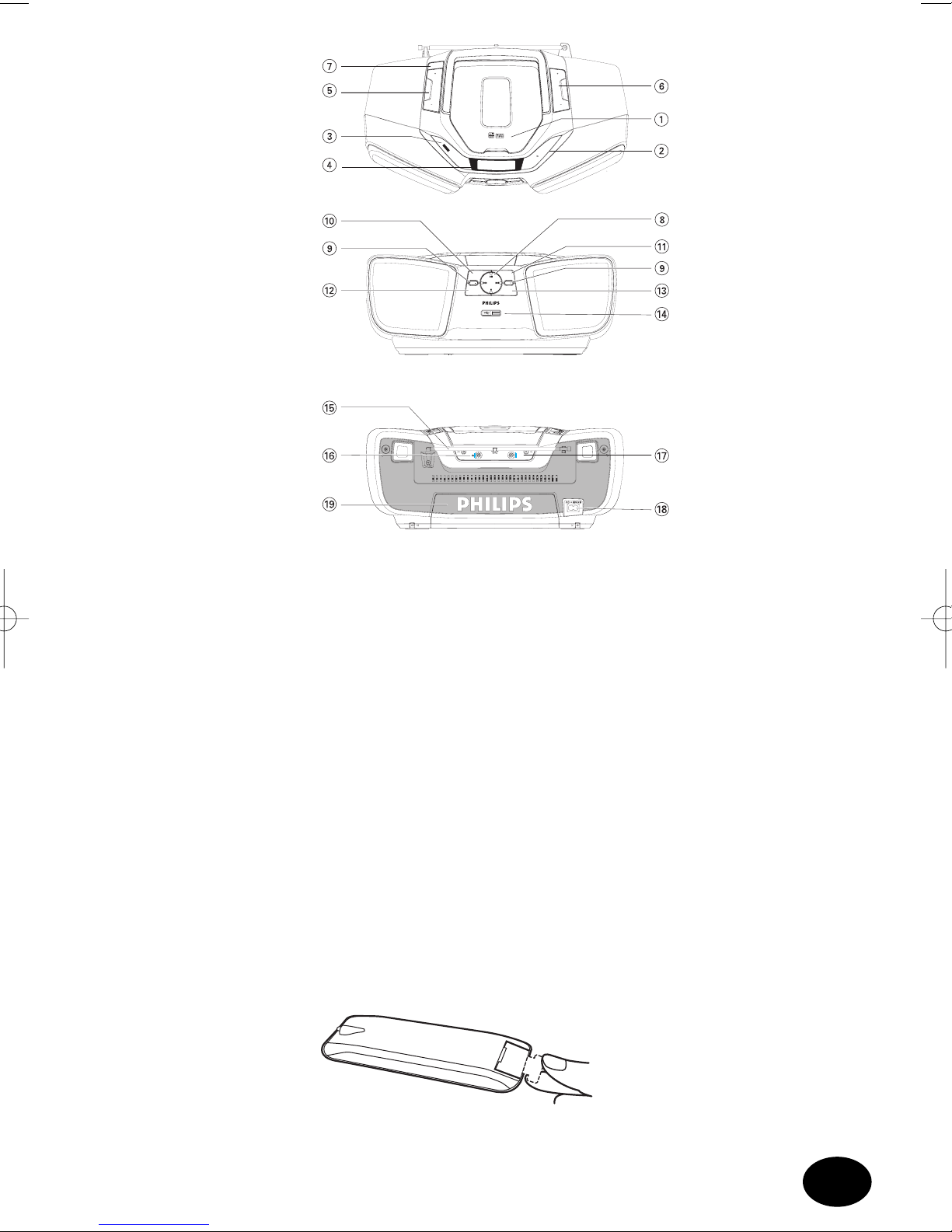

Removing the insulation plastic tab before use

PUSH TO OPEN

–

opens/closes the CD door.

POWER ON/OFF –switches the set on or off.

3MAX SOUND

–activates or deactivates the opti-

mal mix of various sound features.

4Display panel –

shows the status of the set.

5VOLUME+/- –adjusts volume level.

6TUNING +/- –tunes to radio stations.

7DBB

–turns the bass enhancement on/off.

–starts/ pauses CD/USB playback

∞–

selects the next/previous track.

–

searches forwards/backwards (press and hold

the button) within the current track.

–

stops disc/USB playback.

–

erases a program.

ALB -/+

–

MP3-CD/USB: select albums.

–MW/FM:selects a preset radio

station (up, down).

0USB REC –copies music to an external USB mass

storage device.

SOURCE

–

selects CD, USB, FM, MW or MP3 LINK

source of sound.

@PROG –programs tracks or radio stations.

#MODE –selects different play modes: e.g. REPEAT or

SHUFFLE (random order).

USB port

–

connects an external USB mass storage

device.

Telescopic antenna – improves FM reception.

Headphone jack – connects a headphone.

MP3 LINK – inlet for external audio source.

AC MAINS~ – inlet for power cord.

(

Battery compartment – for 6 batteries, type R–20/

UM–1/ D–cells.

1.5mm

MP3 LINK

USB REC

PROG MODE

SOURCE

ALB

USB DIRECT

ALB

8mm

CD SOUNDMACHINE AZ1846

DBB

VOLUME

TUNING

POWERON/ OFF

MAX

SOUND

2mm

PUSH TOOPEN

BASE REFLEX SPEAKER SYSTEM

CD R IPP IN G

Eng

AZ1846_QSG_Eng 5/7/08 17:29 Page 2
