Philips AZ1627 Manual de usuario

AZ1627/73/96

©Copyright 2009 Philips Consumer Electronics B.V. Eindhoven, The Netherlands

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or

transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without

the prior permission of Philips.

Published by SL 0918 Service Audio Printed in The Netherlands Subject to modification

CD Sound Machine

Version 1.1

CLASS 1

LASER PRODUCT

©3141 785 34061

TABLE OF CONTENTS

Page

Speciﬁcations ..........................................................................1

Set Block Diagram................................................................2-1

Set Wiring Diagram ..............................................................2-2

Main/CD Board........................................................................3

Power AMP Board...................................................................4

Rectiﬁer Board.........................................................................5

Key Board................................................................................6

Turner & USB Jack & Aux Jack Board ...................................7

Set Mechanical Exploded View & Parts List............................8

1-1

WMA v9 or earlier•

Directory nesting up to a maximum of 8 levels•

Number of albums/ folders: maximum 99•

Number of tracks/titles: maximum 999•

ID3 tag v2.0 or later•

File name in Unicode UTF8 (maximum length: 128 bytes)•

Unsupported formats:

Empty albums: an empty album is an album that does•

not contain MP3/WMA ﬁles, and is not be shown in the

display.

Unsupported ﬁle formats are skipped. For example,•

Word documents (.doc) or MP3 ﬁles with extension .dlf

are ignored and not played.

AAC, WAV, PCM audio ﬁles•

DRM protected WMA ﬁles (.wav, .m4a, .m4p, .mp4, .aac)•

WMA ﬁles in Lossless format•

Dimensions

(W x H x D)

348 x 127 x 238 mm

Weight 1.7 kg

3.75 pound

Power supply DC 9V 1.5 A

AC 220-240V

Power consumption Active <12 W

Power output 2 x 1 W RMS

Operating temperature

range

-10 °C - 50 °C

14 °F -122 °F

USB playability information

Compatible USB devices:

USB ﬂash memory (USB 2.0 or USB1.1)•

USB ﬂash players (USB 2.0 or USB1.1)•

memory cards (requires an additional card reader to•

work with this apparatus)

Supported formats:

USB or memory ﬁle format FAT12, FAT16, FAT32 (sector•

size: 512 bytes)

MP3 bit rate (data rate): 32-320 Kbps and variable bit rate•

SPECIFICATIONS

2-1 2-1

SET BLOCK DIAGRAM

2-2 2-2

SET WIRING DIAGRAM

MAIN/

3-1 3-1

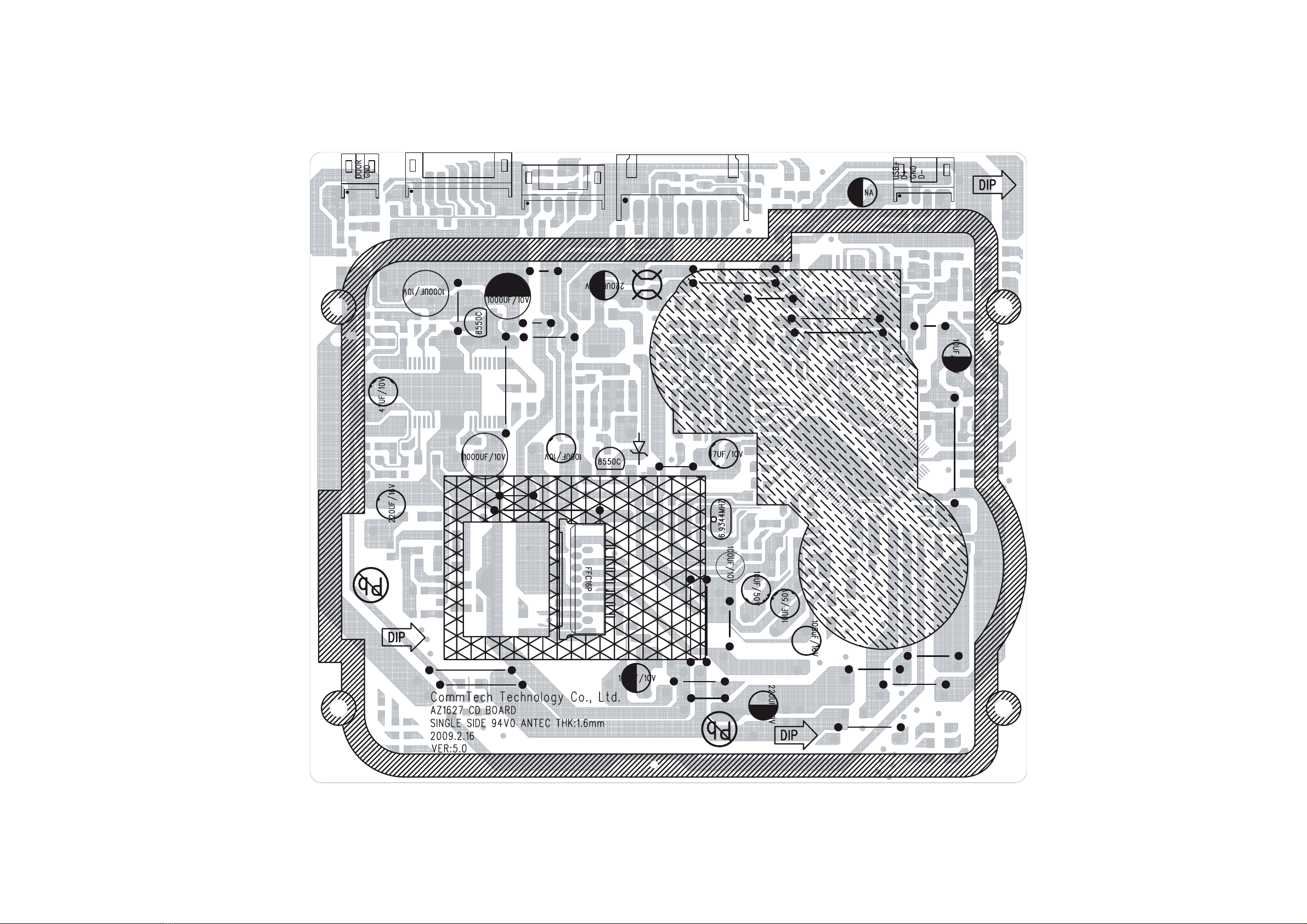

PCB LAYOUT - MAIN/CD BOARD (TOP VIEW)

3-2 3-2

PCB LAYOUT - MAIN/CD BOARD (BOTTOM VIEW)

3-3 3-3

CIRCUIT DIAGRAM - MAIN/CD BOARD

4-1 4-1

PCB LAYOUT - POWER AMP BOARD (TOP VIEW)

4-2 4-2

PCB LAYOUT - POWER AMP BOARD (BOTTOM VIEW)

4-3 4-3

CIRCUIT DIAGRAM - POWER AMP BOARD
