CONTROLS

AZ 1060 /00 page 4

TOP AND FRONT PANELS

1VOLUME -

adjusts the volume level

2DBB (Dynamic Bass Boost) -

enhances the bass

3POWER slider -

selects the sound source for CD/ TUNER/

TAPE/OFF and also switches the set off

4Function indicators - lights up if the

respective CD, tape or tuner function is in use

5Display - shows the status of the set

6p- 3.5 mm stereo headphone socket

Note: Connecting headphones will switch off

the speakers.

7CASSETTE RECORDER keys:

PAUSE ;- interrupts recording or playback

STOP•OPEN 9/

- stops the tape;

- opens the cassette compartment

SEARCH 5/ 6- fast winds/rewinds the

tape

PLAY 1- starts playback

RECORD 0- starts recording

8BATT LOW - indicates when battery power

is running low

9OPEN•CLOSE - opens/ closes the CD door

0MODE - selects a different play mode for CD

playback e.g. repeats tracks or

SHUFFLE, plays tracks in random order

!Cassette door

@SEARCH ∞/ §-

Radio: - (down/up) tunes to radio stations;

CD: - searches back and forward within a

track;

- skips to the beginning of a current

track/ previous/ subsequent track

#PLAY•PAUSE 2; -

starts or interrupts CD playback

$STOP 9- stops CD playback or erase a

CD programme

%PROG -

Radio: programmes preset radio stations;

CD: programmes tracks and reviews the

programme

^PRESET 3,4(up, down) -

selects a tuner preset station

&BAND - selects waveband

BACK PANEL

*Telescopic aerial - improves FM reception

(AC MAINS - inlet for mains lead

)Battery compartment -

for 6 x R-20, UM-1 or D-cells

English

CAUTION

Use of controls or adjustments or performance of procedures other than herein

may result in hazardous radiation exposure or other unsafe operation.

AZ1060001 15-11-2000 17:24 Pagina 4

POWER SUPPLY

English

Whenever convenient, use the AC mains supply if you want to

conserve battery life. Make sure you remove the plug from the

set and wall socket before inserting batteries.

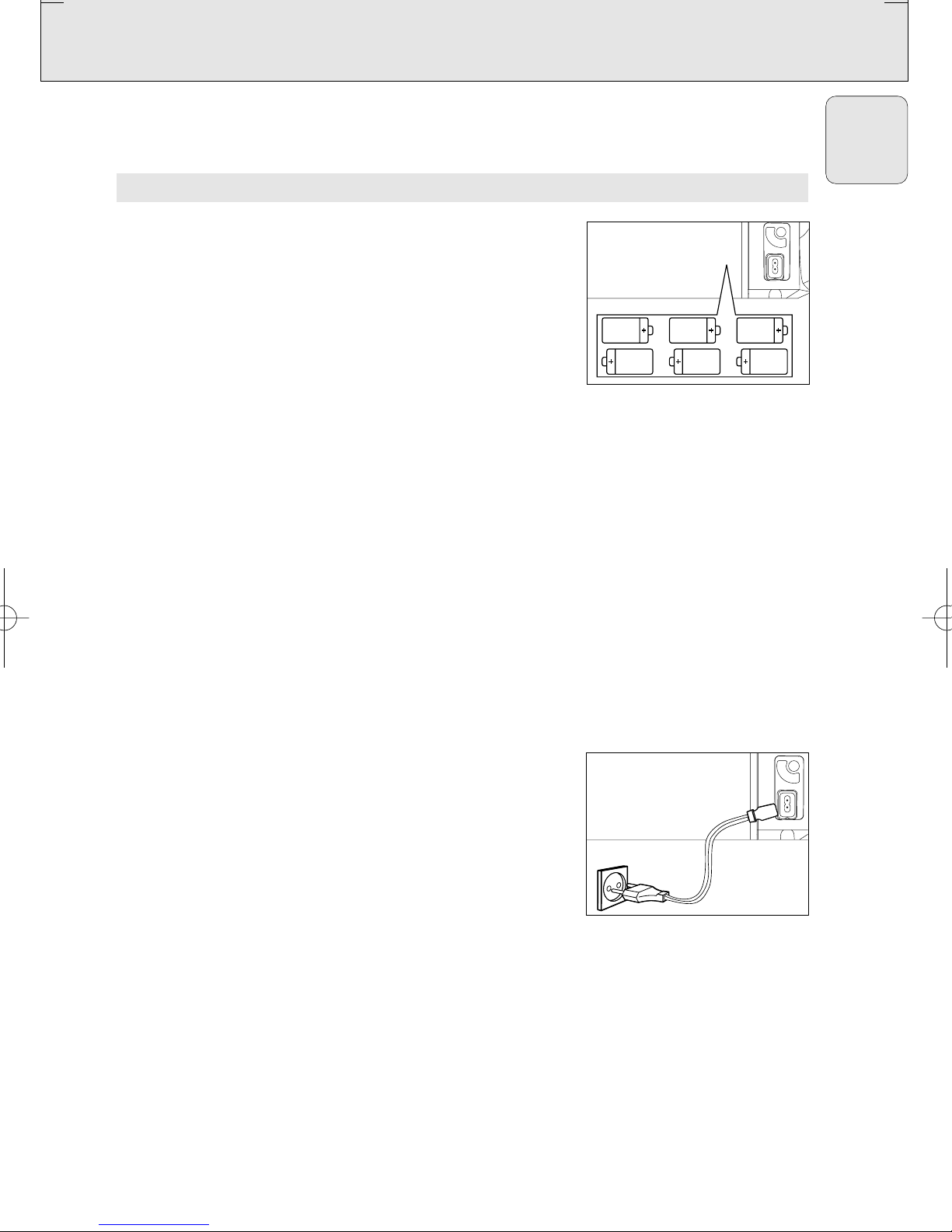

BATTERIES (OPTIONAL)

1. Open the battery compartment and insert six batteries, type

R-20, UM-1 or D-cells, (preferably alkaline) with the correct

polarity as indicated by the "+" and "-" symbols inside the

compartment.

2. Replace the compartment door, making sure the batteries are

firmly and correctly in place. The set is now ready to operate.

–If BATT LOW lights up, battery power is running low.

– The BATT LOW indicator eventually goes out if the

batteries are too weak.

Incorrect use of batteries can cause electrolyte leakage and will

corrode the compartment or cause the batteries to burst.

Therefore:

•Do not mix battery types: e.g. alkaline with carbon zinc.

Only use batteries of the same type for the set.

• When inserting new batteries, do not try to mix old batteries

with the new ones.

• Remove the batteries if the set is not to be used for a long

time.

Batteries contain chemical substances, so they should

be disposed of properly.

For users in the U.K.: please follow the instructions on page 2.

Using Mains

1. Check if the mains voltage as shown on the type plate on

the bottom of the set, corresponds to your local mains

supply. If it does not, consult your dealer or service centre.

2. If your set is equipped with a voltage selector, adjust the

selector so to match with the local mains supply.

3. Connect the mains lead to the wall socket and the set is now

ready for use.

4. To disconnect the set from the mains supply completely,

remove the plug from the wall socket.

AZ 1060/00 page 5

6 x R20 • UM-1 • D-CELLS

AZ1060001 15-11-2000 17:24 Pagina 5

BASIC FUNCTIONS GENERAL INFORMATION

English

Switching on and off

1. Adjust the POWER slider to the desired sound source: CD,

TUNER or TAPE/OFF.

™The respective function indicator: CD, TUNER or TAPE lights up.

2. To switch off, adjust the POWER slider to TAPE/OFF position

with the keys on the tape deck released.

™The respective function indicator: CD, TUNER or TAPE goes out.

™The volume and tuner presets will be retained in the set's

memory.

Adjusting volume and sound

1. Turn VOLUME to the desired level.

2. Adjust the DBB control to select dynamic bass boost on or off.

PHILIPS demo mode

1. Press the CD STOP 9button for 5 seconds.

™After about 30 seconds, PH..IL ..IPS scrolls across the display.

2. To return to the current display you can either:

• press any function button on the front panel. This interrupts

the demo mode for 30 seconds;

• press the CD STOP 9button for 5 seconds. PH..IL ..IPS

scrolls once before the demo mode is cancelled.

GENERAL INFORMATION

General maintenance

• Do not expose the set, batteries, CDs or cassettes to humidity,

rain, sand or excessive heat caused by heating equipment or

direct sunlight.

• To clean the set, use a soft, slightly dampened chamois

leather. Do not use any cleaning agents containing alcohol,

ammonia, benzene or abrasives as these may harm the

housing.

Safety information

• Place the set on a hard and flat surface so that the system

does not tilt. Make sure there is adequate ventilation to

prevent the system from overheating.

• The mechanical parts of the set contain self-lubricating

bearings and must not be oiled or lubricated.

AZ 1060 /00 page 6

STOP-OPEN

PAUSE

DBB

POWER

TUNER

DYNAMICBASSBOOST

TAPE

OFF

SHUFF

STOP-OPEN

PAUSE

DBB

POWER

TUNER

DYNAMICBASSBOOST

TAPE

OFF

SHUFFLE ALL

PROG.

PRESET

BATT

LOW

ODE

TAPE

TUNER

STOP

PLAY•PAUSE

SEARCH•••

•••SEARCH

AZ1060001 15-11-2000 17:24 Pagina 6

DIGITAL TUNER

English

TUNING TO RADIO STATIONS

1. Select TUNER source.

™The function indication lights up. is displayed briefly

and then the radio station frequency is shown.

2. Press BAND once or more to select your waveband.

3. Press SEARCH ∞or §and release when the frequency in

the display starts running.

™The radio automatically tunes to a station of sufficient

reception. Display shows during automatic tuning.

™If a FM station is received in stereo, STEREO is shown.

4. Repeat step 3if necessary until you find the desired station.

• To tune to a weak station, press SEARCH ∞or §briefly and

repeatedly until you have found optimal reception.

To improve radio reception

– For FM, pull out the telescopic aerial. Incline and turn the

aerial. Reduce its length if the signal is too strong (very close

to a transmitter).

– For MW/AM/LW, the set is provided with a built-in antenna

so the telescopic aerial is not needed. Direct the aerial by

turning the whole set.

5. To switch off, adjust the POWER slider to TAPE/OFF position

with the keys on the tape deck released.

™The function indicator goes out.

Programming radio stations

You can store up to a total of 30 radio stations in the memory.

1. Tune to your desired station (see Tuning to radio stations).

2. Press PROG to activate programming.

– Display: PROGRAM flashes.

3. Press PRESET 4or 3once or more to allocate a number from

1 to 30 to this station.

4. Press PROG again to confirm the setting.

– Display: PROGRAM disappears, the preset number and the

frequency of the preset station are shown.

5. Repeat the above four steps to store other stations.

– You can erase a preset station by storing another frequency in

its place.

Tuning to preset stations

Press PRESET 4or 3until the desired preset station is

displayed.

AZ 1060/00 page 7

STEREO

SHUFFLE ALL

PROG.

BATT

LOW

MODE

TAPE

TUNER

STOP

PLAY•PAUSE

SEARCH•••

•••SEARCH

DIGI

SHUFFLE ALL

PROG.

BAND

PRESET

BATT

LOW

TAPE

TUNER

STOP

SEARCH•••

LE ALL

RECORD

PROG.

BAND

PRESET

BATT

LOW

TUNER

AZ1060001 15-11-2000 17:24 Pagina 7

CD PLAYER

English

Playing a CD

1. Select CD source.

™is displayed briefly and the function indication lights up.

2. Press OPEN•CLOSE to open the CD door.

™Display: when you open the CD door.

3. Insert a CD or CD-R(W) with the printed side facing up and

close the CD door.

™Display: flashes as the CD player scans the contents of

a CD. The total number of tracks and playing time are then

shown.

4. Press PLAY•PAUSE 2; to start playback.

™Display: Current track number and elapsed playing time of the

track during CD playback.

5. To interrupt playback press PLAY•PAUSE 2;.

Press PLAY•PAUSE 2; again to resume play.

™The display freezes and the elapsed playing time flashes when

playback is interrupted.

6. To stop CD playback, press STOP 9

7. To switch off, adjust the POWER slider to TAPE/OFF position

with the keys on the tape deck released.

™The function indicator goes out.

Note: CD play will also stop when:

– the CD door is opened;

– the CD has reached the end

(unless you have selected REPEAT or REPEAT ALL);

– you select another source: TAPE / TUNER.

Selecting a different track

• Press SEARCH ∞or §once or repeatedly until the desired

track number appears in the display.

• If you have selected a track number shortly after loading a CD or

in the PAUSE position, you will need to press

PLAY•PAUSE 2; to start playback.

Finding a passage within a track

1. Press and hold down on SEARCH ∞or §.

™The CD is played at high speed and low volume.

2. When you recognize the passage you want,

release SEARCH ∞or §.

– Normal playback continues.

Note:

During a CD programme or if SHUFFLE/ REPEAT active, searching is

only possible within a track.

AZ 1060 /00 page 8

RECORD

PLAY

STOP-OPEN

PAUSE

DBB

POWER

TUNER

NAMICBASSBOOST

TAPE

OFF

AZ1060

CDRADIOCASSETTERECORDER

SHUFFLE ALL

PROG.

BATT

LOW

MODE

TAPE

TUNER

STOP

PLAY•PAUSE

SEARCH•••

•••SEARCH

DIGI

ALL

PROG.

BATT

LOW

MODE

TAPE

TUNER

STOP

PLAY•PAUSE

SEARCH•••

•••SEARCH

DIGITAL

TUNE

BASS

REFLE

SHUFFLE ALL

PROG.

BATT

LOW

MODE

TAPE

TUNER

STOP

PLAY•PAUSE

SEARCH•••

•••SEARCH

IGITAL

AZ1060001 15-11-2000 17:24 Pagina 8

CD PLAYER

English

Different play modes: SHUFFLE and REPEAT

You can select and change the various play modes before or during

playback. The play modes can also be combined with PROGRAM.

SHUFFLE - tracks of the entire CD/ programme are played in

random order

SHUFFLE and REPEAT ALL - to repeat the entire CD/ programme

continuously in random order

REPEAT ALL - repeats the entire CD/ programme

REPEAT - plays the current track continuously

1. To select your play mode, press the MODE button before or

during playback until the display shows the desired function.

2. Press PLAY•PAUSE 2; to start playback if in the STOP

position.

3. To return to normal playback, press the respective MODE

button until the various SHUFFLE/ REPEAT modes are no longer

displayed.

– You can also press STOP 9to cancel your play mode.

Programming track numbers

Programme in the STOP position to select and store your CD tracks

in the desired sequence. If you like, store any track more than

once. Up to 20 tracks can be stored in the memory.

1. Use the SEARCH ∞or §to select your desired track number.

2. Press PROG.

™Display: PROGRAM and the selected track number

appears briefly.

™If you attempt to programme without first selecting a track

number, is shown.

3. Repeat steps 1-2 to select and store all desired tracks.

™is displayed if you attempt to programme more than

20 tracks.

4. To start playback of your CD programme, press PLAY•PAUSE

2;.

Reviewing the programme

In the stop position, press and hold down PROG for a while until

the display shows all your stored track numbers in sequence.

AZ 1060/00 page 9

PROGRAM

SHUFFLE ALL

BATT

LOW

MODE

TAPE

TUNER

STOP

PLAY•PAUSE

SEARCH•••

•••SEARCH

SHUFFLE ALL

PROG.

BATT

LOW

MODE

TAPE

TUNER

STOP

PLAY•PAUSE

SEARCH•••

•••SEARCH

GITALT

BAS

AZ1060001 15-11-2000 17:25 Pagina 9

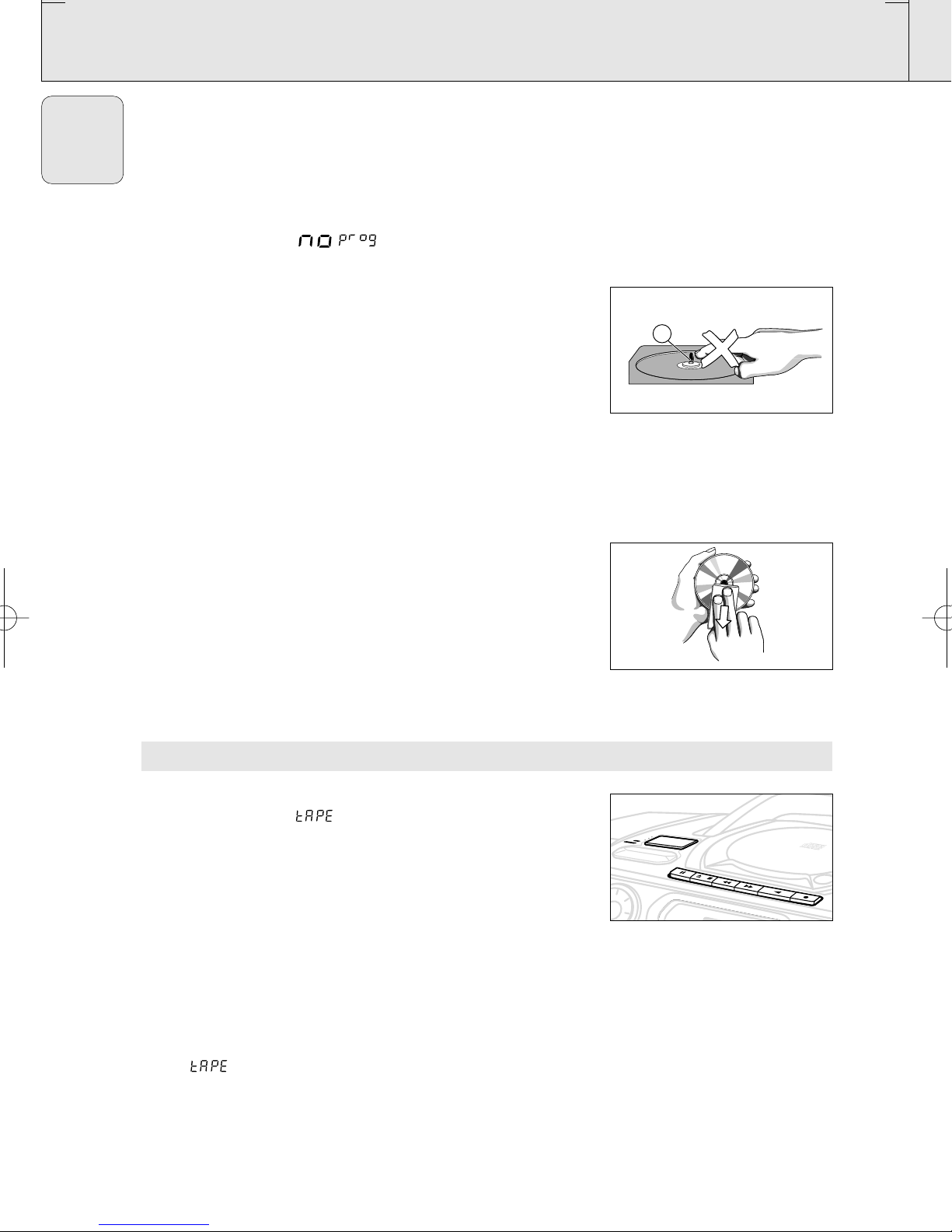

Erasing a programme

You can erase the programme by:

– pressing STOP 9once in the STOP position;

– pressing STOP 9twice during playback;

– pressing the CD door open;

– switching to another source: TAPE/TUNER.

• The display shows ' ' briefly.

CD player and CD handling

• The lens of the CD player should never be touched!

• If the CD player cannot read CDs correctly, use a commonly

available cleaning CD to clean the lens before taking the set to

repair. Other cleaning methods may destroy the lens.

• Sudden changes in the surrounding temperature can cause

condensation to cloud over on the lens of your CD player.

Playing a CD is then not possible. Do not attempt to clean the

lens but leave the set in a warm environment until the

moisture evaporates.

• Always keep the CD compartment closed to avoid dust on the

lens.

• To take a CD out of its box, press the centre spindle while

lifting the CD. Always pick up the CD by the edge and return

the CD to its box after use to avoid scratching and dust.

• To clean the CD, wipe in a straight line from the centre

towards the edge using a soft, lint-free cloth. Do not use

cleaning agents as they may damage the disc.

•Never write on a CD or attach any stickers to it.

CASSETTE PLAYBACK

1. Select TAPE source.

™The display shows throughout tape operation, and the

function indication lights up.

2. Press STOP•OPEN 9/ to open the cassette door.

3. Insert a recorded cassette and close the cassette door.

4. Press PLAY 1to start playback.

5. To pause playback, press PAUSE ;. To resume, press the key

again.

6. By pressing SEARCH 5or 6fast winding of the tape is

possible in both directions.

7. To stop the tape, press STOP•OPEN 9/.

–The keys are automatically released at the end of the tape and

the indication and function light go out, except if

PAUSE ;has been activated.

CD PLAYER CASSETTE RECORDER

English

AZ 1060 /00 page 10

RECORD

PLAY

STOP-OPEN

PAUSE

DBB

POWER

TUNER

DYNAMICBASSBOOST

TAPE

OFF

AZ1060

CDRADIOCASSETTERECORDER

AZ1060001 15-11-2000 17:25 Pagina 10

RECORDING

English

GENERAL INFORMATION ON RECORDING

• Recording is permissible insofar as copyright or other rights of

third parties are not infringed.

• This deck is not suitable for recording on CHROME (IEC II) or

METAL (IEC IV) type cassettes. For recording, use only

NORMAL type cassettes (IEC I) on which the tabs have not

been broken.

• The best recording level is set automatically. Altering the

VOLUME and DBB controls will not affect the recording in

progress.

• At the very beginning and end of the tape, no recording will

take place during the 7 seconds, when the leader tape passes

the recorder heads.

• To protect a tape from accidental erasure, have the tape in

front of you and break out the left tab.

Recording on this side is no longer possible. To record over this

side again, cover the tabs with a piece of adhesive tape.

SYNCHRO START CD RECORDING

1. Select CD source.

2. Insert a CD and if desired, programme track numbers.

3. Press STOP•OPEN 9/ to open the cassette door.

4. Insert a suitable cassette into the cassette deck and close the

cassette door.

5. Press RECORD 0to start recording.

– Playing of the CD programme starts automatically from the

beginning of the programme. It is not necessary to start the CD

player separately.

To select and record a particular passage

• Press and hold down on SEARCH ∞or §.

• When you recognize the passage you want,

release SEARCH ∞or §.

• To pause CD playback press PLAY/PAUSE 2;.

– Recording will begin from this exact point in the track when

you press RECORD 0.

6. For brief interruptions during recording, press PAUSE ;. To

resume recording, press PAUSE ;again.

7. To stop recording, press STOP•OPEN 9/.

AZ 1060/00 page 11

RECORD

PLAY

STOP-OPEN

PAUSE

DBB

POWER

TUNER

DYNAMICBASSBOOST

TAPE

OFF

AZ1060

CDRADIOCASSETTERECORDER

SHUFFLE ALL

PROG.

BATT

LOW

MODE

TAPE

TUNER

STOP

PLAY•PAUSE

SEARCH•••

•••SEARCH

IGITAL

AZ1060001 15-11-2000 17:25 Pagina 11

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Reproductor de CD de Philips

Philips

Philips CDC751 Manual de usuario

Philips

Philips CDR-795 Manual de usuario

Philips

Philips CD163 Manual de usuario

Philips

Philips AZ 1110 Manual de usuario

Philips

Philips AZ1307 - Portable Radio Cass Rec Manual de usuario

Philips

Philips AZ7261 - Cd Personal Manual de usuario

Philips

Philips AZ1150 - annexe 1 Manual de usuario

Philips

Philips CDD3615 Manual de usuario

Philips

Philips AZ 8210 Manual de usuario

Philips

Philips AZ6822 - Portable Radio Cass Rec Manual de usuario

Philips

Philips AZ1017 Manual de usuario

Philips

Philips AZ1575 Manual de usuario

Philips

Philips Soundmachine AZ3067 Manual de funcionamiento

Philips

Philips AZ1834/73 Manual de usuario

Philips

Philips AZ1310 Manual de usuario

Philips

Philips CD 723 Manual de usuario

Philips

Philips RD 7060/58 Manual de usuario

Philips

Philips SACD900A Manual de usuario

Philips

Philips AZ1202 Manual de usuario

Philips

Philips AZ 8390 Manual de usuario

Philips

Philips AZ 8320/05 Manual de usuario

Philips

Philips EXP 401/17 Manual de usuario

Philips

Philips AZ1602/01 Manual de usuario

Philips

Philips AZ 6812 Manual de usuario

Manuales populares de Reproductor de CD de otras marcas

RCA

RCA RP-7923 Manual de usuario

Pioneer

Pioneer DEH-P3550MP XM Manual de usuario

Lasonic

Lasonic MSU-2020 Manual de usuario

THOMSON

THOMSON RCD150 Manual de usuario

Denon

Denon DCD-1420 Manual de usuario

Panasonic

Panasonic SJ-MR100 Manual de usuario

Onkyo

Onkyo DX-7210 Manual de usuario

Sony

Sony MZ-R3 Manual de usuario

Denon

Denon DVM-4800 Manual de usuario

JBL

JBL MR-32 Manual de usuario

RCA

RCA RCD152 Manual de usuario

Technics

Technics SL-PS770A Manual de usuario

Clarion

Clarion compact disc Manual de usuario

Sony

Sony MZ-M10 Manual de usuario

Rotel

Rotel RCD 975 Manual de usuario

Pioneer

Pioneer CLD-D790 Manual de usuario

Optimus

Optimus CD-8250 Manual de usuario

Audiovox

Audiovox CE101A - annexe 1 Manual de usuario
