Philips CMB1100/55 Manual de usuario

CEM1100

www.philips.com/welcome

EN User manual 3

ES-AR Manual del usuario 23

PT-BR Manual do Usuário 51

=+7: Ԛʹ˫ 77

=+&1 Ⴌ߀൱Ҭ 97

English

9 Product information 20

10 Troubleshooting 21

Contents

1 Important 4

Safety 4

Notice 4

2 Your car audio system 6

Introduction 6

What’s in the box 6

Overview of the main unit 7

Overview of the remote control 8

3 Get started 9

Install the car audio 9

Install remote control battery 12

Turn on 13

Set clock 13

4 Listen to radio 14

Tune to a radio station 14

Store radio stations in memory 14

Tune to a preset station 14

  

Play a disc 15

Play options 15

Connect external sound source 16

6 Adjust sound 16

Adjust volume 16

Mute 16

Turn Dynamic Bass Boost (DBB) on/off 16

Turn on/off MAX sound 16

Select preset equalizer 16

Switch music listening zone 17

Other sound settings 17

7 Adjust system settings 18

Turn beep sound on/off 18

Select blackout setting 18

Turn demo mode on/off 18

Dimmer 18

Dance 18

Rear Aux 18

Reset 19

8 Additional information 19

Detach the front panel 19

Replace fuse 19

Remove the unit 20

 Risk of damage to the apparatus

screen! Never touch, push, rub or

strike the screen with any object.

Caution

 Use of controls or adjustments or performance of

procedures other than herein may result in hazardous

radiation exposure or other unsafe operation.

 The apparatus shall not be exposed

to dripping or splashing.

 Do not place any sources of danger



objects, lighted candles).

Notice

The making of unauthorized copies of copy-

protected material, including computer



recordings, may be an infringement of

copyrights and constitute a criminal offence.

This equipment should not be used for such

purposes.

Windows Media and the Windows logo

are trademarks, or registered trademarks of

Microsoft Corporation in the United States

and/or other countries.

This apparatus includes this label:

1 Important

Safety

 Read and understand all instructions

before you use your apparatus. If

damage is caused by failure to follow

instructions, the warranty does not

apply.

 This apparatus is designed for negative

ground (earth) 12 V DC operation

only.

 To ensure safe driving, adjust the

volume to a safe and comfortable

level.

 Improper fuses can cause damage or



fuse, consult a professional.

 Use only the supplied mounting

hardware for a safe and secure

installation.

 To avoid short circuit, do not expose

the apparatus, remote control or

remote control batteries to rain or

water.

 Never insert objects into the

ventilation slots or other openings on

the apparatus.

 Clean the apparatus and frame

with a soft, damp cloth. Never use

substances such as alcohol, chemicals

or household cleaners on the

apparatus.

 Never place any objects other than

discs into the apparatus.

 Never use solvents such as

benzene, thinner, cleaners available

commercially, or anti-static sprays

intended for discs.

 Visible and invisible laser radiation

when open. Avoid exposure to beam.

English

packaging materials, exhausted batteries and old

equipment.



device that are not expressly approved by

Philips Consumer Lifestyle may void the user’s

authority to operate the equipment.

2011 © Koninklijke Philips Electronics N.V. All

rights reserved.



notice.Trademarks are the property of

Koninklijke Philips Electronics N.V. or their

respective owners. Philips reserves the right

to change products at any time without being

obliged to adjust earlier supplies accordingly.

Recycling

Your product is designed and manufactured

with high quality materials and components,

which can be recycled and reused.

When you see the crossed-out wheel bin

symbol attached to a product, it means the

product is covered by the European Directive

2002/96/EC:

Never dispose of your product with other

household waste. Please inform yourself about

the local rules on the separate collection of

electrical and electronic products.The correct

disposal of your old product helps prevent

potentially negative consequences on the

environment and human health.

Your product contains batteries covered by the

European Directive 2006/66/EC, which cannot

be disposed of with normal household waste.

Please inform yourself about the local rules on

separate collection of batteries.The correct

disposal of batteries helps prevent potentially

negative consequences on the environment and

human health.

This product complies with the radio

interference requirements of the European

Community.

Environmental information

All unnecessary packaging has been omitted.

We have tried to make the packaging easy to

separate into three materials: cardboard (box),

polystyrene foam (buffer) and polyethylene

(bags, protective foam sheet.)

Your system consists of materials which can

be recycled and reused if disassembled by

a specialized company. Please observe the

local regulations regarding the disposal of

eCarrying case for front panel

fISO male connector

gRubber cushion

hScrew x 1 pc

iDisassembly tools x 2 pcs

jUser manual

kQuick start guide

kji

ccccc

2 Your car audio

system

Congratulations on your purchase, and



support that Philips offers, register your product

at www.philips.com/welcome.

Introduction

With the in-car audio system, you can enjoy

your drive while listening to:

 FM or AM (MW) radio

 Audio from CD or MP3 disc

 Audio from external devices

The unit supports the following media format:

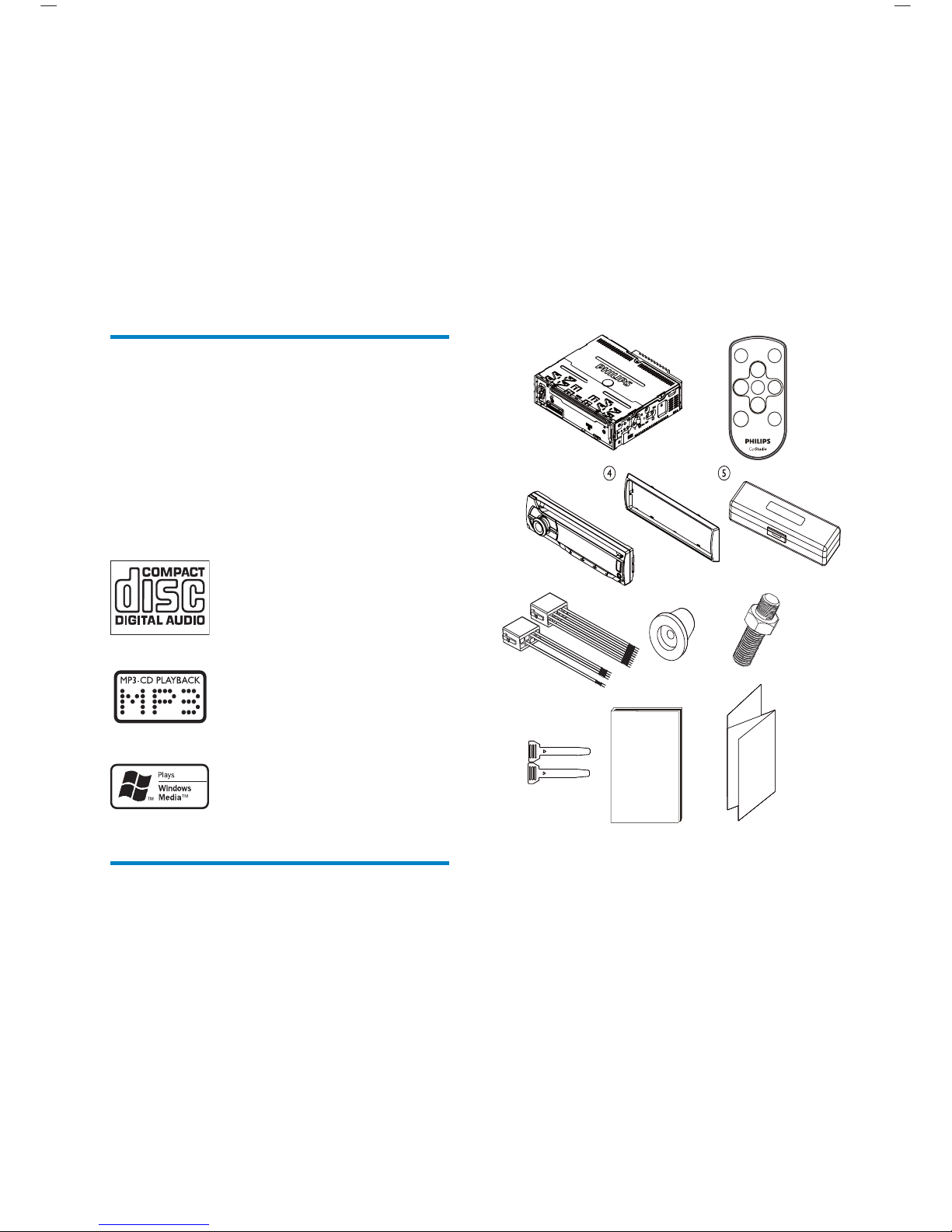

What’s in the box

Check and identify the contents of your

package:

aMain unit (with a sleeve)

bRemote control

cFront panel

dTrim plate

English

 Turn the unit on or off.

 

 Mute or unmute sound.

 Rotate to adjust volume.

eZONE /

 Select tuner band.

 Select MP3/WMA folder.

Overview of the main unit

aSOURCE

 Select audio source.

bMENU

 Access system menu.

 Return to previous menu.

ngopq

adc

lkj

qBAND

 Select tuner band.

rRESET

 Restore default settings.

sDisc slot

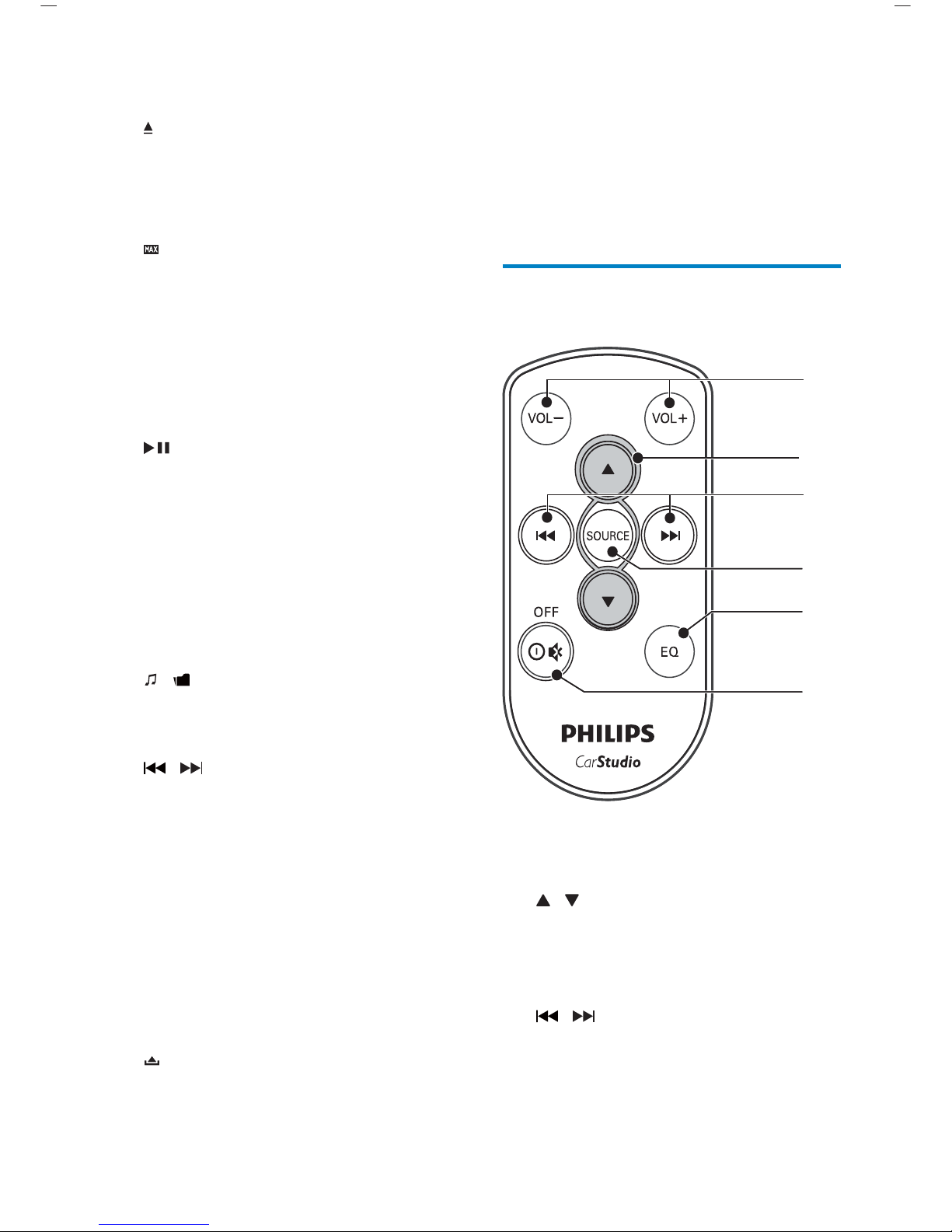

Overview of the remote

control

aVOL +/-

 Adjust volume.

 Select tuner band.

 Scroll up/down menu.

 Select MP3/WMA folder.

 Tune to a radio station

 Skip track.

 Fast backward/forward playback

 Switch music listening zone.

 Eject disc.

gMP3 LINK

 Connect external audio device.

 6281'

 Turn on or off Maximizing volume.

 View clock.

iDBB

 Turn on or off Dynamic Bass Boost

(DBB) sound.

 Access to tuner auto store.

 Select preset radio station No.6.

 Start play.

 Pause or resume play.

kREP / SHUF

 Select preset radio station No.3/4.

 Access to repeat play.

 

 Select preset radio station No.1/2.

 Search for track/folder.

 Tune for radio station.

 Skip/search for track.

 Fast backward/forward playback.

nDISP

 Display current status.

 Select the dimmer high or low.

oEQ / AUDIO

 Select equalizer (EQ) setting.

 Access audio setting menu.

 Unlock the panel.

English

3 Get started

Caution

 Use the controls only as stated in this user manual.

Always follow the instructions in this chapter in

sequence.

If you contact Philips, you will be asked for the

model and serial number of your apparatus.The

model number and serial number are on the

bottom of your apparatus.Write the numbers

here:

Model No. __________________________

Serial No. ___________________________

Install the car audio

These instructions are for a typical installation.

However, if your car has different requirements,

make the corresponding adjustment. If you have

any questions regarding installation kits, consult

your Philips car audio dealer.

Caution

 This unit is designed for negative ground (earth) 12 V

DC operation only.

 Always install this unit in the car dashboard. Other

locations can be dangerous as the rear of the unit heats

up during use.

 To avoid short-circuit: before you connect, ensure that

the ignition is off.

 Ensure that you connect the yellow and red power

supply leads after all other leads are connected.

 Ensure that all loose leads are insulated with electrical

tape.

 Ensure that the leads do not get caught under screws

orin parts that will move (e.g. seat rail).

 Ensure that all ground (earth) leads are run to a

common ground (earth) point.

 Use only the supplied mounting hardware for a safe

and secure installation.

 

need to change the fuse, consult a professional.

dSOURCE

 Select audio source.

eEQ

 Select equalizer (EQ) settings.

fOFF / /

 Turn the unit on or off.

 Mute or restore volume.

Note

 Risk of danger! Please consult a professional to perform

the below steps!

1 Green/black

strip

Left speaker (Rear)

2 White/black

strip

Left speaker (Front)

3 Gray/black

strip

Right speaker (Front)

4 Purple/black

strip

Right speaker (Rear)

e Red Ignition key +12V DC

when ON/ACC

f Blue Motor/electric antenna

relay control lead

g Blue/white 

lead

h Black Ground

i Yellow To the +12V car

battery which is

energized at all times

3 

illustrated, if applicable.

Note on the power supply lead (yellow)

 When you connect other devices to

this apparatus, ensure that the rating

of the car circuit is higher than the

total fuse value of all the connected

devices.

Notes on speaker connection

 Never connect speaker wires to the

metal body or chassis of the car.

 Never connect speaker wires with

stripes to one another.

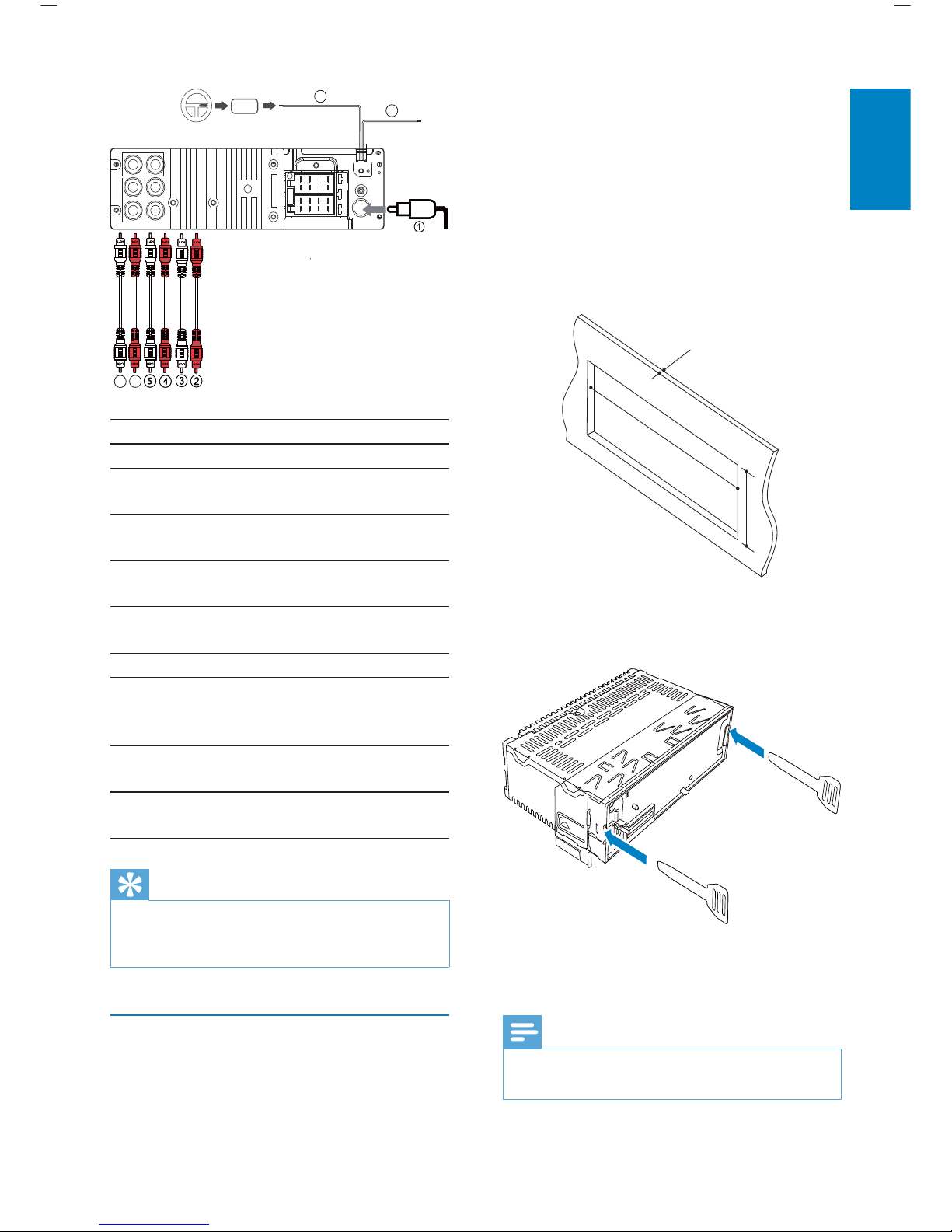

Connection: for cars with ISO

connectors

Caution

 Ensure that all loose leads are insulated with electrical

tape.

Note

 Consult a professional to connect CEM1100 as

instructed below.

1Connect the supplied male connector to

the unit.

2Check the car’s wiring carefully and

connect them to the the supplied male

connector.

English

 If you disconnect the car battery in

a car that has an on-board drive or

navigation computer, the computer

may lose its memory.

 If the car battery is not disconnected,

to avoid short-circuit, ensure that the

bare wires do not touch each other.

2Ensure that car dashboard opening is

within these measurements:

3Remove the mounting sleeve with the

supplied disassembly tools.

4Install the sleeve into the dashboard and



Note

 

screws, skip this step.

183 mm

53mm

5mm

Connector Connect to

1 ANTENNA Antenna

2 FRONT LINE OUT R

(Socket)

Front right

speaker

3 FRONT LINE OUT L

(Socket)

Front left

speaker

4 REAR LINE OUT R

(Socket)

Rear right

speaker

5 REAR LINE OUT L

(Socket)

Rear left

speaker

6 OE REMOTE (Purple) OE Remote

7 TEL MUTING (Blue) To cellular

phone

system

8 REAR AUX LINE

OUT R (Socket)

Rear Aux

right

9 REAR AUX LINE

OUT L (Socket)

Rear Aux left

Tip

 The pin arrangement for the ISO connectors depends

on the type of vehicle you drive. Be sure to make

proper connections to prevent damage to the unit.

Mount into the dashboard

1If the car does not have an on-board drive

or navigation computer, disconnect the

negative terminal of the car battery.

5($5  )5217

5( $5$ 8;

Otros manuales para CMB1100/55

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema estéreo para automóvil de Philips

Philips

Philips CED780/98 Manual de usuario

Philips

Philips CED229/55 Manual de usuario

Philips

Philips RC759 RDS Manual de usuario

Philips

Philips CarStudio CMD305A Manual de usuario

Philips

Philips CarStudio CE132 Manual de usuario

Philips

Philips CID3289/00 Manual de usuario

Philips

Philips CE152 Manual de usuario

Philips

Philips CID3289 Manual de usuario

Philips

Philips CID3288/93 Manual de usuario

Philips

Philips CEM200/55 Manual de usuario

Philips

Philips CEM250/98 Manual de usuario

Philips

Philips CAD310 Manual de usuario

Philips

Philips CID3686/93 Manual de usuario

Philips

Philips CEM220/98 Manual de usuario

Philips

Philips CID-3610 Manual de usuario

Philips

Philips CID2780/00 Manual de usuario

Philips

Philips CID3285/93 Manual de usuario

Philips

Philips Expanium EXP 213 Manual de usuario

Philips

Philips CED750/51 Manual de usuario

Philips

Philips CED750/55 Manual de usuario

Philips

Philips CED229 Manual de usuario

Philips

Philips CEM250/55 Manual de usuario

Philips

Philips CEM220/51 Manual de usuario

Philips

Philips CID2680/93 Manual de usuario

Manuales populares de Sistema estéreo para automóvil de otras marcas

JL Audio

JL Audio Stealthbox SB-CAN-G2MVX3D/10TW3 Manual de usuario

Clarion

Clarion PU-9836A Manual de usuario

Sony

Sony MEX-BT5750U Manual de usuario

Mitsubishi Electric

Mitsubishi Electric AR0M Manual de usuario

Sony

Sony RM-X7BT Manual de usuario

Insignia

Insignia NS-HD5113 Manual de usuario

Clarion

Clarion BTD3341 Manual de usuario

USA SPECS

USA SPECS PA11-VW6 Manual de usuario

Sony

Sony MEX-N4380BT Manual de usuario

Kenwood

Kenwood KCD-BT6544U/UY Manual de usuario

JVC

JVC KD-DB912BT Manual de usuario

Alpine

Alpine TDM-7544 Manual de usuario

Autotek

Autotek TransAm TA 1400 Manual de usuario

Clarion

Clarion PN-3124N-A Manual de usuario

Denso TEN

Denso TEN FT0108A Manual de usuario

Pyle

Pyle PLD57MU Manual de usuario

Harman

Harman Chrysler Radio Navigation System RB4 Manual de usuario

Clarion

Clarion VS735 Manual de usuario
