welcome to the
adaptable
`
delightful
world of
our boxes make a great
distraction for your children while
you get into the nitty
`
gritty. the
plastic bag, however, does not!
Please read the WARNINGS on inside
back cover carefully and help us continue
improving our adaptability range by
returning your warranty form.
a
bc
c
Open your e3 carton and check that the
following bits and bobs are there
a. 2 x rear wheels
b. 1 x top handle (with wrist strap
attached)
c. 1 x main buggy
d. 1 x front wheel
e. 2 x bungs (attached to front of buggy)
– use when bumper bar is not attached
(push in silver buttons and remove).
f. 1 x clear backflap (for use in newborn
baby position)
check your bits
`
bobs
You will need
1 x scissors
1 x adult (or someone who follows
instructions!)
Now just follow steps one to six...
a
d
f
b
e
c
double kit accessory (see page 10)
This is often purchased with your e3
buggy; carton should contain the following
bits and bobs
a. 1 x double seat (on frame)
hinge kit contains
b. 1 x retaining strap (attached to top of
double seat frame)
c. 2 x hinges (R and L - R is as you stand
behind the seat with seat facing forward)
32

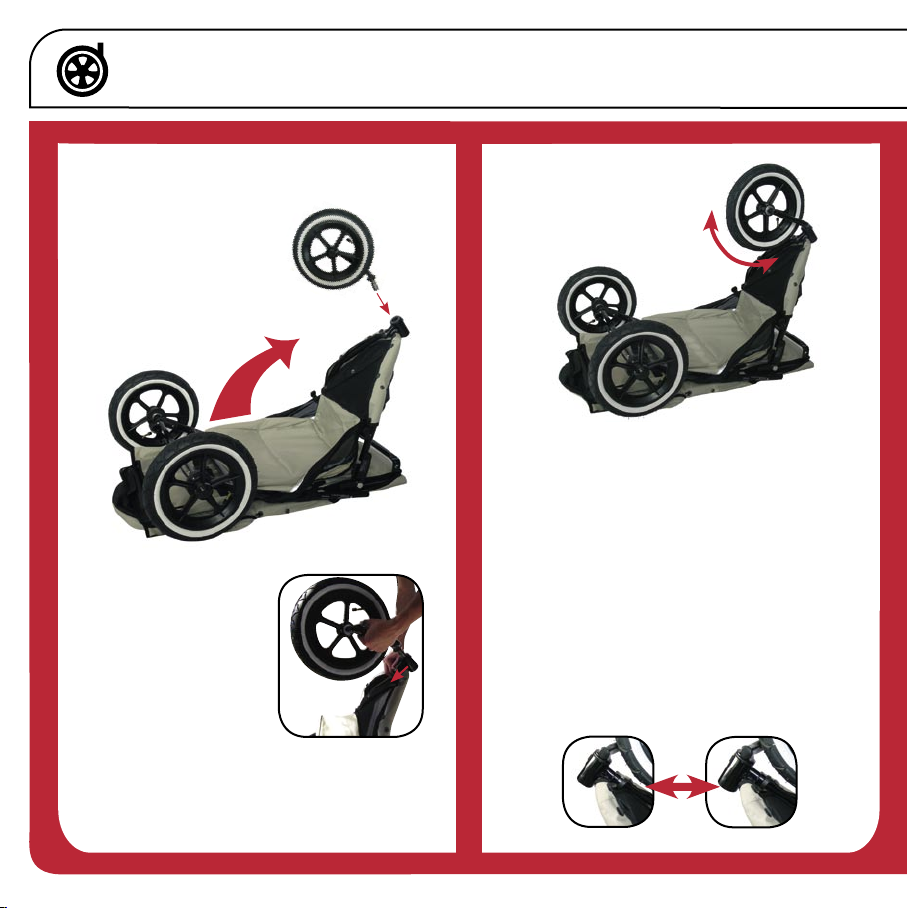

1. Take main buggy and lay flat (sunhood
down) as shown.
one: wheeling
`
dealing
2. Remove rear wheels from plastic bag
(discard bag immediately – it is a
suffocation hazard for children).
3. Use scissors to unwrap packaging
around wheels (discard unwanted
packaging).
4. Take one rear wheel and push in silver
button on silver wheel axle.
5. Hold silver button in while inserting
wheel axle into buggy frame. Line up
silver button so it pops out of hole
on frame.
6. Repeat for second rear wheel on
opposite side (wheels work on
either side).
32
two: swivel
`
swerve
1. Lift footwell as far as hinge will allow.
2. Remove front
wheel from bag
(the rod is greased
so watch out for
greasy fingers!).
4. Release cap. Your wheel will be in
place for use.
to lock the front wheel
1. Align silver button with small hole on
inside of front wheel black cap.
2. Turn wheel towards rear wheels
of buggy so front wheel is directly
underneath footwell and parallel with
rear wheels.
3. Cap will then fully close and fix front
wheel. Reverse for swivel.
`
3. Extend black
cap out fully
on underside
of footwell and
insert rod on
front wheel.
cap open cap closed
54
swivel fixed
`
`
ab

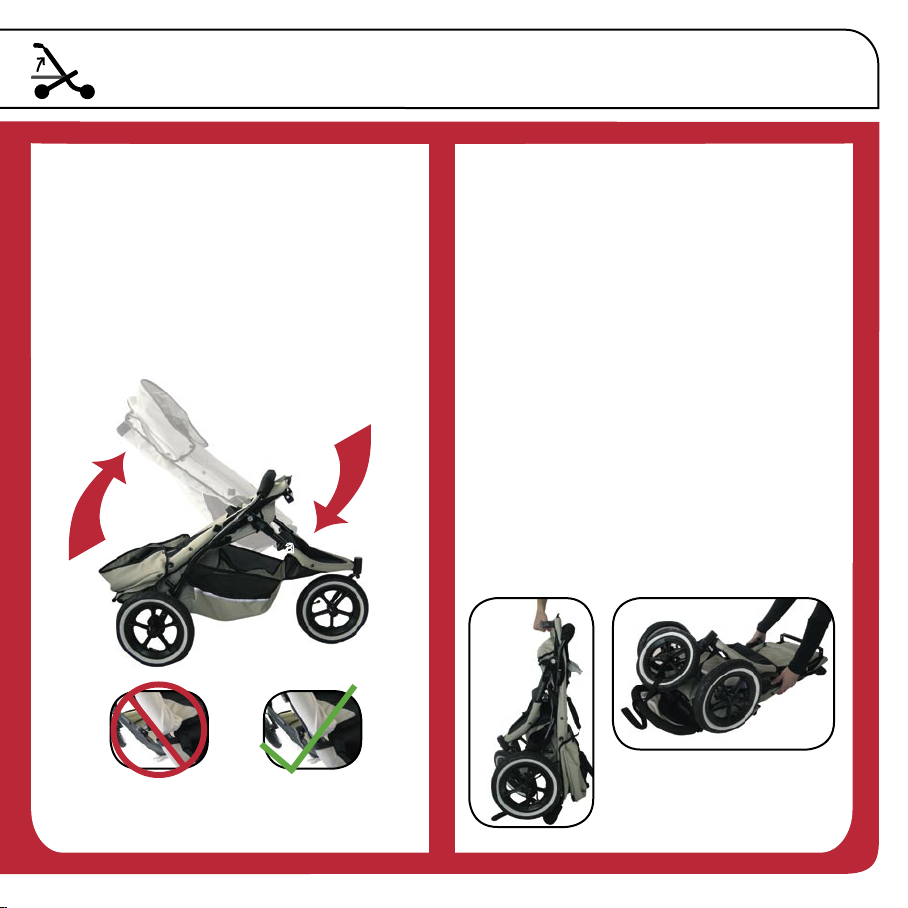

three: up
`
running
1. Turn buggy over onto 3 wheels.
2. Pull up rear frame.
(Note: For double buggy do not lift frame using double
seat as you may damage hinges.)
3.
Pull up until you hear a resounding ‘click’.
Ensure that locks are engaged. Seat
should now be firmly in place.
Make sure children are clear of buggy before
folding, unfolding or adjusting the buggy. Watch
fingers - injury may result.
5
4
to fold
1. Press levers ‘a’ and ‘b’ (autolocks) on
either side at bottom of frame seat with
fingers whilst holding frame with palms
of hands. (UK - press lever ‘b’ and pull
lever ‘a’).
2. Let handle drop down, lift buggy by
cross bar (parallel to bumper bar) ‘c’;
front wheel (swivel) folds under frame.
3. Attach webbing under footwell
around frame and attach wrist strap
(once handle on) around front wheel
to help hold buggy folded (use
snap fasteners).
4.
Ensure levers
‘a’ and ‘b’ (autolocks) are
properly engaged (as above).
Ensure that you hold the main
frame of the buggy when lifting in
and out of car (as shown).
c
`
four: handling
handle
1.
Push hood forward to access top
of frame.
2. At top of seat push down fabric to
expose top of frame. Remove plastic
covers (this is for packing purposes
only).
3. Take top handle and push in silver
buttons on either side of handle ‘a’.
4.
Line up handle with holes at top of frame.
5. Push handle in until you hear a clear
‘click’. Ensure buttons pop through
frame on both sides. Test drive buggy
with handle in this position.
If you’re not happy with lower handle
setting adjust to higher setting:
6. Push in silver buttons poking through
on sides of top frame and pull handle
to remove.
Safety Wrist Strap - Your buggy can be free wheeling
without the brakes so the safety wrist strap should be
worn at all times when pushing the buggy. Just loop it
round your wrist.
`
a
‘a’
push
in
a
7
6
brakes
Now you’re up and running don’t let buggy
get away on you - use brakes.
1. Stand behind buggy and push brake
lever down with foot. This will put
brakes on. Push up to take brakes off.
Always apply brakes when parking your buggy.
Brakes will be off when you unpack your buggy.
Apply brakes before loading children.
on
7. Turn handle over and push in silver
buttons and re-insert into top of frame.
Ensure buttons pop through frame on
both sides.
six: insert baby
Apply brakes and insert baby using safety
harness. (Ted stood in for baby!)
1. Unclip 4 buckles on breastplate
(circled in red) and place baby
in buggy.
2. Adjust upper straps to fit snugly on
baby’s shoulders.
3. Breastplate should sit snugly on your
baby’s chest. Adjust side straps until
it sits in correct position. (You should
be able to fit 2 average size fingers
between straps and baby.)
4.
Adjust crotch strap length (under or
over webbing loop) for a comfortable
fit.
1.
Pull up seat fabric and attach to
lower snaps on handle – both left
and right side.
2. Attach snaps on back of sunhood to
higher snaps on handle, both left and
right sides.
five: hooding up
3. Move to front of buggy and secure
snaps on front of sunhood to seat.
WARNING: Ensure harness is used and properly adjusted at
all times.
7
6
Note that the windows in the hood are lined with a sun mesh of
a lower shade factor than buggy fabric. Always use sun cream
and clothing for protection of children in direct sunlight.
newborn buggy
(carry a newborn baby)
1. With buggy set up ready to go,
apply brakes.
2. Undo 2 clips at back of seat, ‘a’ and ‘b’.
ups
`
downs
a
b
3. Undo clips ‘c’ and ‘d’ at top of seat
base and push base corners down
until it is almost flat.
4.
Undo zips fully
on either side of
seat base for a
completely flat
newborn bed.
cd
5. Lie baby flat in newborn position,
facing forward, and secure baby firmly
with adjusted safety harness.
WARNING: Never allow the plastic to fall over the child.
1
22
33
using the clear plastic back flap
1. Attach clear plastic back flap using
hook/loop tape at top, ‘1’, and sides, ‘2’
and ‘3’.
The back flap can be rolled up
and held at top using strip of
hook/loop tape at top.
98
