PhDsolutions CON-OC-A192 Manual de usuario

CON-OC-A192

Digital to Analog Audio Converter (up to 192 kHz)

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Premium high Definition Solutions

assumes no responsibility for any infringements of patents or

other rights of third

parties, which may result from its use.

Premium high Definition Solutions assumes no responsibility for any

inaccuracies that may be contained in this document. Premium high

Definition Solutions also makes no

commitment to update or to keep

current the information contained

in this document.

Premium high Definition Solutions reserves the right to make

improvements to this document and/or product at any time and

without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer file, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Premium high Definition Solutions

Version 1.1 August 2013

TRADEMARKACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

•

Always follow basic safety precautions to reduce the risk of fire,

electrical shock and injury to persons.

•

To prevent fire or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

•

Never spill liquid of any kind on or into this product.

•

Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

•

Do not attach the power supply cabling to building surfaces.

•

Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

•

Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

•

To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufficient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO.

DATE DD/MM/YY

SUMMARY OF CHANGE

REV1

11/12/13

First Release

CONTENTS

Introduction.......................................... 1

Applications......................................... 1

Package Contents .............................. 1

System Requirements.......................... 1

Features................................................ 1

Operation Controls and Functions .......2

6.1 Front Panel..................................2

6.2 Right Panel .................................2

6.3 Left Panel....................................3

6.4 Top Panel....................................3

Connection Diagram ...........................4

8. Specifications ........................................ 5

9. Acronyms ............................................... 5

INTRODUCTION

The Digital to Analog Audio Converter is an easy to use product

that converts Coaxial or Optical audio signals into analog

Stereo (R/L) audio. It can be easily switched between either

Coaxial or Optical inputs. With its compact, elegant design

and simple LED input status make it easier for users to connect

up and use instantly.

APPLICATIONS

•

HDTV digital output conversion

•

192 kHz 24-bit DAC conversion

PACKAGE CONTENTS

•

Digital to Analog Audio Converter

•

5 V/1 A DC Power Adaptor

•

Operation Manual

SYSTEM REQUIREMENTS

Source equipment such as a DVD/Blu-ray player or an HDTV and

output to active speaker or amplifier with connection cables.

FEATURES

•

Supports digital audio input (Coaxial/Optical) and stereo analog

audio output (R/L)

•

Integrated digital interpolator filter and Digital to Analog Converter

(DAC)

•

Supports uncompressed digital stereo audio input

•

Compact size and easy to install

•

Supports S/PDIF 192 kHz at 24-bit data for conversion to left and right

analog channels

OPERATION CONTROLS AND FUNCTIONS

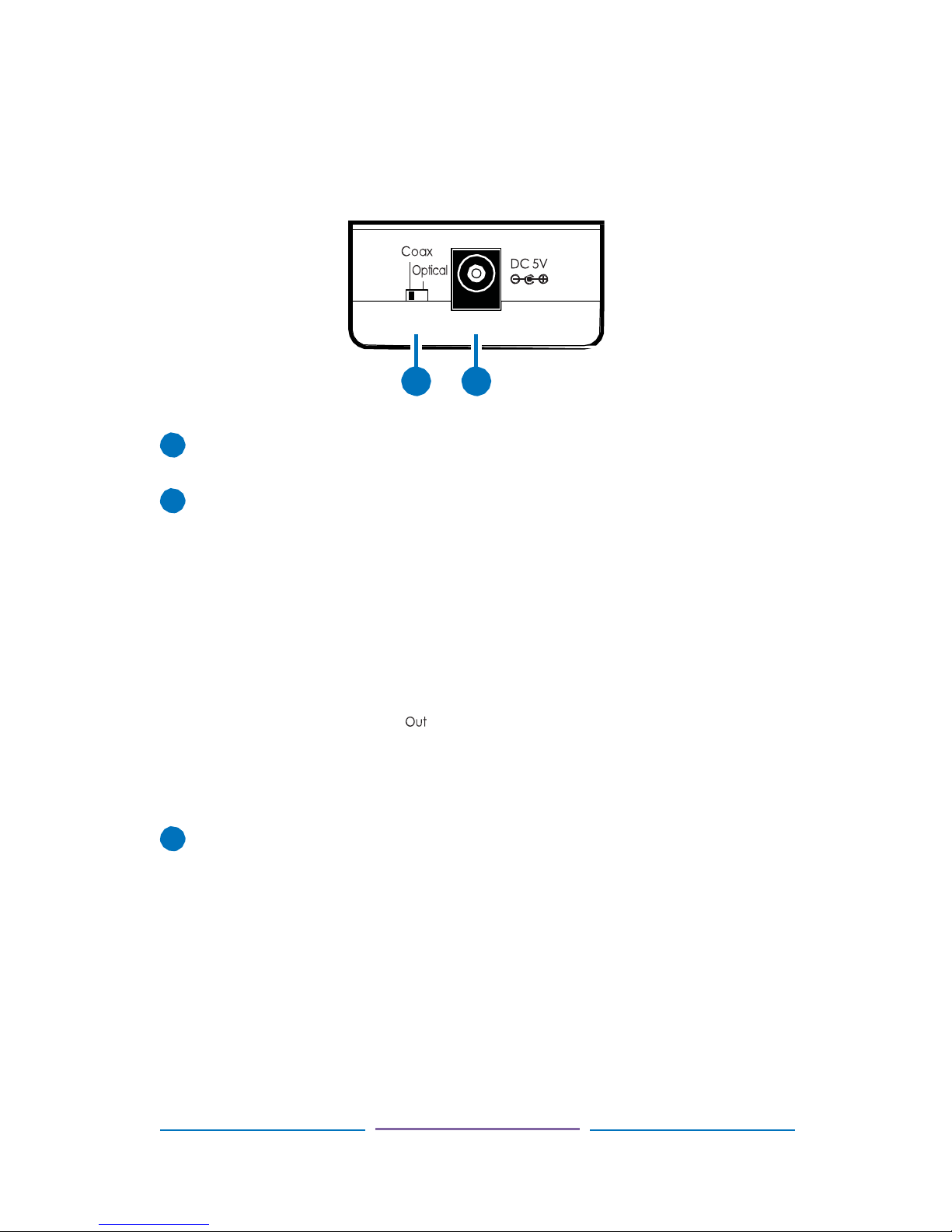

6.1

Front Panel

Coaxial/Optical Switch: Select which digital audio input is active

and will be converted to analog stereo (R/L) audio.

DC 5V: Connect the 5V DC power supply to the unit and plug the

adaptor into an AC wall outlet.

6.2

Right Panel

R/L Out: Analog stereo output. Connect to the input of your audio

device or display.

6.3

Left Panel

Coaxial In: Connect to the Coaxial digital audio source, such as a

DVD player or CD player.

Optical In: Connect to the Optical audio source, such as a Blu-ray

player or games console.

6.4

Top Panel

Coaxial/Optical Input Status LED: The LED light will illuminate

according to which input is currently selected.

In Coax

CONNECTION DIAGRAM

DVD or Blu-ray Player Set-top Box

(No Digital Input)

Digital Audio Input

(Optical)

Analog

Stereo

Output

8. SPECIFICATIONS

Input Ports

1×Coaxial, 1×Optical

Input Format

S/PDIF LPCM 2 CH, 24-bit

Input Sampling Rate

32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz,

176.4 kHz up to 192 kHz

Output Ports

Analog Stereo (R/L)

Output Level

2 Vrms

Output Impedance

600

Power Supply

5 V/1 A DC linear power adaptor (US/EU

standards, CE/FCC/UL certified) or

5 V/1.2 A switching power adaptor (with

universal plug. CE/FCC/UL certified)

Dimensions

42 mm (W)×40.5 mm (D)×22 mm (H)

Weight

25 g

Chassis Material

Plastic

Silkscreen Color

White

Operating Temperature

0 °C~40 °C

Power Consumption

0.74 W

9. ACRONYMS

ACRONYM

COMPLETE TERM

DAC

Digital to Analog Converter

S/PDIF

Sony/Philips Digital Interconnect Format
