Pfaff Creative Vision Manual de usuario

Embroidery preparations

7:2

Embroidery Mode - Preparations

Embroidery unit overview

(type BE15)

A Embroidery unit release button

B Level adjusting feet

C Embroidery unit accessory tray

D Embroidery unit socket

E Embroidery hoop connection assembly

F Embroidery arm

Note: A smaller embroidery unit, 260x200mm, is

available to purchase at your local authorized PFAFF®

dealer.

Embroidery unit accessory tray

Use the tray in the embroidery unit to store

accessories used for embroidering.

Built-in designs

Over 200 designs are included in the memory

in your machine. All these designs are also

included on the creative vision™ CD for backup

if you temporarily want to remove them from the

machine memory.

Embroidery hoop overview

G Embroidery hoop connector

H Outer hoop

I Inner hoop

J Quick release

K Retaining screw

L Ribs for ﬁtting the clips

7:3

Embroidery Mode - Preparations

creative vision™ Embroidery collection

Page through the creative vision™ Embroidery

collection for designs and fonts.

The design number, stitch count (number of

stitches in the design) and the design size are

displayed next to each design. The suggested

thread colors for each color number are shown.

Connect the embroidery unit

There is a covered socket behind the free-arm, see

picture. The cover will open automatically when

connecting the embroidery unit.

1. Slide the accessory tray off.

2. Slide the embroidery unit onto the free arm

of the machine until it plugs ﬁrmly into the

socket. If needed, use the level adjusting feet

so that the machine and embroidery unit are

even. If the machine is turned off, turn it on.

3. A pop-up tells you to clear the embroidery

area and remove the hoop for positioning.

Touch OK. The machine will calibrate and

the embroidery arm will move to the ready

position. This calibration will set your

embroidery functions each time you slide on

the embroidery unit.

Make sure not to calibrate the machine with the

embroidery hoop attached as this can damage the

needle, presser foot, hoop and/or the embroidery

unit. Be sure to clear all materials from around the

machine before calibrating so that the embroidery

arm does not bump into anything while calibrating.

Remove the embroidery unit

1. To store the embroidery unit in the embroidery

case, move the embroidery arm to park

position by selecting park position on the

screen in either embroidery edit or embroidery

stitch-out.

2. Press the button at the left, underneath the

embroidery unit (A) and slide the unit to the

left to remove it.

3. The cover of the socket closes automatically.

4. Store the embroidery unit in the original

packing material, place in the soft carrying bag.

7:4

Embroidery Mode - Preparations

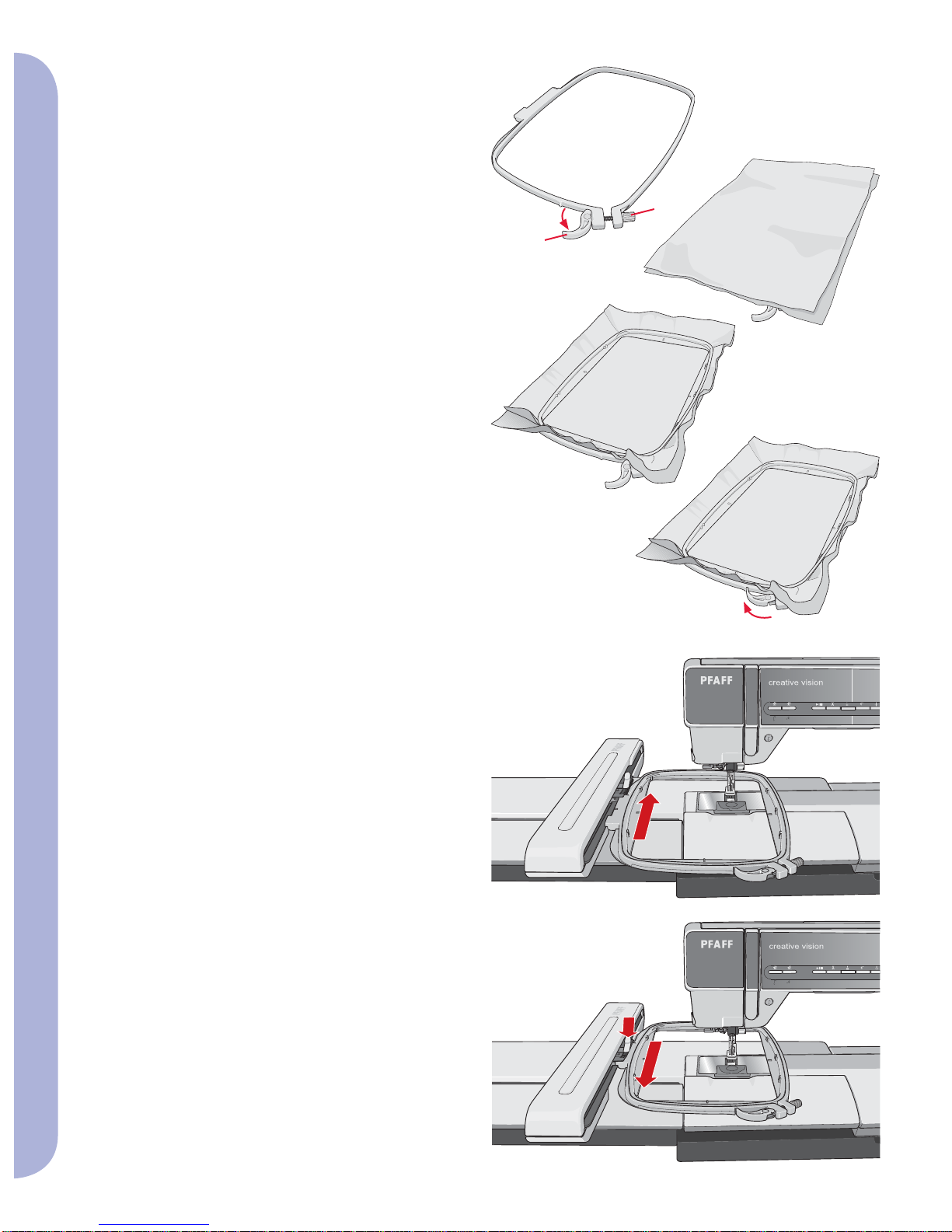

To hoop the fabric

For the best embroidery results, place a layer

of stabilizer beneath the fabric. When hooping

stabilizer and fabric make sure that they are

smooth and securely hooped.

1. Open the quick release (A) on the outer hoop.

Remove the inner hoop. Place the outer hoop

on a ﬁrm ﬂat surface with the screw on the

lower right. There is a small arrow in the center

of the lower edge of the hoop which will line

up with a small arrow on the inner hoop.

2. Place stabilizer and the fabric, with the right

sides facing up, on top of the outer hoop. Place

the inner hoop on top of the fabric with the

small arrow at the bottom edge.

3. Push the inner hoop ﬁrmly into the outer hoop.

4. Close the quick release. Adjust the pressure of

the outer hoop by turning the retaining screw

(B). The fabric should be taut in the hoop for

the best results.

Note: When embroidering additional designs on the

same fabric, open the quick release, move the hoop to the

new position on the fabric and close the quick release.

When changing type of fabric, you might need to adjust

the pressure using the retaining screw. Do not force the

quick release.

Slide on the hoop

Make sure that the accessory tray on the

embroidery unit is closed. Slide the hoop onto the

embroidery unit from front to back until it clicks

into place.

The marked center point on the design should

match the starting point of the needle. If minor

adjustments are needed use the icons on the screen

(See chapter 8).

To remove the hoop from the embroidery arm,

press the grey button on the hoop connection

assembly and slide the hoop towards you.

7:5

Embroidery Mode - Preparations

Getting started embroidering

1. After attaching the embroidery unit and

embroidery foot, insert a bobbin with

lightweight bobbin thread.

Note: Make sure that the IDT is disengaged.

2. Hoop a piece of fabric and slide on the hoop.

3. Open selection menu (A) to select a design.

Touch it once to load to embroidery edit.

4. The machine automatically switches to

embroidery edit. The design is placed in the

center of the hoop.

5. Switch from embroidery edit to embroidery

stitch-out by touching the embroidery toggle

icon (B) on the task bar.

6. Thread the machine with the ﬁrst color in the

color list (C).

7:6

Embroidery Mode - Preparations

7. Clear sufﬁcient space to accommodate

movement of the embroidery arm and the

hoop. Hold the needle thread and touch the

start/stop button (D) or the foot control. The

machine starts embroidering.

8. After stitching a few stitches, the machine stops

and a pop-up appears on the screen asking you

to cut the thread end. Cut the thread and press

start/stop to continue embroidering.

9. When the ﬁrst color is completed, your

machine stops. A pop-up appears asking you

to change color. Re-thread with the next color

and continue embroidering by pressing start/

stop.

Each color segment is tied off at the end and

the needle thread is cut.

10. When the embroidery is completed, your

machine cuts the needle and bobbin thread

and stops. The needle and presser foot raise

automatically for easy removal of the hoop.

A pop-up informs you that your embroidery is

ﬁnished. Touch OK to clear your design from

the screen.
