Petsafe Yard & Park Remote Trainer Guía de configuración

PetSafe®

Yard & Park

RemoteTrainer

Operating andTraining Guide

Please read this entire guide before beginning

2 1-800-732-2677

Thank you for choosing PetSafe®, the best selling brand of electronic training solutions

in the world. Our mission is to ensure your pet’s safety by providing you the tools and

techniques to successfully train your pet. If you have any questions, please contact the

Customer Care Center or visit our website at www.petsafe.net.

____________________________________________________________________

Table of Contents

Components...............................................................................................3

How the SystemWorks................................................................................3

Key Deﬁnitions...........................................................................................4

Operating Guide

Prepare the HandheldTransmitter............................................................5

Prepare the Receiver Collar ......................................................................6

Fit the Receiver Collar..............................................................................8

Program the HandheldTransmitter...........................................................9

Reset the Receiver Collar .......................................................................10

Program the Receiver Collar forTwo orThree-Dog Operation .................10

Training Guide

GeneralTips...........................................................................................11

TeachingYour Pet the PositiveTone.........................................................11

Using the NegativeTone .........................................................................11

Find the Best Stimulation Level forYour Pet............................................12

Teaching Basic Obedience

The “Sit” Command............................................................................13

The “Come” Command.......................................................................14

The “Stay” Command .........................................................................15

Eliminating Unwanted Behavior

Jumping Up.........................................................................................16

Digging...............................................................................................16

Chasing...............................................................................................17

Excessive Barking ................................................................................18

Frequently Asked Questions ......................................................................19

Troubleshooting........................................................................................20

Test Light Instructions ..............................................................................21

www.petsafe.net 3

Components

Handheld

Transmitter

Test Light

Kit

Receiver Collar

Charging Adapter

Warranty

Card

Warranty

Operating and

Training Guide

Lanyard

Operating and

Training Guide

How the SystemWorks

The PetSafe

Yard & ParkTrainer has been proven safe, comfortable, and effective for all pets greater

than 8 lb and at least 6 months old.This system assists you in controlling your pet without a leash in a

range up to 400 yards.At the push of a button, the HandheldTransmitter sends a signal, activating the

Receiver Collar. Using the RemoteTrainer consistently and correctly, many misbehaviors that your pet

exhibits can be corrected or any basic obedience commands can be taught.

Important:TheYard & ParkTrainer has a range of up to 400 yards.

Depending on the way you hold the HandheldTransmitter, the

maximum range may vary. For consistent results at longer ranges, hold

the HandheldTransmitter in a vertical position away from your body

and above your head.Terrain, weather, vegetation, transmission from

other radio devices, and other factors will affect the maximum range.

4 1-800-732-2677

Key Deﬁnitions

HandheldTransmitter:Transmits the radio signal to the Receiver Collar. It is waterproof.

Transmitter Indicator Light: Indicates that a button is pressed and also serves as a low-battery

indicator.

Intensity Dial: Provides multiple levels of Stimulation so you can match the correction to your pet’s

temperament.

Upper Button:This button is factory-set to deliver a NegativeTone only.

Lower Button:This button is factory-set to deliver a NegativeTone for 1 second then Continuous

Stimulation set by the Intensity Dial.

Side Button:This button is factory-set to deliver a PositiveTone only.

Receiver Collar:Receives the radio signal from the HandheldTransmitter. It is waterproof.

On/Off Button: Momentarily pressing and holding this button turns the Receiver Collar on and off.

Contact Points:The contacts through which the Receiver Collar delivers Stimulation.

Receiver Indicator Light: Indicates when the Receiver Collar has been turned on or off and also serves

as a low-battery indicator.

Charging Jacks:

For connecting the charger.Although the HandheldTransmitter and Receiver Collar are

waterproof without the charger covers, keep the covers in place when not charging to keep debris out of the

openings.

Continuous Stimulation:You control when and how long Stimulation is delivered to your dog through

the Receiver Collar’s Contact Points.When a Continuous Stimulation button is pressed for 8 seconds or

more, the HandheldTransmitter will “time-out.”The button will need to be released and pressed again

before additional Stimulation can be delivered.

NegativeTone: Use a NegativeTone with a Stimulation to stop unwanted behaviors.Timing is critical.

The NegativeTone followed by the Stimulation should occur during or immediately after the unwanted

behavior. Once your dog associates the NegativeTone with the Stimulation,you will only need to use the

NegativeTone.

PositiveTone: Use the PositiveTone as a marker to reinforce positive behavior.Again, timing is critical.

Praise or treat the dog immediately following the PositiveTone.

HandheldTransmitter Receiver Collar

Charging Jack

(with cover)

Receiver Indicator Light

On/Off Button

Contact Points

(Top)

(Bottom)

Transmitter

Indicator

Light

Side Button

Upper Button

Transmitter Antenna

Intensity Dial

Lower Button

Charging Jack

(with cover)

www.petsafe.net 5

Operating Guide

Prepare the HandheldTransmitter

Charge the HandheldTransmitter

1. Lift the rubber cover protecting the Handheld

Transmitter Charging Jack.

2. Connect one of the charger connectors to the

HandheldTransmitter Charging Jack.

3. Plug the charger into a standard wall outlet.

4. Charge the HandheldTransmitter for 24

hours for the ﬁrst charge. Recharges take only 12

hours.

Note:TheTransmitter Indicator Light will ﬂash after

12 hours of charging.For the ﬁrst charge,continue to

charge the HandheldTransmitter for an additional 12

hours.

5. When charging is completed, replace the rubber

cover.

Charger connector placed

in the Handheld Transmitter

Charging Jack

Note:Approximate battery life between charges is 40 to 60 hours,depending on frequency of use.

Transmitter Indicator Light - Function and Response

HandheldTransmitter Function Indicator Light Response

Continuous Stimulation or Positive / Negative

Tone Only button pressed Solid in color

Low battery – Any button pressed Flashes continuously

Step

6 1-800-732-2677

Prepare the Receiver Collar

Charge the Receiver Collar

1. Lift the rubber cover protecting the Receiver Collar

Charging Jack.

2. Connect one of the charger connectors to the

Receiver Collar Charging Jack.

3. Plug the charger into a standard wall outlet.

4. Charge the Receiver Collar for 24 hours for the

ﬁrst charge. Recharges take only 12 hours.

Note:The Receiver Indicator Light will ﬂash after

12 hours of charging.For the ﬁrst charge,continue to

charge the Receiver Collar for an additional 12 hours.

5.When charging is completed, replace the rubber

cover.

Charger connector

placed in Receiver

Collar Charging

Jack

ToTurn the Receiver Collar On:

1. Press and hold the On/Off Button until the

Receiver Indicator Light comes on

and the Receiver Collar beeps 5 times.

2. Release the On/Off Button.

The Receiver Indicator Light will ﬂash until the

Receiver Collar is turned off.The ﬂashing light

indicates the Receiver Collar is ready to receive a

radio signal from the HandheldTransmitter.

On/Off Button

ToTurn the Receiver Collar Off:

1. Press and hold the On/Off Button until the Receiver Indicator Light comes on and

the Receiver Collar beeps 2 times.

2. Release the On/Off Button.

To extend the life between charging cycles, turn the Receiver Collar off when it is not in use.

Approximate battery life between charges is 15-20 hours, depending on frequency of use.

Step

www.petsafe.net 7

Receiver Indicator Light

Function Indicator Light Response

Receiver Collar on – good battery Flashes once per second

Receiver Collar on - low battery Flashes once every 4 seconds

Any button pressed Solid in color

Rechargeable Batteries

•The rechargeable Nickel Metal Hydride (NiMH) batteries are not memory sensitive

and do not require depletion before charging.

•The batteries come partially charged from the factory, but will require a full charge

(24 hours) before the ﬁrst use.

• Remember - Always keep batteries away from ﬂame.

•When storing the unit for long periods, remember to regularly give batteries a full

charge (12 hours).This should be done once every 4 to 6 weeks.

• Excessive overcharging can shorten battery life.After initial charge, never leave the

battery plugged in for more than 12 hours.

• If your equipment has not been charged for an extended period, you may experience

a decrease in battery life the ﬁrst few uses.Afterwards, the battery life will return to

previous capacity levels.

•You should expect hundreds of recharge cycles from your batteries. However, all

rechargeable batteries lose capacity over time relative to the number of recharge cycles

they experience.This is normal. If your operating time drops to half of the original life,

contact the Customer Care Center to purchase a new battery.

•The batteries should last for a period of 3-5 years.When a battery needs replacement,

you can order a new pack by contacting our Customer Care Center or visit our website

at www.petsafe.net. Please do not open the Receiver Collar or HandheldTransmitter

until you have received the replacement.

8 1-800-732-2677

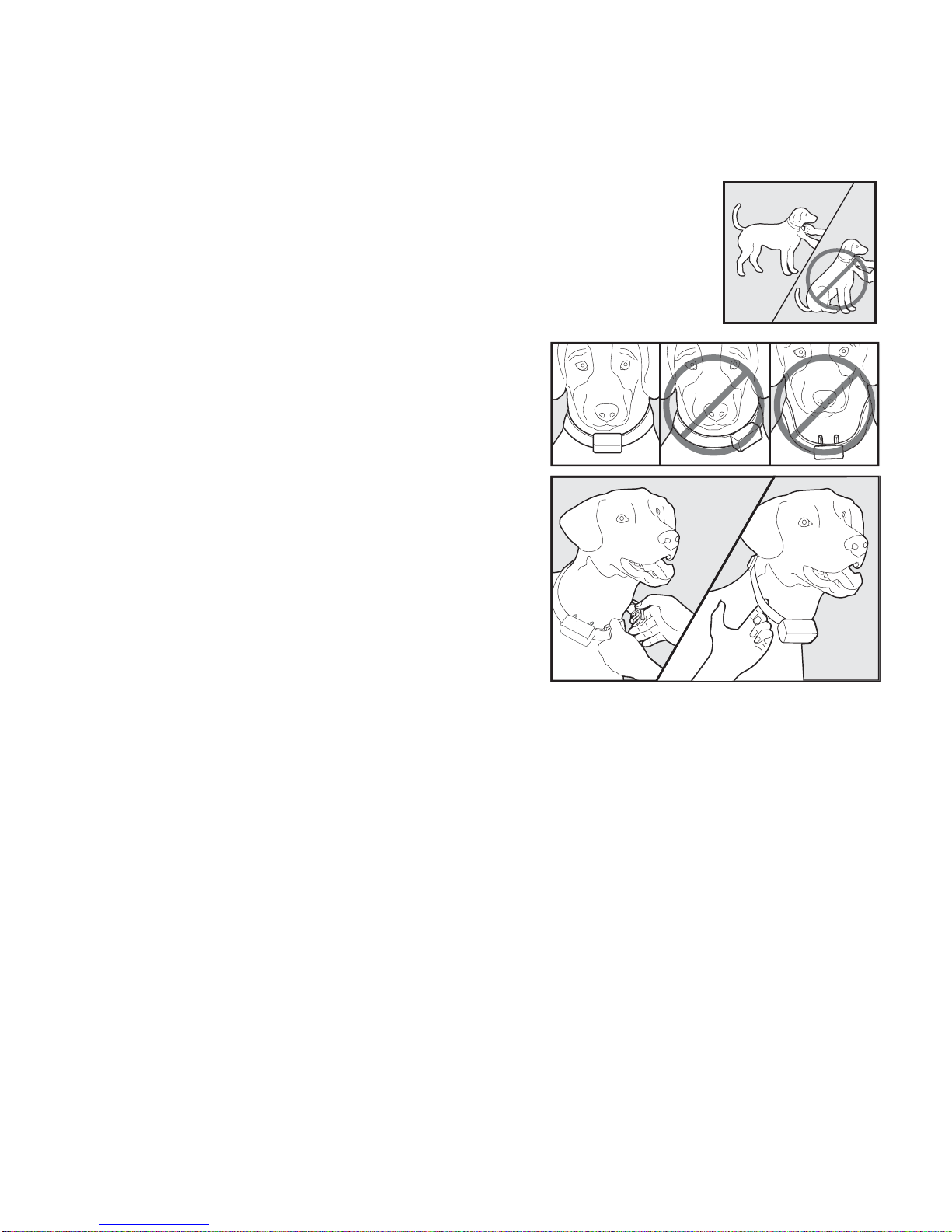

Fit the Receiver Collar

Important:The proper ﬁt and placement of your Receiver Collar is important

for effective operation.The Contact Points must have direct contact with your

dog’s skin on the underside of his neck.

To assure a proper ﬁt, please follow these steps:

1. Make sure that the Receiver Collar is turned off.

2. Start with your dog standing comfortably (3A).

3. Place the Receiver Collar high on your dog’s neck close to the

ears. Center the Contact Points underneath your dog’s neck,

touching the skin (3B). Note:It is sometimes necessary to trim the

hair around the Contact Points to make sure that contact is consistent.

4. Check the tightness of the Receiver Collar

by inserting one ﬁnger between the collar

and your dog’s neck (3C).The ﬁt should be

snug but not constricting.

5.Allow your dog to wear the Receiver Collar

for several minutes then recheck the ﬁt.

Check the ﬁt again as your dog becomes

more comfortable with the Receiver Collar.

Care and Cleaning

To ensure the effectiveness of this product

and the comfort and safety of your dog, check

the ﬁt of his collar frequently.This Guide

describes proper collar ﬁtting. If you notice

that your dog is experiencing skin irritation,

discontinue use of the collar for a few days. If

the condition persists beyond 48 hours, see

your veterinarian.

To prevent skin irritation from occurring:

•The Receiver Collar should not be worn for more than 8 hours out of every 24-hour

period.

•Your dog’s neck and the Contact Points must be washed weekly with a washcloth and

mild hand soap, then rinsed thoroughly.

• Be sure that your pet’s neck is thoroughly dry before placing the Receiver Collar back

on his neck.

Step

www.petsafe.net 9

Program the HandheldTransmitter

Note:The HandheldTransmitter is factory set to Mode 1. The Mode of the Handheld

Transmitter can be changed to ﬁt your type or style of training.

To change the Mode:

1. Referring to the table below, adjust the Intensity Dial

to the Mode you want to use.

2.Turn the HandheldTransmitter over.

3.With a pen or paperclip, depress and release the

Mode button.When the Mode button is pressed, the

Transmitter Indicator Light will be solid in color.

When it is released, it will ﬂash the Mode selected.

For example, if Mode 2 is desired, adjust the Intensity Dial to Level 2. Once the Mode

button has been depressed, theTransmitter Indicator Light will be solid, and once the

Mode button is released, theTransmitter Indicator Light will ﬂash two times.

Note:Continuous Stimulation will transmit for no more than eight continuous seconds no matter

how long the button is pressed.To reactivate,release and repress the button.

Mode UPPER BUTTON

FUNCTION LOWER BUTTON

FUNCTION SIDE BUTTON

FUNCTION # OF

DOGS

1NegativeTone only NegativeTone 1 second

then Continuous

Stimulation set by

Intensity Dial

PositiveTone only 1

2NegativeTone only Continuous Stimulation

set by Intensity Dial PositiveTone only 1

3NegativeTone 1 second

then Continuous

Stimulation set by

Intensity Dial

Continuous Stimulation

set by Intensity Dial PositiveTone only 1

4Continuous Stimulation

set by Intensity Dial Continuous Stimulation

2 levels higher than

Intensity Dial setting

PositiveTone only 1

5Continuous Stimulation

set by Intensity Dial Continuous Stimulation

2 levels higher than

Intensity Dial setting

NegativeTone only 1

6DOG #1

Continuous Stimulation

set by Intensity Dial

DOG #2

Continuous Stimulation

set by Intensity Dial

DOG #3

Continuous Stimulation

set by Intensity Dial

7DOG #1

PositiveTone only DOG #2

PositiveTone only DOG #3

PositiveTone only 3

8DOG #1

NegativeTone only DOG #2

NegativeTone only DOG 3#

NegativeTone only 3

Step

10 1-800-732-2677

Reset the Receiver Collar

To reset the Receiver Collar to work with a new HandheldTransmitter or to reprogram

a new Receiver Collar to work with your existing HandheldTransmitter:

1.Turn the Receiver Collar off.

2. Press and hold the On/Off Button until the Receiver Indicator Light comes on and

the Receiver Collar beeps 5 times.

3. Continue to hold the On/Off button until the Receiver Indicator Light has turned off.

4. Press and hold the Upper Button on the HandheldTransmitter until the Receiver

Indicator Light ﬂashes 5 times.You may need to hold both units 3 feet from each

other before this occurs. Once the Receiver Indicator Light has ﬂashed 5 times, the

Receiver Collar has been reset. If the Receiver Indicator Light does not ﬂash 5 times,

start again and repeat the process.

_____________________________________________________________

Program the Receiver Collar forTwo or

Three-Dog Operation

With theTransmitter set to Mode 6, 7 or 8, PetSafe®Receiver Collars can be set to

respond to the upper, lower, or side HandheldTransmitter buttons.Add-A-Dog™

receiver(s) must be purchased to train additional dogs.

1. Program the HandheldTransmitter to Mode 6, 7 or 8.

2. Program the ﬁrst Receiver Collar.

A.Turn the Receiver Collar off.

B. Press and hold the On/Off Button.The Receiver Indicator Light will come on,

then turn off in 4-5 seconds. If the On/Off Button is released too early, the Receiver

Indicator Light will begin its normal ﬂashing. If this occurs, start over and repeat the

process.

C. After the Receiver Indicator Light has turned off, release the On/Off Button.

D. Press and hold the Upper Button on the HandheldTransmitter until the Receiver

Indicator Light ﬂashes 5 times.You may need to hold both units 3 feet from each

other. If the Receiver Indicator Light does not ﬂash 5 times, start over and repeat the

process.

3. Program the second Receiver Collar using A. through D. above, but using the Lower

Button in place of the Upper Button.

4. Program the third Receiver Collar using A. through D. above, but using the Side

Button in place of the Upper Button.

Step

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Producto para el cuidado de mascotas de Petsafe

Petsafe

Petsafe PBC19-17283 Manual de usuario

Petsafe

Petsafe ST-350-LD Manual de usuario

Petsafe

Petsafe LITTLE DOG Remote Trainer Guía de configuración

Petsafe

Petsafe Drinkwell 360 Manual de usuario

Petsafe

Petsafe SPT-275 Manual de usuario

Petsafe

Petsafe Cottageview Dog Kennel Manual de usuario

Petsafe

Petsafe PIG19-16413 Manual de usuario

Petsafe

Petsafe Pawz Away Mat Guía de configuración

Petsafe

Petsafe PBC19-10765 Manual de usuario

Petsafe

Petsafe PIG00-100777 Guía de configuración

Petsafe

Petsafe PBC00-16368 Manual de usuario

Petsafe

Petsafe Bark Control Collar Manual de usuario

Petsafe

Petsafe Creekside Ceramic Pet Fountain Hoja de especificaciones

Petsafe

Petsafe Staywell 500 Series Manual de usuario

Petsafe

Petsafe PFD17-15769 Manual de usuario

Petsafe

Petsafe Staywell 200 series Manual de usuario

Petsafe

Petsafe ScatMat Hoja de especificaciones

Petsafe

Petsafe In-Ground Fence System Guía de configuración

Petsafe

Petsafe Happy Ride Hoja de especificaciones

Petsafe

Petsafe laurelview dog kennel Manual de usuario

Petsafe

Petsafe PFD00-15426 Manual de usuario

Petsafe

Petsafe Happy Ride GRP-PHRBS Manual de usuario

Petsafe

Petsafe PPA00-10958 Manual de usuario

Petsafe

Petsafe HDT11-11048 Guía de configuración

Manuales populares de Producto para el cuidado de mascotas de otras marcas

Schwinn

Schwinn Rascal Manual de usuario

K&H

K&H Small Animal Manual de usuario

SHOR-LINE

SHOR-LINE 006.3230.00 Manual de usuario

Datamars

Datamars OMNI MAX Manual de usuario

Trixie

Trixie 24444 Manual de usuario

Roverpet

Roverpet 30DDPP Manual de usuario

SportDOG

SportDOG SD-105S-C Manual de usuario

Staywell

Staywell 400 Series Magnetic Manual de usuario

Dogtek

Dogtek Sonic Birdhouse Manual de usuario

Togfit

Togfit Deluxe Trigger Lock Door Gate Manual de usuario

Girafus

Girafus 227PA Manual de usuario

ubbink

ubbink KoiFeeder Solar Manual de usuario

ULTRACOM

ULTRACOM KOIRA-GPS Manual de usuario

CADOCA

CADOCA Deuba 106911 Manual de usuario

Dogtra

Dogtra RR Deluxe Manual de usuario

Carson

Carson CONVERTIBLE PET YARD 2200 Manual de usuario

Creative Cedar Designs

Creative Cedar Designs K-9 Kabin Manual de usuario

PlexiDor

PlexiDor Electronic Pet Door Manual de usuario
