Perle IDS-305 Manual

IDS-305 Hardware Installation Guide

Managed Industrial Ethernet Switches

Updated: October 2019

Revision 1.1

Part#: 5500373-10 (Rev. B)

www.perle.com

IDS-305 Hardware Installation Guide

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS GUIDE ARE SUBJECT TO CHANGE

WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS GUIDE ARE BELIEVED TO BE

ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE

FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC

rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in

accordance with this hardware guide may cause harmful interference to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference, in which case users will be required to correct the interference at their own

expense.

Modifications to this product not authorized by Perle could void the FCC approval and negate your authority to operate the product.

Perle reserves the right to make changes without further notice, to any products to improve reliability, function, or design.

Perle, the Perle logo, and IDS Switch are trademarks of Perle Systems Limited.

Table of Contents

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Switch Model View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Port Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Cautions and Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Terminal Block-Power Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Connecting the Console Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Connecting Destination Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Resetting the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Booting the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Fast Setup Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Password Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Configuring the IDS Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Appendix A - Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Appendix B - Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Appendix C - Mechanical Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Appendix D - IDS DIN Rail and Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Appendix E - IDS Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Appendix F - Cables and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

IDS-305 Hardware Installation Guide

Preface

Audience

This guide is for the network or computer technician responsible for installing Perle IDS-305 series

switches. We assume that you are familiar with the concepts and terminology of Ethernet and local area

networks.

Purpose

This document describes the hardware and physical characteristics of the Perle IDS switch. It covers

hardware features as well as installation and operation of the switch. This document does not cover how

to configure your Perle IDS switch. Information to configure your Perle IDS switch can be found in the

Perle IDS User’s Guide

Package Contents

• IDS switch with attached DIN rail mounting bracket

• Quick Start Guide

Document Conventions

This document contains the following conventions:

Most text is presented in the typeface used in this paragraph. Other typefaces are used to help you

identify certain types of information. The other typefaces are:

Note: Means reader take no te: notes contain helpful suggestions.

Caution: Means reader be careful. In this situation, you might perform an action that could result in

equipment damage or loss of data.

Warning: IMPORTANT SAFETY INSTRUCTIONS

Means danger. You are in a situation that could cause bodily injury. Before you work on any equipment,

be aware of the hazards involved with electrical circuitry and be familiar with standard practices for

preventing accidents. Only qualified personnel should connect power to this unit.

IDS-305 Hardware Installation Guide

Overview

This chapter discusses the following topics:

• LED Indicators

• Switch Model View

• Ports

• Port Status Indicators

The table below gives a brief overview of the models covered in this guide. For more details and for the

most up-to-date list of models, please refer to the product pages at www.perle.com.

Standard Models Port 1-5 Temp

IDS-305 10/100/1000Base-T (RJ45) Standard

IDS-305-XT 10/100/1000Base-T (RJ45) Industrial

IDS-305 Hardware Installation Guide

Switch Model View

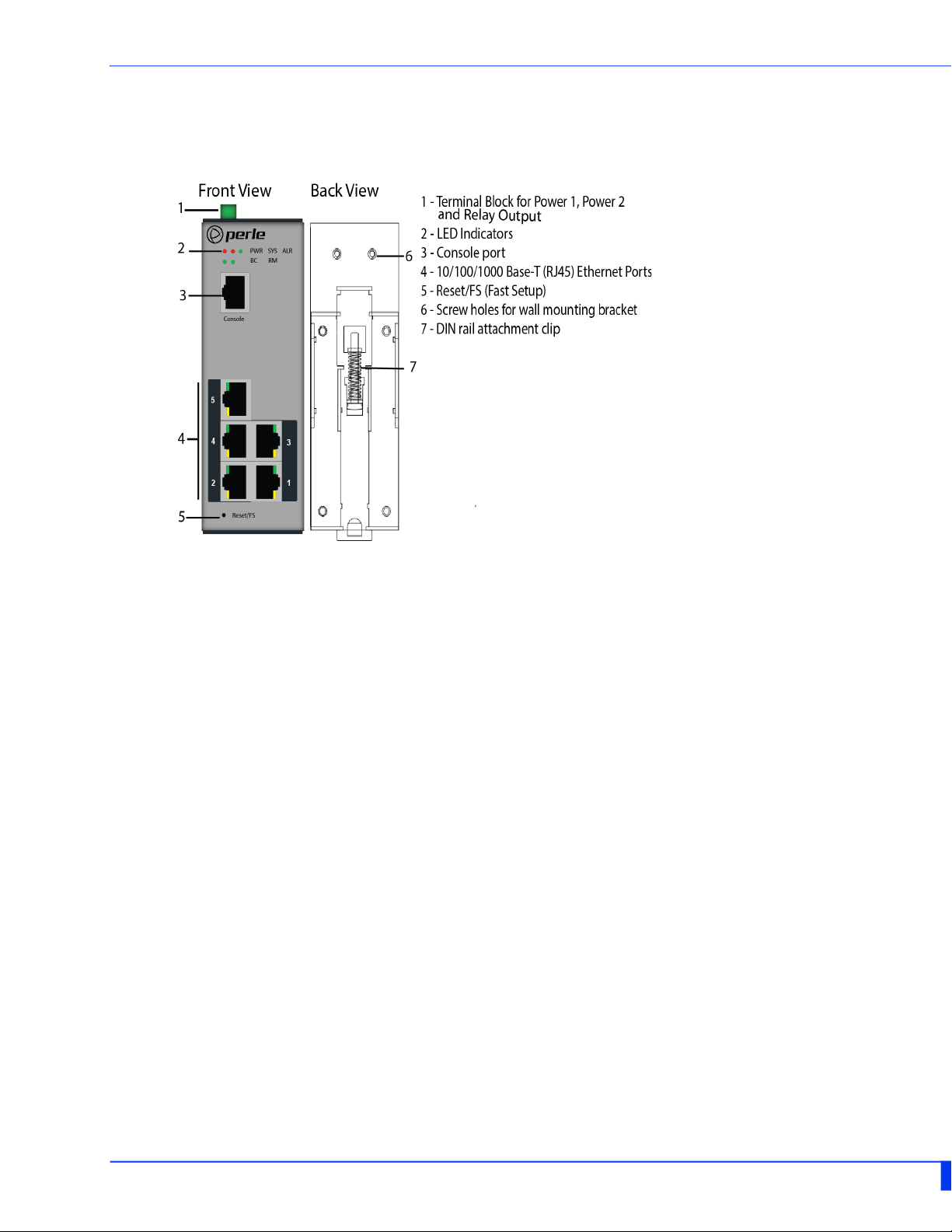

IDS-305

IDS-305 Hardware Installation Guide

LED Indicators

P (Power Inputs)

Sys (System Status)

Alr (Alarm)

BC (Backup Coupling)

State Description

Green P1 and P2 Power inputs within specifications

Yellow P1 or P2 Providing power within specifications

Red Neither P1 or P2 providing power within specifications

State Description

Green - blinking (after power on) System booting

Green - solid System ready/operating normally

Green - blinking slowly Fast Setup Mode activated/port available

Green - blinking fast Fast Setup Mode activated/no port available

Red Hardware fault or firmware load error

State Description

Off No alarms configured

Green - solid Alarms configured, but no alarms detected

Red - solid Alarm condition detected

Red - blinking Alarm condition detected and Alarm Relay activated

State Description

Off Backup Coupling not enabled

Green - solid Backup Coupling Link enabled

LED Indicators 6

IDS-305 Hardware Installation Guide

RM (Ring Master)

State Description

Off Ring Master not activated

Green - solid Ring Master Active, redundant port blocked. Coupling Link

enabled

Green - flashing Ring Master unable to establish a ring due to missing link on

one of the Ring ports

Yellow - solid Ring Master Active, redundant port unblocked - indicates a

break in the Ring

IDS-305 Hardware Installation Guide

Ports

10/100/1000Base-T Ports

These ports provide the standard gigabit Ethernet interface. They provide speeds of 10/100 or

1000 Mb/s through twisted pair (UTP) cables of up to 100 meters (328ft) in length.

RJ-45 Console Port

This is a console management port which will provide access to the switch management function using

our industry standard CLI command set. This port has an RJ-45 connector. See RJ-45-Console Port Pin-

outs for pinouts.

Power Connector

The power input connector has provisions for dual inputs. Two independent power sources can be used

to power the switch. If one power input fails, the other power input will power the switch.

Alarm Relay Connector

The Alarm Relay can be energized by the software or hardware under certain conditions. It can then be

used to trigger an external alarm circuit such as a light or sounding device. This connector provides a

Normally Closed (NC) dry contact on the connector block.

IDS-305 Hardware Installation Guide

Port Status Indicators

Ethernet Port Status Indicators

Port Link / Speed (Green and Yellow LEDs)

State Description

Green 1000 Mbps

Green / Yellow 100 Mbps

Yellow 10 Mbps

On solid Port Link

Random blinking Port Link and Activity

Slow blinking Error disabled

Rapid blinking Port in Fast Setup Mode
