Perfomance Tool M574DB Manual de usuario

WARNING!

READ, UNDERSTANDAND FOLLOW ALL INSTRUCTIONSAND WARNINGS BEFORE

OPERATING THIS TOOL. FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY

AND/OR PROPERTY DAMAGE AND WILL VOID WARRANTY.

Some dust created by power sanding contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. An example of

this type of chemical is lead from lead based paints. Your risk from these exposures varies, depending on how often you do this type of work.To reduce your expo-

sure: work in a well ventilated area and work with approved safety equipment, such as dusk masks that are specially designed to lter out microscopic particles.

Dual Piston Straight Line Sander

OWNER’S MANUAL

Stock Number M574DB

SPECIFICATIONS:

Pad size (IN.) ..........................................2.75 x 16.75

Air pressure (P.S.I.) .............................................90

Average air consumption (C.F.M.) ...................................5

Free speed (R.P.M.) ..........................................2,500

Air inlet (N.P.T.)................................................1/4

Hose size (I.D.)..............................................3/8 in.

Length (IN.)..................................................16.1

Weight (LBS) ................................................5.64

Specifications are subject to change without notice.

IMPORTANT SAFETY INFORMATION

1. Keep work area clean. Cluttered areas invite injuries.

2. Observe work area conditions. Do not use machines or power tools in damp or wet

locations. Don’t expose to rain. Keep work area well lighted. Do not use electrically

powered tools in the presence of flammable gases or liquids. Do not bring combustible

materials near the tools.

3. As with any tool, use common sense when operating. Do not wear loose clothing or

jewelry that could become caught by moving parts, causing injury. Operate tool a safe

distance from yourself and others in the work area.

4. Keep children away. Children must never be allowed in the work area. Do not let them

handle machines, tools, hoses or extension cords.

5. Store idle equipment. When not in use, tools must be stored in a dry location to inhibit

rust. Always lock up tools and keep out of reach of children and other untrained

persons. Switch off all unused electrical tools when stored. Tools are dangerous in the

hands of untrained users.

6. Always wear approved eye protection when using tools. If raising dust, wear a suitable

mask.

7. Work Safe. When wearing gloves to operate the tool, make sure that the gloves do not

interfere with operating the Trigger. Test your gloves with the Trigger before attaching

the unit to an air source. Keep your finger away from the Trigger until you are ready to

work. Never start the tool unless you have a firm grip with both hands and you are

positioned at your work piece or area. Before using the tool, know what is directly

underneath the work area or work piece. The tool can quickly penetrate material. If

working directly on the ground, make sure you are not directly above shallow cables,

lines, or pipes. Keep your limbs and body clear of the tool. If an accessory or

attachment breaks off, the tool tends to surge forward suddenly. Operate tool a safe

distance from yourself and others in the work area. Make sure the immediate area is

clear of other people or animals. Spectators must stay at a safe distance. Never point

the tool or the air hose (not included) at anyone. Keep proper footing and balance at

all times. Do not reach over or across running machines, hoses, etc.

8. Do not operate any tool if under the influence of alcohol or drugs. Read warning labels

on prescriptions to determine if your judgment or reflexes are impaired while taking

drugs. If there is any doubt, do not operate any tool.

9. Be sure air is in OFF position when connecting tool to air supply.

10. Use only those accessories that are designed for use with tools. For example, with

impact wrenches do not use ordinary sockets. Use impact sockets for all air tools.

11. Be sure to disconnect tool from air supply before changing accessories, performing

service on tool and when not in use.

12. Follow air source manufacturers' directions for connection of regulators, filters, and

other accessories to air source. Do not install quick couplers directly on tool as they

put unnecessary strain on the air inlet threads possibly causing them to wear out

prematurely. Instead, install them on a short length of air hose attached to the tool.

WARNING!

READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND

WARNINGS BEFORE OPERATING THIS TOOL. FAILURE TO DO

SO MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY

DAMAGE AND WILL VOID WARRANTY.

Oil tool before each use. 4 to 5 drops of a good grade Air Tool Oil placed in the air inlet is

sufficient. Use proper air pressure and CFM rating listed for this tool.

Drain water from hoses and compressor tank. Water in the air supply line will cause

gumming and loss of power. Clean the air filter on the supply line and flush the tool with

gum solvent or a 50/50 mix of air tool oil and kerosene. It may be necessary to

disassemble the tool to properly clean and re-lubricate.

LUBRICATION & MAINTENANCE

Motor

Oil

Trans.

Fluid

Brake

Fluid

Water

Whip

hose

Air Tool

Oil

YesNo

IMPORTANT SAFETY INFORMATION

ASSEMBLY / INSTALLATION

1. You will need to prepare the 1/4" Quick-disconnect Coupler Plug to connect to the air

inlet on the sander. Wrap the Coupler Plug with pipe thread seal tape before threading it

into the Air Inlet. Connect the a Quick-Disconnect coupler on a 3/8" ID Air Source Hose

to the tool.

Note: If you are not using an automatic oiler system, before operation, add a few drops of

Pneumatic Tool Oil to the airline connection. Add a few drops more after each hour of

continual use.

2. Set the air pressure on your compressor to 90 PSI. Do not exceed the recommended air

pressure of 90 PSI.

3. Check the air connection for leaks. Once you are satisfied there are no leaks, turn off the

air compressor and disconnect the tool.

Clean air of correct air pressure is recommended for the power supply for this tool. A

maximum of 90 PSI at the tool is recommended for most air tools of this class. Check

specifications section for recommended pressure. (Depending on length of air hose and

other circumstances, air pressure at compressor may need to be increased to 100 PSI to

ensure 90 PSI at the tool.)

Water in the air hose and compressor tank contributes to reduced performance and

damage of the air tool. Drain the air tank and filters before each use and as necessary to

keep the air supply dry.

Hose length over 25’ causes loss in line pressure. Increase hose I.D. or increase

compressor pressure to compensate for the pressure loss. Use an in-line pressure

regulator with gauge if air inlet pressure is critical.

AIR SOURCE

13. Check for damaged parts. Before using any tool, any part that appears damaged

should be carefully checked to determine that it will operate properly and perform its

intended function. Check for alignment and binding of moving parts; any broken parts

or mounting fixtures; and any other condition that may affect proper operation. Any

part that is damaged should be properly repaired or replaced by a qualified technician.

14. Maintenance. For your safety, maintenance should be performed regularly by a

qualified technician using original PERFORMANCE TOOLS® replacement parts.

Failure to do so can lead to accidents for the operator. Use of any other parts will void

the warranty. Only use accessories intended for use with this tool. Approved

accessories are available from Performance Tool®. Use only accessories that are

recommended by the manufacturer for your model. Accessories that may be suitable

for one tool may become hazardous when used on another tool.

WARNING: Repetitive motions or exposure to vibration may be harmful to your hands and arms.

WARNING: This product and its packaging contain a chemical known to the State of California

to cause cancer, birth defects, or other reproductive harm.

WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot

cover all possible conditions and situations that may occur. It must be understood by the

operator that common sense and caution are factors which cannot be built into this product, but

must be supplied by the operator. Read and understand all of the instructions provided in the

instruction manual of this product, as well as, any other tool (s) used with this product.

1. Do not put additional pressure on the machine. This will only slow down the speed of the

pad, reduce sanding efficiency and shorten the tool's life. We recommend the air

pressure of this grinder at 90 PSI.

2. Start the sander off the work, set it down on the work evenly and move it slowly back

and forth in wide, overlapping areas. When finished sanding, lift it off the work before

stopping motor.

3. Start the work with an abrasive grit just course enough to remove high spots and

roughness. Follow with additional sanding, using finer grits, until the desired finish is

obtained. Never go from a coarse grit to a fine grit in one step.

4. Lubricate the air motor with a good grade of air tool oil and drain the tank daily. Grit or

gum deposits in the tool may cut power and may be corrected by cleaning the air

strainer and flushing out the tool with gum solvent oil.

OPERATION

Air Inlet

Trigger

Handles

INSUFFICIENT POWER:

Probable Cause Solution

Dirty or clogged air passages......... Flush and lubricate tool, drain air tank and supply line

Insufficient air supply...................... Increase line pressure, Make sure compressor

matches tool's air pressure and consumption needs

Air leakage...................................... Use Teflon tape at all fittings and joints. Check tool for

worn or damaged O-rings & seals.

Worn/damaged wear & tear parts... Replace as necessary.

Tool matching ................................. Be sure you are using a tool suited for the torque

requirements of the job at hand.

WON’T START, STALLS:

Probable Cause Solution

Pistons are out of alignment........... Set the sander down on a solid surface or work bench.

Be cautious where you set it as the abrasive on the

sander may scratch the surface. Holding the forward

knob and handle draw the body of the tool back,

putting the shoe as far forward as possible. This

realigns the dual pistons and drive gear for normal

operation. This may need to be done prior to each use

depending on the shoe position.

TROUBLESHOOTING

LIMITED WARRANTY

PERFORMANCE TOOL® extends only the following warranties, and only to original retail purchasers. These war-

ranties give specic legal rights. Except where prohibited by local law, the law of the State of Washington governs

all warranties and all exclusions and limitations of warranties and remedies. There may be other rights which vary

from state to state.

PERFORMANCE TOOL® warrants the product to be free from defects in materials and workmanship under normal

use and service. A defective product may be returned for a free replacement within 90 days from the date of pur-

chase, provided that product is returned to

place of purchase immediately after discovery of defect. After 90 days and up to one year from date of purchase,

PERFORMANCE TOOL® will replace at no charge any parts which our examination shall disclose to be defective

and under warranty.

These warranties exclude blades, bits, punches, dies, bulbs, fuses, hoses, and other consumables which must be

replaced under normal use and service. These warranties shall not apply to any product or part which is used for a

purpose for which it is not designed, or which has been repaired or altered in any way so as to affect adversely its

performance or reliability, nor shall these warranties apply to any product or part which has been subject to

misuse, neglect, accident or wear and tear incident to normal use and service.

PERFORMANCE TOOL® does not authorize any other person to make any warranty or to assume any liability in

connection with its products.

Except for warranties of title and the limited express warranties set forth above, PERFORMANCE TOOL® makes

no express or implied warranties of any kind with respect to its products. In particular, PERFORMANCE TOOL®

makes no implied warranty of merchantability and no implied warranty of fitness for any particular purpose, except

that for goods purchased primarily for personal, family or household use and not for commercial or business use,

PERFORMANCE TOOL® makes an implied warranty of merchantability (and, if otherwise applicable, an implied

warranty of fitness for a particular purpose), but only for the particular qualities or characteristics, and for the dura-

tion, expressly warranted above.

The laws on limitation of implied warranties may differ from state to state, so the above limitations may not apply in

all cases.

PERFORMANCE TOOL® shall not be liable for consequential, incidental or special damages resulting from or in

any manner related to any product, or to the design, use, or any inability to use the product. The sole and exclusive

remedy for a defective product or part shall be the repair, or replacement thereof as provided above. The laws on

limitation of remedies or on consequential, incidental or special damages may vary from state to state, so the

above limitations may not apply in all cases.

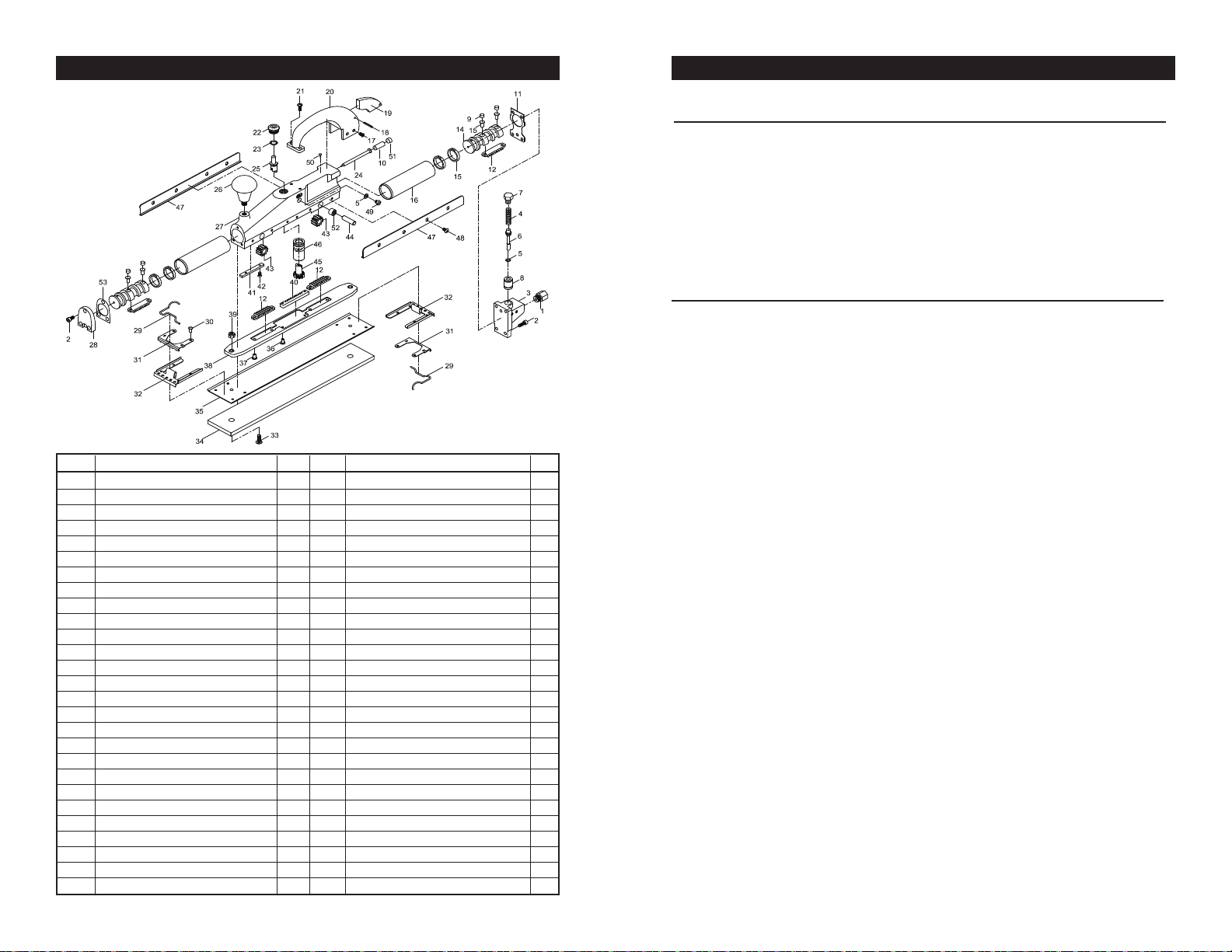

PARTS LIST

INDEX DESCRIPTION QTY INDEX DESCRIPTION QTY

1 Air Inlet 1

2 Screw 7

3 Rear Cover 1

4 Spring 1

5 O-Ring 2

6 Valve Stem 1

7 Valve Plug 1

8 Valve Collar 1

9 Oil Cotton 4

10 Oil Cotton 1

11 Gasket 1

12 Flat Gear 4

13 Rivet 4

14 Piston 2

15 Piston Ring 4

16 Cylinder 2

17 Screw 4

18 Spring Pin 1

19 Trigger 1

20 Handle 1

21 Screw 2

22 Plug 1

23 O-Ring 1

24 Pin 1

25 Switch 1

26 Palm Handle 1

27 Housing 1

28 Front Cover 1

29 Wire Clip 7

30 Rivet 1

31 Compression Spacer 1

32 Fixed Plate 2

33 Screw 1

34 Foam Pad 1

35 Pad Plate 1

36 Rivet 4

37 Rivet 1

38 Pad Boat 1

39 Locking Nut 4

40 Slide Gear 4

41 Brass Plate 2

42 Screw 4

43 Transmission Gear 2

44 Gear Shaft 4

45 Switch Gear 1

46 Switch Sleeve 1

47 Boat Guide 1

48 Screw 2

49 Screw 1

50 Rivet 1

51 Plug 1

52 Needle Bearing 1

53 Front Gasket 1

Check out the collection of air tools & compressors we offer.

Feel the difference with Performance Tool.

Otros manuales de Lijadora de Perfomance Tool

Perfomance Tool

Perfomance Tool W50089 Manual de usuario

Manuales populares de Lijadora de otras marcas

Oliver

Oliver 6305 Manual de usuario

Jet

Jet 22-44 Pro-3 Manual de servicio

Makita

Makita M9204 Manual

Makita

Makita M9204 Manual de usuario

Craftsman

Craftsman 351.215131 Manual de usuario

Clarke

Clarke Woodworker CBS1-5B Manual de instrucciones

Chicago Pneumatic

Chicago Pneumatic CP9778 Manual de usuario

Nitto Kohki

Nitto Kohki BB-20 Manual de usuario

Ferm

Ferm FEOS-135 Manual de usuario

Unior

Unior 1510 Manual de usuario

stayer

stayer ls1200 Manual de usuario

Jet

Jet JSG-96 Manual de servicio

Parkside

Parkside PDS 290 B2 Manual de usuario

Status

Status XPA Series Manual de usuario

Clarke

Clarke EZ Sand Manual de usuario

Craftsman

Craftsman 113.22521 Manual de usuario

Craftsman

Craftsman 113.225831 Manual de usuario

CLAS

CLAS OP 1429 Manual de usuario
