PERFECTPRO DAB+BOX Manual de usuario

noitcurtsnignitarepO

iolpme’dedoM

ojenamedsnoiccurtsnI

gnizjiwnaaskiurbeG

gnutielnasgnuneideB

FM RDS / DAB Digital Radio

DAB+ / FM-RDS / Aux-in Ultrarobuuste radio-ontvanger

Récepteur radio DAB+ / FM-RDS / Aux-in ultra-robuste

DAB+ / UKW-RDS / Aux Ultra-Rugged Radioempfänger

3A81X26L00000

DAB+BOX

Operating instruction

Gebruiksaanwijzing

Mode d’emploi

Bedienungsanleitung

Table of Contents

Important Safety Instructions .............................................. 2

Controls ........................................................................... 3-5

Power the Radio & Charge the batteries ......................... 6-7

Using the Radio for the First time ....................................... 7

Operating Your Radio – DAB .............................................. 8

Selecting a Station & Secondary Service – DAB ................ 9

Display Modes – DAB ....................................................... 10

Finding New Stations & Manual Tuning – DAB ................. 11

Autoselect – DAB .............................................................. 12

Dynamic Range Control (DRC) settings – DAB ................ 13

Prune stations ................................................................... 14

Operating Your Radio – FM .............................................. 15

Manual Tuning – FM ......................................................... 16

Display Modes – FM ......................................................... 17

FM scan zone (FM) ........................................................... 18

Presetting Stations / Recalling a Preset in DAB and FM

modes .......................................................................... 18-19

Language selection ........................................................... 20

Factory Reset / Software Version ................................ 20-21

Socket for software upgrade ............................................. 21

Information ........................................................................ 22

Read these instructions.

Keep these instructions.

Heed all warnings

Follow all instructions

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the

instructions.

Do not install near any heat such as radiators, heat registers, stoves

or other apparatus (including ampliers) that produce heat.

Do not defect the safety purpose of the polarized or grounding-type

plug. A polarized plug has two blades with one wider than the other.

A grounding type plug has two blades and a third grounding prong.

The wide blade or the third prong are provided for your safety. If the

provided plug does not t into your outlet, consult an electrician for

replacement of the obsolete outlet - USA version only.

Protect the power cord from being walked on or pinched particularly

at plug, convenience receptacle, and the point where they exit from

the apparatus.

Only use the attachments specied by the manufacturer.

Use only with the cart, stand, tripod, bracket, or table specied by

the manufacture, or sold with the apparatus. When a cart is used,

use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

Unplug this apparatus during lightning storms or when unused for

long periods of time.

Refer all servicing to qualied service personnel. Servicing is re-

quired when the apparatus has been damaged in anyway, such

as power-supply cord or plug is damaged, liquid has been spilled

or objects have fallen into the apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally, or has been

dropped.

To reduce the risk or re electric shock, do not expose this appli-

ance to rain or moisture.

The shock hazard marking and associated graphical symbol is pro-

vided on the bottom panel of unit.

Apparatus shall not be exposed to dripping or splashing and no ob-

jects lled with liquids, shall be placed on the apparatus.

For outdoors use, to avoid electric shock, use battery only during a

raining day or the weather is wet.

Important Safety Instructions

11.

12.

13.

14.

15.

16.

17.

18.

10.

1. Volume control knob

2. Tuning control / Select knob

3. FM/DAB+ antenna

4. LCD display

5. Charge LED indicator

6. Power On / Off button

7. Band button

8. Auto Tune button

9. Info button

10. Preset stations

11. Speaker

Controls

14. Aux In socket12. Battery compartment

13. Power cord storage

Controls

15. Alkaline / NiMH / NiCad rechargeable battery switch

16. Socket for software upgrade

Controls

Power the radio

1. Installing the batteries, rst turn battery cover xture anti-clockwise to

loosen and pull down the battery cover.

Note:

Before you insert the batteries, if you use non-rechargeable batteries,

make sure NiMH/Alkaline switch to Alkaline position.

2. Insert 4 x C size (UM-2) batteries into the compartment. Ensure the

battery is inserted in accordance with the diagram shown.

Close the battery cover and fasten the xture by turning clockwise. If

the radio is not to be used for any extended period of time, it is recom-

mended that the battery is removed from the radio.

Reduced power, distortion and a “stuttering sound” or low battery LED

indicator in red color is on are all signs that the batteries need replacing

or recharged (see below charge the batteries).

3. AC Operation

Before plug the AC power cord into the AC socket, be sure the voltage

is correct. If you have batteries in the radio and connect AC power cord

into the AC socket, the batteries will automatically be disconnected.

AC power cord storage is designed to store the cord when the radio is

not in use.

Charge the batteries

Reduced power, distortion and a “stuttering sound” or low battery red

LED is on are all signs that the batteries need recharged if you use re-

chargeable batteries to power the radio.

Note:

The radio can be charged only when the radio is off.

Connect the AC power cord into the AC socket to charge the batteries,

be sure the battery type switch is set to Ni/MH position.

When the radio is charged, the green Charge LED will be ashing, and

stop ashing (the green LED is on) when the radio is fully charged.

Charging time takes approx. 4-6 hours depending on capacity of the

rechargeable batteries in use.

Using the radio for the rst time

1. Place your radio on a at surface.

2. Fully extend the antenna on the top of your radio. Adjust the antenna

so it is as vertical as possible extending above the radio.

3. Insert the adaptor plug into the AC socket located on the rear of your

radio. Plug the adaptor into a standard mains outlet. The display will

show “Welcome to DAB” for a few seconds and then the display will

show “Clock not set…”. During this time the radio is to find a DAB

clock radio station. After a short time the current time will appear on

the display.

4. If no stations are found, “Clock not set…” will be displayed. Please

press the Power button to switch on your radio. It may be necessary

to relocate your radio to a position giving better reception. You should

then carry out a scan to nd stations as described on the subject as

“Display modes – DAB”. Then please press the Power button again

to switch off your radio. After a short time the current time will appear

on the display to replace “Clock not set…”.

IMPORTANT:

The mains adaptor is used as the means of connecting the radio to the

mains supply. The mains socket used for the radio must remain acces-

sible during normal use. In order to disconnect the radio from the mains

completely, the mains adaptor should be removed from the mains outlet

completely.

Operating your radio – DAB

1. Straighten the rubber antenna properly which is for both DAB and FM

reception. Press the Power On/Off button to switch on your radio.

2. Press the Band button to select DAB band.

3. If this is the rst time the radio is used, a quick scan of Band III DAB

channels will be carried out. The display will show “Clock not set…”.

If the radio has been used before, the last used station will be selected.

4. During Autotune, as new stations are detected, the station counter on

the right hand side of the display will increase and station will be added

to the list. The top line of the display shows a bar graph indicating

progress of autotune.

5. When the Autotune is completed, the rst station (in numeric-alpha

order 0…9…A…Z) will be selected.

6. If the station list is still empty after the Autotune, your radio will display

“No DAB Station”.

7. If no signals are found, it may be necessary to relocate your radio to

a position giving better reception.

Selecting a station – DAB

1. The top line of the display shows the name of the station currently

selected.

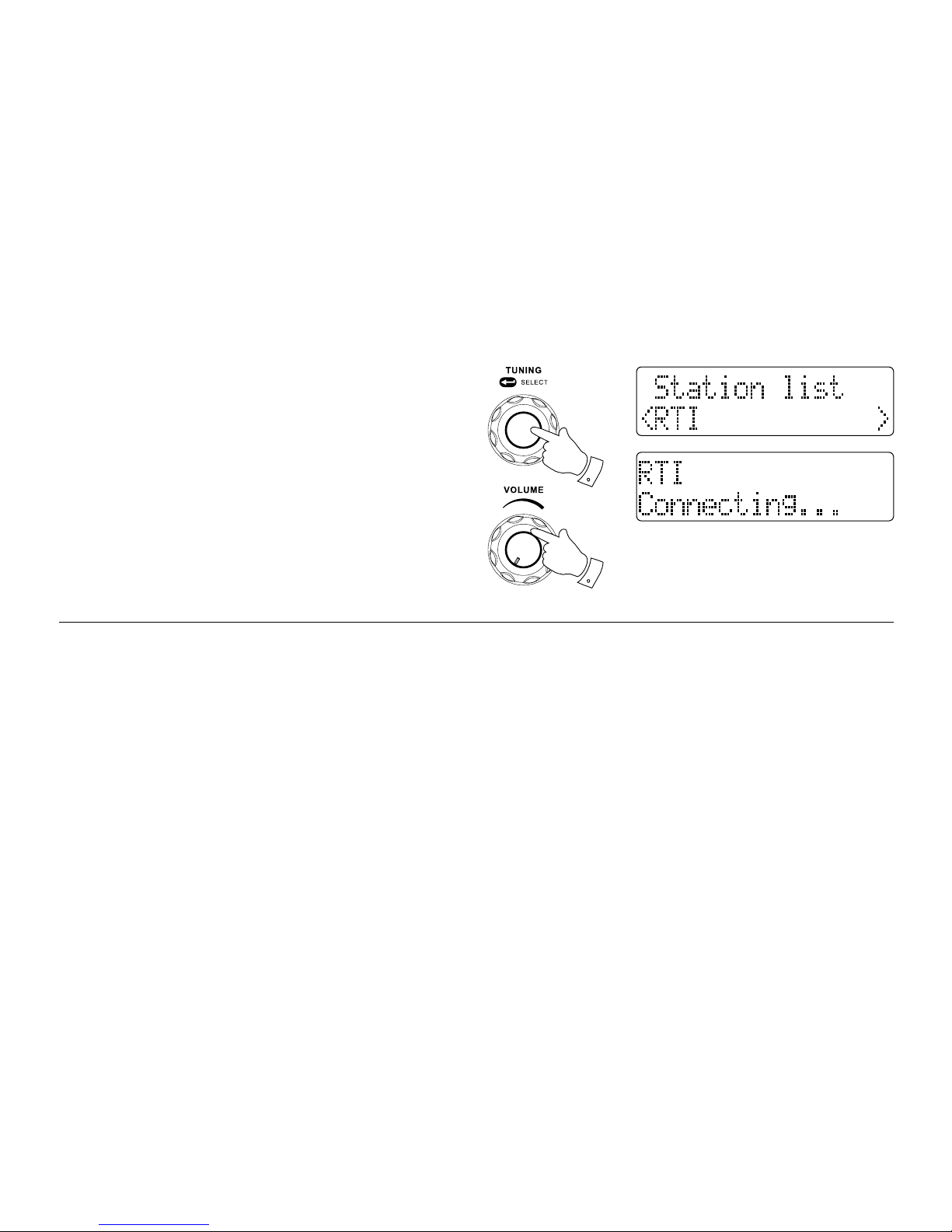

2. Rotate the Tuning control to scroll through the list of available stations.

3. Press and release the Tuning control knob to select the station. The

display may show “Connecting…” while your radio nds the new station.

4. Adjust the Volume control to the required setting.

Note:

If after selecting a station, the display shows “not available” it may be

necessary to relocate your radio to a position giving better reception.

Secondary service – DAB

1. Certain radio stations have one or more secondary services associated

with them. If a station has a secondary service associated with it, the

display will show “>>” next to the station name on the station list. The

secondary service will then appear immediately after the primary

service as you rotate the Tuning control knob.

2. Press and release the Tuning control knob to select the station.

2,3
