Perel LEDA402 Series Manual de usuario

LEDA402 Series

DESIGN LED FLOODLIGHT –20 W

DESIGN LED-SCHIJNWERPER –20 W

PROJECTEUR LED DESIGN –20 W

PROYECTOR LED DE DISEÑO –20 W

DESIGN LED-STRAHLER –20 W

HOLOFOTE LED COM DESENHO MODERNO –20 W

USER MANUAL 4

GEBRUIKERSHANDLEIDING 10

MODE D'EMPLOI 16

MANUAL DEL USUARIO 22

BEDIENUNGSANLEITUNG 28

MANUAL DO UTILIZADOR 34

LEDA402 Series

V. 01 –16/06/2014 2 ©Velleman nv

LEDA402 Series

V. 01 –16/06/2014 3 ©Velleman nv

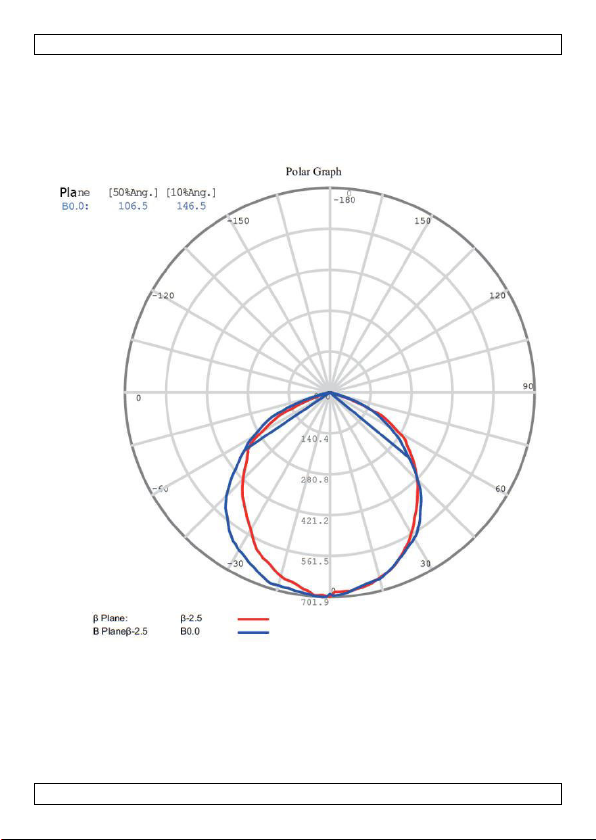

2D Light Distribution Curve

2D-lichtverdelingscurve

Courbe photométrique 2D

Curva de distribución de la luz 2D

2D- Lichtverteilungskurve

Curva de distribuição de luz 2D

LEDA402 Series

V. 01 –16/06/2014 4 ©Velleman nv

USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of

the device after its lifecycle could harm the environment. Do not

dispose of the unit (or batteries) as unsorted municipal waste; it

should be taken to a specialized company for recycling. This device

should be returned to your distributor or to a local recycling

service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before

bringing this device into service. If the device was damaged in transit, don't

install or use it and contact your dealer.

2. Safety Instructions

Keep this device away from children and unauthorized users.

Risk of electroshock when opening the cover. Touching live

wires can cause life-threatening electroshocks. Do not disassemble

or open the housing yourself. Have the device repaired by qualified

personnel.

This luminaire does not have a built-in device to disconnect it from

the electric mains. Make sure to electrically isolate the luminaire

before installation or maintenance activities are performed.

Do not crimp the power cord and protect it against damage.

Warning! If the power cord is damaged, it must be replaced by

the manufacturer, its service agent, or similarly qualified persons

in order to avoid any hazard.

Make sure that the available voltage does not exceed the voltage

stated in the specifications of this manual.

A qualified technician shall install and service this device.

DO NOT disassemble or open the cover. There are no user-

serviceable parts inside the device. Refer to an authorized dealer

for service and/or spare parts.

Caution: possibly hazardous optical radiation emitted from this

product. Do not look at operating lamp. Eye injury may result.

LEDA402 Series

V. 01 –16/06/2014 5 ©Velleman nv

Caution: device heats up during use.

Respect a minimum distance of 0.5 m between the device’s

light output and any illuminated surface.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages

of this manual.

Keep this device away from extreme temperatures.

Protect this device from shocks and abuse. Avoid brute force when

operating the device.

This device is not suitable for dimming.

Do not use the luminaire with a cracked or broken

protective glass. Disconnect immediately from the

mains and have it repaired by a qualified technician.

Familiarise yourself with the functions of the device before actually

using it.

All modifications of the device are forbidden for safety reasons. Damage

caused by user modifications to the device is not covered by the

warranty.

Only use the device for its intended purpose. All other uses may lead to

short circuits, burns, electroshocks, lamp explosion, crash, etc. Using the

device in an unauthorised way will void the warranty.

Damage caused by disregard of certain guidelines in this manual is not

covered by the warranty and the dealer will not accept responsibility for

any ensuing defects or problems.

Use the original packaging if the device is to be transported.

Keep this manual for future reference.

4. Features

floodlight for commercial or residential use

die-cast aluminium housing with tempered glass

ultra-thin design

with adjustable bracket

with 50 cm unterminated cable

suited for outdoor use (IP65)

energy efficiency index (EEI): A+

LEDA402 Series

V. 01 –16/06/2014 6 ©Velleman nv

5. Overview

Refer to the illustrations on page 2 of this manual.

mounting bracket

protective glass

hinge

power cable

6. Installation

Guidelines

A qualified technician should install and service this device.

The construction to which the device is attached should be able to

support 4 times the weight of the device for one hour without

deformation.

Never stand directly below the device when it is being mounted,

removed or serviced. Have a qualified technician check the device once a

year and once before you bring it into service.

Overhead mounting requires extensive experience: calculating workload

limits, determining the installation material to be used… Have the

material and the device itself checked regularly. Do not attempt to install

the device yourself if you lack these qualifications as improper

installation may result in serious injuries.

This device is not suitable for dimming.

Distances

Keep at least 50 cm distance at the top and 30 cm on either side.

Respect a minimum distance of 0.5 m between the device’s light output

and any illuminated surface.

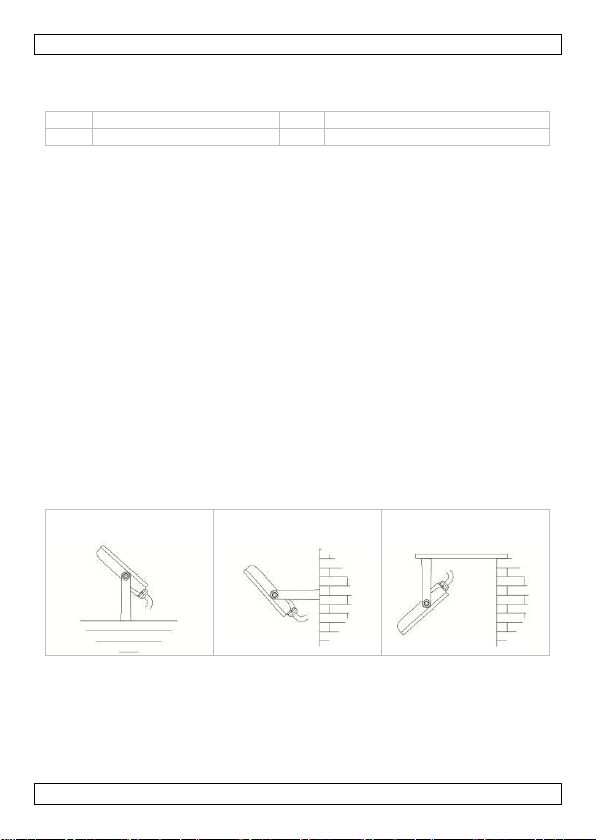

Suitable Mounting Positions

on the floor

on a wall

on the ceiling

Mounting the Lamp

1. This luminaire does not have a built-in device to disconnect it from the

electric mains. Make sure to electrically isolate the luminaire before

installation or maintenance activities are performed.

2. Use the mounting bracket [1] to determine the location of the mounting

holes.

3. Drill the holes and secure the bracket using screws and wall plugs.

LEDA402 Series

V. 01 –16/06/2014 7 ©Velleman nv

4. Connect the power cable [4] to a suitable junction box (not incl.). Make

sure the connection is properly earthed. Make sure there is no strain on

the cable; leave sufficient slack.

N = neutral, blue

E = earth, yellow/green

L = line, brown

Warning: if the power cable is damaged, it must be replaced by the

manufacturer, his service agent, or a similar qualified person in order to

avoid any hazard.

5. To point the lamp in the desired direction: loosen the hinges [2] using a

hex key.

6. Tilt the lamp in the desired angle and tighten the hinges.

7. Cleaning and Maintenance

All screws should be tight and free of corrosion.

The housing, the visible parts, the mounting supports and the installation

location (e.g. ceiling, suspension, trussing) should not be deformed,

modified or tampered with; e.g. do not drill extra holes in mounting

supports, do not change the location of the connections…

Mechanically moving parts must not show any signs of wear and tear.

The electric power supply cables must not show any damage. Have a

qualified technician maintain the device.

If the protective glass [3] is damaged, disconnect the lamp immediately

from the mains. Have it repaired immediately by a qualified technician.

Do not use the lamp with a cracked or broken protective glass.

This luminaire does not have a built-in device to disconnect it from the

electric mains. Make sure to electrically isolate the luminaire before

installation or maintenance activities are performed.

Wipe the device regularly with a moist, lint-free cloth. Do not use alcohol

or solvents.

There are no user-serviceable parts.

Contact your dealer for spare parts if necessary.

LEDA402 Series

V. 01 –16/06/2014 8 ©Velleman nv

8. Technical Specifications

All models

electrical data

power LED module

16 x SMD 1.3 W LED

total nominal power

22 W

nominal voltage driver

230 VAC

nominal voltage LED module

32.5 V

power factor

0.59

energy consumption

22 kWh/1000h

cable

H05RN-F 3G1.0 –50 cm

light technical data

beam angle

100°

luminous flux

1400 lm

colour rendering index

starting time

< 0.5 s

warm-up time (60 %)

< 1 s

lifespan

nominal life time

36 000 h

number of switching cycles

18 000

dimensions & weight

dimensions (W x H x D)

spot

185 x 135 x 27 mm

incl. bracket

213 x 135 x 105 mm

cable length

± 50 cm

weight

900 g

Individual models

model

body colour

light colour

colour temperature

LEDA402CW-B

matte black

cold white

6500 K

LEDA402CW-SG

silver grey

LEDA402CW-W

white

LEDA402NW-B

matte black

neutral white

4000 K

LEDA402NW-SG

silver grey

LEDA402NW-W

white

LEDA402WW-B

matte black

warm white

3000 K

LEDA402WW-SG

silver grey

LEDA402WW-W

white

LEDA402 Series

V. 01 –16/06/2014 9 ©Velleman nv

Use this device with original accessories only. Velleman nv cannot

be held responsible in the event of damage or injury resulting from

(incorrect) use of this device.

For more info concerning this product and the latest version of this

manual, please visit our website www.perel.eu.

The information in this manual is subject to change without prior

notice.

The copyright to this manual is owned by Velleman nv. All

worldwide rights reserved. No part of this manual may be copied,

reproduced, translated or reduced to any electronic medium or otherwise

without the prior written consent of the copyright holder.

LEDA402 Series

V. 01 –16/06/2014 10 ©Velleman nv

GEBRUIKERSHANDLEIDING

1. Inleiding

Aan alle ingezetenen van de Europese Unie

Belangrijke milieu-informatie betreffende dit product

Dit symbool op het toestel of de verpakking geeft aan dat, als het

na zijn levenscyclus wordt weggeworpen, dit toestel schade kan

toebrengen aan het milieu. Gooi dit toestel (en eventuele

batterijen) niet bij het gewone huishoudelijke afval; het moet bij

een gespecialiseerd bedrijf terechtkomen voor recyclage. U moet

dit toestel naar uw verdeler of naar een lokaal recyclagepunt

brengen. Respecteer de plaatselijke milieuwetgeving.

Hebt u vragen, contacteer dan de plaatselijke autoriteiten

betreffende de verwijdering.

Dank u voor uw aankoop! Lees deze handleiding grondig voor u het toestel

in gebruik neemt. Werd het toestel beschadigd tijdens het transport,

installeer het dan niet en raadpleeg uw dealer.

2. Veiligheidsinstructies

Houd dit toestel buiten het bereik van kinderen en onbevoegden.

Elektrocutiegevaar bij het openen van het toestel. Raak geen

kabels aan die onder stroom staan om dodelijke elektrische

schokken te vermijden. Open de behuizing niet zelf. Laat het

onderhoud van het toestel over aan een geschoolde vakman.

Dit toestel is niet uitgerust met een aan-uitschakelaar om het van

het lichtnet los te koppelen. Isoleer het toestel elektrisch voor de

installatie of onderhoud.

Zorg ervoor dat het stroomsnoer niet gekneld of geplooid is en

bescherm het tegen beschadiging.

Waarschuwing! Indien de voedingskabel beschadigd is, dan moet

deze door de fabrikant, diens servicedienst, of een gelijkwaardig

bekwaam persoon vervangen worden om gevaar te voorkomen.

De beschikbare netspanning mag niet hoger zijn dan de spanning

in de specificaties achteraan de handleiding.

Laat dit toestel installeren en onderhouden door een geschoolde

technicus.

Demonteer of open dit toestel NOOIT. Er zijn geen onderdelen

in het toestel die door de gebruiker gerepareerd kunnen worden.

Voor onderhoud of reserveonderdelen, contacteer uw dealer.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Foco de Perel

Perel

Perel LEDA3001RGB Manual de usuario

Perel

Perel ELS3WD Manual de usuario

Perel

Perel ELS3 Manual de usuario

Perel

Perel LEDA401 Series Manual de usuario

Perel

Perel LEDA250NW Manual de usuario

Perel

Perel LEDA251NW Manual de usuario

Perel

Perel LEDA3001 P Series Manual de usuario

Perel

Perel ELS3B Manual de usuario

Perel

Perel LEDA7001NW-BP Manual de usuario

Perel

Perel LEDA200 NW-BP Series Manual de usuario

Perel

Perel LEDA500 NW-BM Series Manual de usuario

Perel

Perel ELS3W Manual de usuario

Perel

Perel ELS3D Manual de usuario

Perel

Perel LEDA7001NW-B Manual de usuario

Perel

Perel EFL5PL Manual de usuario

Perel

Perel LEDA2001NW-B Manual de usuario

Perel

Perel LEDA4002 Series Manual de usuario

Perel

Perel EWL311 CW-R Manual de usuario

Perel

Perel LEDA500xxW Series Manual de usuario

Perel

Perel LEDA4001 Series Manual de usuario

Perel

Perel LEDA500 NW-BM Series Manual de usuario

Perel

Perel LEDA600 NW-B Series Manual de usuario

Manuales populares de Foco de otras marcas

VIZULO

VIZULO Micro Martin Guía del usuario

EuroLite

EuroLite LED IP FL-100 SMD Manual de usuario

Cooper Wheelock

Cooper Wheelock XB12 Manual de usuario

Allen + Roth

Allen + Roth 17624-000 Manual de usuario

ADJ

ADJ 4 STAGE PAK Manual de usuario

Cooper Lighting

Cooper Lighting EGL91SW233 Manual de usuario

Max

Max 37496 Manual de usuario

BEGA

BEGA 85 143 Manual de usuario

Beamz

Beamz 151.226 Manual de usuario

EuroLite

EuroLite LED IP FL-8 Manual de usuario

Ledj

Ledj PERFORMER 36 RGB Manual de usuario

LumX

LumX LM 36130 Manual de usuario

Xtricity

Xtricity 4-80053 Manual de usuario

Stahl

Stahl 6521/4 Series Manual de usuario

Ecosense

Ecosense EcoSpec Manual de usuario

Ayrton

Ayrton minipanel FX Manual de usuario

Commercial Electric

Commercial Electric TPAR2-PC-4K-BZ Manual de usuario

LiRON LiGHTING

LiRON LiGHTING LEDLFL Manual de usuario
