1. System Overview
Schematic Drawing of Gutter Application
The Raychem GM-CW constant wattage heating cable system can prevent ice dams and
icicles by maintaining a continuous path for melt water to drain from the roof. A typical
roof and gutter de-icing system includes the GM-CW heating cables, control system and
power distribution.
1 Ambient sensor
2 Moisture sensor HARD-45
3 Heating cable (GM-2CW; GM-4CW)
4 GM-RAKE or GM-HANGER
5 Controller EMDR-10
6 Control panel with RCD 30 mA
8
2. Pre- Installation checks
• Correct Constant wattage Heating cable and size?
— GM-2CW for 230 VAC
— GM-4CW for 400 VAC
— Overview of sizes
• Controller (EMDR-10) – to be ordered separately
• Roof and gutter accessories – to be ordered separately
— GM-RAKE
— ICE-STOP-GMK-RC
— GM-SEAL-02
— GM-CLIP-S, GM-CLIP-M, GM-CLIP-L
— GM-HANGER
— KBL-10 cable ties (UV resistant)
• Material physical damaged check
• Review the Design
— Plan of location of all junction boxes and supply points
— Review the attachment methodes
3. Heating cable installation and attachment methods

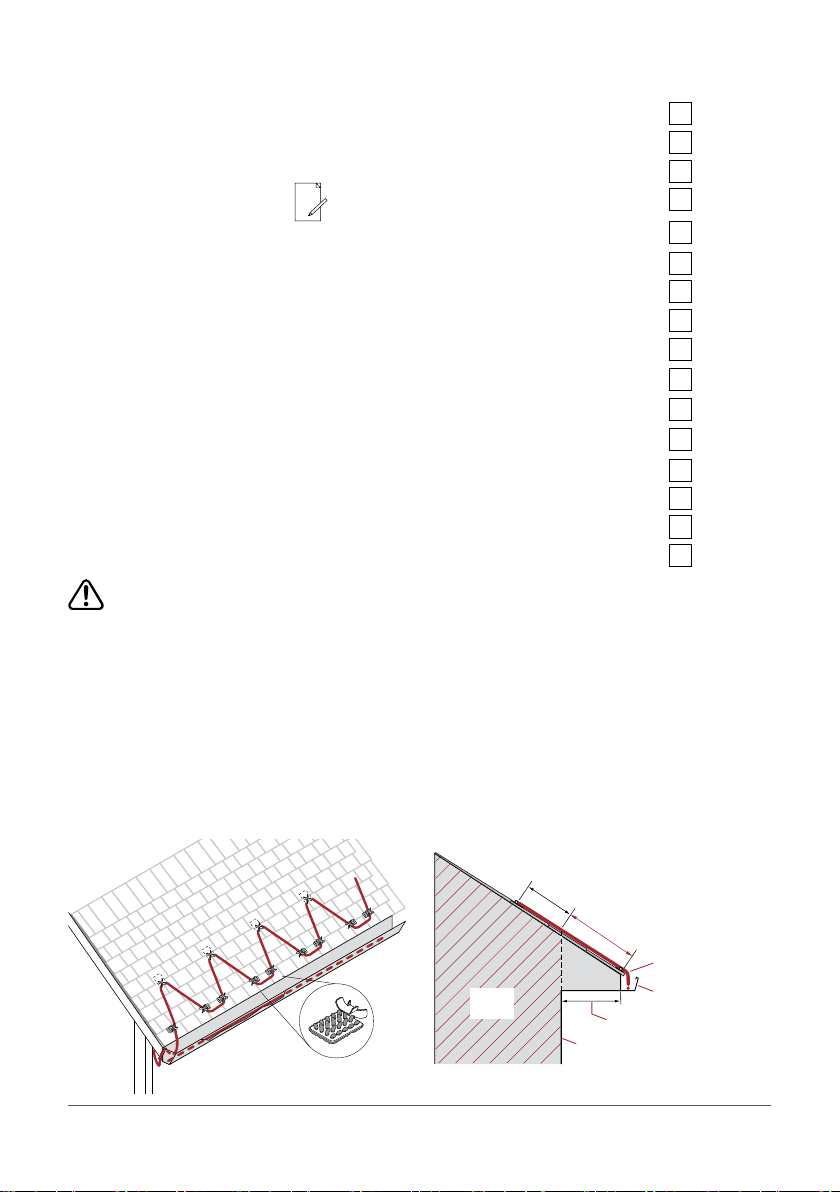

a. Sloped roof with overhang
• Heating cable should be in contact with snow or ice
• Layout in zig-zag pattern
• Fasten the clips to the roof with GM-SEAL-02 before installing heating cable in
the brackets
30 cm
Area where ice dams are
most likely to form
Eave overhang
Exterior wall
Heating cable
Gutter
Roof
Heated
area
77
IMPORTANT!
The GM-2(4)CW is a constant wattage heating cable. Please do not overlap and shorten
or cut the heating cable! The cable must be connected by an authorised electrician.
9
• Heating cable will be hold in GMK-RC on the roof
• 1 box with 50 x GMK-RC sufficient for 11 m
b. Sloped Roof with Seams
• Adhesive attachment method
• Run the cable up to the seam until it is 30 cm
• Run the cable up on one side of the seam, loop it over the other side and return
to the bottom of the gutter
• If the seams are more than 60 cm trace every seam
• GMK-RC roof clips are used to secure the GM-2CW/GM-4CW heating cable
attached by adhesive GM-SEAL 02
• Clean and prepare roof surface for adhesive
• On each seam use 4 clips
• Fasten the clips to the roof before
• Install heating cable in the brackets

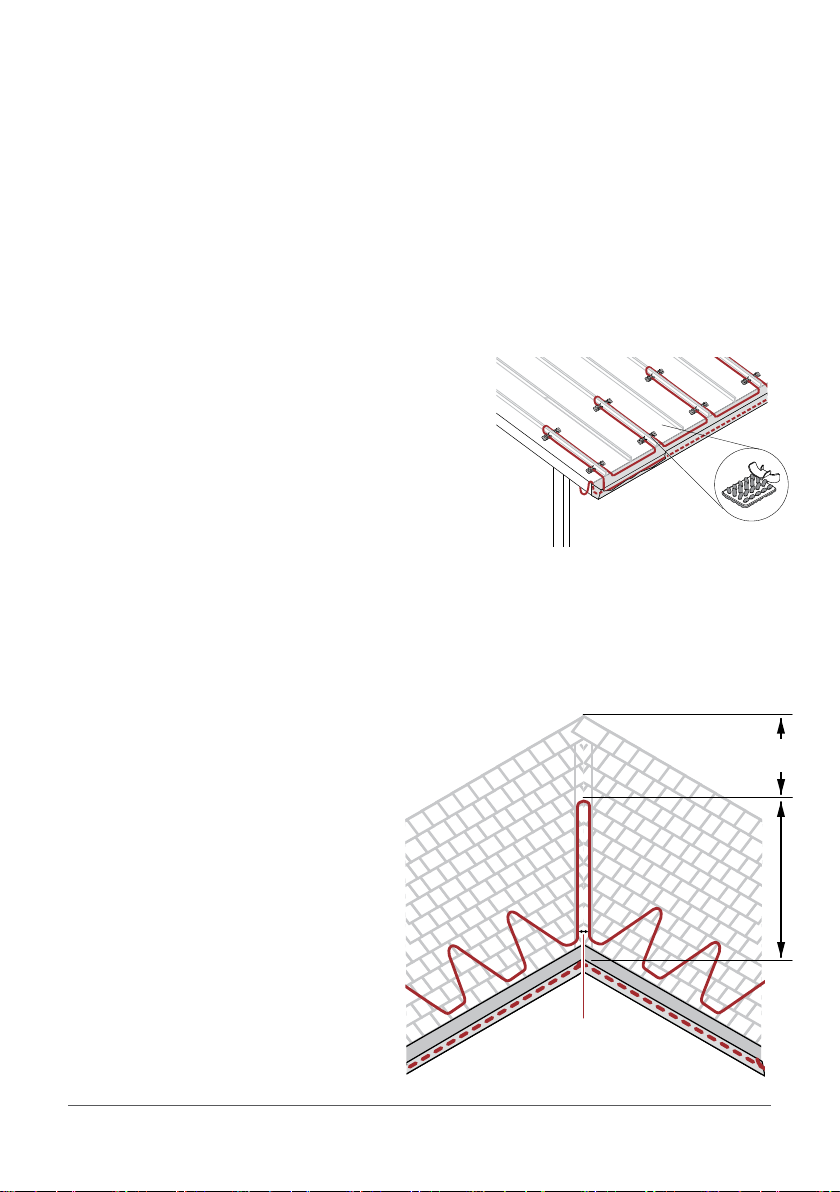

c. Roof valleys
• Ice dams may form at the valley
on a roof where two different
slopes meet
• To maintain a continuous path for
melt water, run the heating cable
up and down the valley
• Trace two-thirds of the way up
each valley with a double run of
heating cable (loop up and
back once)
• The heating cables shall not
overlap each other in the gutter
2/3
1/3
10 cm
10
d. Roof/wall - intersection
• Snow has a tendency to collect at this interface roof/wall.
• Providing a loop of heating cable two-thirds of the way up the slope will provide a
path for the extra melt water in this area to escape.
• Position the closest heating cable approximately 5 to 8 cm from the wall. Position
the second heating cable 10 to 16 cm from the first.
• Keep minimum distance between the heating cable of 10 cm. Heating cable
should not be overlapped.
5 - 8 cm
10 - 16 cm
1/3
2/3
e. Gutters
• For standard gutter use one run of heating cable in the gutter.
• Use GM-RAKE and cable ties for fixing heating cable and direction changes.
• No attachment is normally required.
• In high wind areas use GMK-RC adhesive mounted attachment clips.
≥200 mm
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Idiomas:
Otros manuales de Sistema de calefacción de Pentair
