Installation and Assembly

- Jumbo 2000®

Models:

OP-JMW2630,OP-JMW2640,

OP-JMW2640D,OP-JMW2650,

OP-JMW2650D,OP-JMW2655

Please read this information first

Read entire instruction sheet before beginning assembly

andinstallation.

Check parts on parts listing before beginning assembly.

Many accessories are available for this product. Please

contact customer service or visit website for more

information.

The retainer bar (D) in step 6 must be placed with ex-

truded side towards the anti rollout hook (C).

Pay close attention to the assembly of the threaded flush

mount tube (N) in step 8. The retaining collar (K) threads

up into the horizontal support (G). The set screw (W) is

then installed from the inside of that collar into the notch

in the tube. Refer to drawings for correct placement.

The placement of set screw (W) in detail 3 of step 8 is

essential to the safety of the installation.

MAXIMUM OSHPD LOAD

CAPACITY: 96 lb (43.5 kg)

Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.

2 of 13 ISSUED: 05-18-05 SHEET #: 128-9155-2 07-11-05

DESCRIPTION OP-JMW 2630

128-1023

128-1024

128-1128

128-1107

128-1116

128-1117

128-1105

570-0024

128-1016

128-1340

128-1339

540-9432

1800-375

540-9431

128-0067

1446-014

520-9207

530-1016

520-9261

520-1166

520-1041

520-1105

520-9250

2245-081

590-1055

500-9006

540-9400

128-1429

520-1235

540-1055

OP-JMW 2650

128-1023

128-1024

128-1130

128-1111

128-1116

128-1117

128-1105

570-0024

128-1018

128-1335

128-1334

540-9432

1800-375

540-9431

1446-014

520-9207

530-1016

520-9261

520-1166

520-1041

520-1105

520-9250

2245-081

590-1055

500-9006

540-9400

128-1427

520-1235

540-1055

OP-JMW 2650D

128-1026

128-1027

128-1135

128-1111

128-1116

128-1117

128-1105

570-0024

128-1018

128-1335

128-1334

540-9432

1800-375

540-9431

1446-014

520-9207

530-1016

520-9261

520-1166

520-1041

520-1105

520-9250

2245-081

590-1055

500-9006

540-9400

128-1427

520-1235

540-1055

OP-JMW 2655

128-1026

128-1027

128-1135

128-1109

128-1116

128-1117

128-1105

570-0024

128-1018

128-1335

128-1334

540-9432

1800-375

540-9431

1446-014

520-9207

530-1016

520-9261

520-1166

520-1041

520-1105

520-9250

2245-081

590-1055

500-9006

540-9400

128-1427

520-1235

540-1055

M O D E L N U M B E R

QTY.

support tray left

support tray right

support tray center

vertical support arm

anti-rollout hook

retainer bar

top clamp

adhesive pad

horizontal support

tilt bracket right

tilt bracket left

fiber washer - large inside dia.

retaining collar

fiber washer - small inside dia.

spacer (only 2630-2640D models)

flush mount tube

5/16 - 18 x 1/2" carriage bolt

5/16 washer/nut combo

M10-1.5 x .7 flange nut

M6 x 18 mm flat phillips screw

M10 x 16 mm socket screw/washer combo

M10 serrated flange head screw

M5 x .8 x 10 mm screw

uni-clip

plastic cover for anti-rollout hook

#10 x 3/4 particle board screw

#10 flat washer

wall arm

3/8" x 4" lag bolt

.406 x .75 x .06 washer

OP-JMW 2640D

128-1026

128-1027

128-1134

128-1109

128-1116

128-1117

128-1105

570-0024

128-1017

128-1335

128-1334

540-9432

1800-375

540-9431

128-0067

1446-014

520-9207

530-1016

520-9261

520-1166

520-1041

520-1105

520-9250

2245-081

590-1055

500-9006

540-9400

128-1429

520-1235

540-1055

OP-JMW 2640

128-1023

128-1024

128-1129

128-1109

128-1116

128-1117

128-1105

570-0024

128-1017

128-1335

128-1334

540-9432

1800-375

540-9431

128-0067

1446-014

520-9207

530-1016

520-9261

520-1166

520-1041

520-1105

520-9250

2245-081

590-1055

500-9006

540-9400

128-1429

520-1235

540-1055

Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.

3 of 13 ISSUED: 05-18-05 SHEET #: 128-9155-2 07-11-05

Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.

4 of 13 ISSUED: 05-18-05 SHEET #: 128-9155-2 07-11-05

Reach

18"

22.5"

Note: Read entire instruction sheet before

you start installation and assembly.

(457 mm)

(572 mm)

Reach

Compatible Jumbo Mount Models

OP-JM2630, OP-JM2640, OP-JM2640D

OP-JM2650, OP-JM2650D, OP-JM2655

WALLARMFORJUMBOMOUNTS-SPECIFICATIONS

Flush

Mount

Tube BB

Fromthe top threadthe Flush MountTube

(includedwithyourJumboMountBracket)

throughthreadedfittinginwallarm(BB).

Note:If you are installing to a metal stud

wall,please refer to theaccompanying metal

stud instruction sheet.

• Installer must verify that the wall will safely support four times the combined weight of all attached equipment and

hardware.

• Do not attach directly to a metal stud wall. Use of a WSP wall plate is required for attachment to metal studs

(contactcustomerservice).

• Weight of TV or screen shall not exceed maximum load capacity.

WARNING

For use only to support Jumbo Mount TV Brackets or

other products as specified by Peerless. Combine only

as specified (see specifications below).

• Weight of TV or monitor not to exceed OSHPD maximum load capacity!

WARNING

Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.

5 of 13 ISSUED: 05-18-05 SHEET #: 128-9155-2 07-11-05

For Wood Stud Walls add blocking as required to accommodate wall arm hole pattern. Use wall arm (BB) as a

template to drill ten .281" (7 mm) dia. holes to a minimum depth of 4" (102 mm) into stud center and blocking.

Attach wall arm using ten 3/8" x 4" lag bolts (CC) and 10 washers (DD).

• Tightenwood screws sothat wall plateis firmly attached,but do notovertighten. Overtightening candamage the

screws,greatlyreducing their holdingpower.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Make sure that mounting screws are anchored into the center of the studs and wood blocking. The use of an

"edgeto edge" studfinder is highlyrecommended.

WARNING

BLOCKING

(BYENGINEEROFRECORD)

2XOR3XSTUDS

Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.

6 of 13 ISSUED: 05-18-05 SHEET #: 128-9155-2 07-11-05































































For Concrete Walls Order OP-ACC 204.

Making sure that it is level, use wall arm (BB) as

a template to mark holes. Use an ANSI drill bit

size between 0.255" - 0.259" to drill eight holes

to a minimum depth of 3.25" (83 mm) as shown in

figure 2.1.1. Blow the hole clean of dust and

othermaterial.

Attach using washers and bolts as shown in

figure 2.1.2



























































































































Fig. 2.1.1

Fig. 2.1.2

CONCRETE

Fig. 2.1.3

CONCRETE

• Tighten screws firmly, but do notovertighten.Over-

tighteningcan damage thebolts, greatly reducing

theirholdingpower.

• Never tighten in excess of 80 in. • lb (9 N.M.).

WARNING

• Concrete anchors are notintended forattachmentto

concretewall covered witha layer ofplaster,drywall,

orotherfinishing material.

WARNING

WASHER

POWERSWEDGE BOLT

(560-1165)

WASHER

(540-9401)

• Concrete must be 3000 psi density minimum. Lighter density concrete may not hold concrete anchor.

• Make sure that the wall will safely support the combined load of the equipment and all attached hardware and

components. Direct pull test to 800 lbs. or torque to 10 ft-lbs to test strength of concrete.

WARNING

Useholesshown below

Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.

7 of 13 ISSUED: 05-18-05 SHEET #: 128-9155-2 07-11-05

• Tightenscrews firmly,butdonotovertighten.Over-

tighteningcan damage thebolts, greatly reducing

theirholdingpower.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Distancebetween ends ofthreaded rod andlock nuts

after tightening must be 1/8" minimum.

WARNING

THREADEDROD

(580-1143)

WASHER

(540-1061)

LOCKNUT

(530-1030)

LOCKNUT

(530-1030)

For Concrete Block Walls Order OP-ACC 307.

Making sure that it is level, use wall arm (BB) as

a template to mark holes. Drill eight .281" holes

through block as shown in figure 2.2.1. Blow the

holeclean of dust and othermaterial.

Attach using fasteners as shown in figure 2.2.2.

• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete

surface in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid

part of the block, generally 1" minimum from the side of the block. Cinder block must meetASTM C-90 specifica-

tions. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill

toavoid breaking outthe back ofthe hole whenentering a voidor cavity.

• Make sure that the wall will safely support the combined load of the equipment and all attached hardware and

components.

WARNING

WASHER









































































CONCRETE

BLOCK















































































































































CONCRETE

BLOCK

CONCRETE

BLOCK

WASHER

(540-1061)

Fig. 2.2.1

Fig. 2.2.2

Fig. 2.2.3

Useholesshown below

1/8"

min.

Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.

8 of 13 ISSUED: 05-18-05 SHEET #: 128-9155-2 07-11-05

SIDEVIEW

FLOOR

Place TV onto a piece of pipe as

shown.(Pipe shouldbe afew inches

wider than the TV.) Roll TV back and

forth to find the balance point. This is

the center of gravity. Mark the center

of gravity on the side of the TV.

CENTEROF

GRAVITY

Adjust support tray (A1,A2,& A3, three pieces)

to match width of TV.

Lock support tray using four carriage bolts (O),

andwasher/nutcombos(P).Tightensecurely.

Attachadhesivepads (F)to

top clamps (E).

Insertplasticcovers(Y)onto

endsofanti-rollouthooks(C). E

Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.

9 of 13 ISSUED: 05-18-05 SHEET #: 128-9155-2 07-11-05

Attach support tray (A) to vertical support arms (B) as shown. Choose the square hole which aligns closest

with the center of gravity mark on the TV (as determined in step 3). Attach anti-rollout hooks (C) as shown

usingM6 screws(S) andretainer bars (D).

Althoughtopclamps (E)andanti-rollout

hooks (C) [see step 7] will provide more than

adequate support for the TV, some installers

may wish to also attach the support tray to

the TV bottom.

Using uni-clips (X) and M5 screws (W) (see

instruction card in fastener pack), or #10 x

3/4"particleboard screws(Z)andwashers

(AA)(forattachmenttomountingbossesif

present), or a combination of both, attach

support tray (A) to TV bottom. [To do this

place TV upside down on a flat stable

surfaceandpositionsupporttrayupside

down on TV bottom.] Attach at four places

as close to the four corners of the TV bottom

as possible.

Required for OSHPD approved installation - optional otherwise

TV BOTTOM

TV(UPSIDEDOWN)

Note:Extrudedside ofretainerbar(D)goestowards

anti-rollouthook(C).Handtightenonly.

Visit the Peerless Web Site at www.peerlessmounts.com For customer service call 1-800-729-0307 or 708-865-8870.

10 of 13 ISSUED: 05-18-05 SHEET #: 128-9155-2 07-11-05

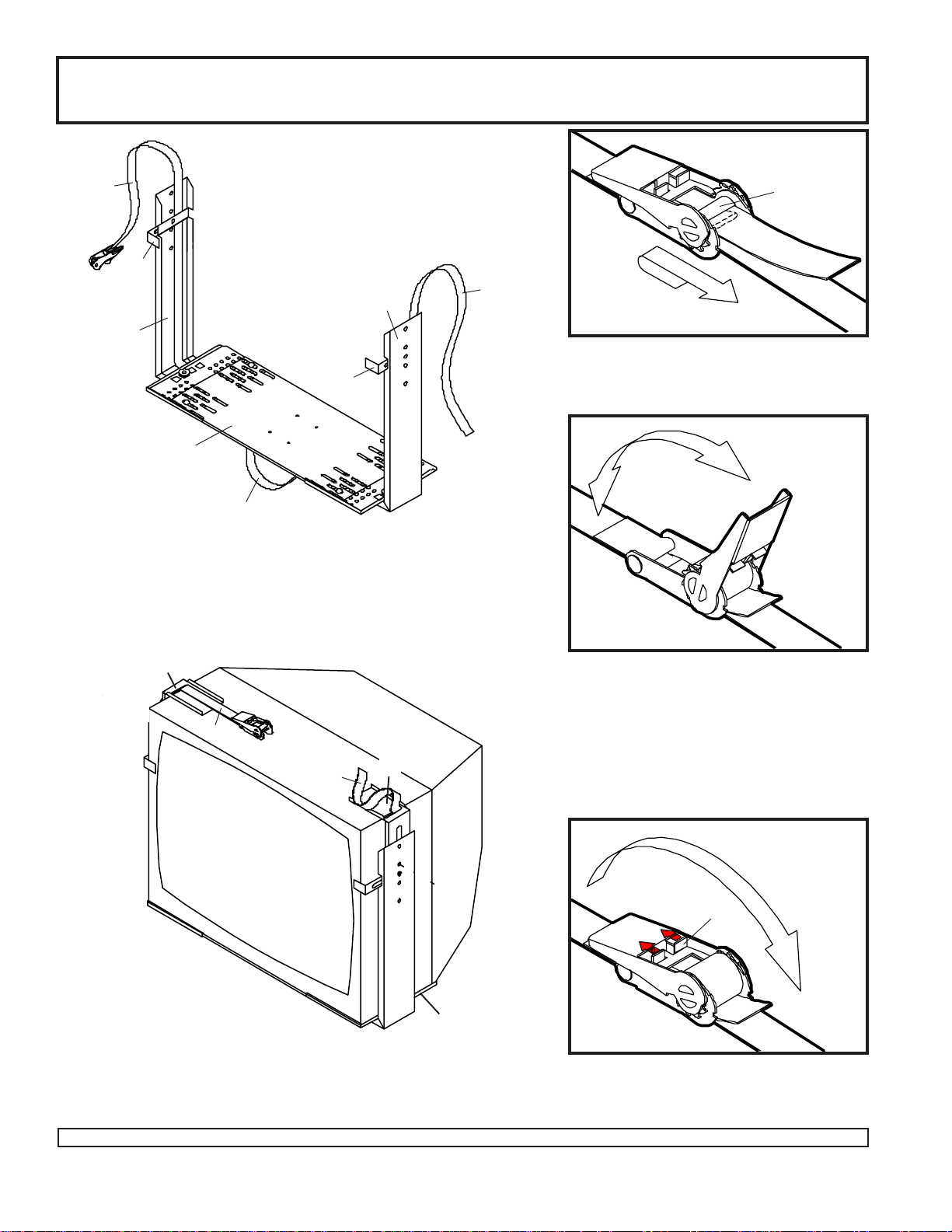

Pump ratchet handle to tighten belt. For secure

hold, ratchet reel must have at least two layers of

belt around it.

Note: Too many layers of belt around ratchet reel

will cause it to jam. To avoid this problem be sure to

remove ALL slack from belt before pumping ratchet

handle.

After belt is tight, close ratchet handle.

To release, compress release bar and open ratchet

handle 180°.

Wrap belt around TV or monitor and mounting

surface. Insert end of belt through ratchet reel

and pull until ALL slack is out of belt.

release bar

ratchet

handle

belt

Insert belt under,

behind, then through

ratchet reel.

ratchet reel

Position TV on support tray (A), thread belt through slots in top

clamps (E). Secure TV with belt as directed in detail 1, 2 & 3.

Safety belt, ACC 666 (Sold Separately), required for OSHPD approved installation.

Use of this belt is optional for all other installations.

Optional safety belt ACC 666 (required for OSHPD approved

installation) sold separately.

Threadbeltbetweensupportarms(B)andanti-rollouthooks(C),

andbetweensupportarms (B)andsupporttray(A).

belt

detail 1

detail 2

detail 3

belt

Este manual sirve para los siguientes modelos

Otros manuales de Soporte de TV de PEERLESS

PEERLESS

PEERLESS SUAC9000 and assembly Guía

PEERLESS

PEERLESS PARAMOUNT PT630 and assembly Guía

PEERLESS

PEERLESS PM 13 and assembly Guía

PEERLESS

PEERLESS PARAMOUNT PP740 Guía

PEERLESS

PEERLESS PLA1-UN7 Guía

PEERLESS

PEERLESS WSP 320 Manual de usuario

PEERLESS

PEERLESS SR1M Guía

PEERLESS

PEERLESS PARAMOUNT PT640 and assembly Manual de instrucciones

PEERLESS

PEERLESS Smartmount ST632P Guía

PEERLESS

PEERLESS SMARTMOUNT SA763PU Manual de usuario

PEERLESS

PEERLESS WSP816 Guía

PEERLESS

PEERLESS LWS410/BK Guía

PEERLESS

PEERLESS Smartmount ST650 and assembly Guía

PEERLESS

PEERLESS SS550P and assembly Manual de instrucciones

PEERLESS

PEERLESS PARAMOUNT PT650 and assembly Guía

PEERLESS

PEERLESS PARAMOUNT PF640 and assembly Guía

PEERLESS

PEERLESS PARAMOUNT PA740 Guía

PEERLESS

PEERLESS Smartmount ST630P and assembly Guía

PEERLESS

PEERLESS HAVE1 FPZ-655 Manual de usuario

PEERLESS

PEERLESS DS416 Guía

PEERLESS

PEERLESS PM1327 Guía

PEERLESS

PEERLESS PLCK-1 Guía

PEERLESS

PEERLESS SlimLine SLWS210/BK Manual de usuario

PEERLESS

PEERLESS PARAMOUNT PRFLU Manual de usuario

Manuales populares de Soporte de TV de otras marcas

Ergotron

Ergotron Neo Flex Cantilever UHD Manual de usuario

StarTech.com

StarTech.com FPCEILBTB Manual de usuario

VonHaus

VonHaus 05/038 Manual de usuario

Techlink

Techlink ECHO TV Manual de usuario

Sandstrom

Sandstrom SSTVMC12X Manual de usuario

Sony

Sony SU-WL700 Guía

ICW

ICW SCACC18 Manual de usuario

LG WM-L640V Manual de usuario

Gembird

Gembird WM-65ST-01 Manual de usuario

ERARD

ERARD FiTUP XXL 035320 Manual de usuario

Kanto

Kanto RCF180 Manual de usuario

GEM

GEM GEM GP001 Manual de usuario

Gladiator Joe

Gladiator Joe GJ0A0053 Manual de usuario

Vivotek

Vivotek AM-105 Manual de usuario

Vivo

Vivo VESA STAND-VAD1B Manual de usuario

AmazonBasics

AmazonBasics B07QG3LMG4 Manual de usuario

Secura

Secura QLF210 Manual de usuario

Marquant

Marquant 929-083 Instrucciones de funcionamiento
