Peerless-AV DS-S560-1X3 Manual de usuario

12015-07-01 #:009-9120-6 (2020-01-13)

ENG

DS-S560-1X3

375 lb

(170 kg)

MAX

46" - 60"

(117 - 152 cm)

22015-07-01 #:009-9120-6 (2020-01-13)

ENG - This product is designed to be installed on solid concrete. Hardware is included for solid concrete

installation. Before installing make sure the supporting surface will support the combined load of the equipment

and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product

may fail. Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to

safely lift and position equipment. This product is intended for indoor use only. Use of this product outdoors could

lead to product failure or personal injury. Be careful not to pinch ngers when operating the mount. For support

please call customer care at 1-800-865-2112.

WARNING

Symbols

ENG

WARNING

ENG

Screws must get at

least three full turns

and t snug.

ENG

Do not overtighten screws.

ENG

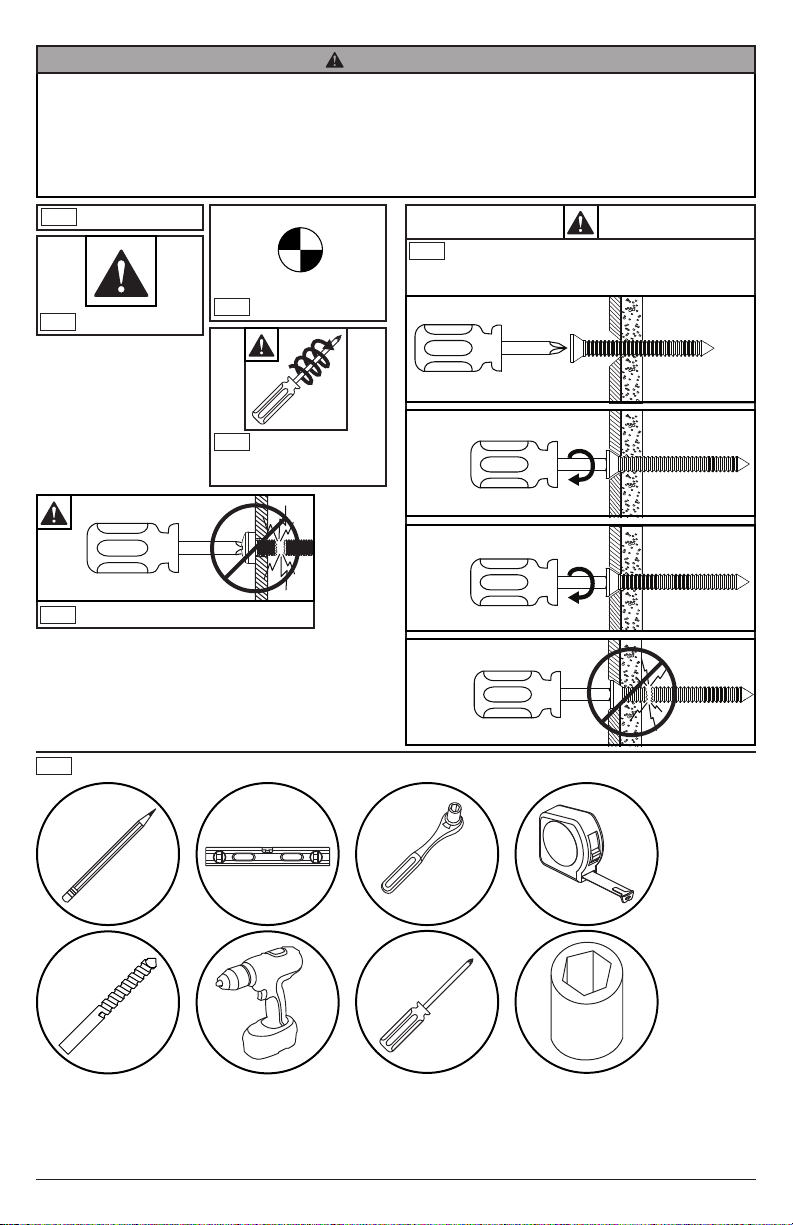

Tools Needed for Assembly.

ENG

To properly tighten screws: Tighten until screw

head makes contact, then tighten another 1/2

turn. Do not overtighten screws.

+1/2

ENG

Display center.

ENG

3/8"

(10mm)

3/8"

(10mm)

32015-07-01 #:009-9120-6 (2020-01-13)

This page intentionally left blank.ENG

42015-07-01 #:009-9120-6 (2020-01-13)

Parts List

Part #Description Qty

Apedestal 2 147-T1426

Bcover 2 145-T1809

Cvertical support bracket 6 145-T1806

Dcolumn 2 146-T1131

Eextension 2 145-T1778

Fleft adaptor bracket 3 146-1609

Gright adaptor bracket 3 146-1608

Hcross support 3 146-T1904

Icomputer cover 1 145-T1930

Jcomputer shelf 1 145-T1931

Kextension adaptor 2 145-T1935

Lcord bracket 4 146-T1321

Mknob 4 560-1160

NM8 x 16mm socket button screw 56 520-9527

OM8 square nut 24 530-1066

Pcover clip 8 590-0317

QM5 x 10mm type-f, socket pin screw 8 520-1164

Rbar nut 4 146-1319

Snylon shoulder washer 12 590-2233

TM6 x 12mm socket pin screw 12 520-1050

U1/4" power bit 1 560-0263

V5mm allen wrench 1 560-9640

W4mm allen wrench 1 560-9646

XM6 x 35mm screw 8 520-0717

Yrawl bolt #6913 8 5M9-381-H03

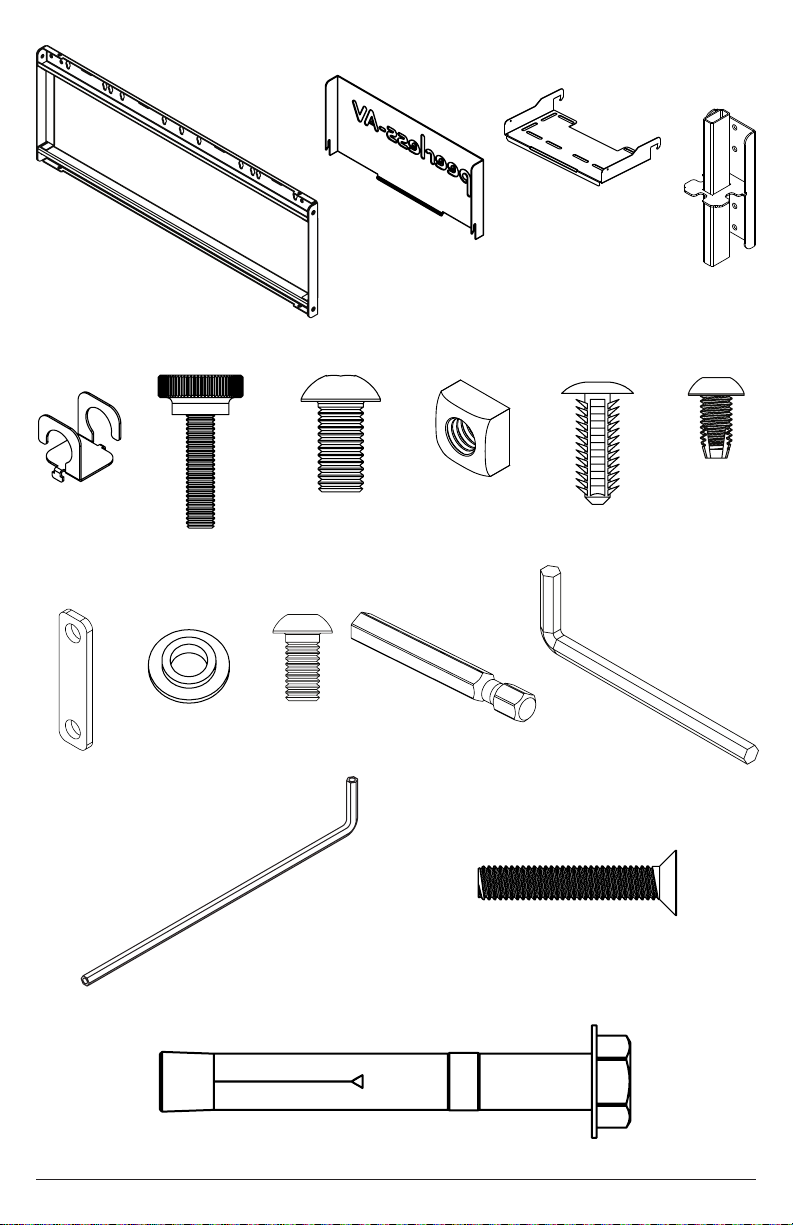

Parts (Before beginning, make sure you have all parts shown below).

E (2)

extension

B (2)

cover

D (2)

column

C (6)

vertical support

bracket

A (2)

pedestal G (3)

right adaptor

bracket

F (3)

left adaptor

bracket

ENG

52015-07-01 #:009-9120-6 (2020-01-13)

I (1)

computer cover

N (56)

M8 x 16mm

O (24)

M8 square nut

P (8)

cover clip

Q (8)

M5 x 10mm

U (1)

1/4" power

bit

V (1)

5mm allen

wrench

nylon shoulder

washer

S (12)

M6 x 12mm

T (12)

4mm allen

wrench

W (1)

J (1)

computer shelf

L (4)

cord

bracket

M (4)

knob

bar nut

R (4)

K (2)

extension

adaptor

H (3)

cross support

rawl bolt

Y (8)

M6 x 35mm

X (8)

62015-07-01 #:009-9120-6 (2020-01-13)

X (4)

N (4)

R (2)

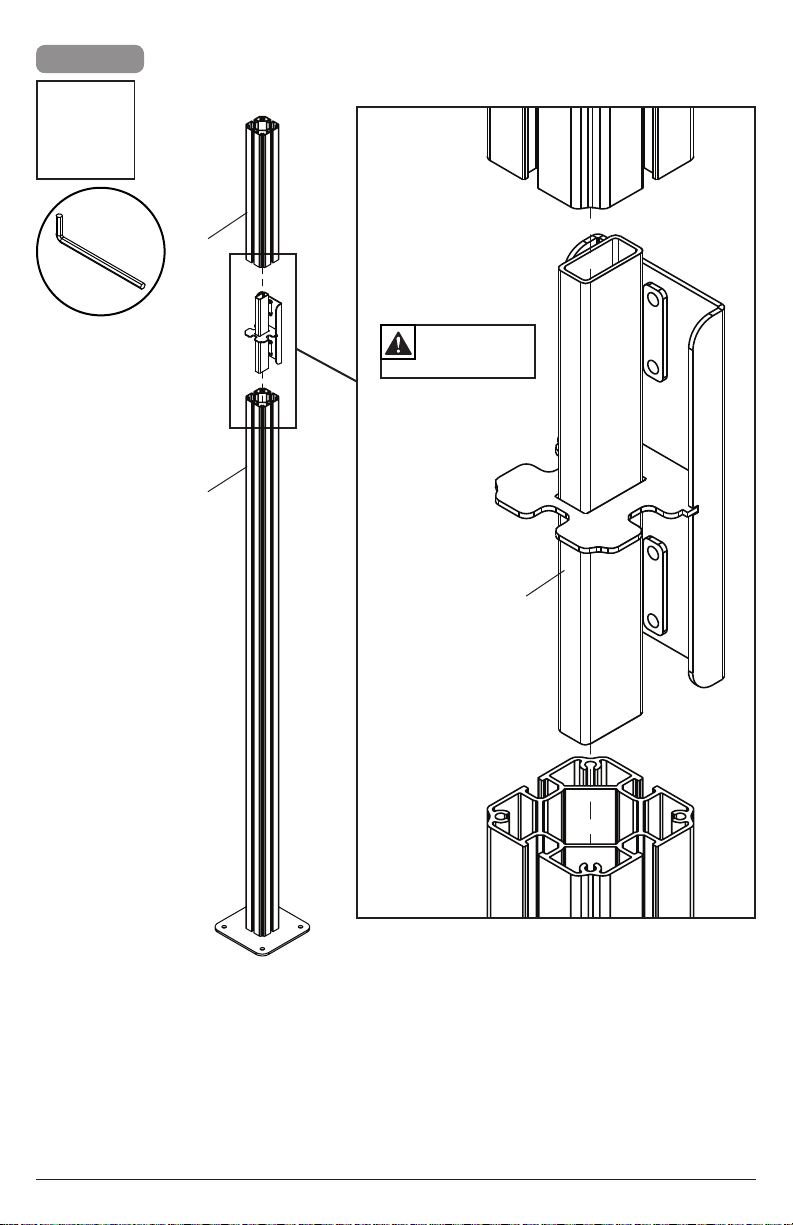

x2 Do not fully tighten hardware

72015-07-01 #:009-9120-6 (2020-01-13)

TIGHTEN

CONNECTING

HARDWARE

82015-07-01 #:009-9120-6 (2020-01-13)

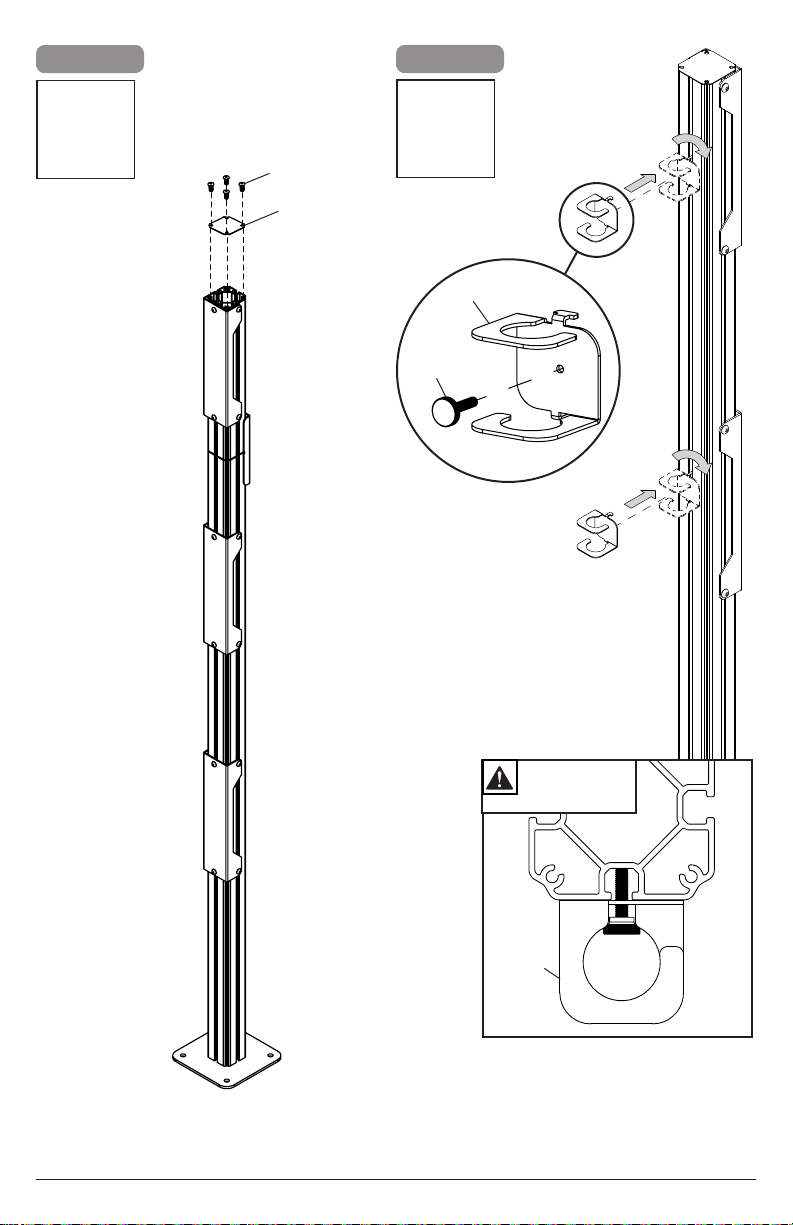

4-1

4-2

O (4)

N (6)

C (6)

1/8"

(3mm)

1/8"

(3mm)

DISPLAYHEIGHT

TIGHTEN

CONNECTING

HARDWARE

92015-07-01 #:009-9120-6 (2020-01-13)

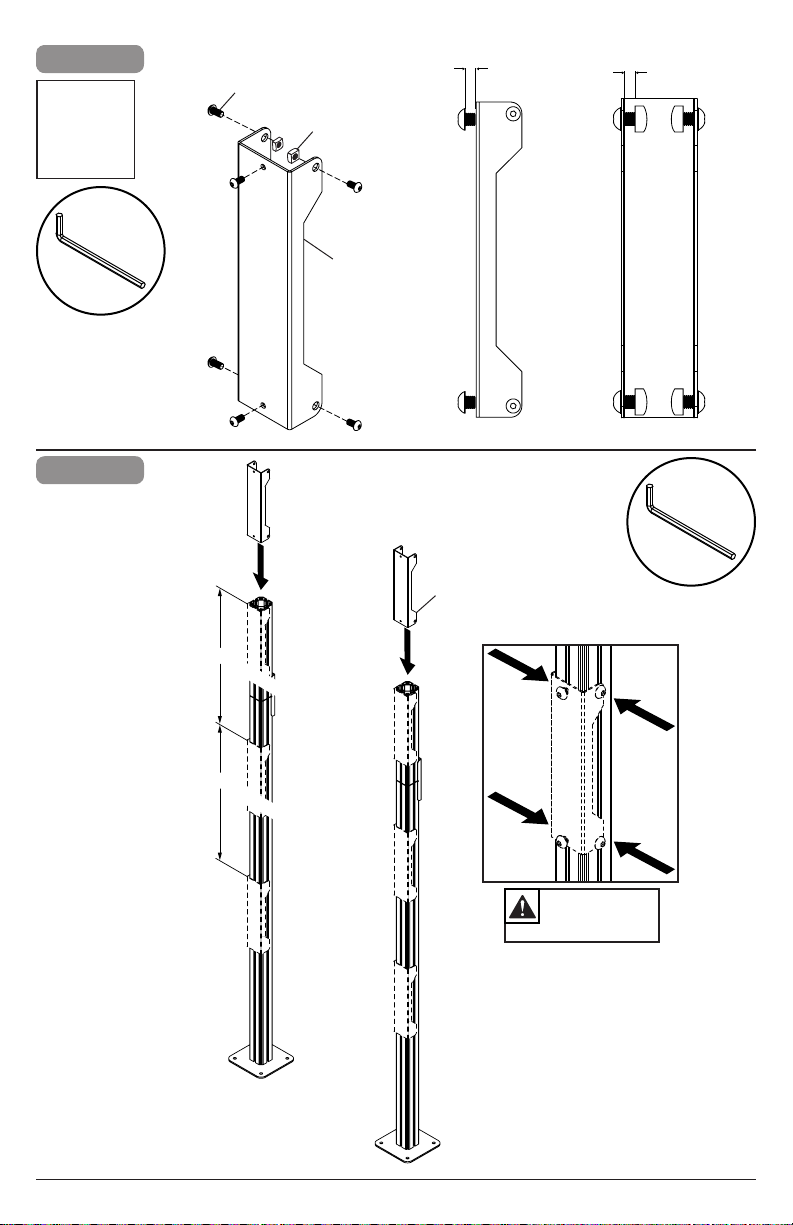

P (4)

L (2)

M (2)

TIGHTEN

CONNECTING

HARDWARE

TOP VIEW

10 2015-07-01 #:009-9120-6 (2020-01-13)

ENG - When installing Peerless mounts on a concrete oor, the oor must be at least 8" thick with a minimum

compressive strength of 2000 psi. Never attach concrete expansion anchors to concrete covered with plaster,

drywall, or other nishing material.

WARNING
