Peavey PV 12M Manual de usuario

Frequency range (-10 dB, half

space):

52 Hz to 21 kHz

Frequency response (±3 dB,

half space):

68 Hz to 17 kHz

Sensitivity (1W/1M):

98 dB

Power rating (program):

500 Watts

Power capacity (peak):

1000 Watts

Maximum SPL:

127 dB

Transducer complement:

Sheffield® Pro 1200+™ 12"

premium woofer and 14XT™

1.4" titanium diaphragm

dynamic compression driver on

a 90˚ x 40˚ coverage constant

directivity horn

Driver protection:

Sound Guard™ IV for the

compression driver provides

long- and medium-term

overload and overdrive

protection

Nominal coverage pattern:

90˚ x 40˚

Electro-acoustic crossover

frequency:

2.9 kHz

Nominal impedance:

8 Ohms

Input connections:

Two 1/4" phone jacks in parallel

Enclosure materials and

finish:

Trapezoidal, black carpet-

covered enclosure with dado

joined 1/2" MDF (Medium

Density Fiberboard) and a full-

length, black powder-coated

steel grille

Dimensions (H x W x D):

22.375" x 17.75" x 12.5625"

56.833 cm x 45.085 cm x

31.909 cm

Weight:

37 lbs. (16.8 kg)

Mounting or suspension:

1-3/8" pole-mount cup for

stand mounting

Features:

• Two-way sound reinforcement

monitor enclosure

• 30˚ and 45˚ dual-angle

monitoring

• Peavey-exclusive Sheffield Pro

1200+ woofer with 2.5" voice

coil

• 1.4" 14XT titanium diaphragm

compression driver

• Sound Guard IV tweeter

protection

• 500 Watt program/1000 Watt

peak power handling

• Heavy duty crossover network

for driver protection and EQ

• Lightweight trapezoidal

enclosure

• 90˚ x 40˚ coverage constant

directivity horn for better off-

axis tonality

• High quality, heavy duty carpet

covering

• Steel handle

• Rugged dado and rabbet

construction for lightweight-

yet-strong joints

• T-Nut speaker mounting

• Heavy duty, full-length steel

grille

• Pole mount included

SPECIFICATIONS PV® 12M

Features and specifications subject to change without notice.

Peavey Electronics Corporation • 711 A Street • Meridian • MS • 39301 (601) 483-5365 • FAX (601) 486-1278 • www.peavey.com

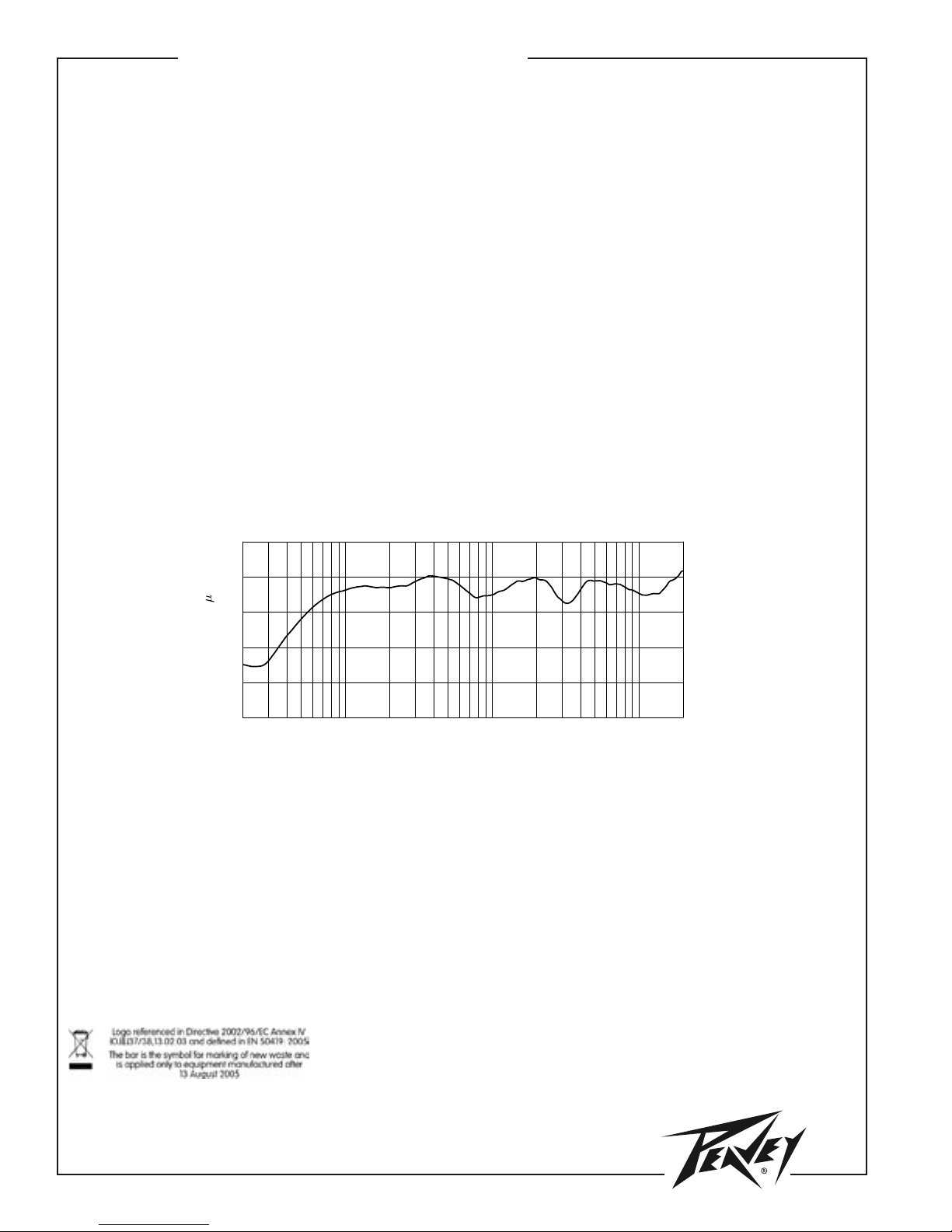

20 50 100 200 500 1k 2k 5k 10k 20k

Frequency (Hz)

100

110

dB SPL (re 20 Pa)

Amplitude Response (1W 1m On-Axis)

Figure 1

SPECIFICATIONS PV®12M

Description

The PV 12M is a two-way floor

monitor utilizing a 12" Sheffield®

Pro 1200+™ woofer and a 14XT™

titanium diaphragm dynamic

compression driver mounted on

a 90˚ x 40˚ coverage constant

directivity horn. This lightweight-

yet-rugged, carpet-covered

monitor enclosure with stand-

mount cup facilitates portable use

a stage monitor or other sound

reinforcement applications.

The dual-angle enclosure provides

a choice of 30˚ and 45˚ monitoring

angles for full monitoring utility.

A full-length, black powder-

coated steel grille provides driver

protection and a professional

appearance.

The PV 12M speaker system is

rated at 500 Watts program power

handling, and the full crossover

network includes high voltage film

capacitors and Sound Guard™ IV

tweeter protection for clear, punchy

sound and excellent long-term

reliability. Two 1/4" phone jack

input connectors make hook-up and

daisy-chaining to other monitors a

breeze.

3 + 2 YEAR LIMITED WARRANTY

NOTE: For details, refer to the

warranty statement. Copies of

this statement may be obtained

by contacting Peavey Electronics

Corporation, P.O. Box 2898,

Meridian, Mississippi 39301-2898.

EX000034
