PCE Instruments PCE-MM 800 Manual de usuario

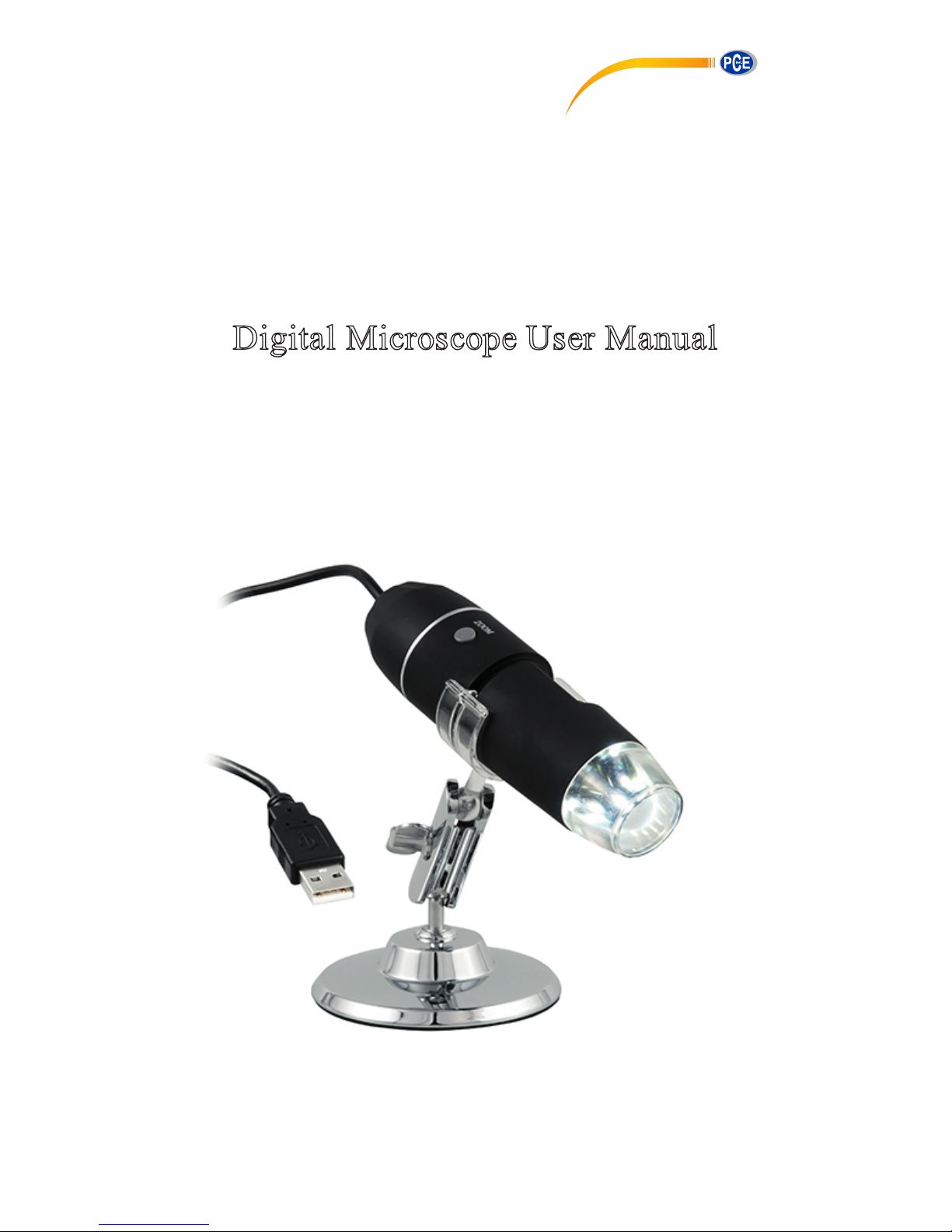

Digital Microscope User Manual

Inspection Camera

PCE-MM 800

PCE Americas Inc.

711 Commerce Way

Suite 8

Jupiter

FL-33458

USA

From outside US: +1

Tel: (561) 320-9162

Fax: (561) 320-9176

[email protected]

www.pce-instruments.com/english

www.pce-instruments.com

PCE Instruments UK Ltd.

Units 12/13

Southpoint Business Park

Ensign way

Hampshire / Southampton

United Kingdom, SO31 4RF

From outside UK: +44

Tel: (0) 2380 98703 0

Fax: (0) 2380 98703 9

[email protected]

Thank you for purchasing our USB Digital Microscope, it is a slimtype tooland can be easily used

in differentfields,including:

1. Textile industrial for textile inspection

2. Printing inspection

3. Industrial inspection: PCB, Precision machinery…

4. Educational purpose

5. Hair examination

6. Skin examination

7. Microbiological observation

8. Jewelry& coin (Collections) inspection

9. Visual Assistance

10. Others

Currently we have two models of Digital Microscope: USB port and TV port formats.

The USB microscope must be connected to the computer and TV microscope be connected to visual

device (N/P). User interface is very friendly and you can do the Measure work easily.

You can find more information of the product on this manual.

CONTENTS

Introduction ············································································23

Contents ················································································24

Parts of Microscope ···································································25

Specification ···········································································25

Notes before use ·······································································26

Product Outlook & Standard parts ··················································26

Hardware and system requirements ·················································26

How to install the Driver software ··················································26

How to install the measurement software ··········································31

How to install the .Net Framework ·················································32

Measurement instructions ····························································34

Function options ·······································································36

How to do the calibration·····························································38

Other Usage ···············································································40

200X, 500X, 800X, 1000X, 1600X

Partsof Microscope

USB Line

Focus roller

Magnification

Ratio

Snap

LED Light Metal Fixed

Stand

Specification

Image CMOS Sensor

Controller High Speed DSP (Driver Free available)

Focus Range 10mm ~ far view

Snap Shot Software and Hardware

Video Capture Resolution Standard 640*480, Max 1600*1200

Built-in 8 White-light LED and adjustable illumination ensure the magnified images are clearand bright

Still Image Capture Resolution Standard 640*480, Max 1600*1200

Frame Rate 30 f/s under 600 LUX Brightness

Digital Zoom 5X Sequence Mode

Brightness Control Manual adjustment

Magnification Range

Power Supply USB Port (5V DC)

USB 2.0 & USB 1.1 Compatible

Operation System Windows XP, Vista, Win 7 32 bit and 64 bit.

Language: English, Chinese and other language by selection

System Requirement: Pentium Computer with 700M Hz & above,

20M HD Space CD ROM Driver, 64MB RAM, DirectX VGA Card

CD disk Driver and Micro-Measurement Tool

Product dimension 112 mm (L) X 33 mm (R)

Product net weight: 250g

Available color:Matting black, Turnish and other colors.

Notes before use

1. Don’t dissemble the digital Microscope or change the interior parts,

it can cause damage.

2. Don’t clean the Microscope with alcohol organic solvents

3. Don’t touch the lens with your fingers.

4. Avoid outdoor use if possible.

5. Storage temperature , 0°C ~ 40°C,Humidity:45%RH ~ 85RH%.

6. In case the product gets wet, leave PC connection immediately. And do not dissemble or dry by hair

dryer. Send to repaircenter if the digit microscope was effected by liquid or other elements.

7. Measurement Data only for reference.

ProductOutlook & Standard parts

1. Digital Microscope (1pcs)

2. USB 2.0 cable

3. Metal fixed Stand (1pcs)

4. CD ROM (Driver, Measurement software, User Manual)

Hardware system requirements

Windows 2000、XP、VISTA、WIN7 Pentium 1G, Celeron, AMD 1G & above,

128MB Memory, 150MB Hard Disc memory space, 16-bit& above

VGA, CD-ROM, USB2.0 or USB1.1.

How to installthe Driver

The Digital Microscope is a free Driver Product，it canbe worked immediately after connected to the

computer with operation system above win2000 version.

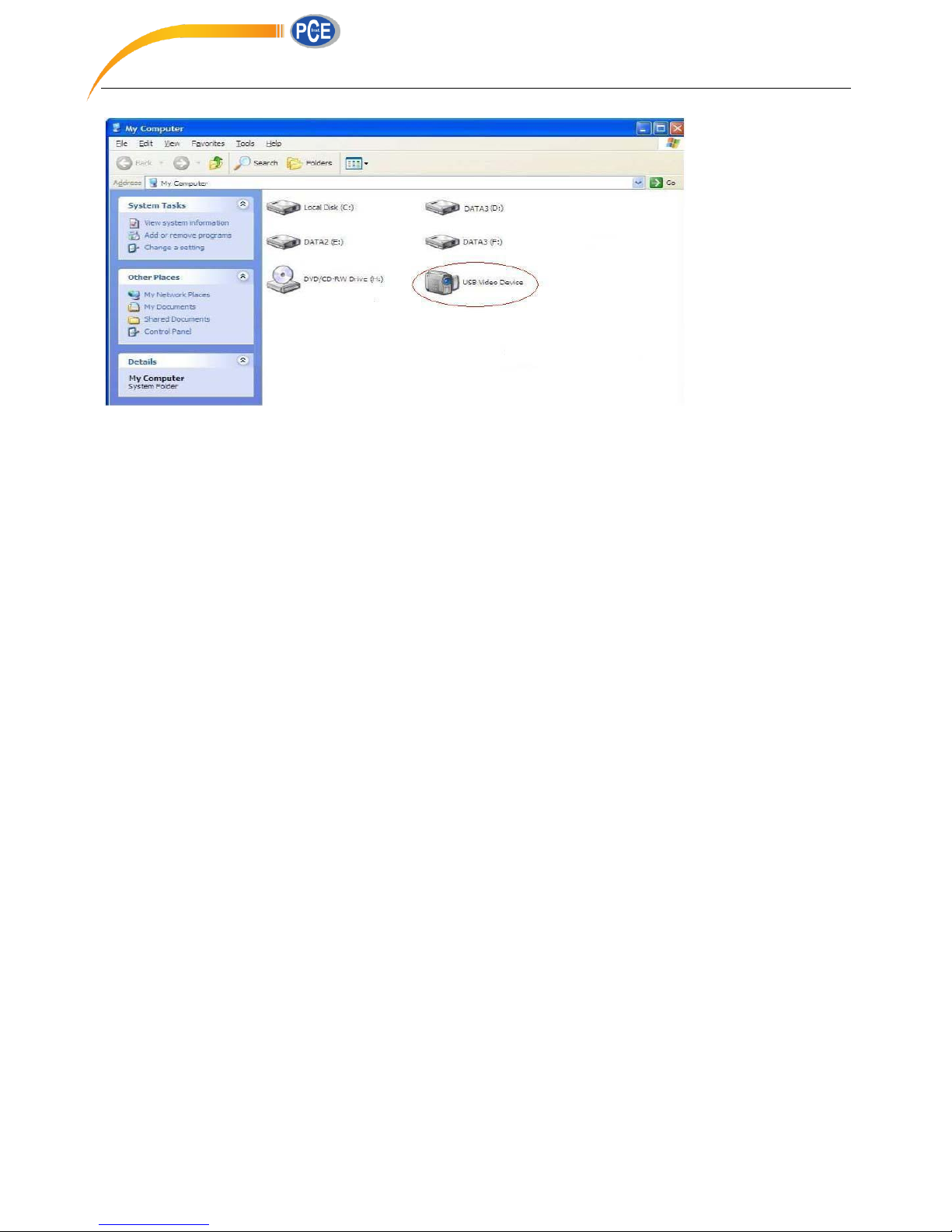

1. Connect the Portable digital microscope by USB2.0 cable to your computer, double click “my

computer”icon on your computer desktop, below interface willbe shown up.

2. Double clickthe Video device icon as above red marked in your computer. Now it is ready to use.

If you can’t find the Video device, or if your computer can’t recognize it,

Please follow below steps to install the driver.

Insert the attached CD, open “My Computer”, and double click the “DVD/CD Driver”to open the CD.

Driver installation

Choose and install the Driver, then resetthe computer

Reset the computer after driver installation at once;

Installation may be blocked by the antivirus software, so let the antivirus software allowall processes, or

close the antivirus before installing. If installation succeeds, you can see the icon on the Toolbar,

also the software desktop icon, double click to run it.

Now you can use the microscope. Long press the SNAP button on the microscope to take images, and the

ZOOM button to have digital zoom function.

Measurementinstallation

Choose and install the Measurement
