PAX A80
Countertop Smart Terminal
Quick Setup Guide
PAX A80 Quick Setup Guide
2
1PAX A80 Features
The A80 Android Countertop Smart Terminal comes with state-of-the-art technology
including:
•Cortex A53 processor
•8 GB eMMC + 1 GB DDR3
•Supports one micro SD (TF card) up to 32GB.
•MagStripe, EMV Chip, NFC
•Dial, Ethernet, Wi-Fi, Bluetooth
•PCIPTS 5.x certified
•4”, 800x400 Pixel, Capacitive Touch, Color Display
•Optional Backup Battery
2What’s in The Box
PAX A80 Quick Setup Guide
3

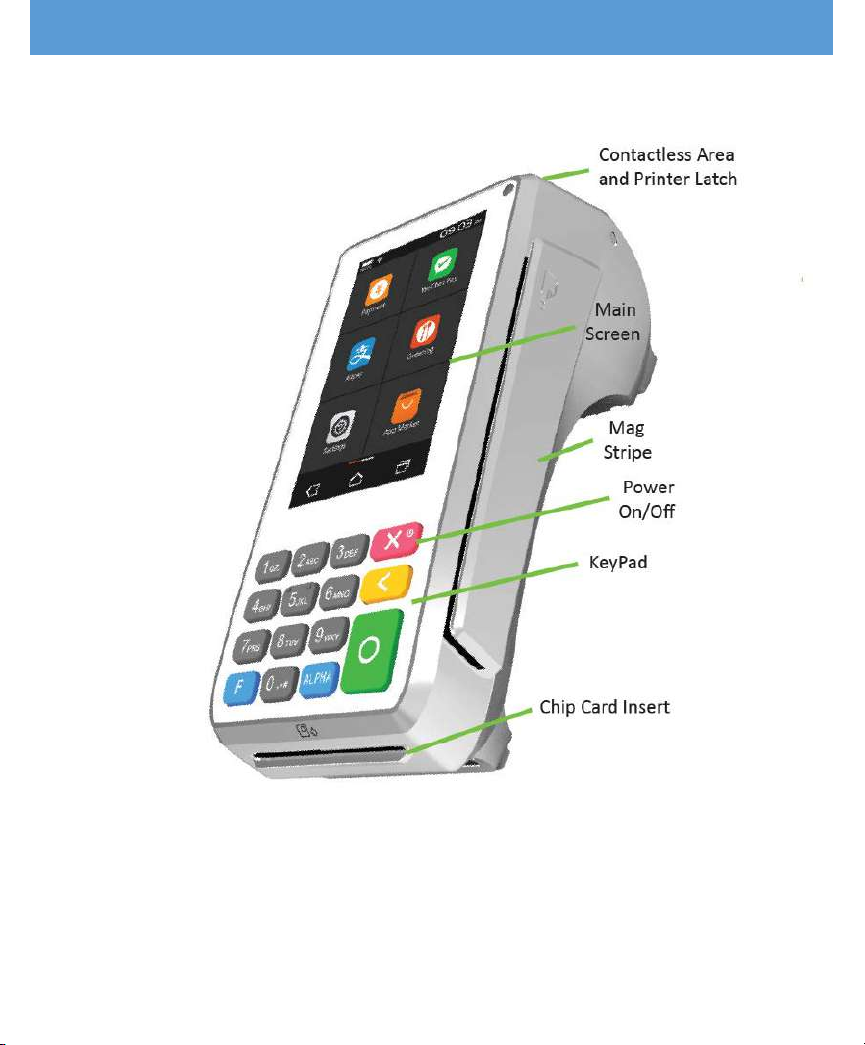

3A80 Front Side
PAX A80 Quick Setup Guide
4
4A80 Back Side
PAX A80 Quick Setup Guide
5
5A80 Ports
6A80 Power On/Off
Power on the terminal by pressing and holding the power button down for 3-5
seconds and then release.
Power off the terminal by pressing and holding the power button down for 3 to 5
seconds and then release.
PAX A80 Quick Setup Guide
6
7A80 Communication Setup
For the terminal to communicate with the host, other devices, or to download
applications, the terminal communication method must be the first item configured. This
document covers Wi-Fi configuration only.
PAX A80 Quick Setup Guide
7
8A80 Wi-Fi Setup
The A80 supports Wi-Fi for network and internet access. Available access types are DHCP,
Static, and Manual Proxy. The following instructions include the set up for each of these
communication types.
Wi-Fi DHCP Setup
This section describes the DHCP setup. The Wi-Fi settings are accessed from the Android
Settings option from the Android home screen.
From the Android home screen select the Settings icon.
PAX A80 Quick Setup Guide
8
Input the default Android Settings password (9876), select the green check button
and then select “OK”. The Android Settings password can be changed by selecting,
Settings -> Password -> Modify Password.
Use the slide button on the right to enable Wi-Fi, then select the Wi-Fi option to
configure it.
Enable
Configure
PAX A80 Quick Setup Guide
9
To see the available Wi-Fi networks, turn on the Local Wi-Fi option. Only local Wi-Fi
networks that have the SSID enabled will be visible. To view or edit the network
settings select the desired Wi-Fi network.
After selecting the desired Wi-Fi network, input the Wi-Fi case sensitive password
and select “Connect”.
When the terminal has successfully connected to the Wi-Fi access point, the Status
displays “Connected”. Select the Back icon to return to the Settings menu or to exit.
PAX A80 Quick Setup Guide
10
Wi-Fi Static Setup
This section describes the Wi-Fi Static setup. To setup Wi-Fi Static, perform Steps 1
through 3 in the Wi-Fi DHCP Setup section, then perform the following:
On the top half of the screen, select the desired Wi-Fi network and input the Wi-Fi
case sensitive password.
Select Advanced Options.
In the IP settings dropdown menu, select the Static option.
