TECHNICAL SPECIFICATIONS
Power Supply: 4 x 1,5V Alkaline Batteries or NiMh 1.2V
rechargeables
Consuption: Max. 170 mA (Max. Light, 4 load cells of 350 Ohm)
Operating Temperature: -10°C ÷ +50°C
Storage Temperature: -20°C ÷ +70°C
Display: LCD graphic monochrom. 4” (240 x 128 pixels)
Keyboard: Touch panel + Swtich On button
Dimensions: 185 x 93 x 36 mm (H x L x D)
Case: Palm- ABS
Protection Degree: IP54

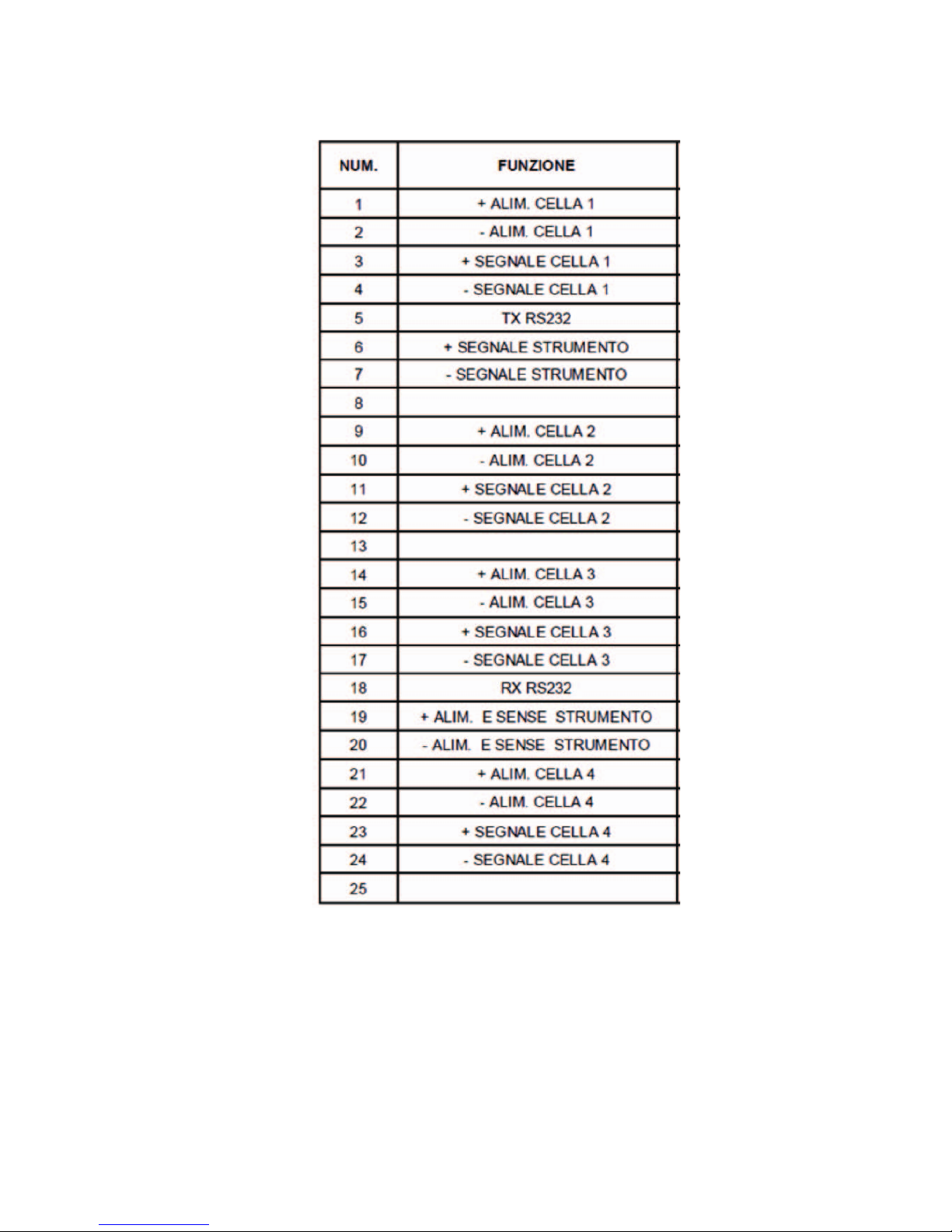

Load cells Conncetion: Sub-D 25 poles cable
4 indipendent channels:
Load Cells Excitation: 3.3 Vdc / 50 mA (max 4 load cells of 350 Ohm)
Internal Resolution: 24 bit
Weight Display: Up to 50.000 divisions
Input Signal: From -3.9 to 3.9 mV/V
Load Cells Impedence: From 350 Ohm to 2000 Ohm
Calibrator Specifications: For equipment with load cells excitation from +/-3Vdc
up to +/-15 Vdc with input resistance >100 kohm.
Output Signal: -3 mV /+20.3 mV (Optional +30mV)
Resolution: 16 bit
Output: Panel Touch
Linearity: < 0,02% FS
Temperature Drift: 0,001% FS / °C
Communication Ports: N° 1 USB device (connection to a PC)
N° 1 RS232 (connection to instrument)
N° 1 NFC (connection to DAT1400)
Status Battery: Battery Icon 5 levels
Auto Switch Off: Programmable
Microcontroller: ARM Cortex M0+ 32 bit, 256KB Flash on board from
USB
Setup Memory: 64 Kbytes.
Archive and Files Memory: 1024 Kbytes
Archive and Optional Files Memory: µSD card (not removable)
Complies with: EN61000-6-2, EN61000-6-3 for EMC; EN61010-1
Electrical Safety
