NanoServ™
Thin System/Ultra-Thin System
Setup Guide
1.0 What’s included with the NanoServ™
The following items are included with the NanoServ™:
1.
NanoServ™
2.
AC Power Adaptor
3.
CD-ROM with User’s Manual
4.
This Setup Guide
Note
Refer to the User Manual on the CD-ROM for complete information on installation.
2.0 Steps for setting up the NanoServ™
Note
This is a fanless system, so it must be properly mounted to allow for proper cooling. Be sure to use the
metal stand to hold the system upright with the blue LED on top, or mount the system at least 1 or 2
inches away from the flat side surfaces of the system. This will help keep the NanoServ™ cool and
within operating limits.
1.
Verify that the power supply switch is off (located on the back of the NanoServ™).
2.
Plug the monitor into the VGA port.
3.
Plug the keyboard into the PS/2 keyboard port.
4.
Plug the mouse into the PS/2 mouse port.
5.
Plug the printer into the DB-25 printer port (only available on the Thin NanoServ™ system).
6.
Connect the power adaptor to the mains power.
7.
Turn on the power supply switch located on the back of the NanoServ™.
Document Number: 09407U7-001, Rev. A
Part Number: 07M6070-QS
Revised:
August 2, 2006
Sales Office: +1 (301) 975-1000
Technical Support: +1 (301) 975-1007
E-mail: [email protected]
WWW: www.patton.com
2
NanoServ Setup Guide
3.0 NanoServ™ Ultra-Thin System
Figure 1.
Ultra-Thin System - Front panel
Figure 2.
Ultra-Thin System - Back panel
Front panel
Power LED
The power LED lights up when the system is
turned on.
HDD LED
The HDD LED flashes when the system is working.
Please do not turn off the system when HDD
starts running.
Power Switch
Depress the switch to turn on and turn off the
system.
USB Port
The USB port is for a connection to external
devices with a USB interface (keyboard, mouse,
HDD, CD-ROM, Memory Stick, ect.)
Audio Line-Out
Mic-In
VGA Port
RJ-45 10/100 Ethernet Jack
USB Port
PS/2 Mouse (6-pin)
PS/2 Keyboard & Mouse (6-pin)
DC Power Jack (3-pin)
Power supply switch
DC-IN 5V
POWER SW
Back panel
NanoServ Setup Guide
3
4.0 NanoServ™ Thin System
Figure 3.
Thin System - Front panel
Figure 4.
Thin System - Back panel
Front panel
Power LED
The power LED lights up when the system is
turned on.
HDD LED
The HDD LED flashes when the system is working.
Please do not turn off the system when HDD
starts running.
Power Switch
Depress the switch to turn on and turn off the
system.
USB Port
The USB port is for a connection to external
devices with a USB interface (keyboard, mouse,
HDD, CD-ROM, Memory Stick, ect.)
POWER SW DC-IN 5V
COM1
Back panel
Audio Line-Out
Mic-In
Serial Port **
VGA Port
RJ-45 10/100 Ethernet Jack
USB Port
PS/2 Mouse (6-pin)
Parallel Port **
PS/2 Keyboard & Mouse (6-pin)
DC Power Jack (3-pin)
Power supply switch
** This feature is only
available for Model 6075.
4
NanoServ Setup Guide
5.0 Additional Information
Refer to the
NanoServ™ User Manual
located on the CD-ROM shipped with your NanoServ™ system and
available online at <
www.patton.com/manuals>
for detailed information about:
•
Installing, configuring, operating, and troubleshooting.
•
Warranty, trademark & compliance
Note
Specifications are subject to change without notice.
Refer to the
Fedora Core Linux
website at
<http://fedora.redhat.com>
for information about Fedora
Core 5 including installation guides and tutorials.
A.0 Compliance & Safety Information
A.1 Compliance
EMC Compliance:
•
FCC Part 15, Class A
•
EN55022, Class A
•
EN55024
Safety Compliance:
•
IEC/EN 60950-1
A.2 Radio and TV interference (FCC Part 15)
This equipment generates and uses radio frequency energy, and if not installed and used properly—that is, in
strict accordance with the manufacturer's instructions—may cause interference to radio and television recep-
tion. This equipment has been tested and found to comply with the limits for a Class A computing device in accor-
dance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable
protection from such interference in a commercial installation. However, there is no guarantee that interference
will not occur in a particular installation. If the equipment causes interference to radio or television reception,
which can be determined by disconnecting the cables, try to correct the interference by one or more of the fol-
lowing measures: moving the computing equipment away from the receiver, re-orienting the receiving antenna,
and/or plugging the receiving equipment into a different AC outlet (such that the computing equipment and
receiver are on different branches).
NanoServ Setup Guide
5
A.3 CE Declaration of Conformity
We certify that the apparatus identified in this document conforms to the requirements of Council Directive
1999/5/EC on the approximation of the laws of the member states relating to Radio and Telecommunication
Terminal Equipment and the mutual recognition of their conformity.
A.4 Safety Information
The safety advice in the documentation accompanying the products shall be obeyed.
The conformity to the above directive is indicated by the CE sign on the device.
•
This device contains no user serviceable parts. The equipment shall be
returned to Patton Electronics for repairs, or repaired by qualified ser-
vice personnel.
•
The external power adapter shall be a listed Limited Power Source.
Ensure that the power cable used meets all applicable standards for the
country in which it is to be installed, and that it is connected to a wall
outlet which has earth ground. The mains outlet that is utilized to
power the devise shall be within 10 feet (3 meters) of the device, shall
be easily accessible, and protected by a circuit breaker.
•
Hazardous network voltages are present in WAN ports regardless of
whether power to the unit is ON or OFF. To avoid electric shock, use
caution when near WAN ports. When detaching the cables, detach the
end away from the device first.
•
Do not work on the system or connect or disconnect cables during peri-
ods of lightning activity.
In accordance with the requirements of council directive 2002/96/EC on Waste of
Electrical and Electronic Equipment (WEEE), ensure that at end-of-life you separate
this product from other waste and scrap and deliver to the WEEE collection system in
your country for recycling.
The Interconnecting cables shall be acceptable for external use and shall be rated for
the proper application with respect to voltage, current, anticipated temperature, flam-
mability, and mechanical serviceability
WARNING
CAUTION
6
NanoServ Setup Guide
Copyright © 2006, Patton Electronics Company. All rights reserved.
The information in this document is subject to change without notice. Patton Electronics assumes no
liability for errors that may appear in this document.
•
To prevent shock or fire hazard, do not expose your
NanoServ™ to rain or moisture.
•
Never install your NanoServ™ in wet locations.
•
To avoid electrical shock, do not open the case. Contact the fac-
tory offices for qualified personnel servicing.
•
Never touch un-insulated terminals or wire unless your power
adaptor and display monitor are disconnected.
•
When using the system, avoid using or installing the modem to
the serial port during a storm or lightning.
•
Do not use the modem or a telephone to report a gas leak in the
vicinity of the leak.
•
USB cables are not supplied.
WARNING
Otros manuales para NanoServ
1
Tabla de contenidos
Otros manuales de Servidor de Patton electronics
Patton electronics
Patton electronics Access Server Manual de usuario
Patton electronics
Patton electronics ForeFront 6081RC EdgeRoute Manual de usuario
Patton electronics
Patton electronics Patton RAS 3120 Manual de usuario
Patton electronics
Patton electronics SIPxNano Manual de usuario
Patton electronics
Patton electronics EtherBITS 2285 Manual de usuario
Patton electronics
Patton electronics ForeFront 3125 Manual de usuario
Patton electronics
Patton electronics EtherBITS 2285 Manual de usuario
Patton electronics
Patton electronics SIPxNano Manual de usuario
Patton electronics
Patton electronics EtherBITS 2211 Manual de usuario
Patton electronics
Patton electronics 2977 Family Manual de usuario
Patton electronics
Patton electronics 29XX Series Manual de usuario
Patton electronics
Patton electronics NetLink 2960 RAS Manual de usuario
Patton electronics

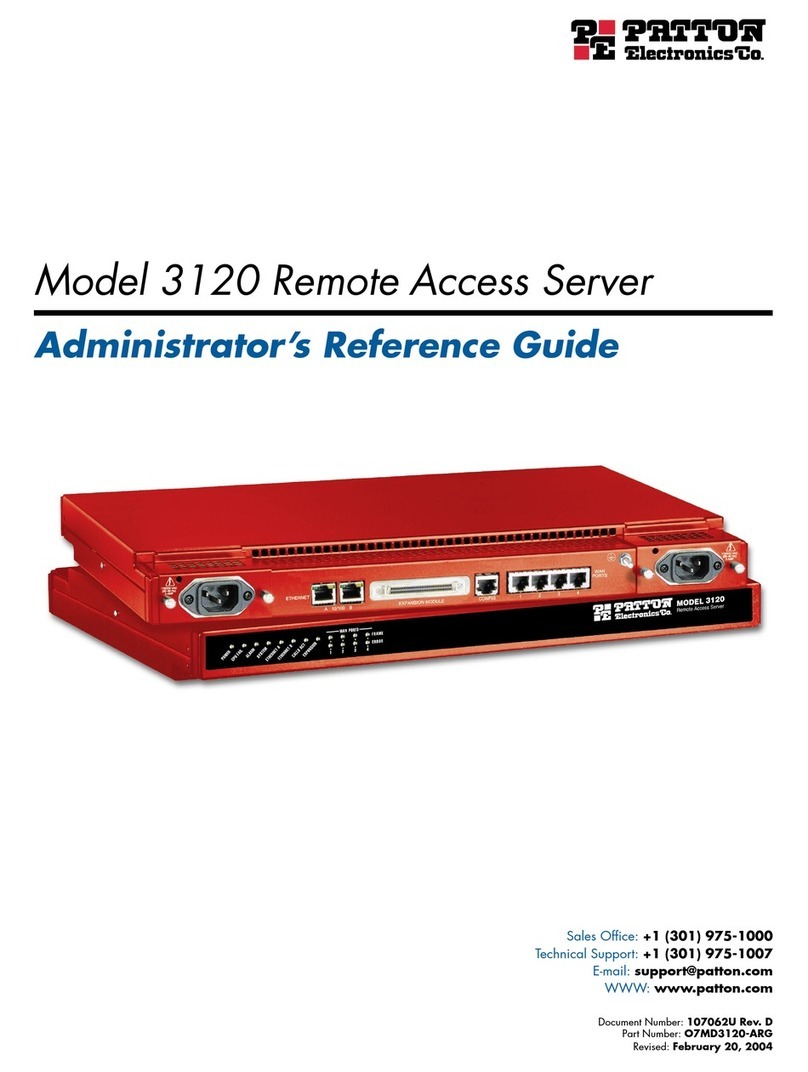

Patton electronics 3120 Manual de usuario
