■Rated voltage
24 : 24V DC
■Length of Light-emitting part
10 : 100mm
20 : 200mm
■Color of LED
R : Red
Y : Amber
C : White
TYPE :CLF
2. Model No. configuration
4. Installation

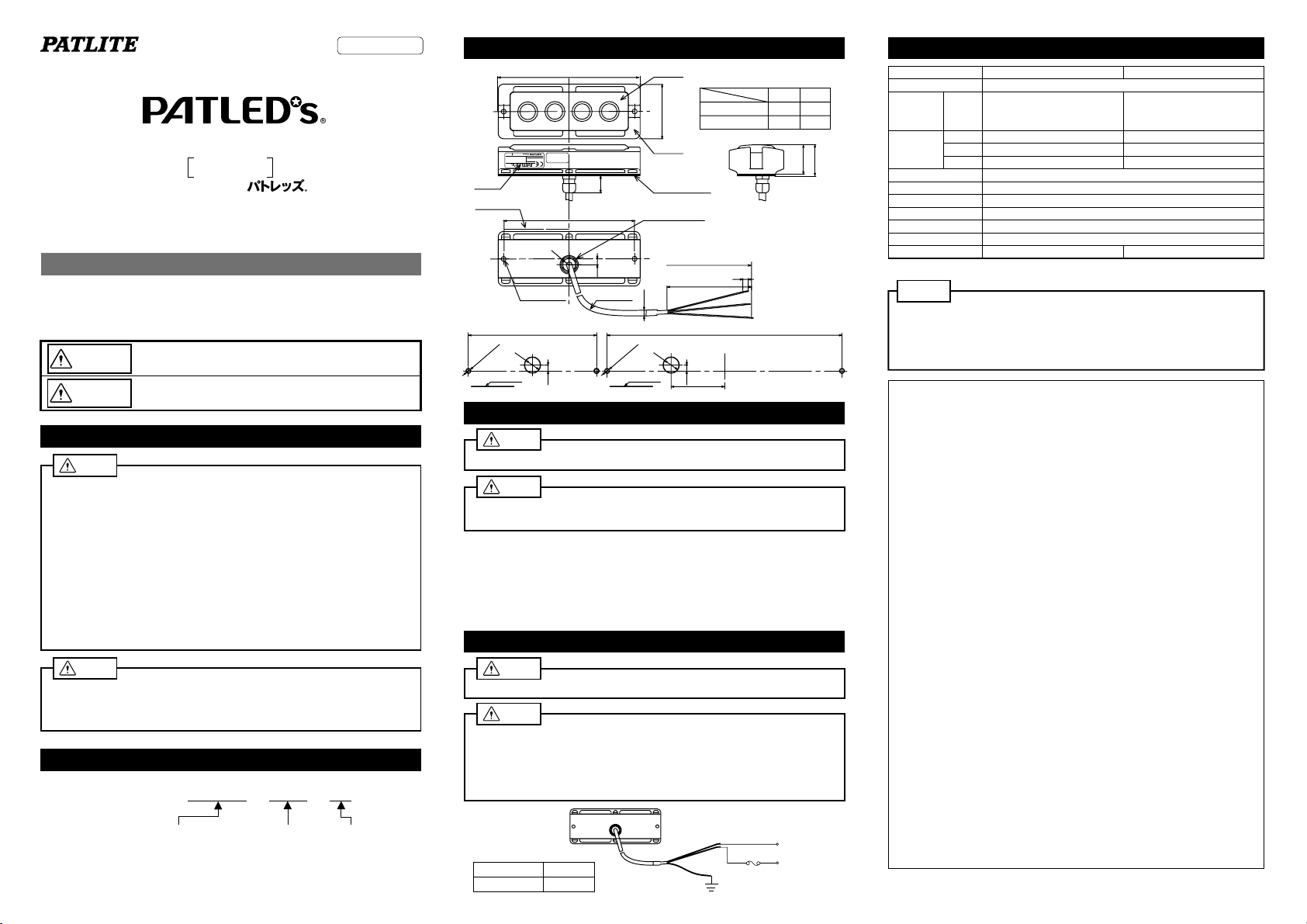

INSTALLATION MANUAL
Thank you for specifying the for your application.
Please read these instructions carefully before you perform installation,
maintenance
and repair. Store this manual carefully for easy reference.
If you have any questions
about this product, please contact PATLITE Corporation.
●
Make sure the power is off before wiring, mounting, repairing, or replacing parts to
avoid a short-circuit, electric shock, or burn.
●
If installing this product requires construction work, please ask a specialist in order
to avoid electric shock, fire, or personal injury.
●When this product is used for security purposes, it should be inspected daily. In
case a malfunction should occur, it is recommended that you use this product
together with other security products.
●
Do not use this product to support your weight while climbing onto a machine. Mount
the product so that it is clear of any moving parts - such as a machine cover.
●I
n order to avoid danger to eyes, d
o not stare into beam, do not view directly with
optical instrument, and do not
turn LED beam to someone's
.
Warning
●Make sure of the specified operating voltage.
●For safety, make sure to connect an external fuse to the power source as shown
in the wiring example.
Caution
NOTES TO BE OBSERVED FOR SAFE OPERATION
In order to prevent any damage to the user and other personnel or to
assets, note the following:
■The indications for warning are divided into the following classes
according to the degree of danger or damage incurred when the warning
is not taken into consideration and the product is not correctly used.
1. To operate this product safely, please observe the following
Indicates an imminently dangerous condition: failure to
follow the instructions may lead to death or serious injury.
Indicates a potentially dangerous condition: failure to follow
the instructions may lead to slight injury or property damage.
Warning
Caution
3. Part Names and Dimensions
(Unit : mm)
●
Make sure the power is off before installing to avoid a short-circuit, electric shock,
or burn.
Warning
●In installing, use extra care to protect it from falling down.
●This product can be used only indoors. (Do not use it outdoors.)
Caution
■Mounting method
●
●
power supply
24V DC
(non-polar)
Fuse
【Fuse(Recommendation)】
1A
Voltage
Current
125V
White
UL2464(AWG26/3core)
【Cable】
5. Wiring
●
Make sure the power is off before wiring to avoid a short-circuit, electric shock, or
burn.
Warning
●For safety, make sure to connect an external fuse to the power source as shown
in the wiring example.
●Make sure of the specified operating voltage.
●Do not pull out the cable or push it into the body. And please slack the cable so
as not to be stressed.
Orange lead wire should be grounded to protect from static electricity, thunder
and so on.
Caution
■Wiring example
6196-A
'08.01.NHI
6. Specifications
* There may occur variations in the color inherent to the properties of the LED.
●PATLITE Corporation disclaims all liability for any malfunction or damage
occurring as a result of handling contrary to the instructions, cautions and
warnings mentioned in this manual.
●Specifications may change without notice due to continual product improvement.
Caution
CL F□□-2 4-
Material
Operating
temperature range
Protection rating
Vibration proof
Mass
Rated voltage
Model
Power
consumption
Illuminance
（at 50cm）
Mounting place
Amber
White
CLF10-24-□CLF20-24-□
24V DC （non-polar）
2.5 W
470 lx
630 lx
1700 lx
Body : Aluminum Cover : Polycarbonate
-30℃～+60℃(Without dew condensation)
IP67
19.6 m/s 2
205 g
345 g
Indoors only
White
Red
Red
Amber
Mounting direction
5.0 W
320 lx
240 lx
850 lx
All direction
420 from exit
Installing part
Cable exit
B
Power supply cable
150
Gray
Orange Earth connected to case of aluminum.
A
CLF10-24-
●CLF10-24
■Mounting hole template
■Dimension
●CLF20-24
□
CLF20-24-□
A
130
230
B
120
220
case
Nameplate Waterproof packing
cover
(10.5)
50
5
5.5
Ø15
Ø4.1
30
27
MADE IN JAPAN
MODEL
120
φ15
2-M4
(P=0.7)
220
50
5.5
5.5
φ15
※1
2-M4
(P=0.7)
※1
LED Work Light
□
Nameplate
Nameplate Nameplate
Use M4 bolts and nuts to install the product. ( Recommended torque : 2N・m) .
And the installation surface should have sufficient strength.
Use washers attached with the product to maintain the water proof protection.
3mm thick waterproof packing is attached at the bottom of the product.
However, in case the installation surface is not flat, please seal up the product and
installation surface with waterproof sealant to maintain the waterproof protection.
●
●
LED Work Light
※1 In the case of the attached nut : Φ4.5
