PsT 900
PsT 900XS
Installation Instructions
LED Floodlight
PLED18-900-8
PATHFINDER
LED
Lighting the way
2020 Pled Australia Pty Ltd. All rights reserved. For informational purposes only
PLEASE READ THESE INSTALLATION INSTRUCTIONS CAREFULLY BEFORE INSTALLING THIS
EQUIPMENT.THEPRODUCTISDESIGNEDFORINSTALLATIONINACCORDANCEWITHRELEVANT
AUSTRALIAN STANDARDS (AS3000) AND LOCAL REGULATIONS (WHERE APPLICABLE), BY AN
AUTHORISEDANDLICENCEDELECTRICIAN.
THE PRODUCT MUST BE OPERATED IN ACCORDANCE WITH THE MANUFACTURER’S INSTRUCTIONS AND
LIMITATIONS,FAILURETODOSOMAYDAMAGETHEPRODUCTANDSHORTENITSSERVICELIFE.
24/7 USE OF PRODUCT WITHOUT THE APPLICATION OF SUITABLE SWITCH CYCLE INTERVALS IS NOT
RECOMMENDED. PRODUCT DESIGN HAS BEEN OPTIMISED FOR A CONTINUAL DAILY USAGE OF 17 HOURS IN
COMMERCIALANDINDUSTRIALAPPLICATIONS.
THE PRODUCT HAS BEEN DESIGNED FOR LOW MAINTENANCE AND IS SELF CLEANING IN REGIONS WHERE
ADEQUATE NATURAL PRECIPITATION OCCURS. IN EXTREME HOSTILE ENVIRONMENTS HOWEVER, ESPECIALLY,
REGIONS OF HIGH ATMOSPHERIC PARTICULATE CONCENTRATION, SUITABLE CLEANING SCHEDULES SHOULD
BEIMPLEMENTEDINORDERTO PRESERVEUSEFULLIFETIMEEXPECTATIONS.
COMPLETIONOFTHEATTACHEDPOSTINSTALLATIONCHECKLIST
ISMANDATORYINORDERTOACTIVATEWARRANTY
Removal From Carton
Lifting Point Lift unit vertically until
clear of carton
Carton Gross Weight (Luminaire) 15.2kg
Luminaire Weight 13.3kg
Driver module Weight 8.0kg
Carton Gross Weight (Driver) 9.0kg
DO NOT LIFT UNIT VIA
THE INTER-WIRING
GALLERYASSEMBLY
PLED18-900-8
2020 Pled Australia Pty Ltd. All rights reserved. For informational purposes only
PATHFINDER
LED
Lighting the way
Carton Contents
PST900/XS LED Module
PST900/XS LED Module Principal Dimensions
PS001_5Z_DR003B
M6 x 16
ISO 7380 FL
SS Screws x 4
PDM2I600-PS900
Driver Module
PLED18-900-8
339,00
428,00
92,00
178,00
292,00
520,00
2020 Pled Australia Pty Ltd. All rights reserved. For informational purposes only
PATHFINDER
LED
Lighting the way
PST900/XS LED Module Mounting Detail
For Mounting Use One M20 Hex Bolt
Azimuth lock with One M12 Hex Bolt
Min. Grade 8.8
G
The unit is cooled by convection
DO NOT Install with Gravity
vector perpendicular to Fin Plane
PLED18-900-8
80,00
12,00
20,00
36,00 72,00
Azimuth
Pivot
R264,00
0
Tilt 0.0
125,00°
86,00°
2020 Pled Australia Pty Ltd. All rights reserved. For informational purposes only
PATHFINDER
LED
Lighting the way
312,00
140,00
72,00
36,00
143,00
40,00
12,00
20,00
76,50
68,00
Driver On Board Arrangement
PS001_5Z_DR003B
Mounting Bracket
Co-Bolt Bracket to
structure with luminaire
Install PDM2I600-PS900
Driver Module using 4 x M6
Flanged screws
M6 x 16
ISO 7380 FL
SS Screws
PLED18-900-8
PDM2I60-PS900 Driver Module On-Board Mounting
201,00
237,00
Choose pivot hole, rotate driver module to
desired position, Torque retaining fasteners.
Interconnect units using appropriate Liquid
Tight glands and conduit(Not Supplied)
2020 Pled Australia Pty Ltd. All rights reserved. For informational purposes only
PATHFINDER
LED
Lighting the way
PDM2I60-PS900 Driver Module Remote Mounting
PLED18-900-8
G
CAUTION:
The driver module is designed to cool by
natural convection and consequently,
when mounted inside a cabinet or
enclosure, must be mounted vertically. It is
also imperative that the enclosure be
adequately ventilated.The case
temperature of the module must be
0
maintained at or below 75 c when running
at max output otherwise the useful life
expectancy will be severely degraded and
the warranty rendered void.
To ensure compliance with this limitation
sample measurements of driver case Tc
must be taken post installation and
recorded on the warranty checklist
document.
Typical ‘Unistrut’ Set Up
Interconnect units using appropriate Liquid
Tight glands and conduit(Not Supplied)
109,00
44,00
262,00
312,00
242,00
37,00
198,00
206,00
44,00
Tc Measurement point
31mm
OUTPUT
170mm
OUTPUT
2020 Pled Australia Pty Ltd. All rights reserved. For informational purposes only
PATHFINDER
LED
Lighting the way
PST900/XS Wiring Detail
Output Junction Box
Input Junction Box
LE Input Junction Box
Recommended interconnection cable (Remote Mount)
2
4 Core 2.5 mm Max Length 80 Metres
Recommended interconnection cable (Driver On Board)
2
4 Core 1 - 1.5 mm Max Length 5 Metres
AC Input can be split into two channels if
individual switching is desired
PST900/XS Light Engine
Junction Box
The PST 900/XS Light Engine module is designed
solely for use with its associated PDM2I60-PS900
Driver Module.
DO NOT CONNECT TOANY OTHER SUPPLY
CAUTION: DC Input polarity critical. Continuous
or momentary reverse polarity will irreparably
damage the LED COB and void warranty
PLED18-900-8
BROWN
BLUE
+
-
OUTPUT 1
BROWN
BLUE
+
-
OUTPUT 2
Control 1
Control 2
BROWN
BLUE
DRIVER 1
INPUT 1
DRIVER 2
INPUT 2
GRN/YEL
ACTIVE
NEUTRAL
EARTH
BROWN
BLUE
GRN/YEL
M20 x 1.5mm
M25 x 1.5mm
BLK/WHT(V )
AUX
PURP(DIM +)
GRY(DIM -) DIM2 -
DIM2 +
2Vaux
BLK/WHT(V )
AUX
PURP(DIM +)
GRY(DIM -) DIM1 -
DIM1 +
1Vaux
2+
2-
1+
1-
DIN Rail
Ground
All junction boxes are designed to facilitate
25 x 1.5 mm & 20 x 1.5 mm liquid tight
conduit fittings. Any fittings employed must
conform to IP67
RED
BLCK/WH
INPUT 1
+
-
INPUT 2
+
-
RED/YEL
1+
1-
2+
2-BLK/YEL
2020 Pled Australia Pty Ltd. All rights reserved. For informational purposes only
PATHFINDER
LED
Lighting the way
Specifications
2 2
Inrush Current(I t) 4.70 A s
Per Channel At 220Vac
input, 25?cold start
Duration = 7.64 ms,
10%Ipk-10%Ipk.
Dimming is achieved by placing an
active 0-10V voltage source, a PWM
signal, or passive component like a
resistor or zener across
If dimming is not required, Dim + should
remain open.
Dim +
(PURPLE) and Dim- (GREY)
Dimming Connections
Positive logic Negative logic
Casambi enabled modules are equipped with the CBU-ASR twin
channel Bluetooth dimming controller built into the driver assembly.
Once connected, the luminaire assembly will be visible to the
Casambi smartphone app. and may be integrated into a network in
accordance with Casambi operating protocols.
For complete information on the Casambi system and its operation
log on to https://casambi.com/products/CBU-ASR.html
PLED18-900-8
2020 Pled Australia Pty Ltd. All rights reserved. For informational purposes only
PATHFINDER
LED
Lighting the way
Aiming The PST900/XS Light Engine
The PST900/XS must be aimed in Azimuth and Elevation precisely in accordance with the
appropriate site lighting plan specifications. Azimuth values are set using a suitable
protractor to establish the desired relative angle between the pole zero reference and the
luminaire reference(Meausured from any longitudinal mounting trunnion face).
Elevation values are set using the onboard inclinometer.
The luminaire may also be aimed visually by gunsight alignment of two external features on
the heat sink body
Luminaire orientation with
0
inclinometer set to 0
Elevation Adjustment
Inclinometer Azimuth Reference
Face
PLED18-900-8
90,00°
Torque trunnion Nuts to 107Nm.
Luminaire utilises low sail area with
a multi friction surface mounting
trunnion and has been designed to
AS/NZS60598.2.5:2002 Region C,
Terrain Category 2 Wind Loading,
for wind speeds up to 250Km/H at
a mounting height of 30m.
Original sighting parameters will be
maintained negating the
requirement for re-aiming to
original lighting design in the event
of such an occurrence.
Index Notch
2020 Pled Australia Pty Ltd. All rights reserved. For informational purposes only
PATHFINDER
LED
Lighting the way

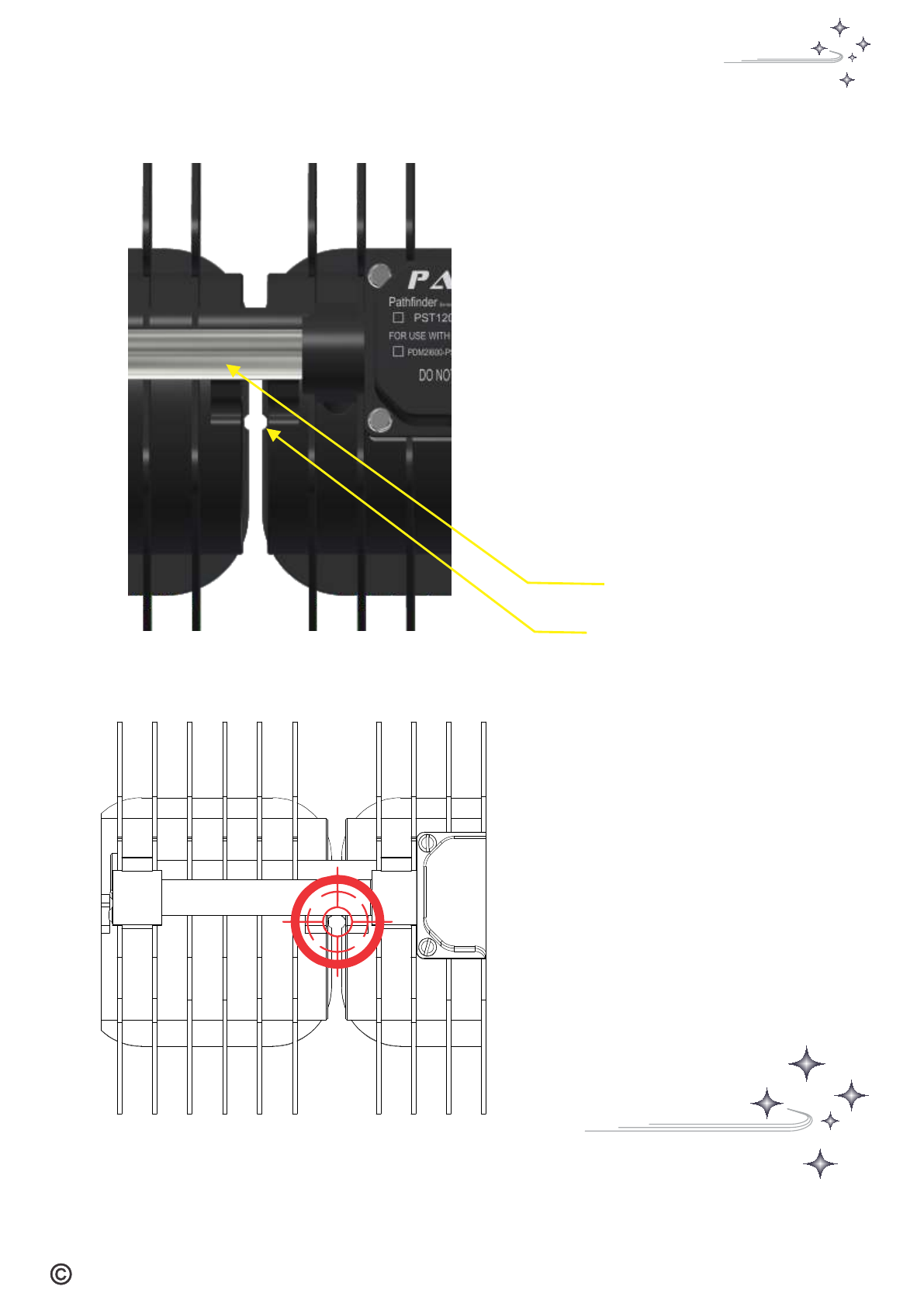

Visually Aiming The PST900/XS Light Engine
PLED18-900-8
Gunsight Notch
Gallery Tube
In the absence of detailed lighting plan
data the luminaire may be crudely aimed
using two visual references on the main
body, namely the gallery tube and a
notched gunsight mark on the forward
faceplate.
This method is adequate for symmetrical
optics however, it is only approximate
with asymmetric optics and correct
verification will need to be conducted
during the hours of darkness with a lux
meter.
In areas sensitive to light pollution it is
highly recommended to obtain accurate
aiming data and set the luminaire
accordingly
Loosen trunnion nuts and bracket
mounting bolt. Rotate luminaire
until target can be viewed in the
notch between the forward face-
plates, Tilt luminaire until target is
aligned with the bottom of the
gallery tube and the gunsight mark
as shown. Re-Torque fasteners
2020 Pled Australia Pty Ltd. All rights reserved. For informational purposes only
PATHFINDER
LED
Lighting the way
‘Pathfinder’ manufactured by:
Pled Australia Pty Ltd
Ph: +618 9248 2183
Fax: +618 9209 3457
36 Harris Road,
Malaga,
Western Australia 6090
