ASSEMBLY INSTRUCTIONS

ISSUE 2

TR007 / TR008 Trolley

Assembly Instructions

TR007 / TR008 Trolley, Machine and Drawer / Water Cooler Page 1 of 3

Parts List

Trolley

1) Trolley Base complete with Wheels x 1

2) Bottle Support Panel (double width for TR007) x 1

3) Drawer / Water Cooler Fixing Bracket x 2

4) Handle Panel

5) M6 x 10 Screw x 13

6) M5 x 12 Screw x 4

7) Gas Bottle Securing Chain x 1

Drawer

8) Drawer Unit x 1

9) Machine Fixing Bracket x 2

10) M5 x 12 Screw with Washer x 8

Water Cooler (Optional Extra)

11) Water Cooler Unit

12) Machine Fixing Bracket (as item 9)

13) M5 x 12 Screw with Washer (as item 10)

6 10

Trolley

Drawer

Water Cooler

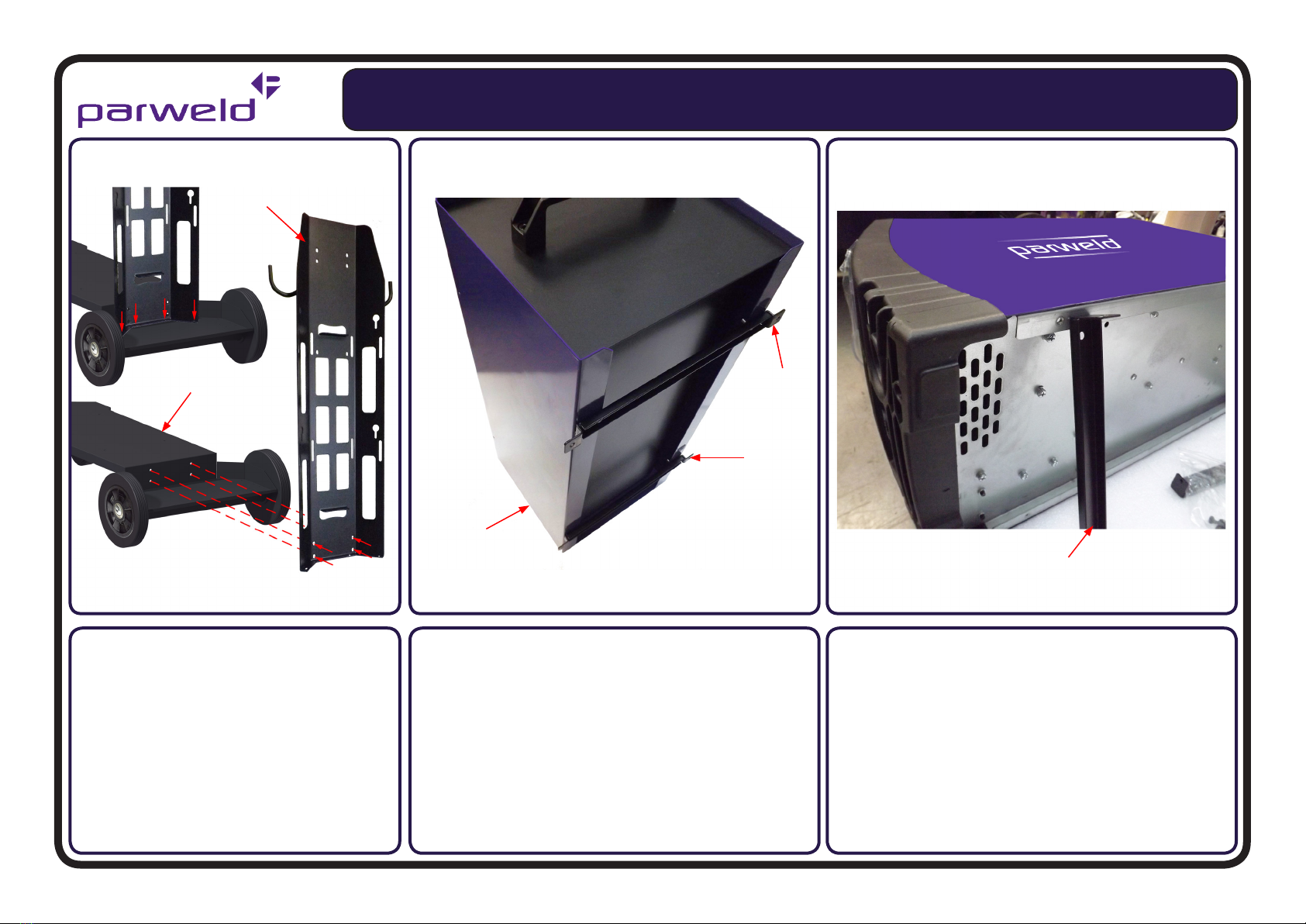

Assembly Instructions

TR007 / TR008 Trolley, Machine and Drawer / Water Cooler

STEP 1

Assemble the Bottle Support Panel

(2) to the Trolley Base (1) using 8 of

the M6x10 screws (5) as shown in

FIG 1.

FIG 1 - Assembly of Trolley

STEP 2

Remove Fixing Brackets (3) from Trolley Base

(1) by undoing the 4 screws. Assemble Fixing

Brackets (3) to the underneath of the Drawer (8)

or w/cooler (11) using the M5x12 screws (10) in 4

places as shown in FIG 2. Assemble Drawer (8)

or w/cooler (11) complete with Fixing Brackets (3)

back onto the Trolley Base (1) using the 4 screws

removed earlier.

FIG 2 - Assembly of Drawer or W/Cooler to

Trolley

STEP 3

With the machine on its side, assemble the

Machine Fixing Brackets (9) to the underneath

of the Machine using the M5x12 screws (6) in

4 places.

FIG 3 - Assembly of Brackets to Machine

Assembly Instructions

TR007 / TR008 Trolley, Machine and Drawer / Water Cooler Page 2 of 3

FIG 4 - Assembly of Machine to Drawer or W/Cooler

STEP 5

Assemble the Handle Panel (4) onto the

bottle support panel (2) using 2 of the

M6x10 screws (5). Then nally assemble

the front of the Handle Panel (4) to the

top of the machine using the 3 remaining

M6x10 screws (5).

FIG 5 - Assembly of Handle Panel

TR008 Trolley Complete with Machine

and Water Cooler Option

STEP 4

Carefully locate the Machine complete with Machine

Fixing Brackets (9) onto the top of the Drawer (8) or

w/cooler (11) as shown in FIG 4. Fix into position with

M5x12 screws (10) in 4 places.

Page 3 of 3

Assembly Instructions

TR007 / TR008 Trolley, Machine and Drawer / Water Cooler
