Parsec Technologies LABRADOR Manual de usuario

LABRADOR

Installation Instructions

Parsec’s Labrador is a compact two-in one MIMO LTE external

antenna. This unobtrusive omnidirectional antenna works on

all the common North American LTE bands with high efciency.

The Labrador is optimized for attachment to a sheetrock wall in

an ofce environment. It is ideally suited to indoor applications

where a higher performance alternative to screw on antennas is

required. The Labrador has an IP65 ingress protection rating and

may also be mounted outdoors.

Labrador Pole Mounted Labrador Wall Mounted

CHOOSING THE BEST METHOD AND LOCATION FOR INSTALLATION

CAUTION:

To get the best signal, your antenna must be mounted in an isolated area. It is important

to stay away from any interference including existing antennas, cluttered areas, or other

situations that might interupt network.

Make sure the antenna is at least 2 feet away from other antennas. Other Antennas

typically need to be 5 feet away. Antennas MUST be away from Outlets, AC or

Heating units, or anything with an electrical motor. All of these items can cause

radio interference and reduce antenna performance.

REQUIRED TOOLS

Hammer / Rubber Mallet

Phillips Screwdriver

Drill

Assemble the mounting bracket on the antenna using the four plastic thread forming screws. (Figure 1)

FIGURE 1

Assembling the Antenna

Mounting Options

Wall Mounting Instructions

Step 1.

Step 2.

For best performance it’s important that the antenna be mounted at least 2 feet away from other

objects with a clear view of the horizon in as many directions as possible. Non-penetrating roof

mounts allow the antenna to be moved away from other objects and a mast height of about 6 ft.

puts the mounting hardware and RF connections near eye level during installation. Select a mounting

location away from air conditioning units and other large metal objects.

Mark the position of the screw holes on the wall to mount the antenna on the wall. (Figure 2)

Drill 0.2” holes on the wall and install the anchors on the wall. (Figure 3)

Select one of the mounting option below, depending on your use.

- Wall Mounting (Included)

Using the 2 anchors and included screws the antenna can be mounted on

a panel or a wall.

- Mast Mounting (Included)

Using the included clamp saddle, v clamp bolt, and nuts and washers you

can mount the Labrador on a pole for better isolation.

FIGURE 2

FIGURE 3

FIGURE 4

FIGURE 5 FIGURE 6

Step 3.

Align the mounting hole on the antenna to the wall mounting holes and fasten it to the wall using two

screws provided in the kit. (Figure 4)

Pole Mounting Instructions

Step 1.

Step 2.

The mast/pole should be a diameter of between 1 and 2.5” to mount the antenna. (Figure 5)

Mount the antenna on the pole leaving at least one inch of mast above the clamp. (Figure 6)

Step 3.

Step 1.

Step 2.

Step 4.

Step 5.

Tighten the 2 nuts with your ngers, making sure equal lengths of threads extend past the nuts.

Properly route the cables making sure there is no sharp bends. Clamp the cables to the wall at about 6

inches away from the antenna if the cables are being hung straight from the wall. (Figure 8)

Attach the two RF cables to the mast roughly 1ft. below the RF connectors to provide strain relief. Vinyl

electrical tape works well for this without risk of deforming the RF cables. Black UV resistant zip-ties can

also be used if used carefully, but tan Nylon zip-ties rapidly deteriorate when exposed to the sun.

Use a 7/16 in. wrench to tighten each nut one full turn beyond nger tight to compress the lock washers.

(Figure 7)

Make sure the antenna is mounted in the correct direction and tighten the mounting hardware.

Waterproof the RF connectors using electrical tape or a heat shrink tube.

FIGURE 7

FIGURE 8

Routing the Cables

Step 1.

Step 2.

Step 3.

Step 4.

Cables on the antenna are labeled as follows, LTE-1 & LTE-2

Clean the connectors such that there is no dust in the terminals.

Connect the cables from the antenna to the similar labeled cables of “Cable Kit” (Figure 9)

Carefully screw the N male connectors of the coaxial cable onto the N female connectors on the

antenna. If the connectors do not screw on easily using ngers, stop. The connector may be cross

threaded. Unscrew the connector and try again. Tighten the N connector rmly to compress the

water-tight gasket inside the connector and to keep the connector from working loose. Channellock

412 small V-Jaw pliers may be useful for getting a grip on the connector. The required torque is only 15

inch-pounds so be careful when using this or other tools to tighten the RF connectors.

Connect the cables from the antenna to the designated connector on the router using a SMA torque

wrench with a torque limit of 3 to 5 inch-pounds is recommended. If a torque wrench is not available,

it is possible to carefully tighten SMA connectors a 5/16 in. wrench if you use one nger no farther than

2 inches up the wrench to limit torque.

Cable Connection Instructions

FIGURE 9

N-Type SMA Type

Note: SMA connectors have a maximum torque of 3-5 inch lbs.

Commission and Test

Part Number and Included Hardware

Step 1.

Step 2.

Cable Type: LMR200

Connectors : N-Type or SMA

Cable Labels: LTE-1 & LTE-2

Cable Kit: PC2402L40NFSM (REQUIRED - PURCHASED SEPRARATELY)

Mounting Hardware:

Check each coaxial cable connector and conrm it can’t be easily unscrewed with two ngers. Visually inspect

coaxial cable run for proper mechanical support.

Conrm the connection to a cellular network. Use a cellular device’s built in diagnostics to conrm RSSI better than

-75dB. Conrm the cellular connection supporting communication at required data rates. Carry out VSWR check,

should measure. Connect Cellular/ LTE & WLAN cables or stow unused pigtails.

972-804-4600

Parsec Technologies

[email protected]

Last Revised: 3.9.2021

Tabla de contenidos

Otros manuales de Antena de Parsec Technologies

Parsec Technologies

Parsec Technologies Beagle G Manual de usuario

Parsec Technologies

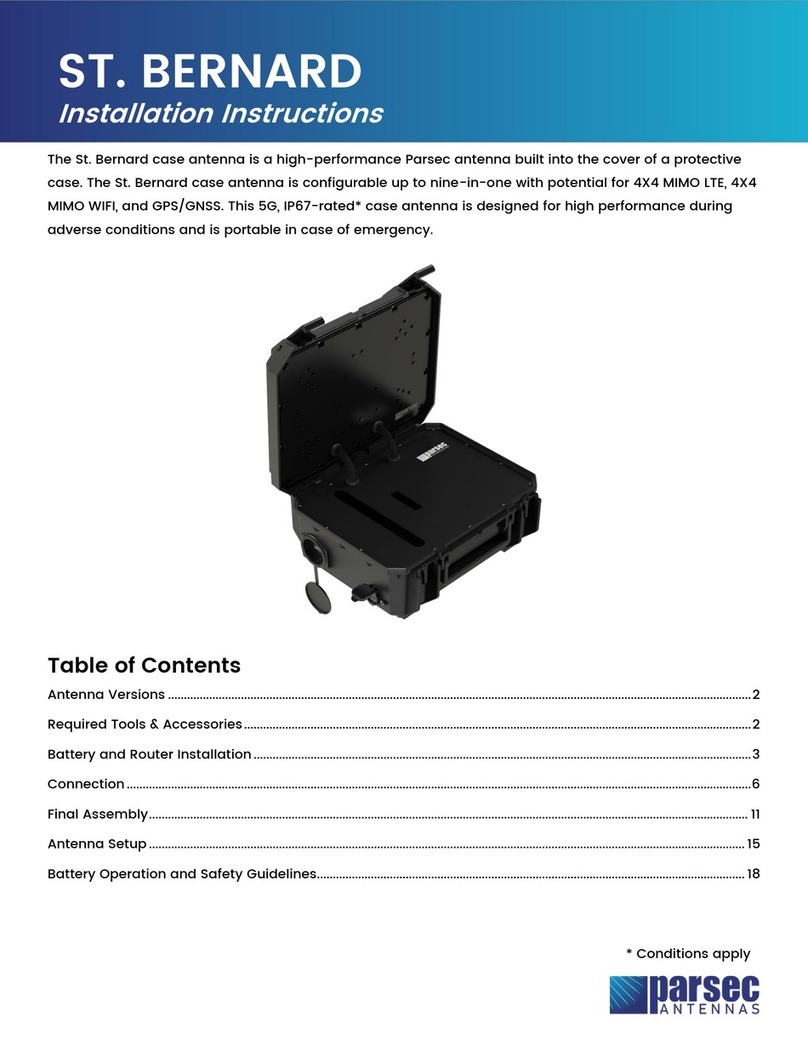

Parsec Technologies ST. BERNARD A Manual de usuario
